Portable 4K Ohm Earth Volt 200V Profession Digital Earthing Meter MS2302
- Category: Resistance Meters >>>
- Supplier: Shenzhen Habotest Instrument Technology Company Limited
Share on (60501965618):
Product Overview
Description
MS2302 Portable 4K Ohm Earth Volt 200V Profession Digital Earthing Meter
Product Description
MS2302 Digital Earthing Meter | ||
Features | ||
Digital Display & Analog Bars Display | ||
Low Battery Display | ||
Auto Power Off | ||
Display Backlight | ||
Earth Resistance By Constant Current Inverter 800Hz/3mA | ||
MAX/MIN/AVG/REL Measurement Functions | ||
Data logging And recall | 100 groups | |

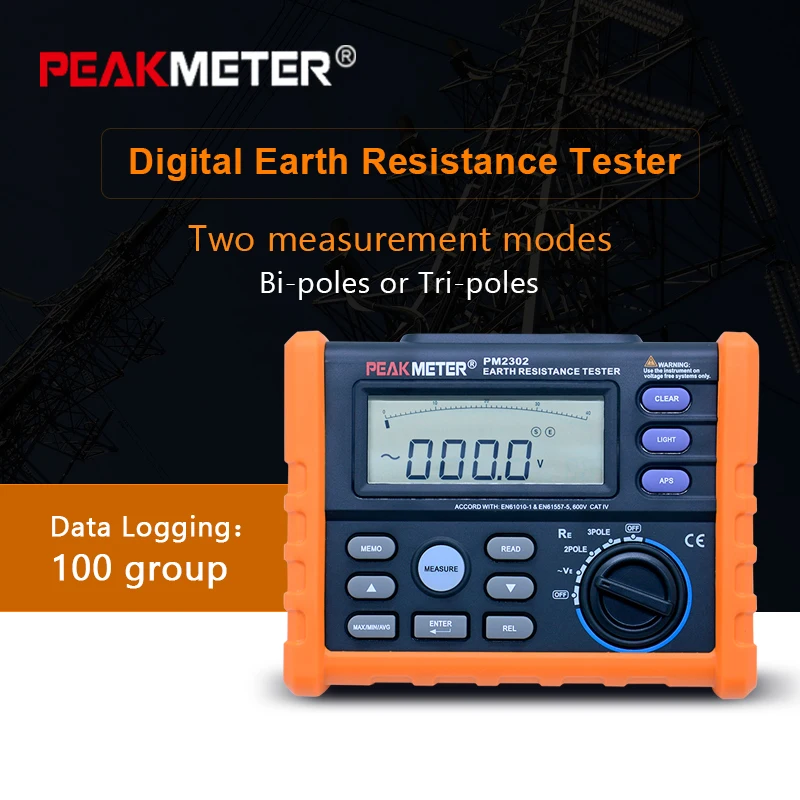

Test method | 2 Pole and 3 Pole Mode | |
Power supply | 6x1.5v AA batteries | |
Weight | Approx 950g | |
Size | 180mm x 140mm x65mm | |
Safety Rating | CE ETL CAT.Ⅲ1000V RoHS | |
Specifications | ||
Range | Accuracy | Resolution |
Resistance |
|
|
0Ω ~ 29.99Ω | ±(2% + 6dgt) | 0.01Ω |
30Ω ~ 99.9Ω | ±(3% + 3dgt) | 0.1Ω |
100Ω ~ 999.9Ω | ±(3% + 3dgt) | 1Ω |
1.00KΩ ~ 4.0000KΩ | ±(3% + 3dgt) | 10Ω |
Voltage |
|
|
0V to 200V (50 to 60Hz) | ±(1%+5dgt)) | 0.1V |

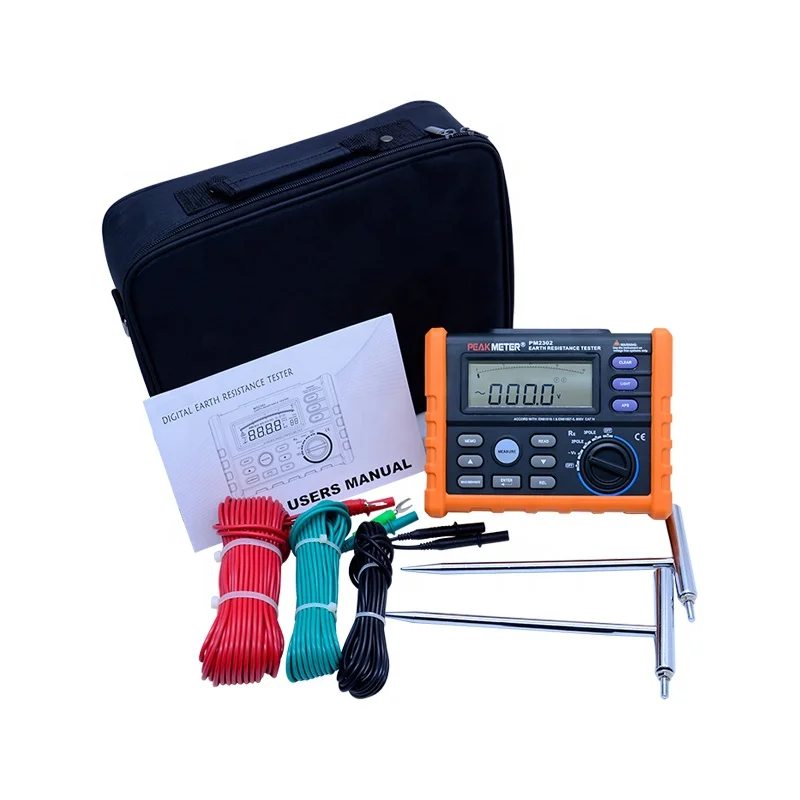

Accessories
15-meter-long red lead | One piece |
10-meter-long green lead | One piece |
5-meter-long black lead | One piece |
Auxiliary earth bars | Four pieces |
User’s manual | One piece |
1.5V AA battery | Six pieces |
Carry case | One piece |
Gift box | One piece |
Detailed Images
MS2302 Digital Earthing Meter
