For some of you who have not seen products of this kind before may have a doubt on the function of plastic roof sheets? Are they strong enough to against heavy rain and snow, strong wind and other weather? Are they eco-friendly? Are they long lasting?

ASA synthetic resin tiles / PVC sheets are light, colorful, have good strength and toughness and are durable. They are useful for decorative as well as heavy roofing applications. ASA synthetic resin tiles / PVC sheets give high strength to weight ratio due to their low density. This property offers greater flexibility and savings in the construction cost of the structure than traditional roof materials like easy rusty and heat absorption steel sheets ,fragile clay sheets and other roof materials.

· Available for faster installation, fewer seams
· White reflective Cool Roof surface helps reduce air conditioning costs
· Proven performance in the toughest climates and environments
· Low water vapor permeance and water absorption
· Exceptional resistance to solar UV, ozone, and oxidation
· High strength prevents breaking and tearing
· Exceptional flexibility for easy, quick installation
· High long-term mechanical strength
Materials:
The First layer: weather resistant resin is selected as the top layer material to block the solar ultraviolet radiation and reduce the coefficient of heat conductivity. It provides our UPVC roofing material with great durability and chemical corrosion resistance;
The Second layer: the middle layer is a special foam structure with heat and sound insulation performances.
The Third layer: the bottom layer of our heat insulated UPVC roof sheet adopts modified PVC material to offer optimum strength and rigidity.


Specification:
| Product' s Name | YH THREE LAYERS PVC ROOF SHEETS | ||
| THICKNESS(±0.1MM) | 2.0MM | 2.5MM | 3.0MM |
| WIDTH | 1130MM | ||
| EFFECTIVE WIDTH | 1000MM FOR WAVE SHAPE, 1060MM FOR TRAPEZOIDAL SHAPE | ||
| WEIGHT/SQM(± 0.1KG/M2) | 3.7KG/M2 | 4.7KG/M2 | 5.7KG/M2 |
| WAVE SPACE | 66MM FOR WAVE SHAPE, 210MM OR 250MM FOR TRAPEZOIDAL SHAPE | ||
| HEIGHT | 16MM FOR WAVE SHAPE, 27MM OR 38MM FOR TRAPEZOIDAL SHAPE | ||
| PURLINE DISTANT | 800-1000MM (UP TO THICKNESS) | ||
| CONTAINER LOADING | THICKNESS | FCL/ 20FT(21 TONS) | FCL/ 40FT(26 TONS) |
| 2.0MM | 5600 M2 | 6900 M2 | |
| 2.5MM | 4400 M2 | 5500 M2 | |
| 3.0MM | 3600 M2 | 4500 M2 | |

| Tested Item | Content | Result | Testing Standard |
| Environment | Pollution or environment friendly | No Asbestos and environment friendly recycling materials | GB6566-2001, A standard, good for environment |
| Heat Distortion | Under 70.0 ℃ | No change | GB/T1634-2004 |
| Vicat Softening Temperature | Under 75.2 ℃ | No softening | GB/T1633-2000 |
| Fire Resistance | B1 grade | Oxygen index 35 | GB/T2406-1993 |
| Vertical Burning | FV-0 | FV-0 | GB/T2408-1996 |
| Horizonal Burning | FH-1 | FH-1 | GB/T2408-1996 |
| Impact Resistance | No crack | 0/10 | GB/T8814-2004 |
| Density | 1.75-1.95 | 1.79 | GB/T1033-1986 |
| Corrosion resistance | Acid (HCL, H2SO4,HNO3) 5% | No change | GB/T3801-1999 |
| Corrosion resistance | Alkaline (NaOH) 5% | No change | GB/T3801-1999 |

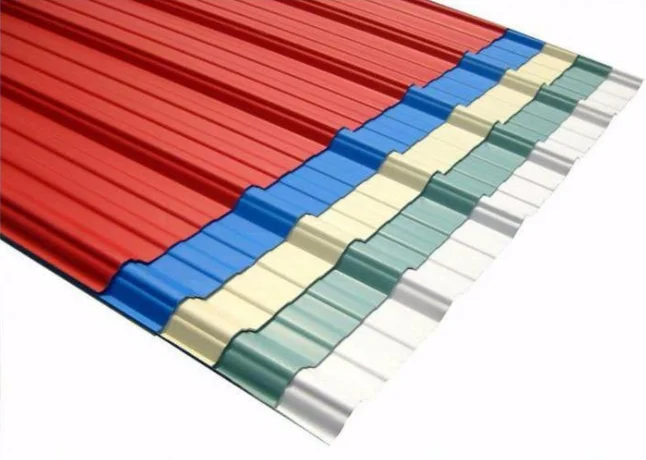

Shapes as below:

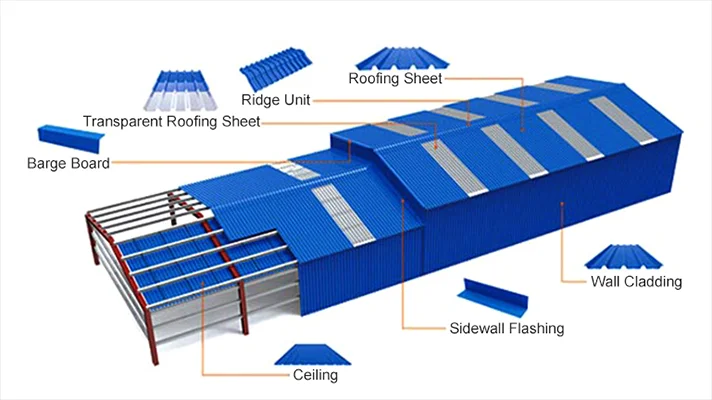

Accessories:

ASA synthetic resin tiles / PVC sheets are the preferred choice for a variety of construction applications both in residential, industrial and commercial. Yuehao plastic roof sheets /wall cladding sheets can be applied to the following construction:
*Fertilizer *Papermaking *Foundry *Tourism place
*Mining *Food processing *Chlor-alkali *Salinization
*Textile *Residential villa *Porcelain *Cultivation
*Brewing *Electroplating *Chemical *Nonferrous metal
*Poultry *Pet house *Public utility *Printing & Dying

The products of Yuehao have all been qualified by many authoritative organizations, such as ISO 9001:2015, SGS.We also have the honor to be awarded on many titles in the industy, such as Recommended Brand of Chinese Engineering Construction, Credit Emphasizing and Contract Conforming Enterprise in Guangdong Province and the like.
