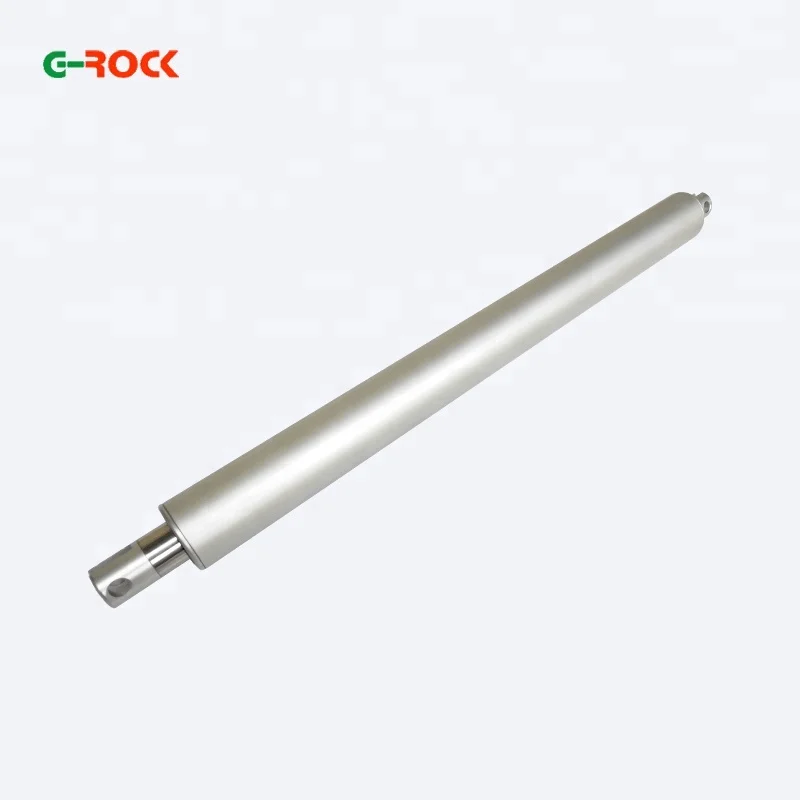

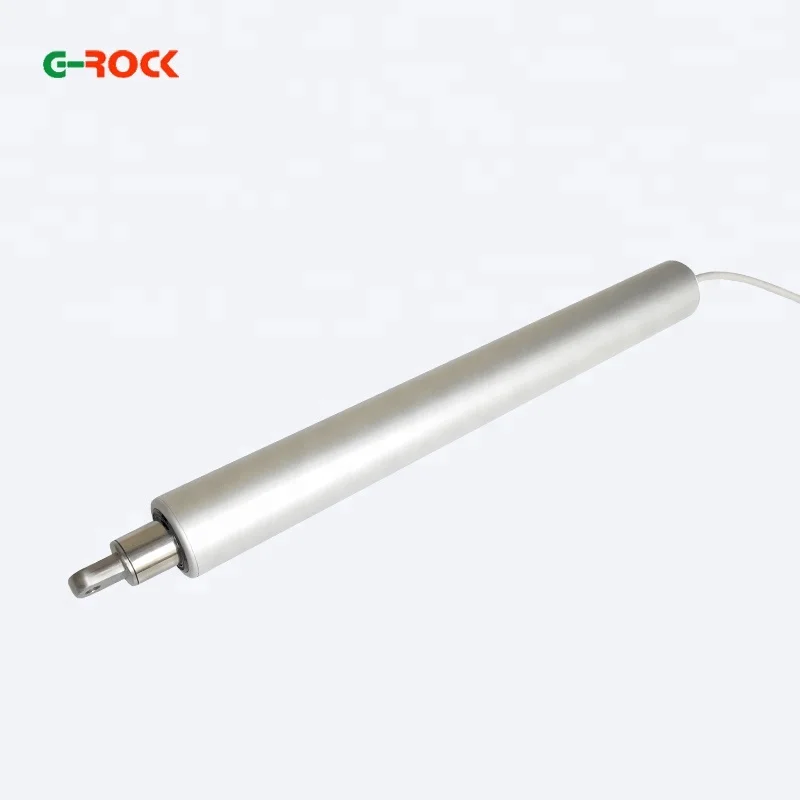

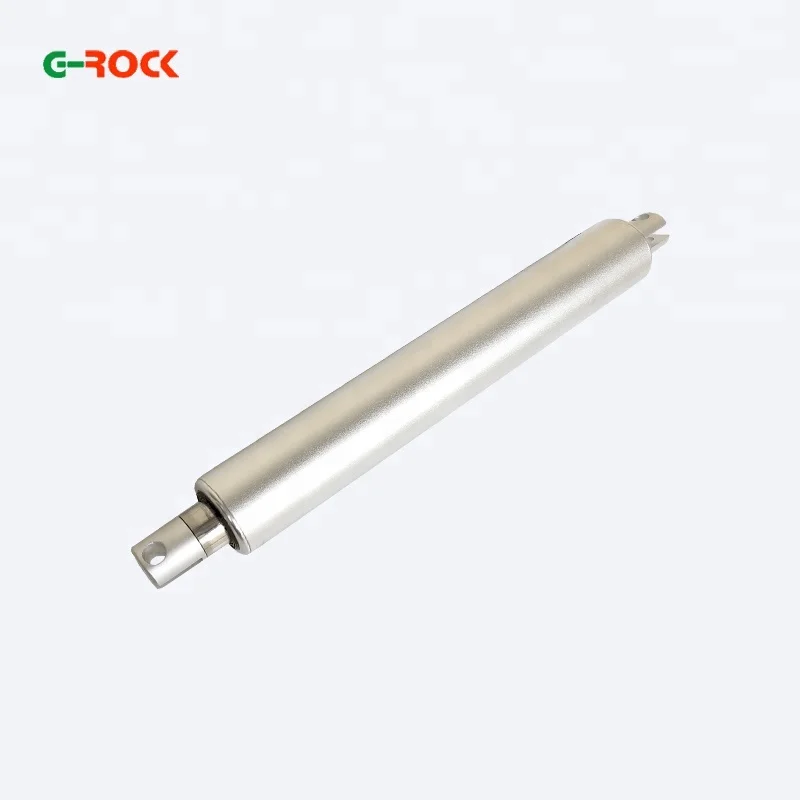

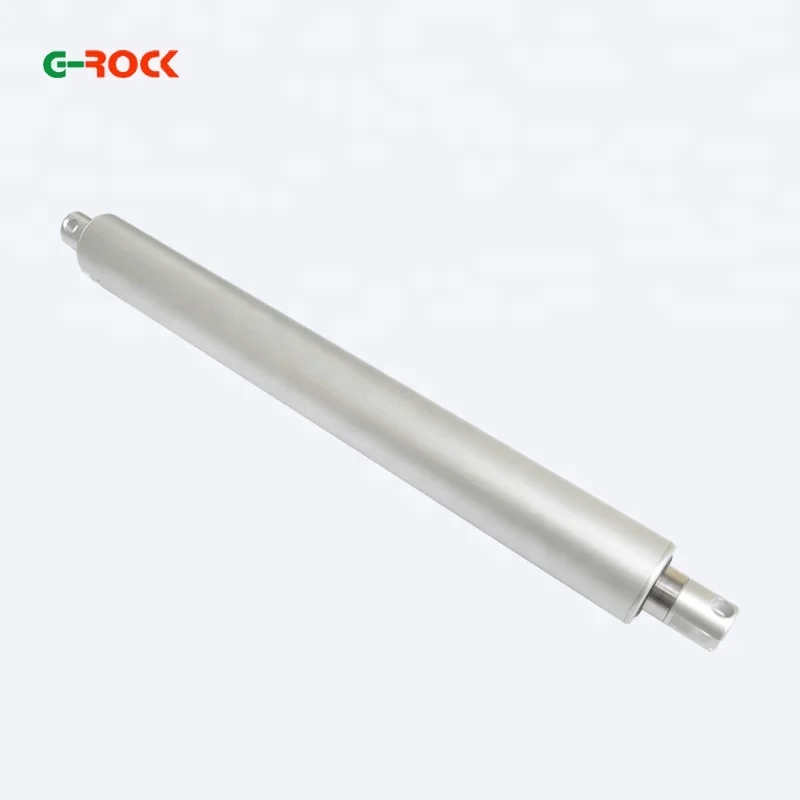

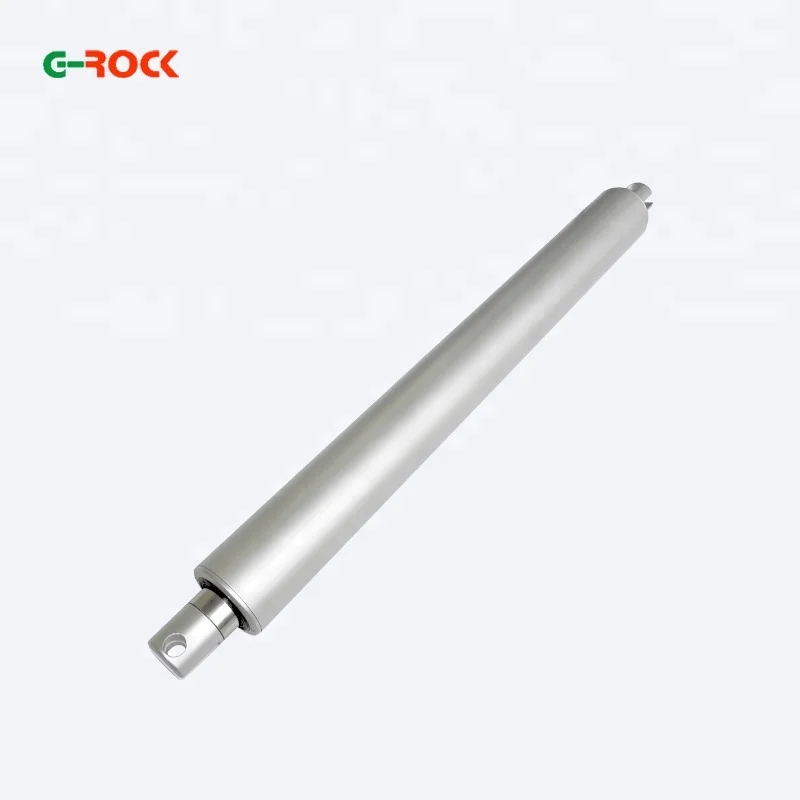

High quality powerful 12/24v mini electric linear actuator

Feature

G-ROCK 36mm In-line actuator features it's elegant design and strong force, which suitable for window opener, Blinds, Car boot opener, Electric Bicycle, TV lift, Cabinet lift, Recliner sofa, Chair, Trunk, Hatch lift, Quiet version is availabel for Furniture, Laboratory equipment, etc

1. DC12 /24V
2. Smooth and strong output, max load 1500N

3. Planetary gear box

4. Max stroke 600mm

5. Lmin=S+250
6. Self-locking function
7. Bulit-in limit switch
8. IP65

9. Hall sensor for option
10.  CE Certification

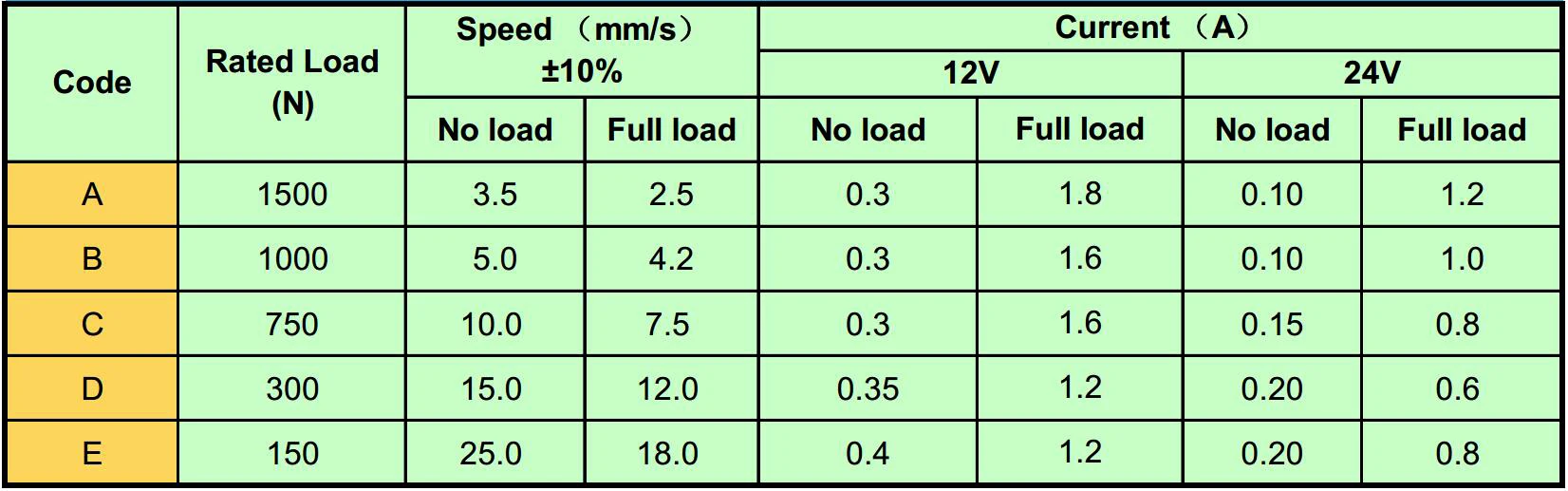

Parameters

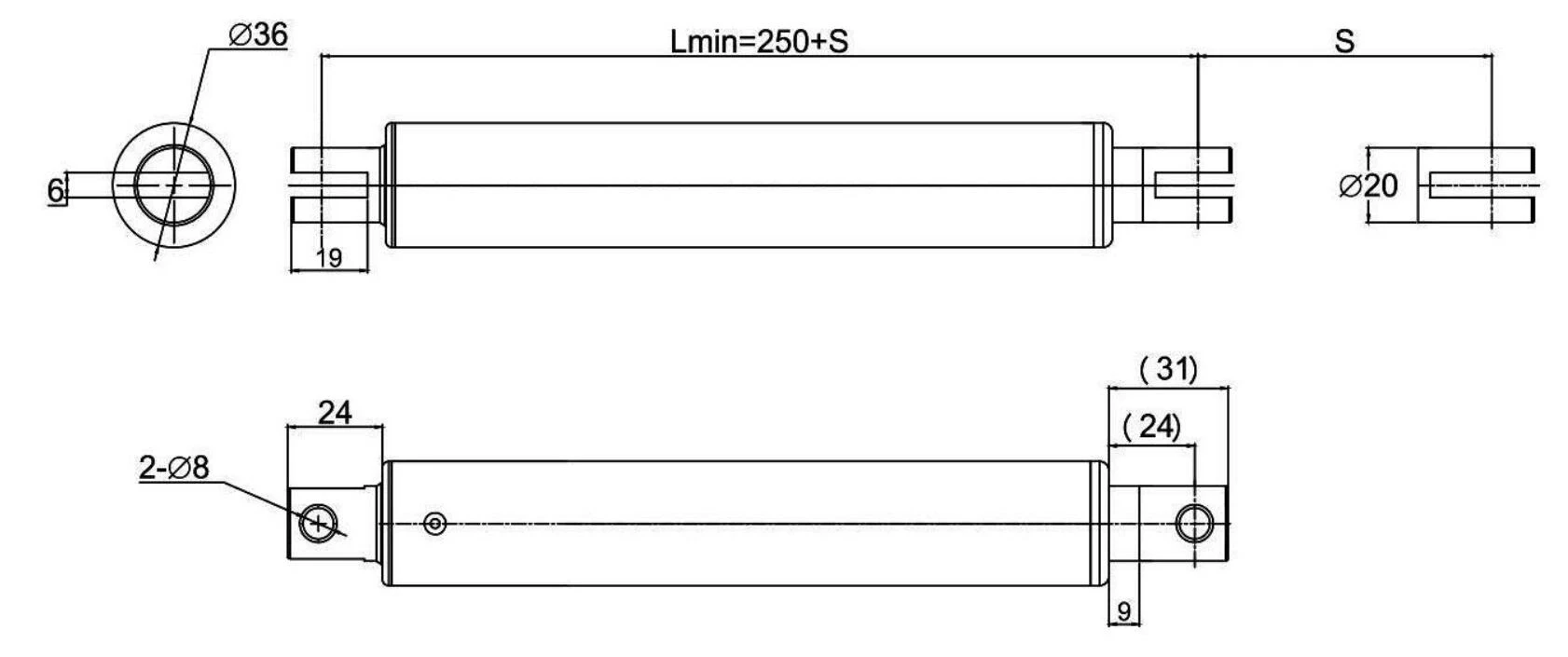

Drawing & Dimension

Parameters

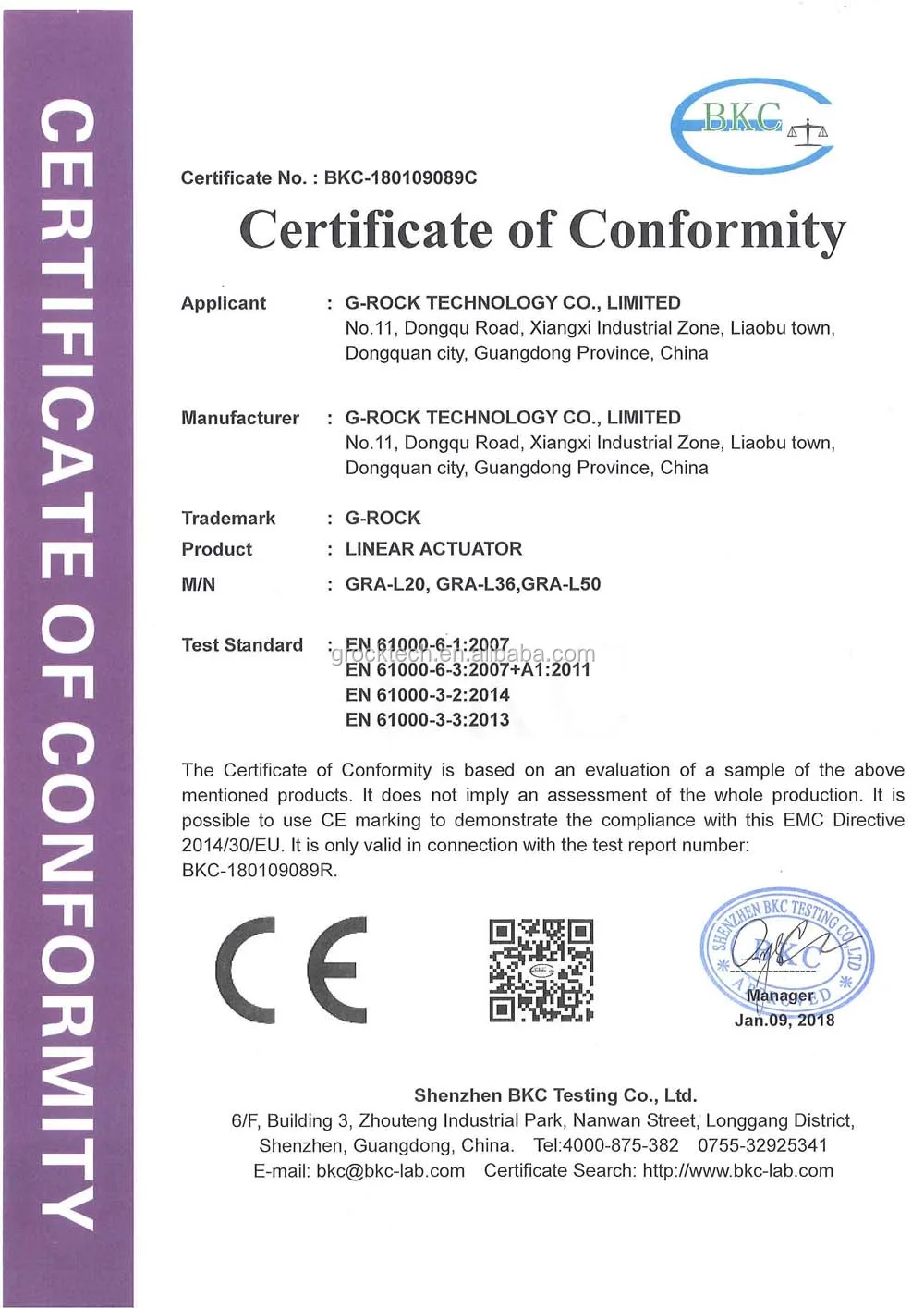

CE Certification

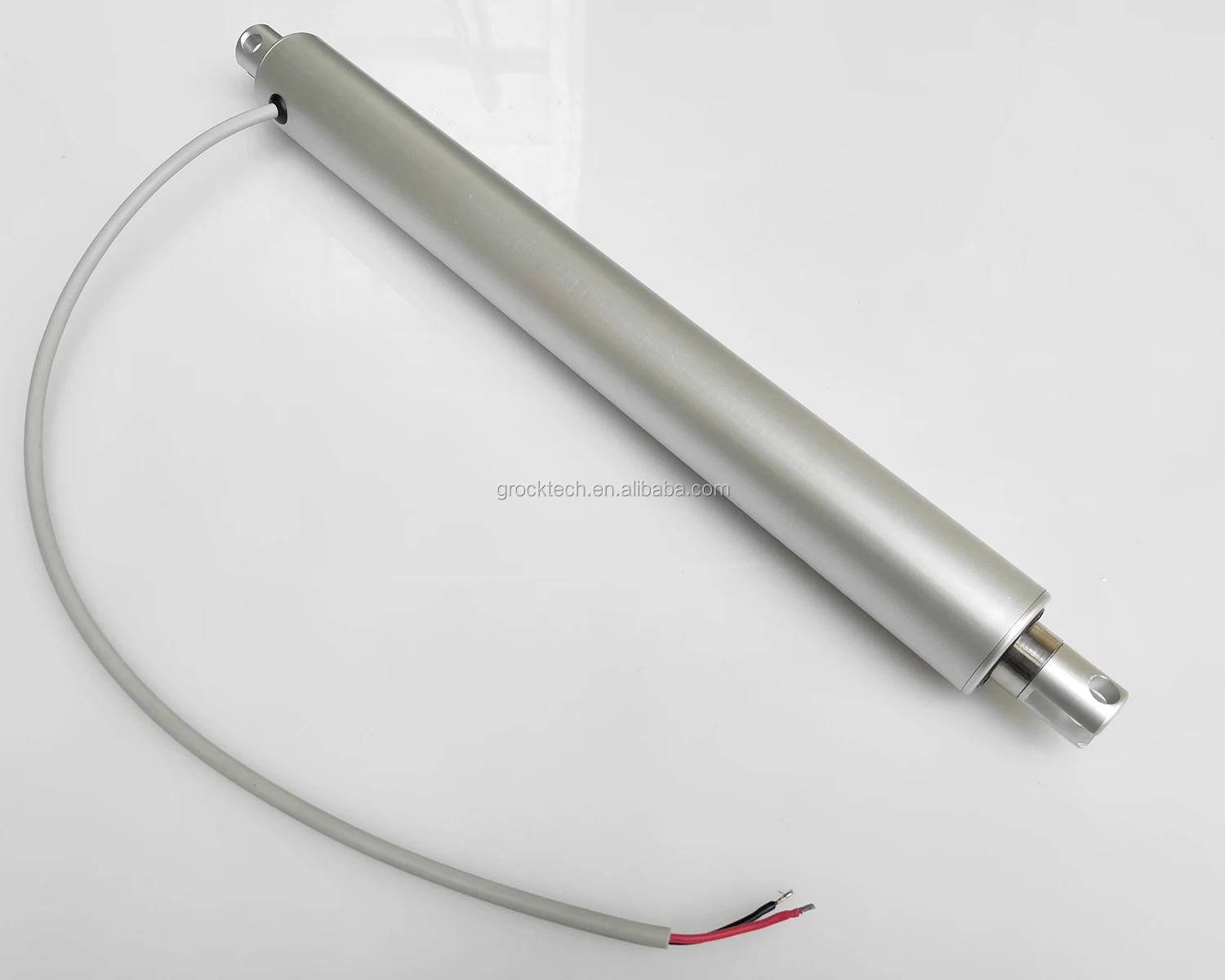

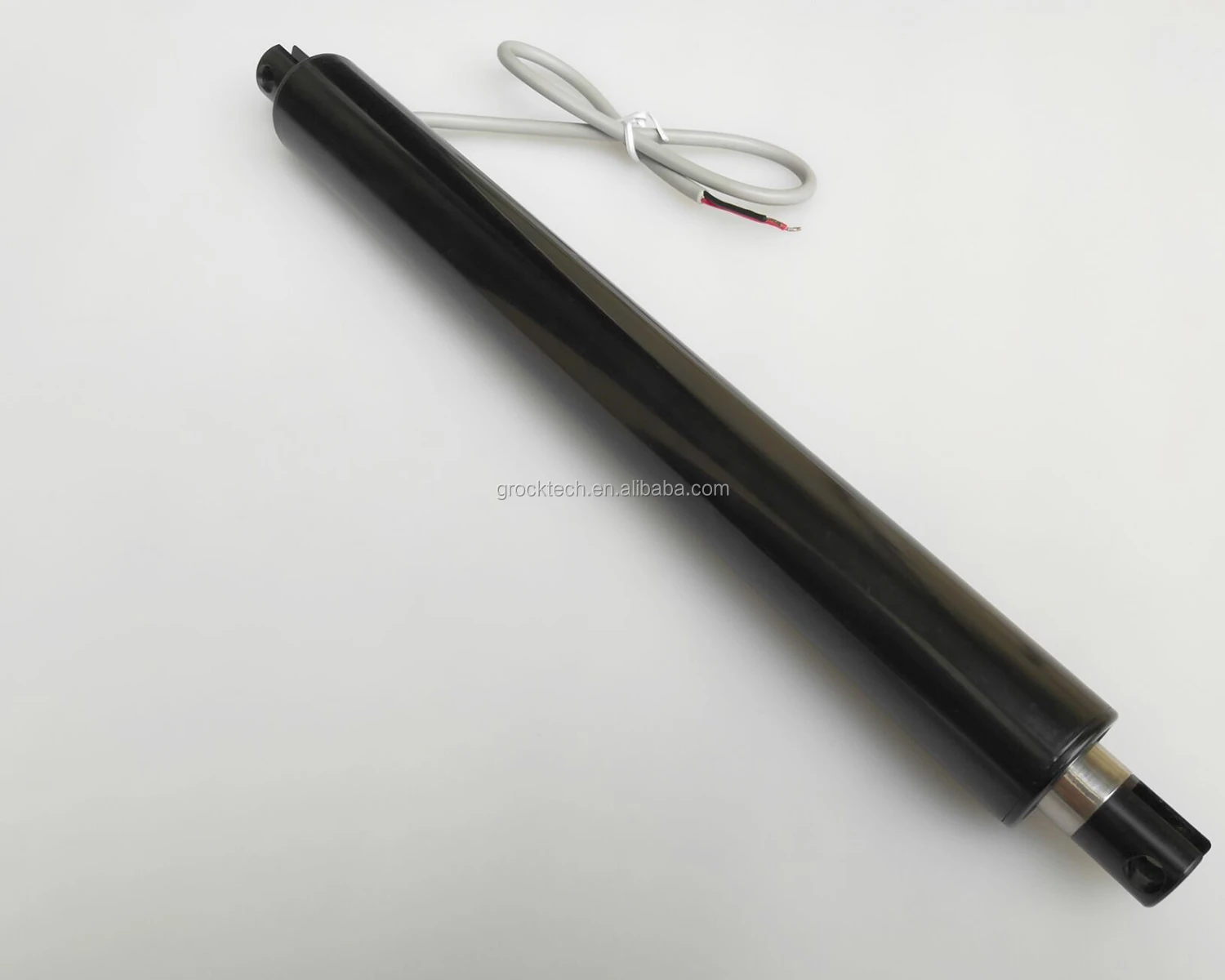

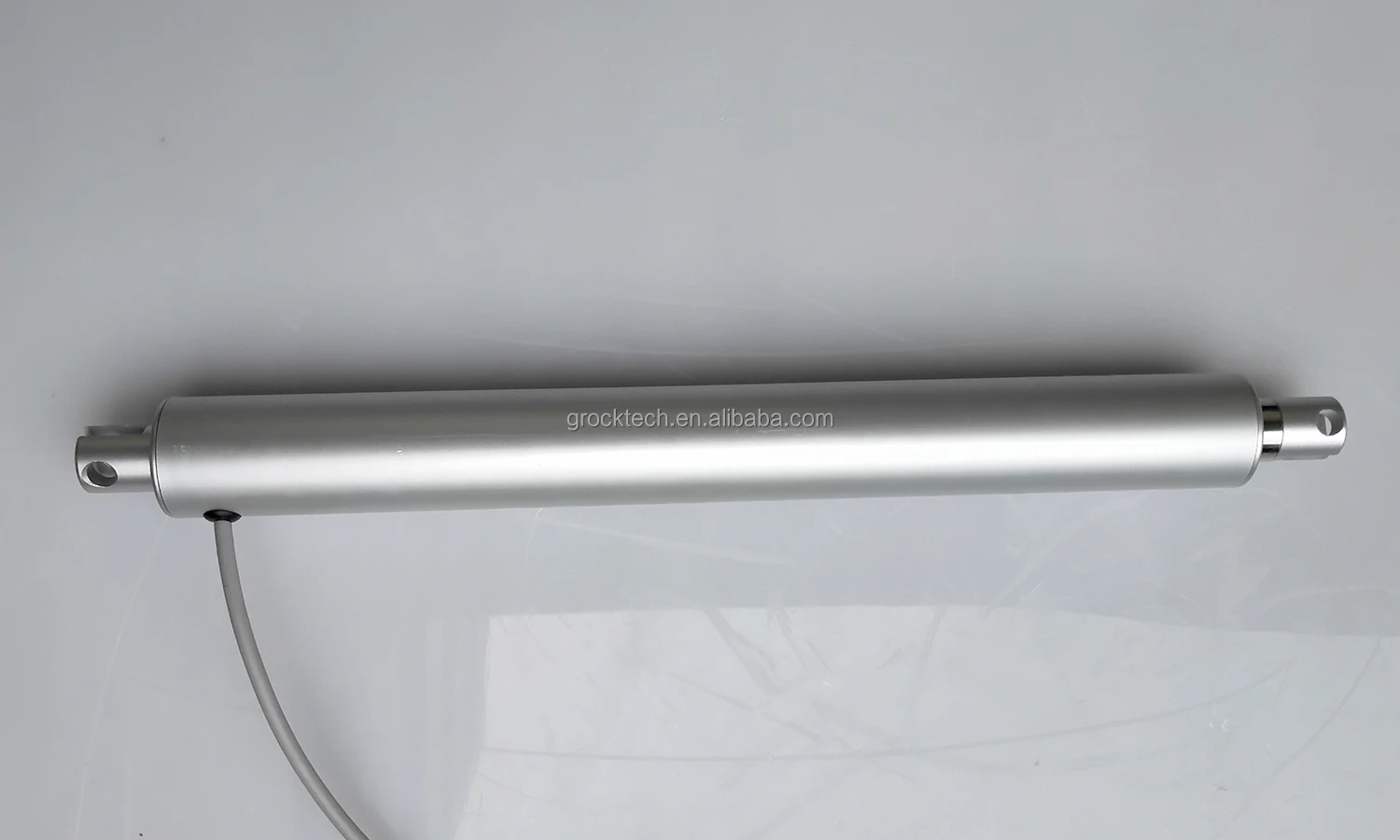

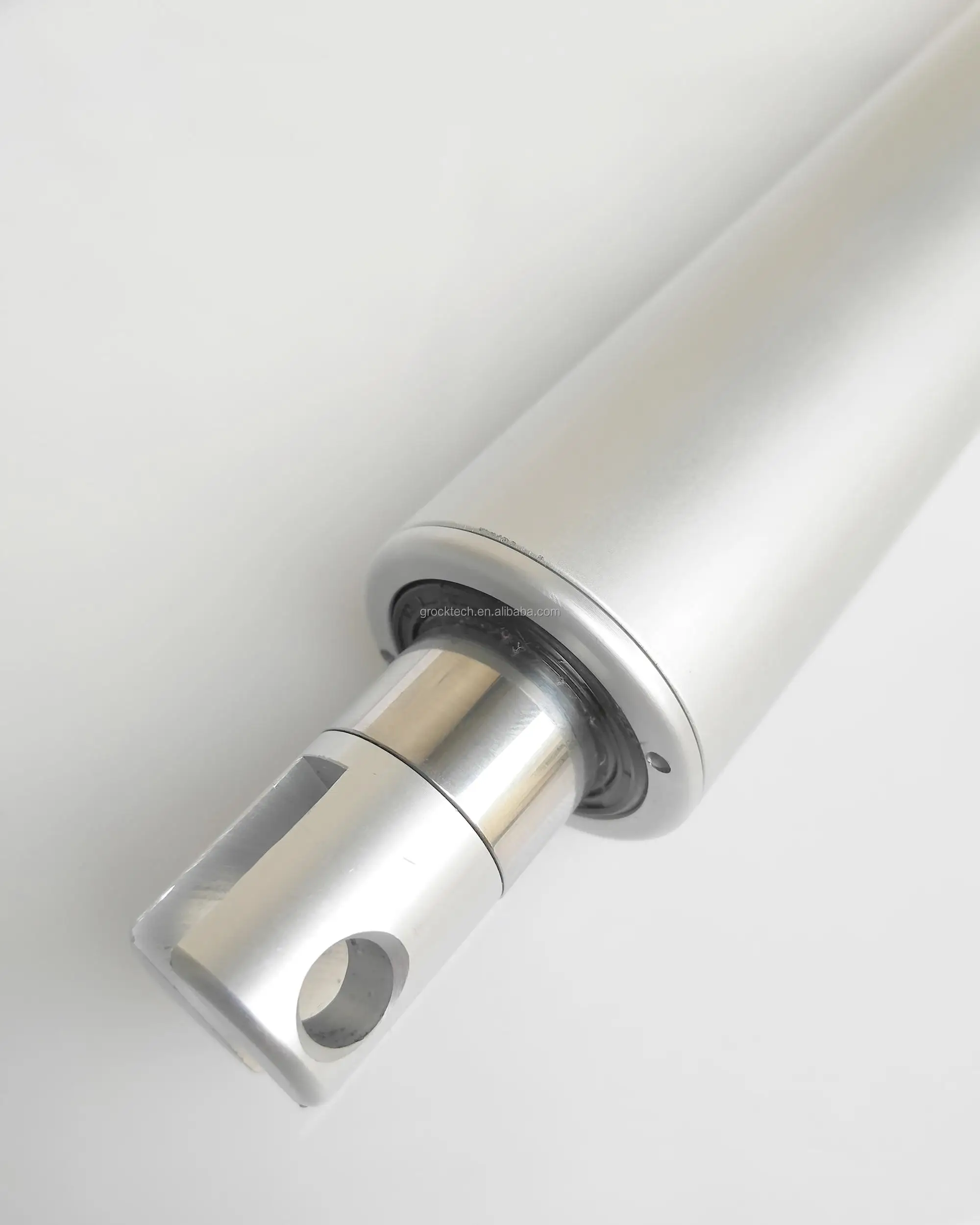

Photos View

Why choose G-ROCK

1, 10 years manufacturing experience in linear motion.

2, Professional R&D team, can meet non-standard design at any time.

3, Gold supplier for well-known enterprise.

G-ROCK factory
