Waste PP PE recycled ldpe hdpe plastic washing machine line plant equipment
- Category: Recycle Washing Line >>>
- Supplier: Zhangjiagang Lianding Machinery Co. Ltd.
Share on (60502350046):
Product Overview
Description
Product Description
Waste PP PE recycled ldpe hdpe plastic washing machine line plant equipment
Introduction:plastic recycling machine
Material: Plastic Films / PP PE Woven Bag / HDPE LDPE PP PE Bottle
Product size: 30-100mm or customized
Moisture content remain: <3%

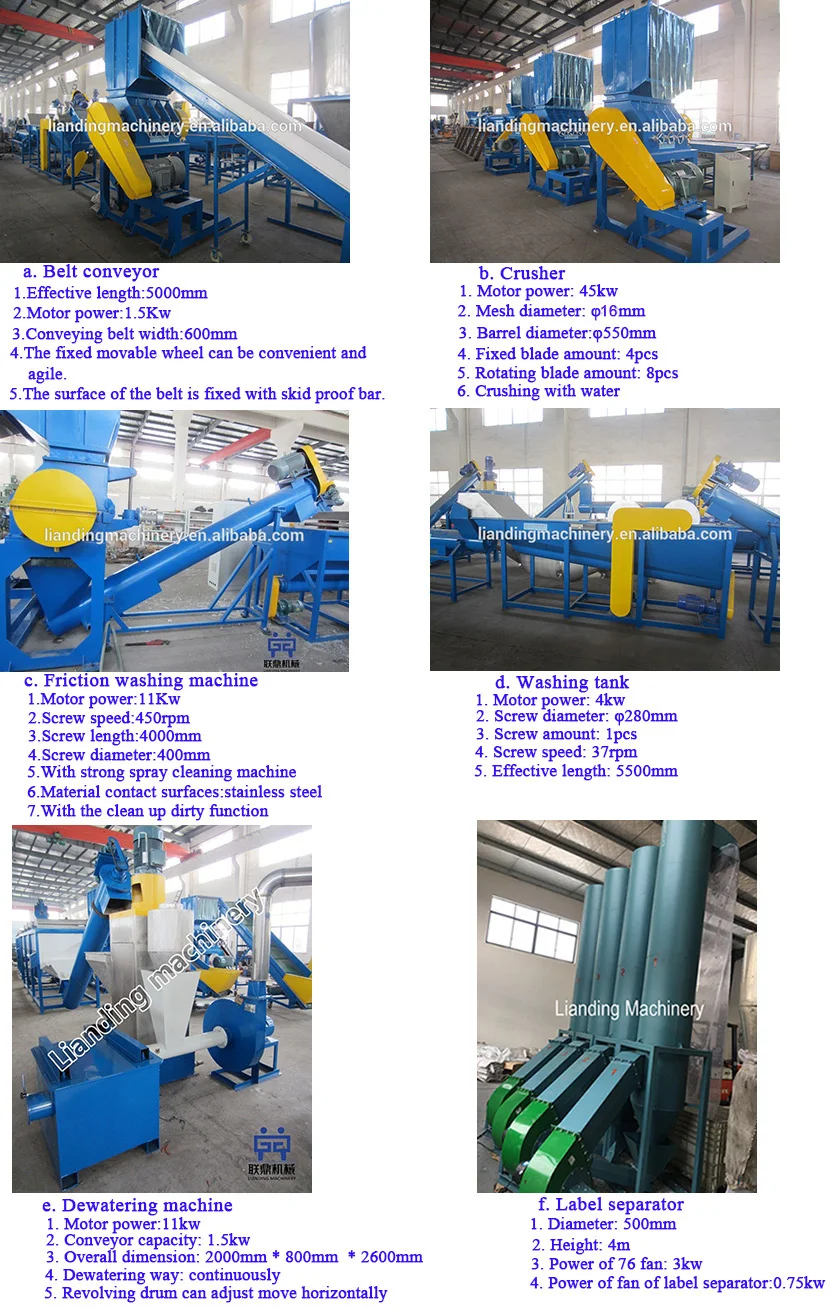

Progress flow(500KG/H pp pe film standard system):
ê Belt conveyor: conveying dirty plastic film or bag into crusher. If too much scrap iron, metal detector may be needed.
ê Crusher: can crushing with water, cut plastic film or bag into small pieces
ê Screw loader: load film pieces into the next step
ê High-speed washing machine: Washing out the sand, soil and loading the material
ê Washing tank: separate the sand, soil and other dirties
ê Squeezing dryer machine: Remove the water from the material
Main Technical Dates:
| Material | Capacity | Install power | Water supply | Man power | Area required |
PP PE film/ bags
| 300KG/H | 120KW | 4-5m3/H | 2-3person | 23*5*3.5(L*W*H) |
| 500KG/H | 180KW | 5-6m3/H | 3-4person | 25*5*5.5(L*W*H) | |
| 1000KG/H | 250KW | 7-8m3/H | 4-5person | 40*6*5.5(L*W*H) |

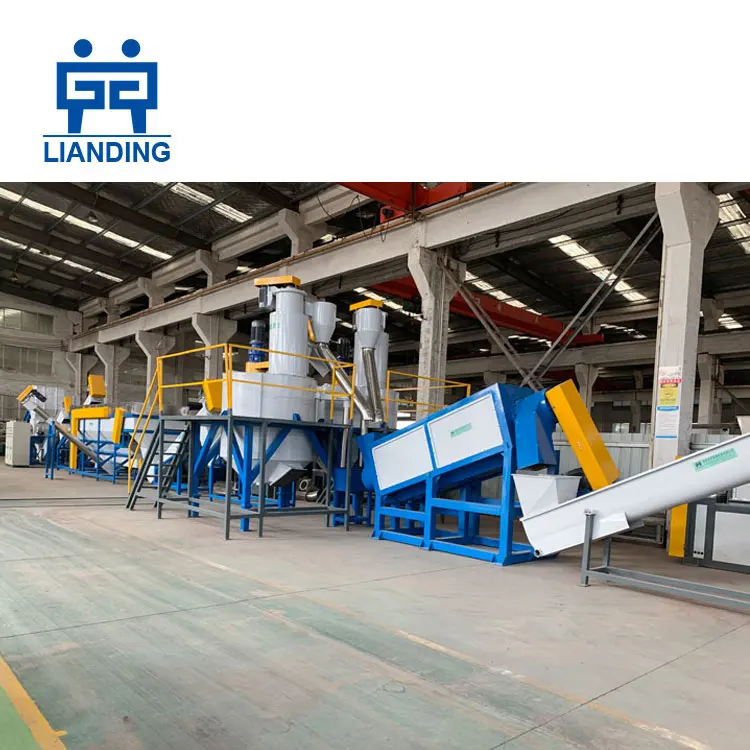

Machine photos:

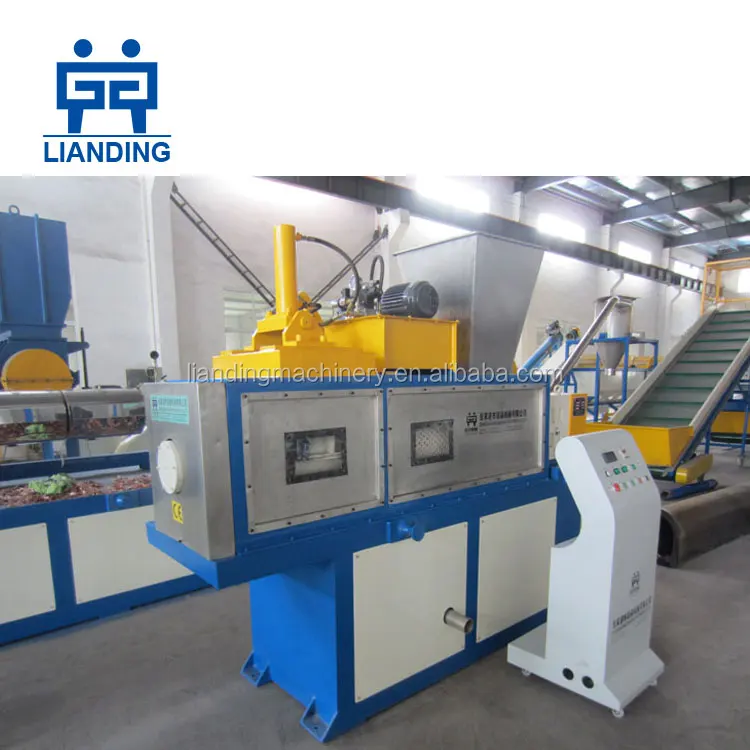

You can also choose the squeezing drying and pelletizing machine
with the screw squeezing and electrical heating, make the materials have high degree of drying and full plasticizing, low power consumption, high output. It makes materials easier to be granulated and dry, and if you use it, you will do not need following three machines: dewatering machine, pipe drying system and agglomerator, only need one stage extruder recycling machine instead of two or three stage recycling machines
More pictures of our machine:
Related machine:PET bottle washing recycling line
Why Choose us?
1.We are 10 more years plastic recycling machine factory, low price and best quality.
2.We offer excellent after-sales service.
3.Alibaba top and trade assurance supplier.
4.We passed CE/TUV approved.
5.We can do the turn-key project according to clients’ requirement.
6.We normally guarantee the quality for two year to key parts of the machine. And
Offer the parts at reasonable price for machine life time, if our buyer need any parts to replace,we will send by express as soon as possible.
This is our customer, he bought one plastic washing line for three years, this year, the liners of the dewatering machine wear out, after we heard the news, we sent him the parts by DHL, now the machine is running well.
