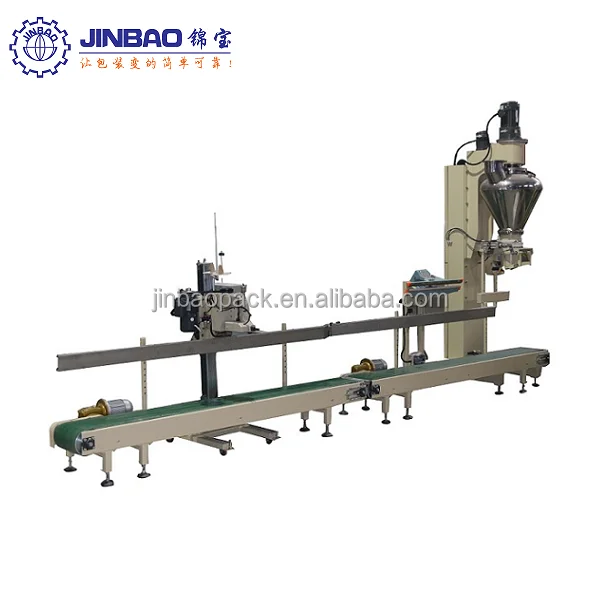

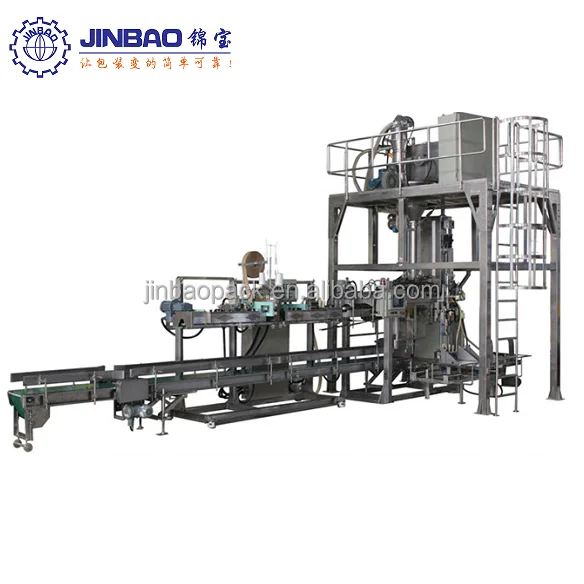

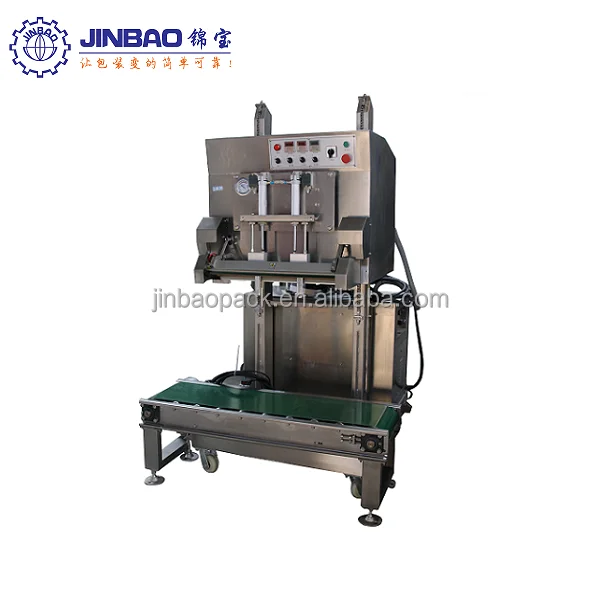

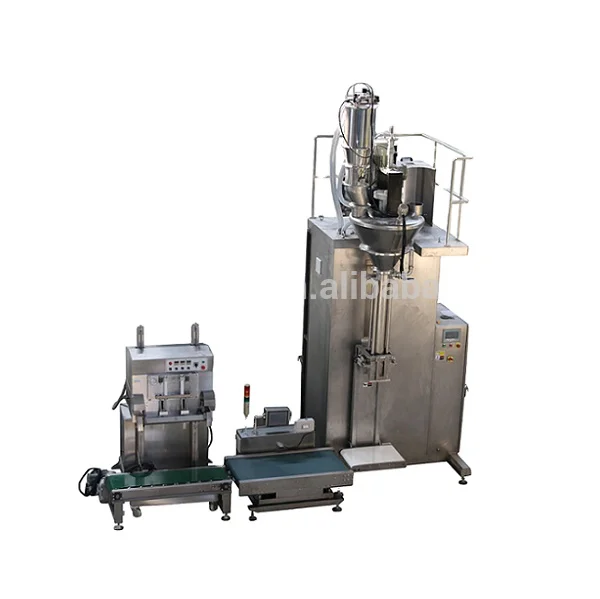

Shanghai Jinbao DCS series 25kg corn starch powder packing machine
PRODUCT INFORMATION
A.Brief description

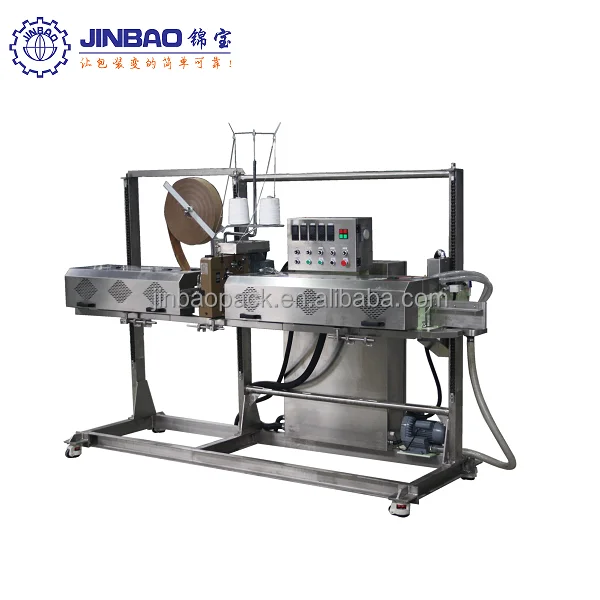

It designed to fill dry mixes powder, such as flour and additives. The filler is a 110 L hopper,it is used for accommodating the mixes and putting them into a pouch by an auger/screw(which is controlled by the agitator).The pouch is made of paper,PE or other materials,and the pouch will be sealed by a series of heaters and stitch/sew machine.
This semi-automatic bottom filling type package scale can finish process of exhaust braking, lifting type filling-measuring, sealing, conveying, ect.
B.Application & Specifications
Suitable for powder products weighing packing, such as: milk power. wheat flour, food additives, carbon powder, protein powder, ect.
SPECIFICATIONS
Technical parameters
Model
DCS-70C-CLX-DM
DCS-100C-CLX-DM
DCS-150C-CLX-DM
Hopper capacity(L)
70
100
150
Packing range(kg)
2-5
5-25
10-50
Packing accuracy(%)
≤±0.2
≤±0.2
≤±0.2
Packing spped(bags/min)
1-2
1-2
1-2
Voltage
AC380V 50Hz
Power(kw)
3.9
5.4
5.4
Machine weight(kg)
440
510
620
Machine size(mm)
1100*600*2050
1300*700*2360
1450*900*2710
Features

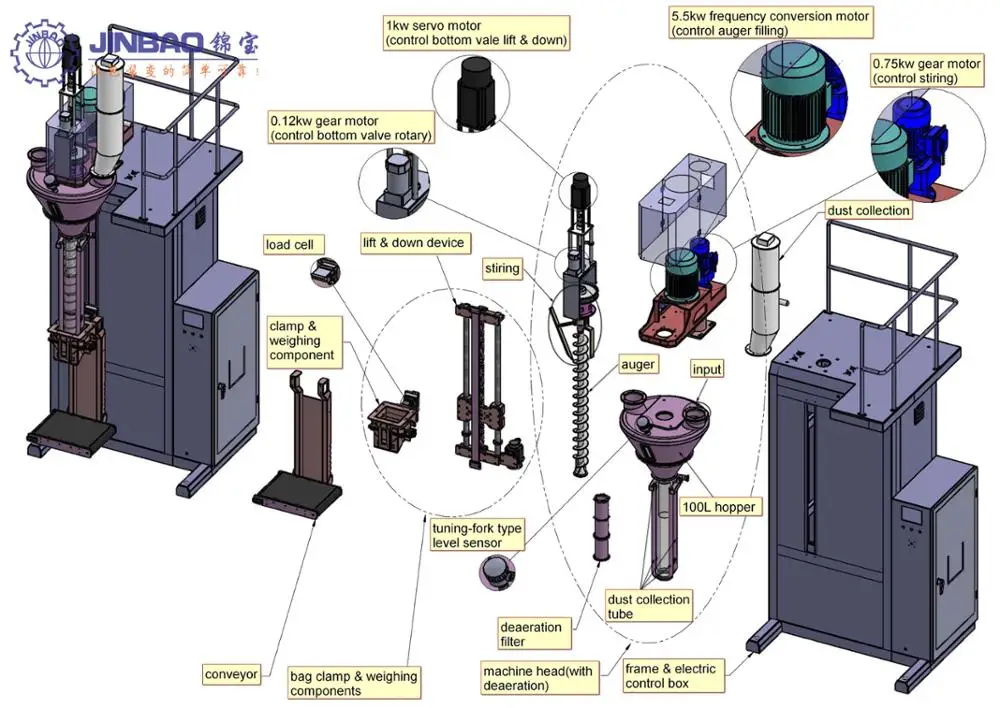

* Vertical spiral feeding device combined with reverse mixing device , makes feeding more stable, and the bottom cone type valvecontrols the feeding process preciously;
* The whole device is equipped with storage bin easy-cleaning components and spiral type of easy-dismantling structure that material contact parts is convenient to clean and no blind angle.
* Lift type bottom filling-measuring device combined with spiral vacuum filling device that ensure high accuracy of the packaging and no dispersive powder problem.
* Using dust collecting function makes the packing process clean , no dust problem ;
* Adopting air exhaust techonogy , makes the powder rapid precipitation , improve the swelling powder packing capacity ;
* Touch screen interface which is convenient to operate , packing specifications and order can be adjusted via it .

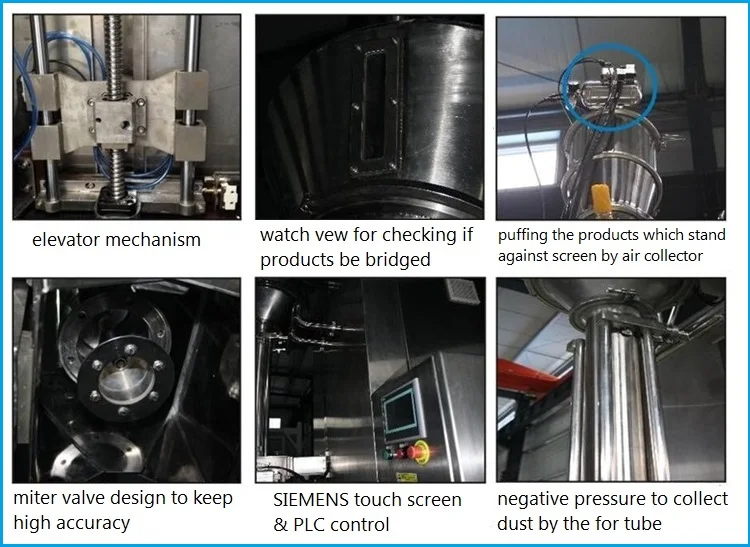

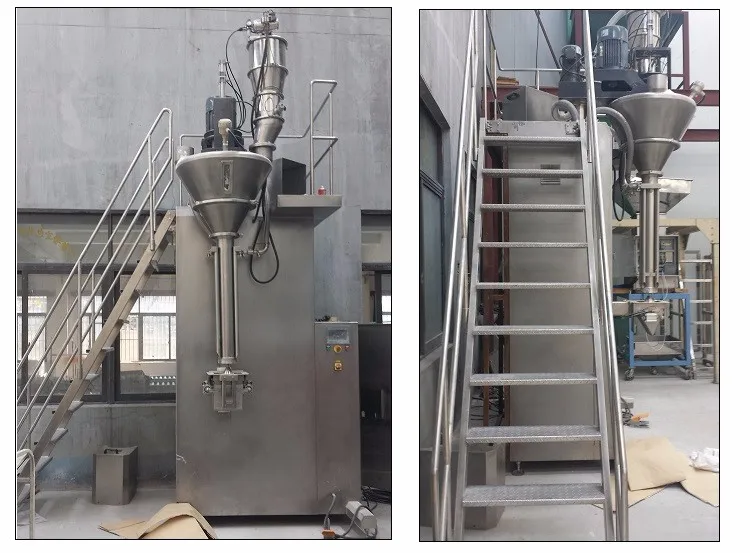

C.Detial images
D.Finished product display
Company Information
Why choose us?
1. 15 years manufacture experience,strong R&D department ;
2. Owning processing machines makes sure of the product quality and on-time shipping ;
3. Using world famous brand components to make sure the products' stable and long-time performance ;
4. One year warranty , lifelong free service ,24 hours online professional technical service .
A.Company appearance
B.Packaging & Shipping
Packaging:
Machine packing inside is plastic films and outside is fumigation wooden case. Our wooden case is very strong,it can bear long time shipping on the sea. And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine corrosion.
Shipping: Upon receipt of payment , delivery date will be in 3-15days By Air, by Sea or by Express (DHL etc)
Shipment cost will depend on the destination, shipment way,size and the weight of the goods.
C.Our service
Warranty period & After service
vibrator feed bag scale
Life-time warranty.
Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment.
After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
D.Contact us
1.what is your packing product? 2.what is the filling weight per bag? 3.what is the bag type and bag size? Could you provide any pics? 4.What is voltage and Hertz in your local? Based on your more details, we will provide best packing solution for you.
