Anysecu AC 215R 7W Radio active view screen Walkie Talkie 400 480MHz Group call Ham Radio hidden screen UHF Transceiver

Product Overview

Description

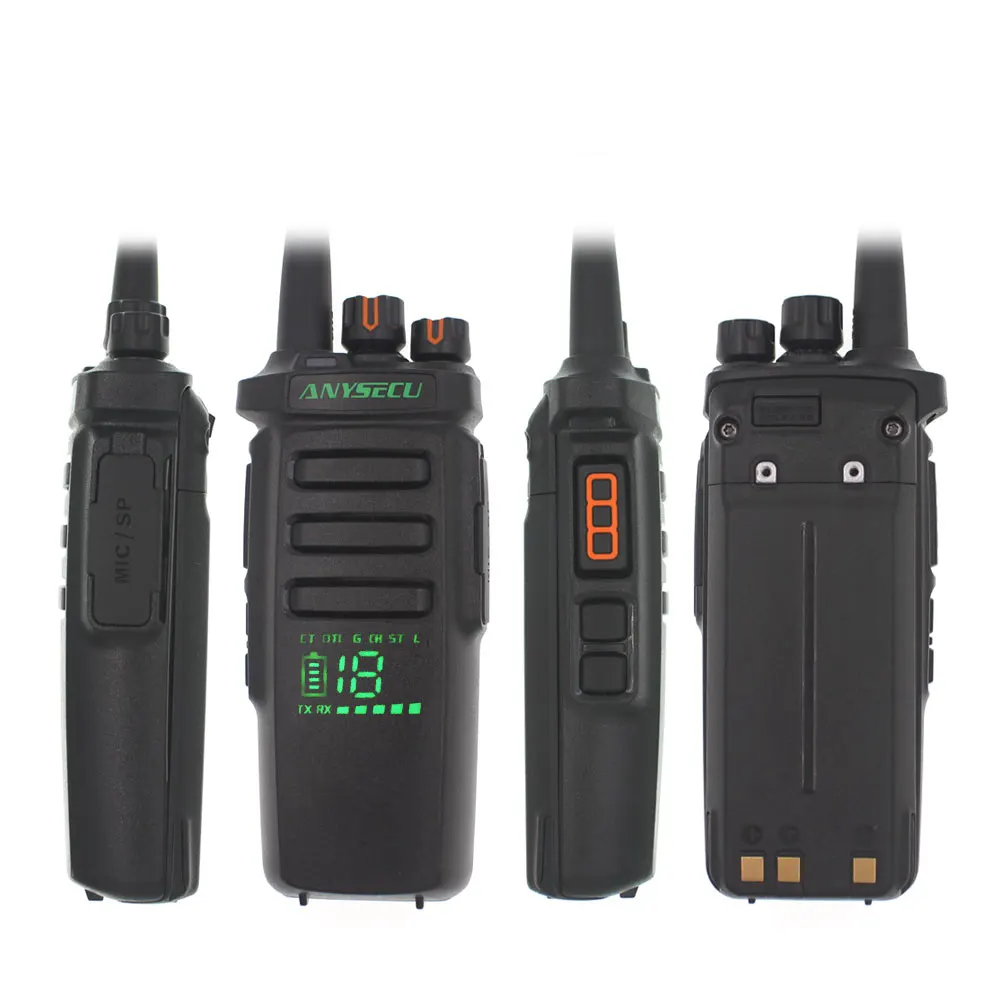

Anysecu AC-215R 7W Radio active view screen Walkie Talkie 400-480MHz Group call Ham Radio hidden screen UHF Transceiver











Note: if you need software, please contact us.

Main features:

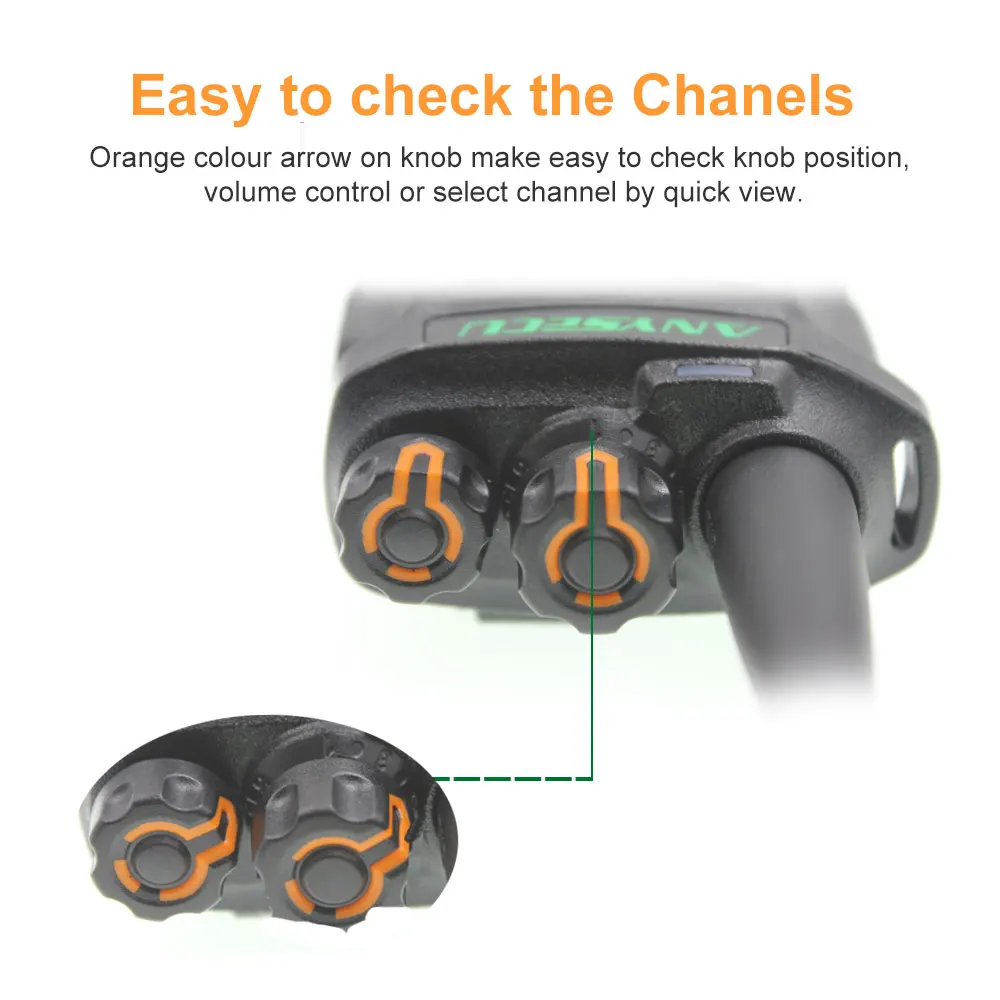

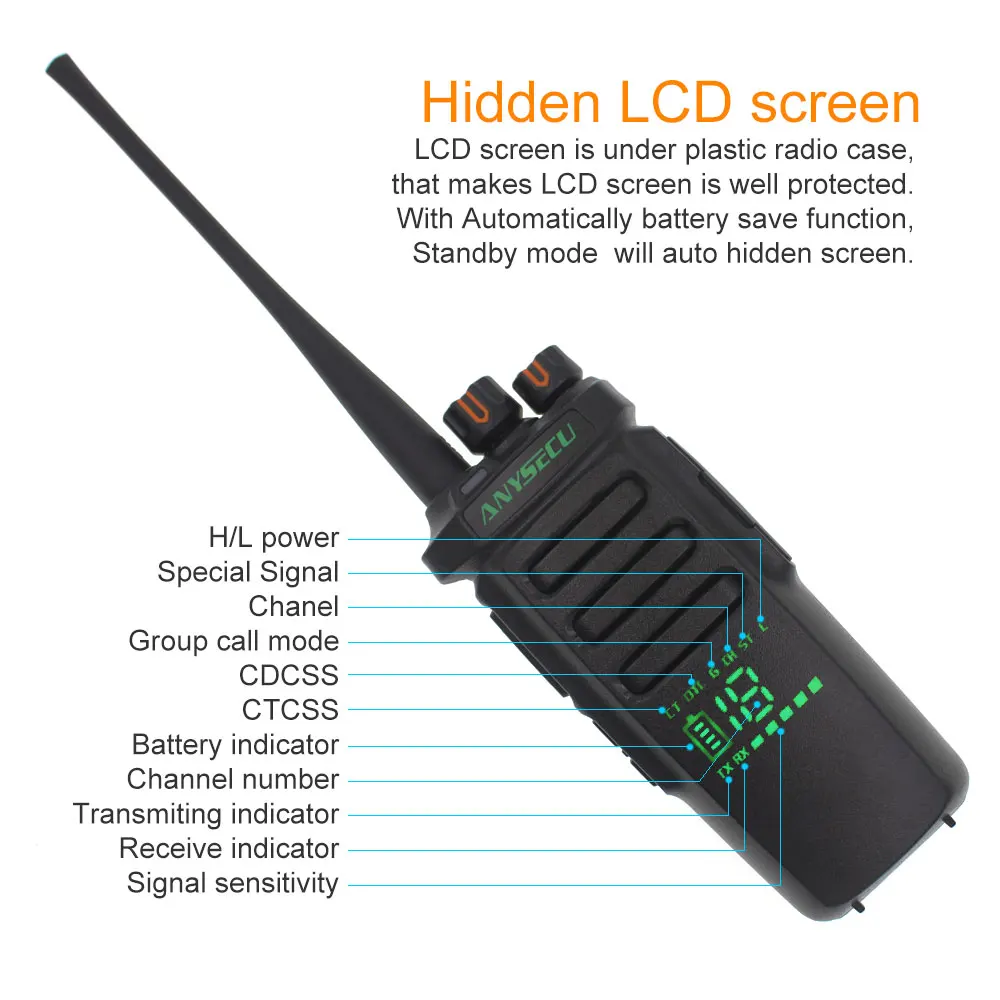

*Active View Display

*Group call

*English Voice Announcement

*High Low Power Switchable

*Dual Mode Charger

*Busy Channel Lock Out

*Power Saving

*Monitor

*0-10 Vox Level

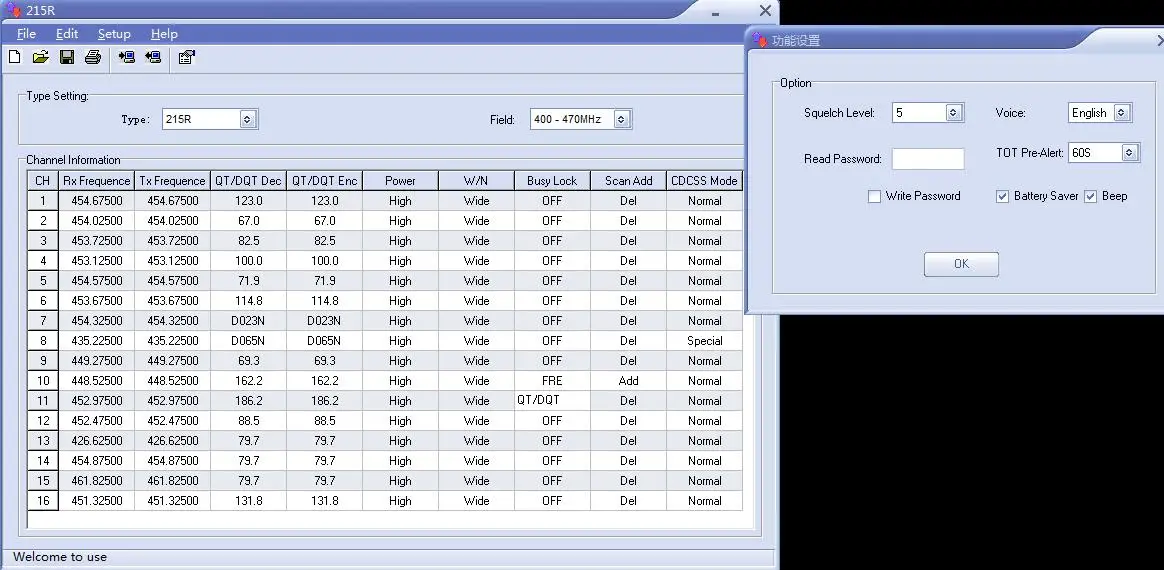

*PC Programmable &Password

*Standard And Special QT/DQT

*Tail tone Elimination

*Scan Add

*TOT

*Wide/Narrow Band

General
Brand	ANYSECU
Model	AC-215R
Frequency Range	UHF: 400-480MHz
Storage Channel	16
Rated voltage	7.4V DC ±20%
Battery Capacity	3500mAh Li ion battery
Working Mode	Simplex or Semi-duplex
Work Temperature	-20℃~ +50℃
Antenna Impedance	50 Ω
Antenna Gain	V:1.8dBi  U:2.5dBi
Size	130*53*35mm
Weight	259g
Transmitter
RF Power Output	H7W /L1W
Modulation Type	16k Φ F3E / 11k Φ F3E
Maximum Deviation	<±5kHz / <±2.5kHz
Inter mediation sensitivity	8-20mV
Modulation Distortion	≤5%
Current	≤1.4A
Receiver
RF Sensitivity	-122dBm
Audio Power	1W
Audio distortion	≤5%
Inter modulation	≥60dB ≥55dB
Selectivity	≥65dB ≥60dB
Spurious rejection	≥65dB

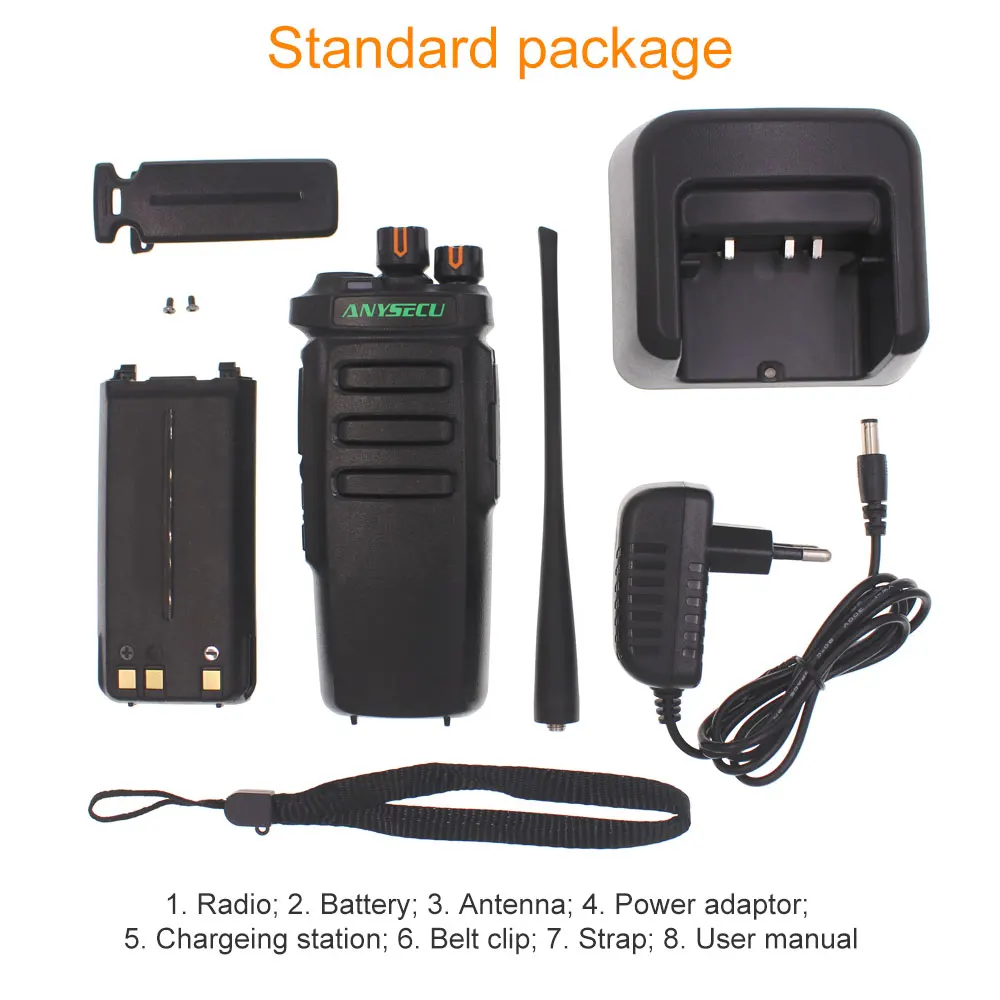

Package Include

1 x Radio

1 x Li-ion Battery

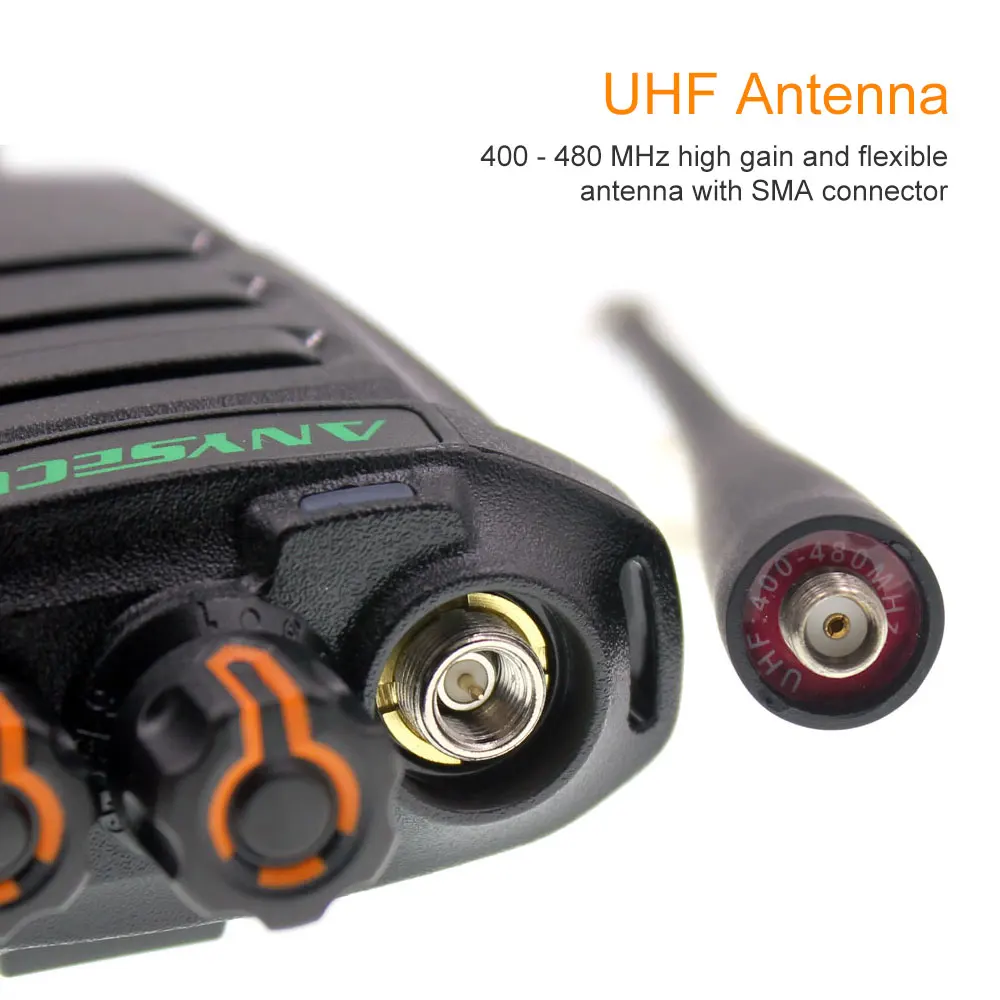

1x high gain soft Antenna

1x AC Adaptor

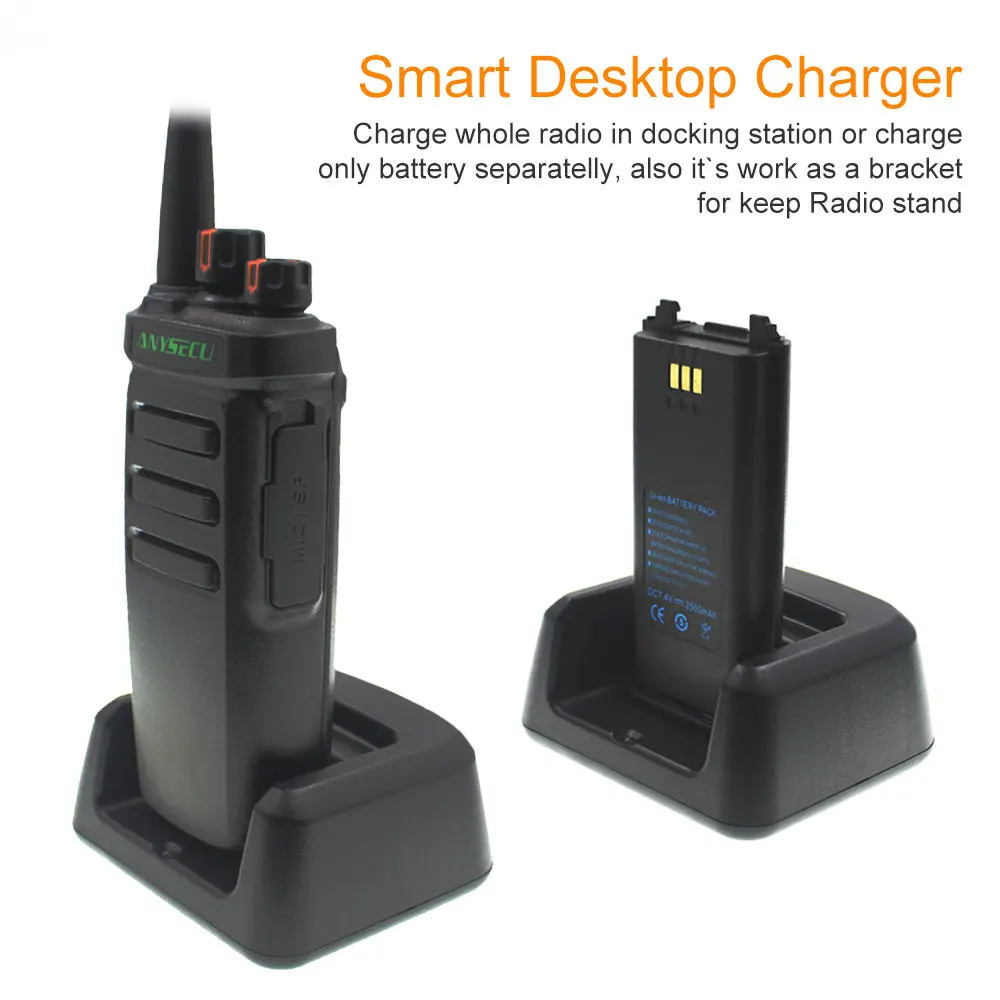

1 x Desktop Charger

1 x Belt Clip

1 x English Manual
