2.one OXC card support 2* optical interface,it support 1+1 backup
3. one E1 card support 8E1
4. one FE card support 8*10/100M
5.3.5U high 19inch width
6.It support FXO FXS 4WEM G.703 HOT MAG and so on cards.
7.support AC+DC,AC or DC

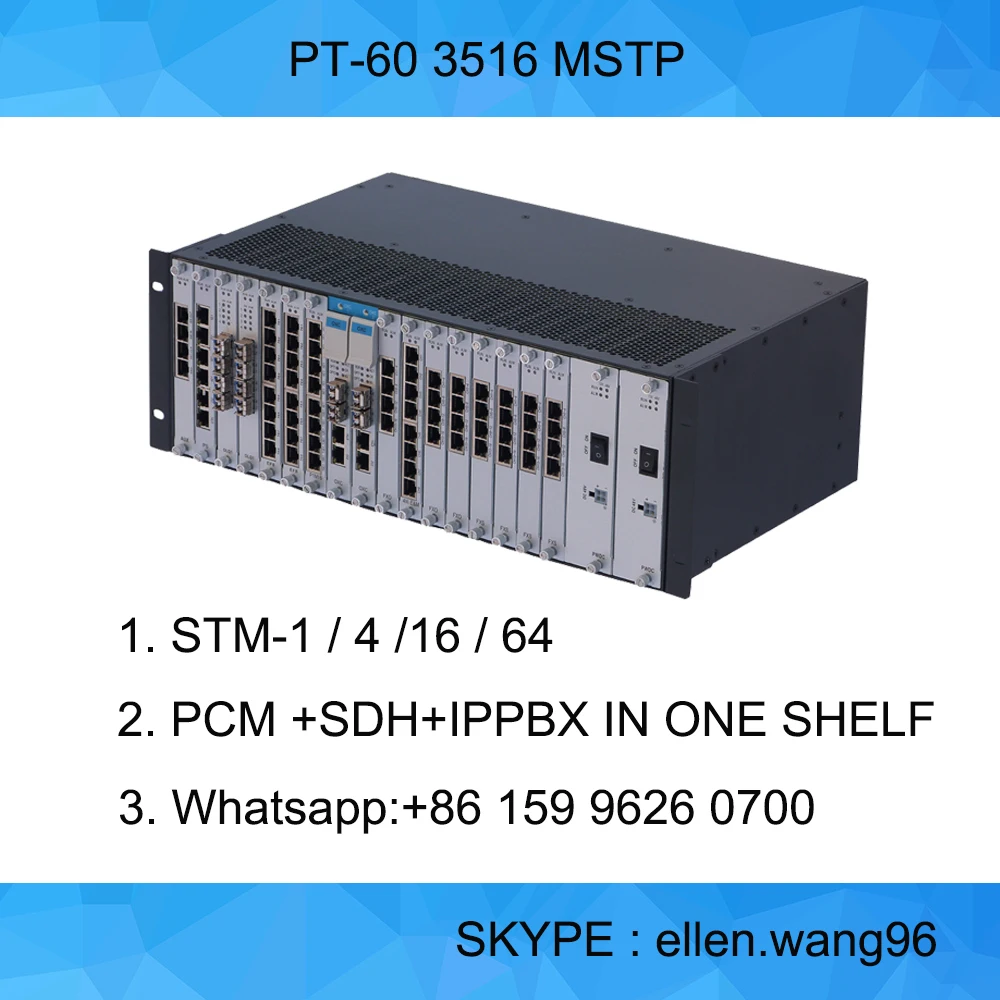

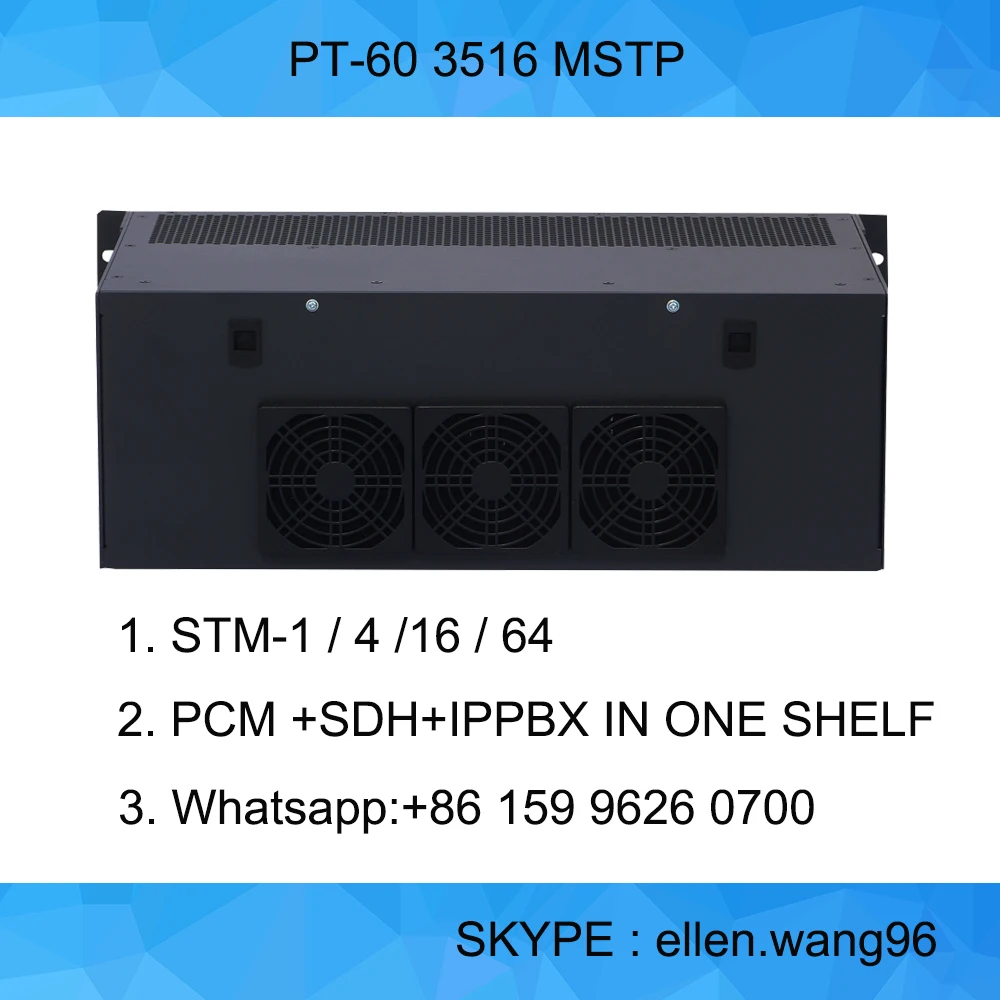

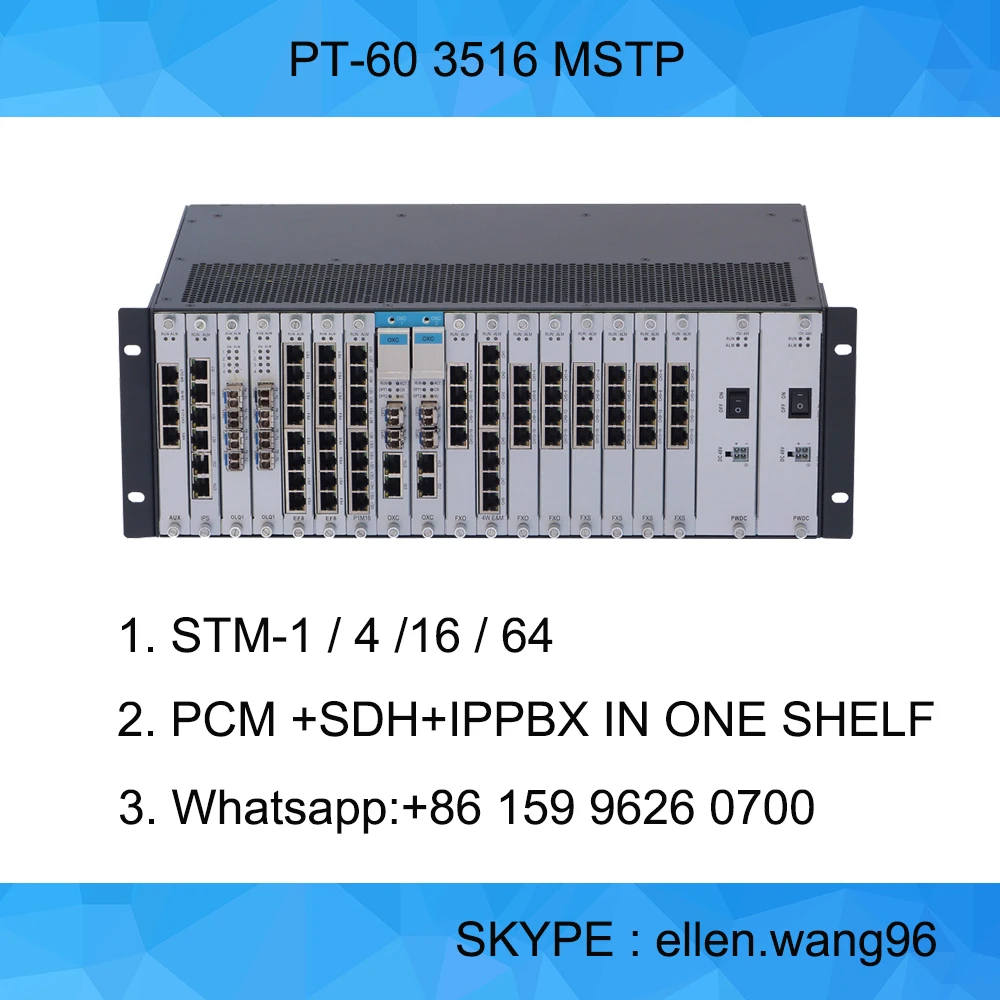

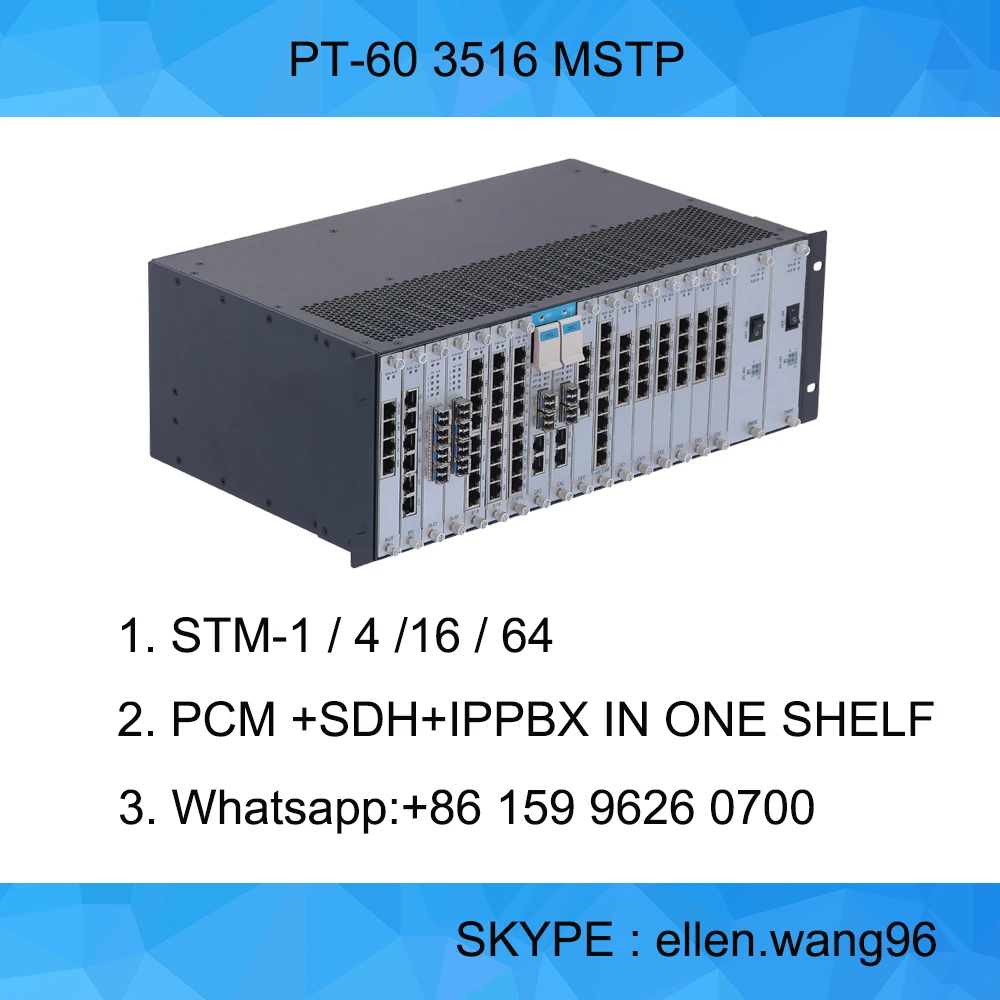

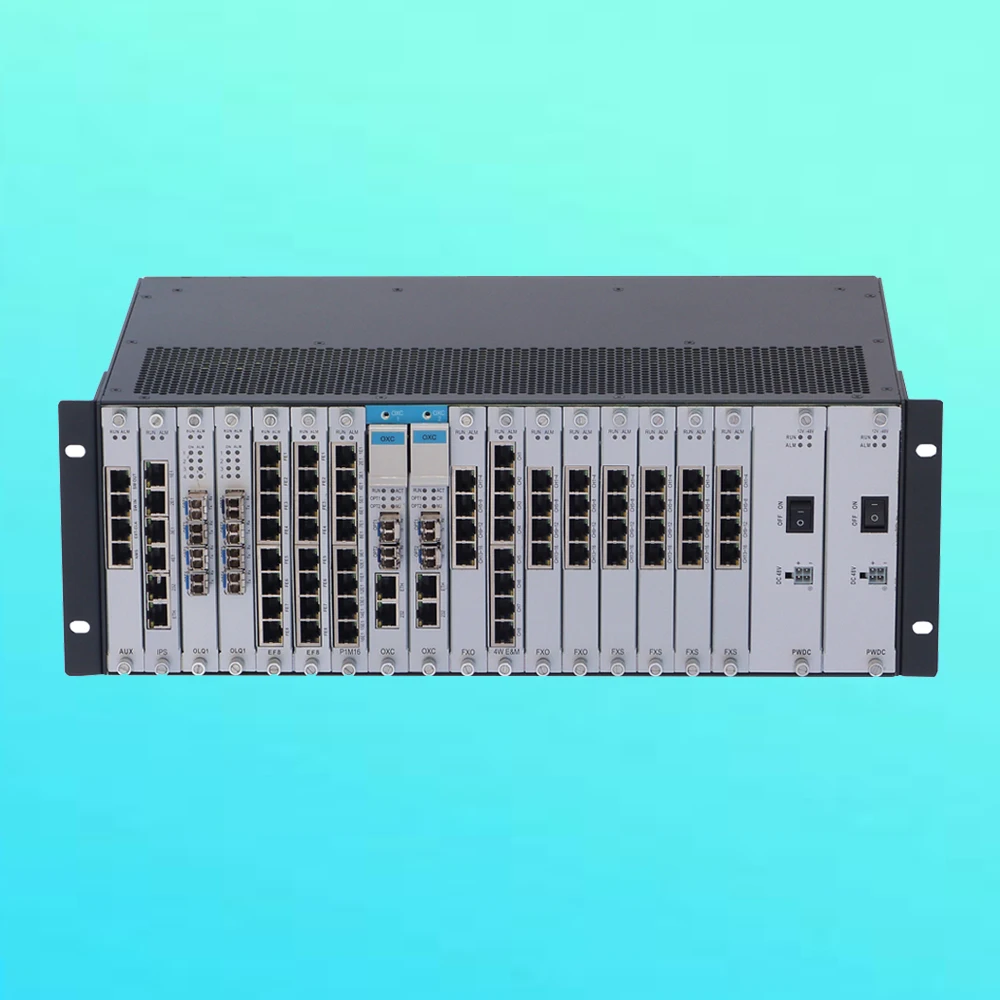

PT-60 3516 MSTP transmission equipment
Brief Introduction PT-60 3516 MSTP transmission equipment PCM and SDH fiber optical mux is a new generation intelligent MSTP, it offers a complete solution for traditional ADM services, broadband data service access, aggregation, transmission.
PT-60 3516 MSTP equipment, it has powerful functions, abundant interfaces, high service capacity, and flexible networking ability, it can flexibly distribute network bandwidth, it can be suitable for service aggregation center node in the transmission network.
PT-60 3516 SDH STM-16/STM-4/STM-1 Optical Transmission Equipment Huawei Optix can not only realize MSTP function, it also can be used as DXC equipment to realize 252 E1’s 64K cross connection function, it can be used as multi-direction PCM to realize E1 access and 64K service aggregation function.
The equipment is standard 19 inch 3.5U height.
Main Features
Multi-service aggregation
PT-60 3516 155M 622M 2.5G SDH/mstp/pdh equipment supports different types of services access and aggregation, including STM-1, STM-4, STM-16, E1, FE, GE, 64K sub-service, etc.
PT-60 3516 2.5G SDH/MSTP equipment over fiber optical equipment can support 256 E1’s 64K cross connection;
High Integration
PT-60 3516 MSTP master card integrates power supply, monitoring, cross connection and 2.5G optical interface, which saves the slot position to increase the equipment’s service capacity;
Flexible networking
PT-60 3516 MSTP can provide point-to-point, link net, ring network, T type network, multi-ring networking mode ,it can build up link, ring, star, tree, ring cutting , intersection ring, mesh network etc.
Complete Ethernet function
Standard 10/100M Ethernet and 1000M Ethernet interface, adopting GFP encapsulation and VC virtual concatenation technology, line speed switching, adjustable bandwidth, rate adaptive. It can provide a complete Ethernet layer two switching function, supporting transparent transmission, exchange, aggregation. And it also supports VLAN, STP, LCAS, priority functions;
Full hardware redundancy protection: 1+1 cross connection board protection, 1+1 power board protection; 1:6 TPS protection;
Modular function
It can replace module to achieve smooth update from STM-1 to STM-4, it can be upgraded from STM1/4 to STM-16 by changing optical card. The expansion slot is all-purpose , it can insert or remove the expanded card to increase the service capacity or adjust the service access transmission type, so the system expansion is very convenient;
Unified NMS, convenient to upgrade and maintenance
PT-60 series products adopts the unified network management platform to do centralized operation, maintenance and management, realize the allocation and scheduling for circuits, ensure the safe operation of the network;
PT-60 3516 equipment has the ability to do the remote software upgrading, which make it easy to do maintenance, and flexible to update new functions;
DCC channel has the ability to transparently transmit NMS information of other manufacturers.
Technical Specification
SDH optical interface
STM-1(155Mbps) : S1.1,L1.1,L1.2
STM-4(622Mbps) :S4.1,L4.1,L4.2
STM-16(2.5Gbps): S16.1,L16.1,L16.2
E1 Electrical interface
Impedance: 75 and 120Ω for 2Mbps
Ethernet interface
FE Ethernet: 10/100BASE-TX
GE Ethernet: 1000BASE-SX/LX
Network protection
SNC/I,SNC/N ,1+1 MSP
Hardware protection
1+1 cross connection board protection,
1+1 power board protection;
1:6 TPS protection
Cross connection
VC-12, VC-3 and VC-4 single direction, dual direction and broadcast
Synchronization clock
2048 kbit/s or 2048 kHz external clock
System power
DC-48V, dual power supply
Input voltage
DC–38.4V DC ~ –60V DC
Maximum system power consumption
360W
Working temperature
-10 ~ +50°C
Storage temperature
-40 ~ +80°C
Dimensions
440(L)×280(W)×394(H)mm
Application
Certifications
company show
Photel has the design ability in the equipment of SDH, PDH, PBX, IPPBX, PCM, TDMOIP, HDSL...
1, for the SDH, we had the tech of STM-1 to STM-64 in hand, so we can modify any function to follow the customer needed;
2, for PDH, the uplink optical rate can be 150M or 1.25G, the number of E1 can be 1-16, the ethernet can be FE and GE;
3, for PBX, our PBX can support the protocols of SS7, PRI, V5, R2, it can work as a central switch in the telecom network, it can translate different protocol each other, for eaxmple SS7 to PRI;
4, for IPPBX, we can have IPPBX function in our PBX, we only need to configure one or more IPS card in our PBX to have IPPBX function, IP phone can communicate with analogue phone by dialling;
5. for PCM, we have enough experience in PCM for any customer;
6, for TDMOIP, we have the tech of TDMOIP for 1 to 16 E1s, we have done this solution in FPGA to reduce the cost and easy in components buying;
7, for HDSL, our HDSL is in low cost design, and have good ferformance.
if any requirements from your customers or yourself, please tell us any time, we will do our best for you!
