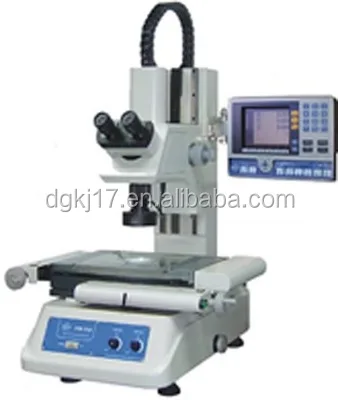

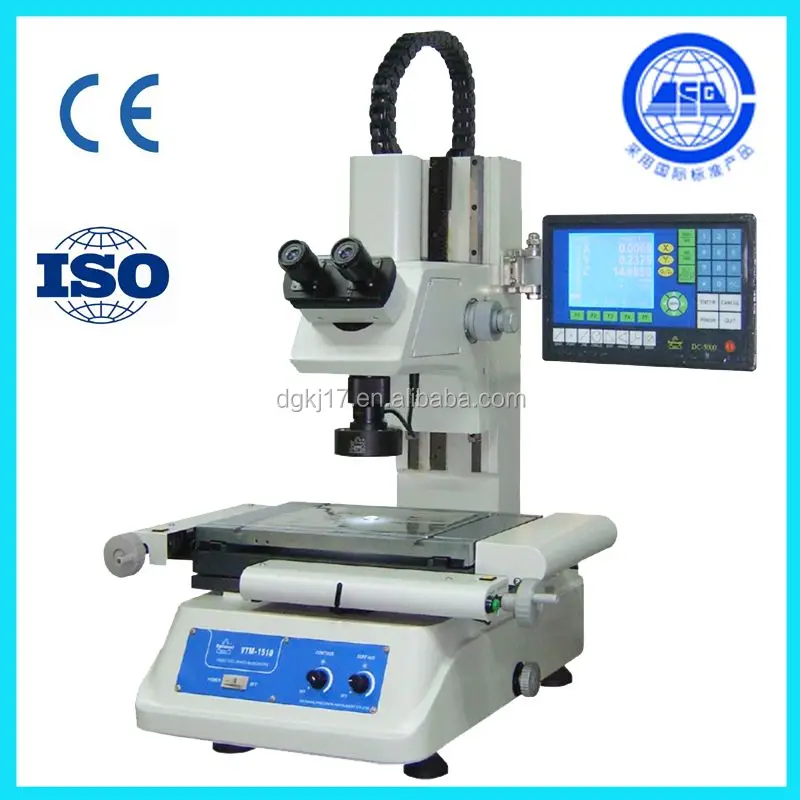

Two dimension measurement good qualityTool maker Microscope (Monocular microscope)
- Category: >>>
- Supplier: Dongguan Kuaijie Measuring Tool & Instrument Co. Ltd.
Share on (60502526264):
Product Overview
Description
Product brief:
Widely used in manufacturing sectors like electronic components, precise mold, precise tool, spring, plastic, rubber, oil cut-off valve, camera parts, auto parts, PCB, tool Microscope is a high precision and high efficiency measuring instrument integrating optics, machinery, electronics and software. It is applied in 2D measurement as well as 3D aided measurement. The eyepiece standard film can be used as comparative measurement for pitch, external diameter, angle, and profile of screw, and for Dimension, length, and profile of cutting tool. It is mainly used in the field of machinery, electronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.
Features:
Tool Microscope features multi-data measurement, magnification, display, input and output. It adopts exclusive measuring software, QMS3D-M, based on Windows OS. Thanks to its user-friendly human-computer interface, it is convenient for users to operate the system and do not need to design a scheduled program.
| Model | VTM-2010 (Monocular) | ||||
working table | Metal table size (mm) | 404X228 | |||
| Glass table size (mm) | 260X160 | ||||
| X-axis Y-axis travel (mm) | 200X100 | ||||
| Resolution (mm) | 0.5μm | ||||
| Indication error (mm) | E1XY=(2.5+L/100) | ||||
| Dimension (mm) | 540X667X850 | ||||
| Weight (kg) | 110 | ||||
| Z-axis travel (mm) | 150 | ||||
| Specifications | Eyepiece System | Image system | |||
| G | F | ||||
| Lens Magnification | 1X, 3 X (standard configuration), 5 X, 10X | 1/3''CCD camera QMS3D-M sorfware | 1/2''CCD camera QMS3D-M sorfware | ||
| Eyepiece Magnification | 10 X (the monocular and binocular are the same) (optional configuration) | ||||
| Total Magnification | 28.5X~285X | ||||
| Lens magnification error | ≤0.08% (including distortion) | ||||
| Transmission Illumination | Halogen tungsten lamp (24V, 20W) | ||||
| Reflective Illumination | 12V LED ring-shaped lamp (including laser indicator) | ||||
Company Information
Dongguan Kuaijie Measuring Tool & Instrument Co., Ltd
Dongguan Kuaijie Measuring Tool & Instrument Co., Ltd is a professional measurement equipment manufacturing and testing equipment manufacturers, through the ISO international quality system certification. The main production concentric instrument, micro-Vickers hardness tester, roughness and other precision instruments.
In 2003, we set up Kuaijie Measuring Tool & Instrument maintenance shop in Dongguan.
In 2010, we developed into Dongguan Kuaijie Measuring Tool & Instrument Co., Ltd.
In 2013, we signed a strategic cooperation agreement with Aiceyi Opto-electronic Technology (Hong Kong) Co., Ltd., together invested in Dongguan Tangxia Yi Electronic Instrument Factory.
From 2003 to today, we have gone through 15 years of history. From the beginning of the Kuaijie Measuring Tool & Instrument maintenance shop, development into research and development, manufacturing, sales and service of high-tech enterprises. At present, our products have been exported to the rest of the world, by the consumer favorite and praise!
Our Mission
Help customers improve quality!
Our Vision
Become the benchmark for testing industry!
