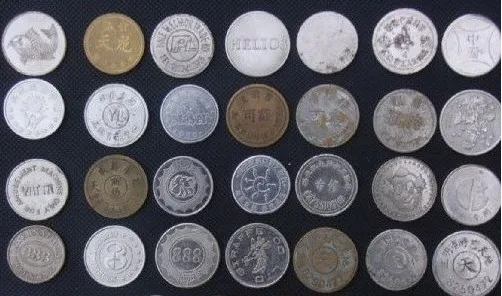

cheap J23 25T game coin making power press

Workshop:

Established in 2000, Gilde commits to the research and development of sheet metal machinery, pursuing the best quality and performance. Now we have more than 400 employees and 12 engineers, and the factory covers an area of more than 70,000 mm2. We can support a wide variety of sheet metal machines, including press brake, shearing machine, plate rolling machine, press machine and so on.

Processing Capacity:

 Features:

The Machine of Whole structure
(1).C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.
Steel-welded frame, high rigidity and less deformation Compact. Thick plates and large columns provide you with the stable platform you need for your demanding application.
(2).Wide body frame eliminating vibration for improved IDE life and machine, which means economical and practical. Operation space is wide, and the movable bolster could be moved out of frame to set the die. The structure is simple and the appliance is also beautiful.
(3).High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.

Transmission control and brake systems
(1). Use the combine of dry friction clutch and brake pneumatic, rigid interlocking, reliable piece of
friction material semimetallic friction material SMFM88, less pollution, long life. With the transfer torque, rotational inertia is small, smooth transmission, flexible operation, convenient of installation and maintenance
(2).Die height adjustment of slider with manual mode, the scale display. Extended by four triangular rail, easy adjustment.
(3).Use double safety valve to ensure the accurate implementation of the clutch instruction.
(4).Electrical control is installed PLC, 8 group cam controller, reliable action.
(5).Electrical control adopts Omron PLC for centralized control, improved machine reliability
(6).Proximity switch with 8 groups consisting of Schneider cam controller, reliable synchronization
detection and monitoring.

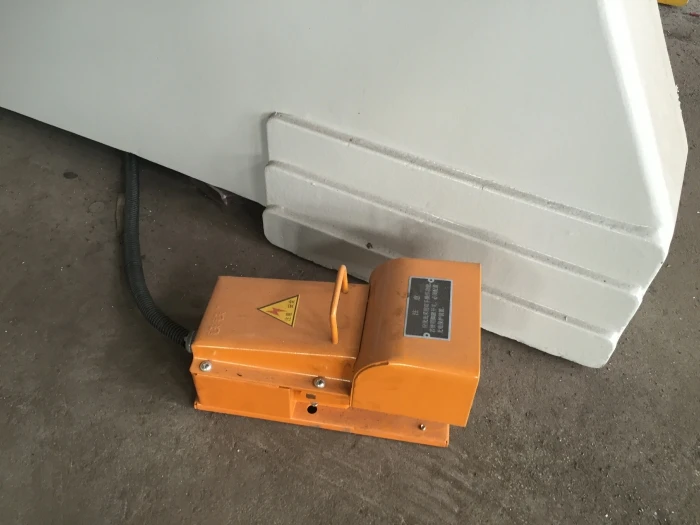

(7).Machine is with both hands button and foot switch to achieve continuous, single and inching practices.
(8).Can move the RAM up slowly, which allows the operator to control Mold adjustment conveniently.

RAM adjustment and Structure
(1).Adjustable stroke machine, slide stroke to achieve a certain level within the range of adjustable, body steel plate welded structure, the whole body is tempered, use the secondary transmission, the transmission part of the crankshaft horizontal Placement, flywheel and gear are the external open style, easy maintenance.
(2).Slider is a cast box structure and rigid. Collapse of the sliderstyle installation of pressure overload protection device, simple structure, if the slider overload, the fuse collapse is damaged, then protect the machine tool and die from damage.

Electrical system and the safety interlock
(1).Electrical components are imported or fromSinoforeign joint Venture, in accordance with international standards, reliable safety, long life, good anti-interference ability, a radiation unit is fitted in electrical cabinet.
(2).Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate.

Parameter:

Structure of machine:

3 types of power press:

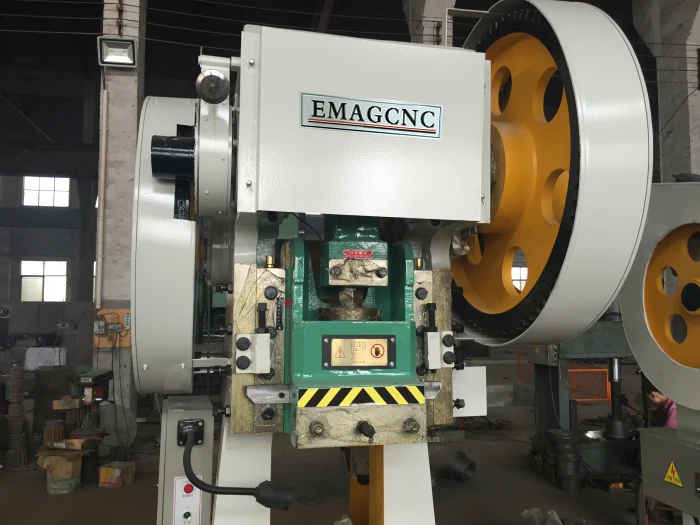

 Front view of the machine:

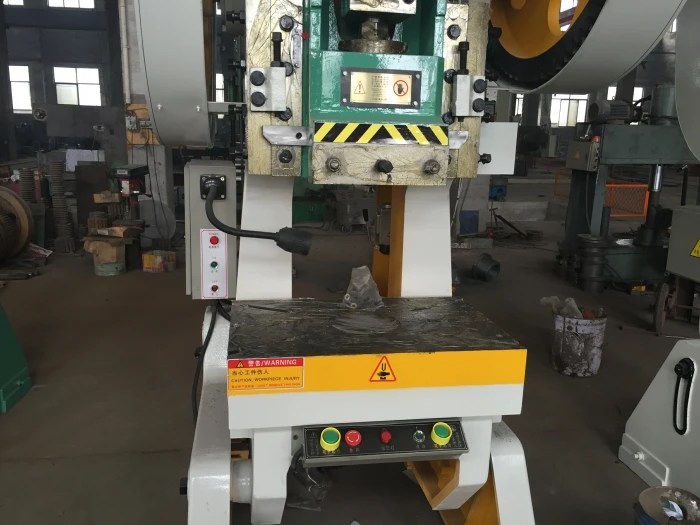

Worktable tiltable:

Main motor:

Slider:

Optional light curtain:

More details:

Related machine : pneumatic power press

(⇓ just click the picture below ⇓)

Our customers/ certificates:

1.Installation Service

We dispatch technician to customer's factory for installation and preoperation of machines. (Customers only need to pay for the airfare and hotel expense.)

2.Training Service

Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.  ( Customers only need to pay for the airfare and hotel expense.)

3.Quality Guarantee

We arrange a final test before shipment. We will make shipments after making sure machine is in the best performance.
Machine warranty is 3 years.

Q1. Are you a factory or trading company?

A: We are a professional machine manufacturer.

Q2. How to choose the machine, any information I need to offer?

A: The thickness, width and the material of the plate you process will be needed.

Q3. Where is your factory located? How can I visit there?

A: Our factory is located in Maanshan city Anhui Province (next to Shanghai), China.You can fly to Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
