| ---Product Description--- |

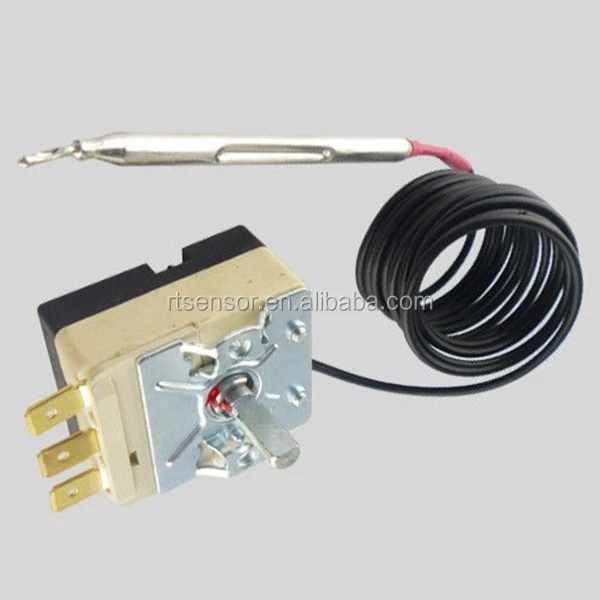

RTsensor WY-II series bulb & capillary thermostats are factory calibrated to a predetermined temperature range. This design offers a changeover thermal switch and an optional auxiliary switch that is useful for activation of an alarm or cooling fan. The principles of operation allow this design to be surprisingly cost effective and a leading choice for use in many applications where precision sensing is required while remaining on a tight budget. When temperature rises, the internal fluid located within the bulb expands through a capillary tube to an expandable diaphragm that is configured within the remote thermostat body. This diaphragm assembly activates the electrical contacts at the calibrated temperature set point. The WY-II series is available with a front auxiliary switch as optional. |
| mainly used for household appliances (shower, drum type washing machines, heaters), heating equipment (stainless steel automatic water boilers, electric frying pans, food machinery, medical equipment), refrigeration industry (kitchen refrigerator, storage cabinets, refrigerator , ice machines, fish ponds, coolers, heaters) and other temperature control purposes. Compliant with the RoHS Directive With TUV and CCC safety certification marks High temperature withstand Ajustable Customzied |
| -10 / +16 Refrigeration -35 / +35 Fridge 0 / 40 Ambient 0 / 85 Boliers / Water heaters 0 / 93 Dishwashers 30 / 110 Bain Marie 60 / 200 Deep-fryer 50 / 250 Oven 50 / 300 Oven |
| This item can be used by Any Electrical Device Which Need Temperature Control Material: Plastic, Resion, Metal Action Type: Normal Close Control Temerature: 30-110 celsius Power: AC 250V 16A Frequency: 50/ 60Hz Connect Method: Two pin connect to power electro circuit Contact Stick Length:72mm/2.2” Stick Diameter: 5mm / 0.19" Specifications: Normally close, open on temperature rise, automatic reset, Earth Terminal Option | Working voltage and current | 16 Amps @ 240 Vac and 16 Amps @ 400 Vac | Ø Phial diameter | | Cycles life | 100,000 cycles | Open temperature | -35°C to 350°C | Temperature Tolerance | ±3°C, ±4°C, ±5°C, ±8°C, ±10°C, ±12°C | Differential Temperature | depending on open temperature | Contact resistance | | Capillary length | 300~ 3000 mm; other lengths available upon request | Body temperature | | Faston Terminal Connections | | Contact Closure Resistance: | | Insulation Resistance | | Speed of response | | .Min. electric current | |
Typical Model | Operating temperature | Switch | Voltage (V) | Current (A) | Maximum Temperature Sensing part(℃) | H | L | OFF(℃) | DIFF(K) | OFF(℃) | DIFF(K) | WY35B-II | 35±4 | 5±3 | -35±5 | 5±3 | ![Capillary thermostat with stainless capillary , UL and VDE approved]()
| 400/250 | 16 | 60 | WY75A-II | 75±4 | 5±3 | 30±5 | 5±3 | ![Capillary thermostat with stainless capillary , UL and VDE approved]()
| 400/250 | 16 | 110 | WY110A-II | 110±4 | 7±4 | 30±8 | 7±4 | ![Capillary thermostat with stainless capillary , UL and VDE approved]()
| 400/250 | 16 | 150 | WY190A-II | 190±8 | 9±4 | 60±8 | 9±4 | ![Capillary thermostat with stainless capillary , UL and VDE approved]()
| 400/250 | 16 | 240 | WY 350-II | 350±15 | 15±5 | 60±20 | 15±5 | ![Capillary thermostat with stainless capillary , UL and VDE approved]()
| 400/250 | 16 | 400 |
Drawing in mm  |
| Our customized packing is available . | Packing | Bulk | | Shipping | By express ; <100KG By Air : >100KG By Sea : >300KG |
|
