COLO 3000 S Automatic Powder Coating Sieving Machine

Product Overview

Description

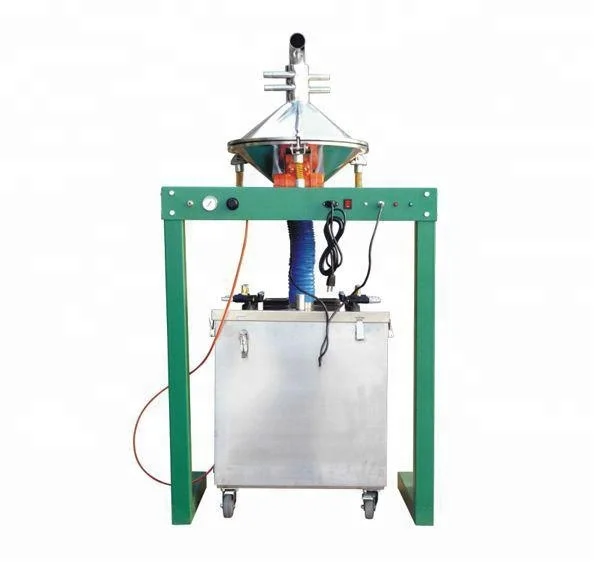

COLO-3000-S Automatic Powder Coating Sieving Machine



Decription

COLO-3000-S Automatic Powder Coating Sieving Machine is widely used in powder coating industry. It is specially designed for powder recovery, along with the automatic reciprocator to achieve high efficiency of powder coating and perfect powder recovery.



Advantages and characteristics
1.The system is able to continuously sent the powder being dropped during the process of spraying to the upper part of the butterfly powder screen and then the selected powder is sent to the centralized powder supply barrel which is in charge of continuously supplying powder to automatic guns or manual guns
2.Easliy cleaning and color alteration , and good airproof property
3.High powder utilization rate



Parameter

Model	COLO-3000-S02
Can be equipped with up	8 powder pumps or more
Size :	112X 91X75CM
WEIGHT:	75KGS( G.W:82KGS)
Hopper	55X55CM   68X68CM
Vibration model	Electrical
Motor output:	0.09kw 0.33A
Voltage:	110V-240V

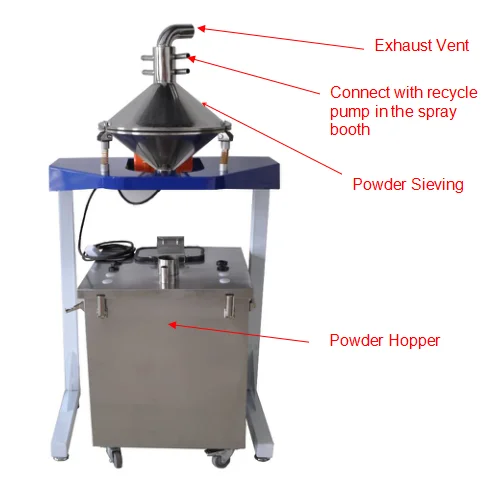

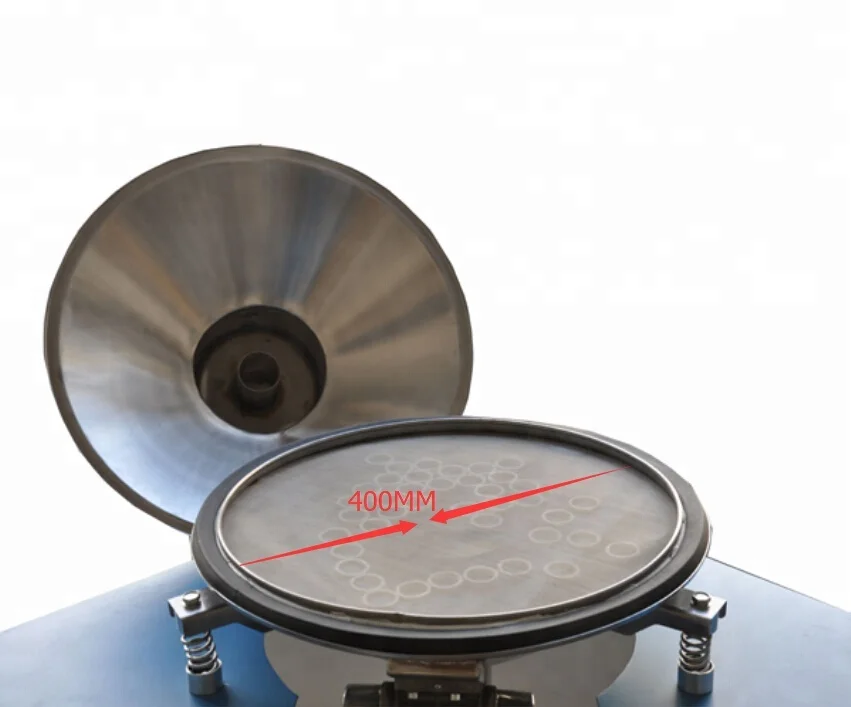

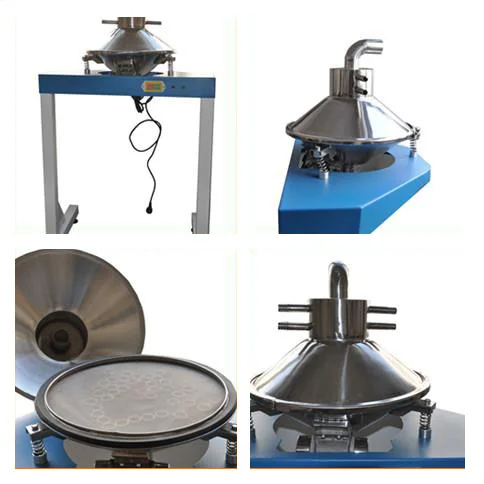

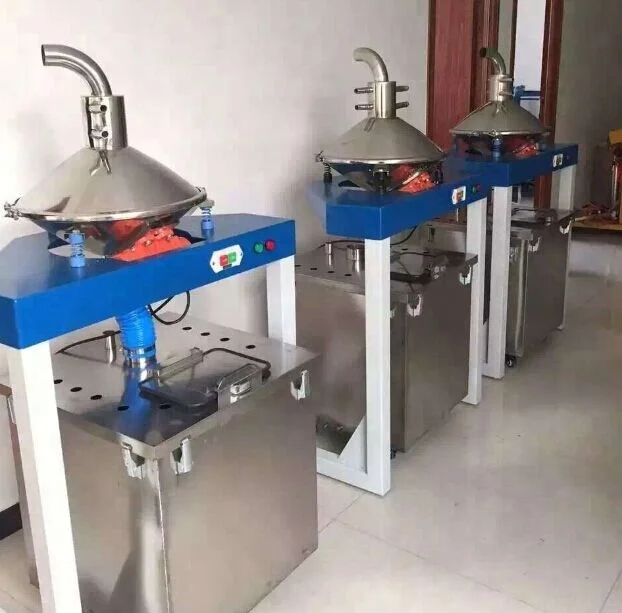

Detailed Photo







Hopper Size for Choosing

68*68cm

55*55cm

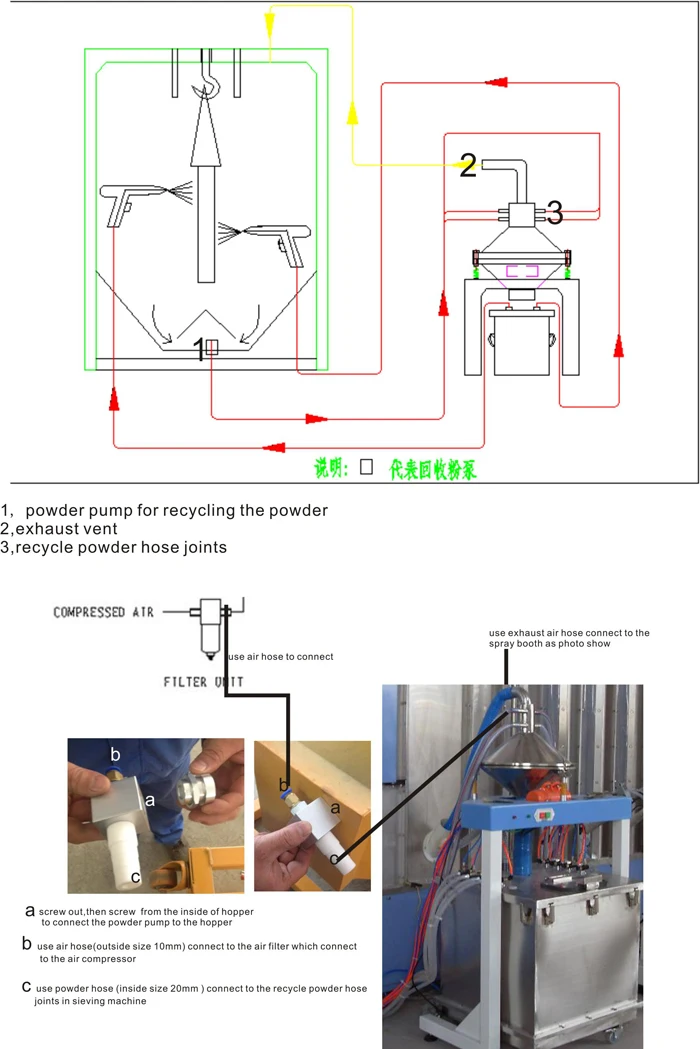

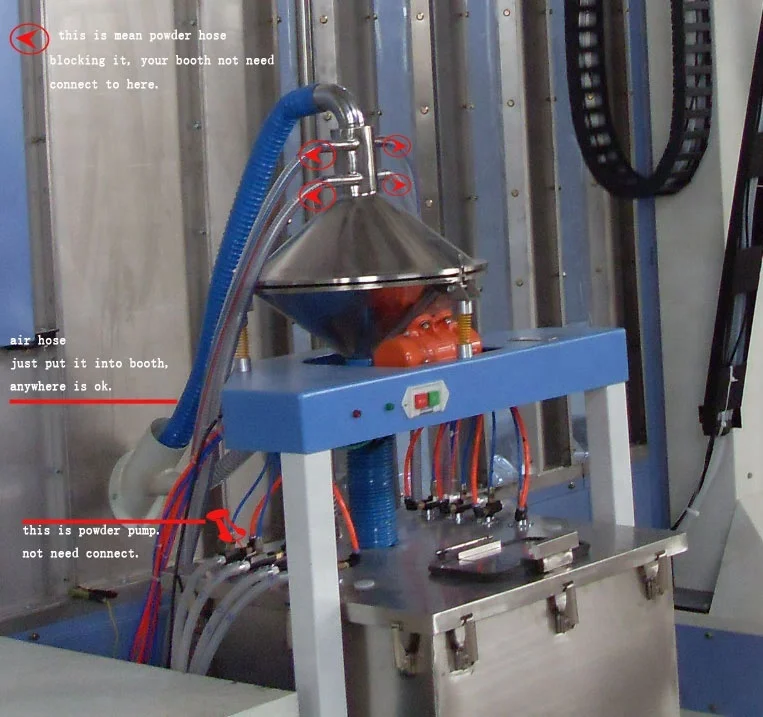

Connection









Connecting with powder recovery booth:

With Reciprocator and auto guns to automatically recycle and continously send the powder the the guns.
