Specification discription of machine laser cut die
Parameters

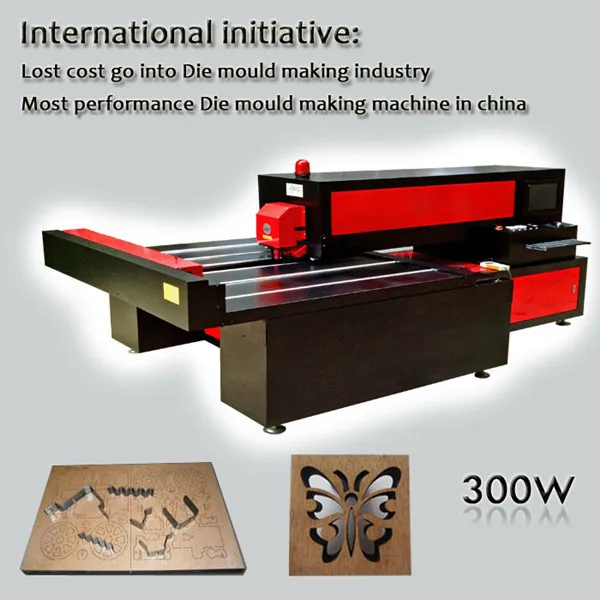

HM-D15 machine laser cut die
Laser Power
300W (Upgrade to450W)
Working area
1200*1500mm
The form of optical path
Fixed optical (laser head fixed, plate Movement)
Driving mode
Servo motor,precise ball screw double side forwards
Cutting material and thickness
Wood 6-9-15-18-22mm, PVC, Acrylic and Non-metallic
Ambient temperature
5℃-35℃
Cooling water temperature
5℃-35℃
Cooling water
Purified water without impurity
Protective gas
Dry Oil-free air
Interface
USB/ RJ45/ U disk
Relative humidity
=<80%
Power Supply
220V±5% 50/60HZ
Graphic format supported:
BMP,GIF,JPEG,PCX,TGA,TIFF,PIT,CDR,DWG,DXF
Gross weight
1000KG
Dimension
L2750 X W1900XH1800 mm

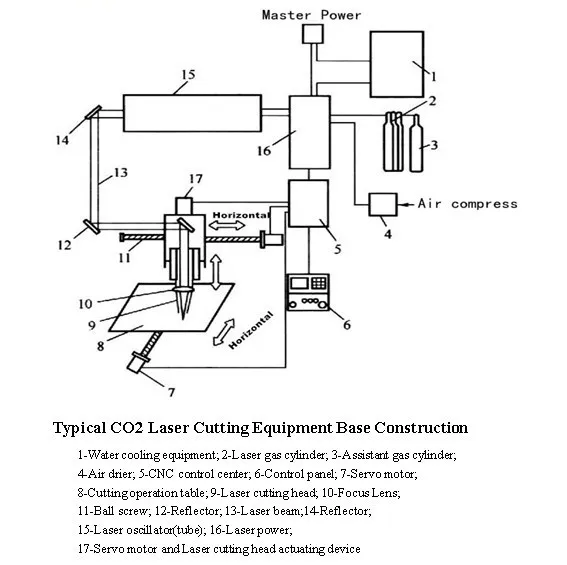

HanMa machine laser cut die structure:

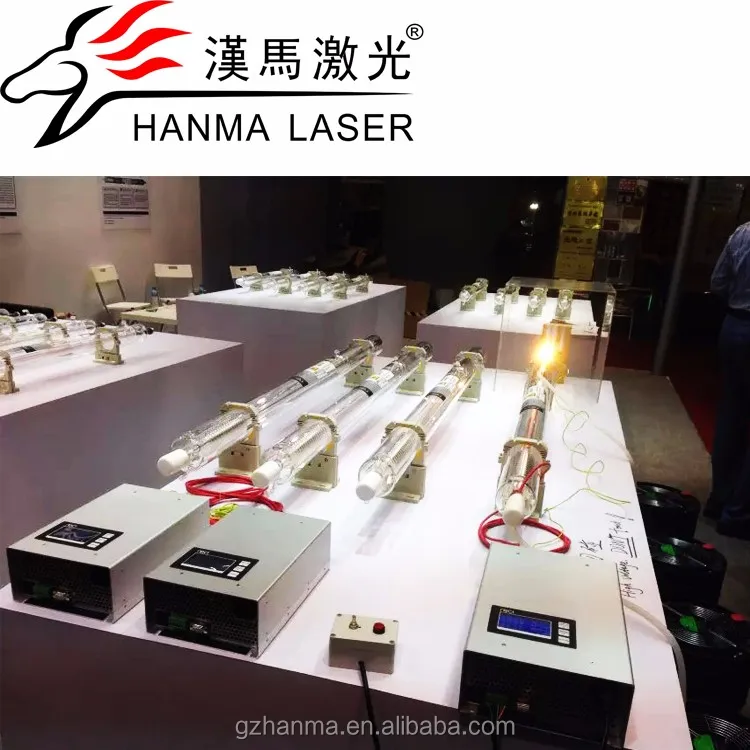

machine laser cut die Main accessories:
machine laser cut die features:
1.Newest numerical control software program and CO2 glass sealing laser.
2.With circulating cooling water system.
3One time cut through, cutting ferf vertical.
4.Import straight line guide rail and high speed stepper motor.
5.Machine structure uses integrated steel frame construction to guarantee the machine high accuracy and good stability.
machine laser cut die Advantage:
1.Cost effective,wide appplication
2.Independent R&D following system
3.Advancing controlling system
4.High precision ball acrew
5.Strong machine body, smooth surface for guide rail running.
Applicable Materials:
Plywood,wood,Veneer, PVC.
Applicable Industry:
Carton packing die mould cutting industry.Self-Adhesive die mould cutting industry.

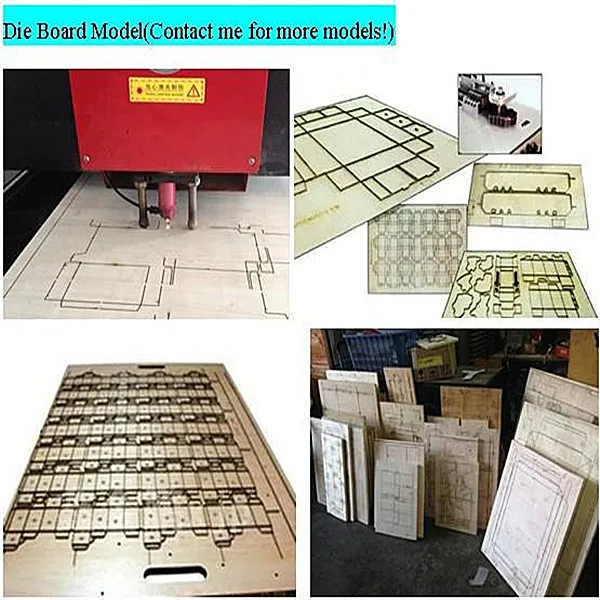

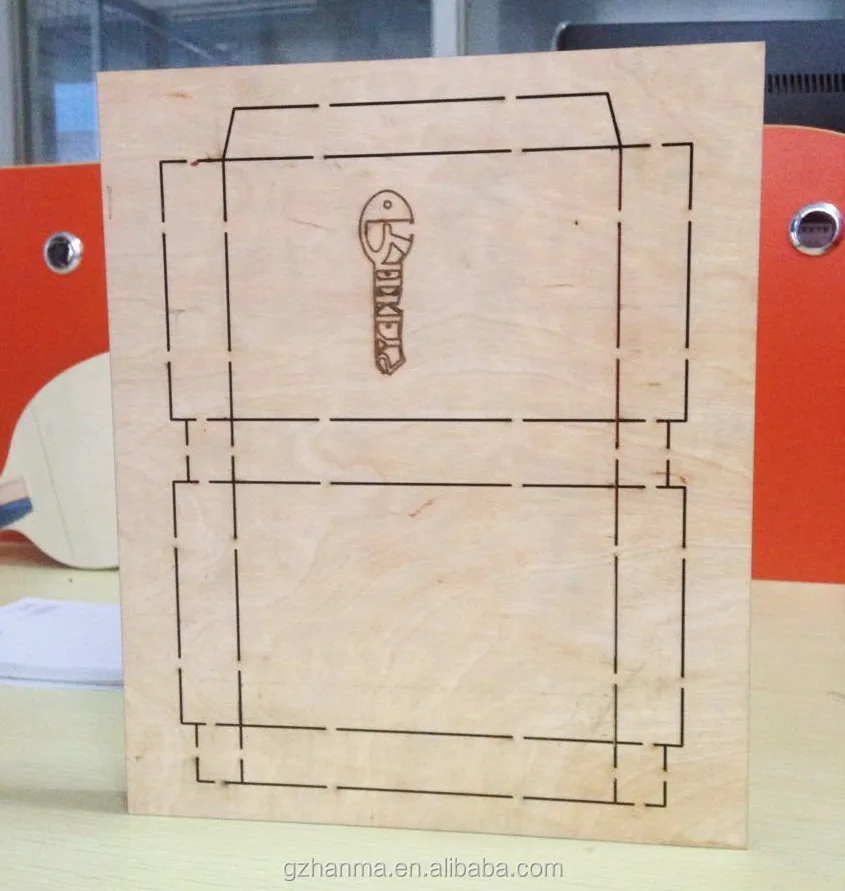

Sample 1:
Sample 2:
The Demo of machine laser cut die process:
Cutting:

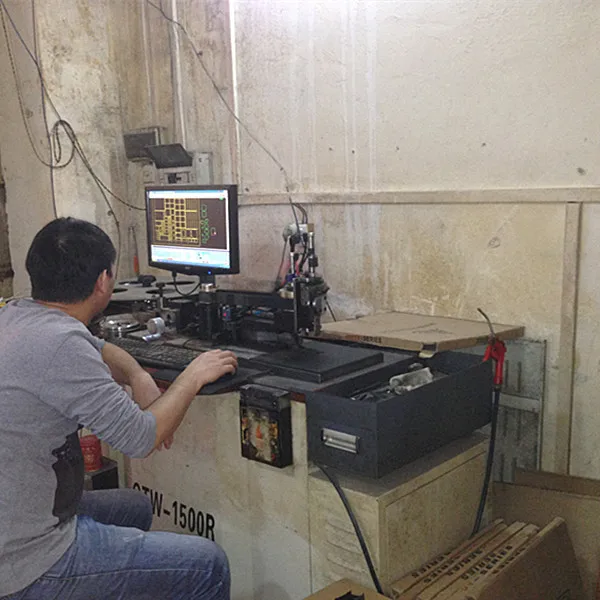

Bending steel rule:

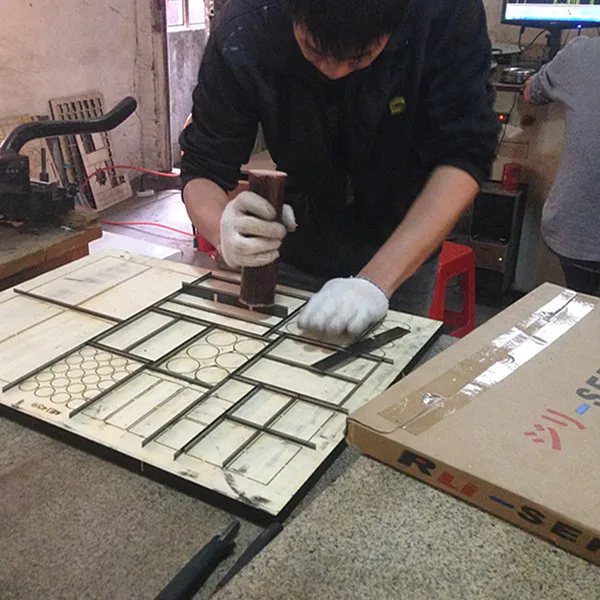

Install steel rule knife:

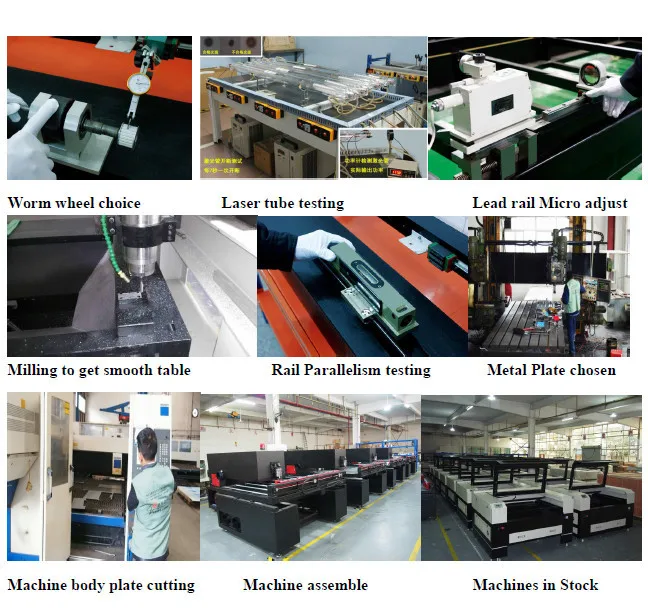

machine laser cut die Manufacturing process and quality control:

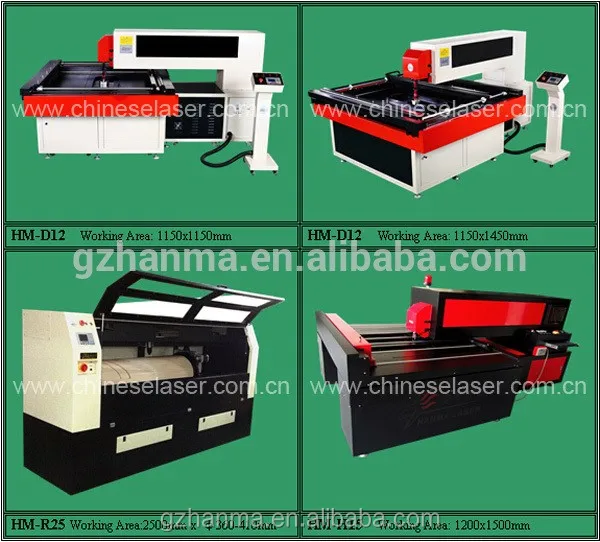

machine laser cut die models we have:
Model
Working Area(mm)
Weight(kg)
Laser Power(watts)
Dimension(mm)
HM-6040
600*400
200
40/60/80
1150*900*950
HM-1060
1000*600
280
60/80/100/150/180
1550*110081130
HM-1310
1300*1000
400
60/80/100/150/180
1850*1500*1130
HM-1610
1600*1000
500
60/80/100/150/180
2150*1500*1140
HM-1325
1300*2500
650
80/100/120/150/180
3160*2100*1140
HM-J1325
(Metal laser cutting machine)
1300*2500
700
100/120/150/180
3160*2100*1140
HM-J1313
(Metal laser cutting machine)
1300*1300
550
100/120/150/180
1850*1950*1100
HM-D1212
(Die Board cut machine)
1200*1200
1000
300/450
2100*1600*1400

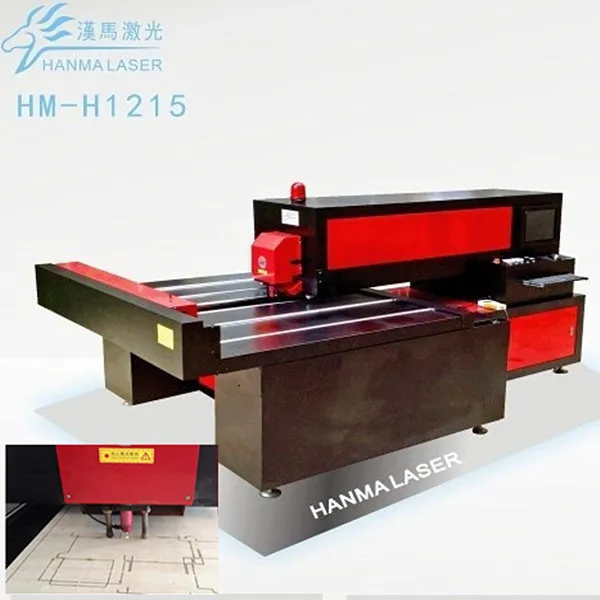

HM-H1215
(Die Board cut machine)
1200*1500
1100
300/450
2650*1800*1600
HM-R20
Circular die Board cutting
460*2500
1000
180W
3200*1000*1550
FAQ
FAQS and Business information:
1, How to pay for the machine laser cut die ?
T/T inadvance or by West Union. We can accept 30% deposit , and balance paid to us before delivery machine to you .
2. How long is the delivery time?
For standard machines, it would be 14 days; For non-standard machines and customized machines according to clients
3.Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4.How about the documents after shipment?
After shipment, we will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
5.How is the packing for the machine laser cut die ?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading .
6.Where is your factory.? How can I visit your factory?
Our factory located in Guangzhou city, very near Guangzhou South Railway Station,Your can email or call us tell us when will you come and visit our factory, our driver will bring you our factory from Guangzhou South Railway Station or from airport.
Below is our detail address:
No.1 Building 1 Xin Ming Liang industrial,A area industrial development,Zhongcun,Panyu district,Guangzhou
Our Services
Guarantee & After-sales Service:
1.Guarantee for one year,we Have a excellent oversea service team, they travel around the world to train our customers and help them solve problem to sure our machine can use at less 20 years.
2. Laser tube can use 100000 hours.9 months guarantee to free returns.
3..24-hour technical support by email or calling.
4.User-friendly English manual for machine using and maintaining
5.International oversea excellent engineers team for machine laser cut die :

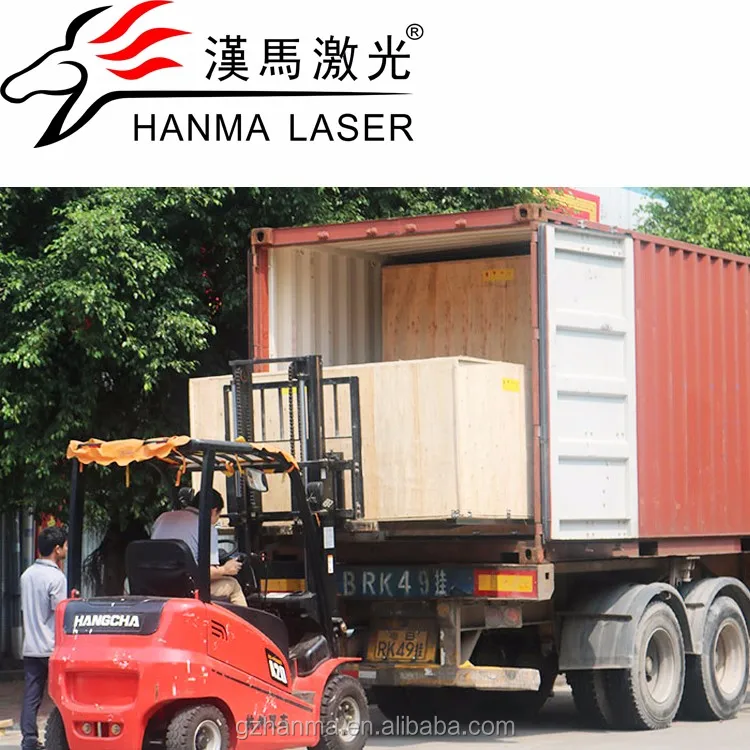

Packaging & Shipping

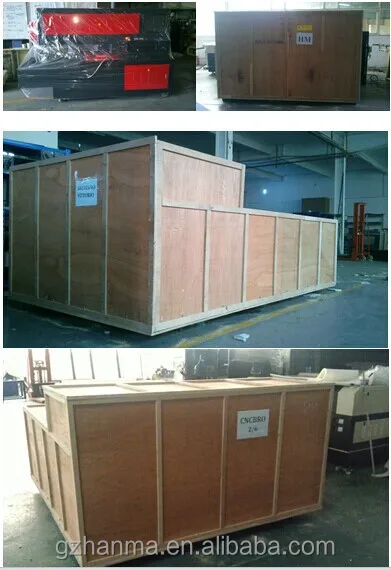

machine laser cut die Export standart packing:
Inner strietch film, outside wooden case:
Company Information
About us:
Guangzhou Han Ma Automation Control Equipment Co. Ltd
Is established in 2004,it is a hi-tech enterprise specialized in researching and developing aser processing,
facilities research, integrated production.HanMa manufactures multiple series: nonmetal laser cutting machine,metal laser cutting machine, machine laser cut die ,and the annual production capacity reaches 2000 units.
With the development of first-class engineer, advanced technology, excellent quality and scientific
management,HanMa Laser won the good reputation and abundant loyal customers in the globe market.Over the years,
our products have been exported to North America, Western Europe, South Asia, South America, the Middle East and
other countries and regions.

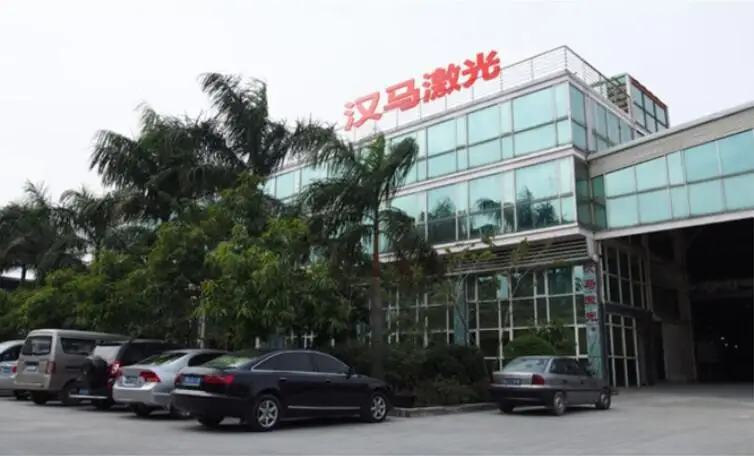

Hanma Laser factory view:

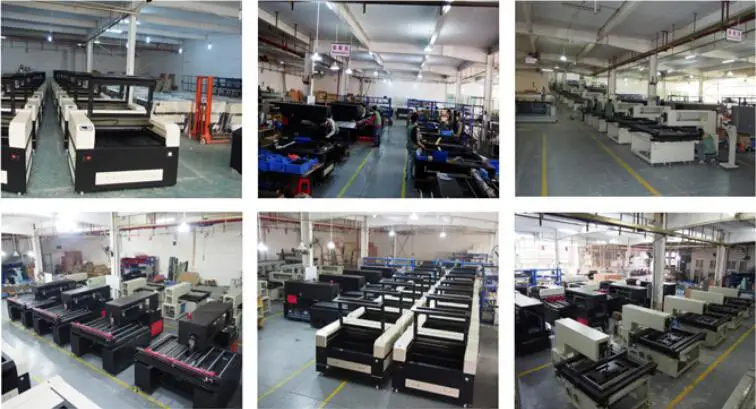

Assemble workshop:
Certification :
How to buy a good quality machine laser cut die in China?Welcome to know more about oru factory and machine.
