Serrated contact washers schnorr safety washer
- Category: >>>
- Supplier: Hebei Othello Sealing Material Co. Ltd.
Share on (60502942633):
Product Overview
Description
Serrated contact washers schnorr safety washer
Model: ASL 610
Material: Steel 17-7, H13, 50crVa, 51CRV4
Standard: ASME/SAE, DIN ,GB
Product Description
Schnorr lock washer properties:
lock washers surface using oblique tooth structure, increasing friction between the bolt and the lock
washers, flange and disc washer, while also increasing the self-locking function of the bolt, elastic
compensation adds friction to prevent loosening, good long bolt lock working condition.
Application:
conical lock washers mainly used for the load is not too great, but the violent shock bolts,
can effectively prevent loose bolts and Inverted wire, played a locking feature, compensation the preload to ensure durable and reliable seal, bolt and equipment have good versatility.
Specifications:
conical lock washers common specifications M6 ~ M36, also we could design it by customers requirements.
Normal size of Serrated contact washers schnorr safety washer
No. | Type (mm) | Outside diameter(mm) | Inside diameter(mm) | Thickness (mm) | Free height (mm) |
1 | M6 | 10 | 6.4 | 1 | 1.4 |
2 | M7 | 12 | 7.4 | 0.7 | 1.3 |
3 | M8 | 13 | 8.4 | 1.2 | 1.7 |
4 | M10 | 16 | 10.5 | 1.5 | 2 |
5 | M12 | 18 | 13 | 1.5 | 2.1 |
6 | M14 | 22 | 15 | 1.5 | 2.2 |
7 | M16 | 24 | 17 | 2 | 2.6 |
8 | M18 | 27 | 19 | 2 | 2.7 |
9 | M20 | 30 | 21 | 2 | 2.8 |
10 | M22 | 33 | 23 | 2 | 3 |
11 | M24 | 36 | 25.6 | 2.5 | 3.4 |
12 | M27 | 39 | 28.6 | 2.5 | 3.7 |
13 | M30 | 45 | 31.6 | 2.5 | 3.8 |
14 | M32 | 49.72 | 34.98 | 3.1 | 4.5 |
15 | M33 | 49.72 | 35.05 | 3.1 | 4.6 |
16 | M36 | 54 | 38 | 3.1 | 4.7 |
Detailed Images

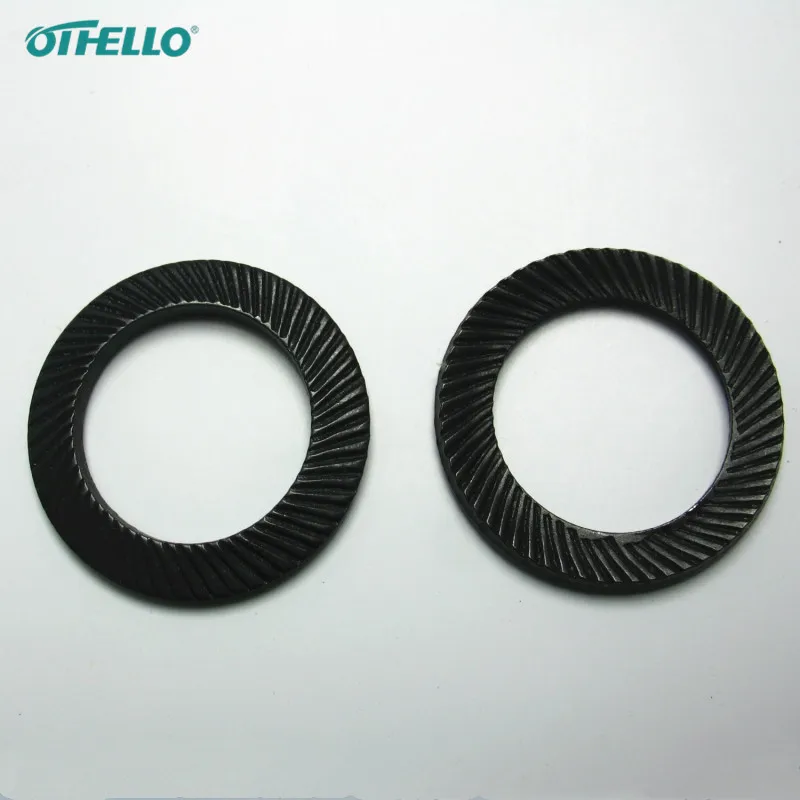

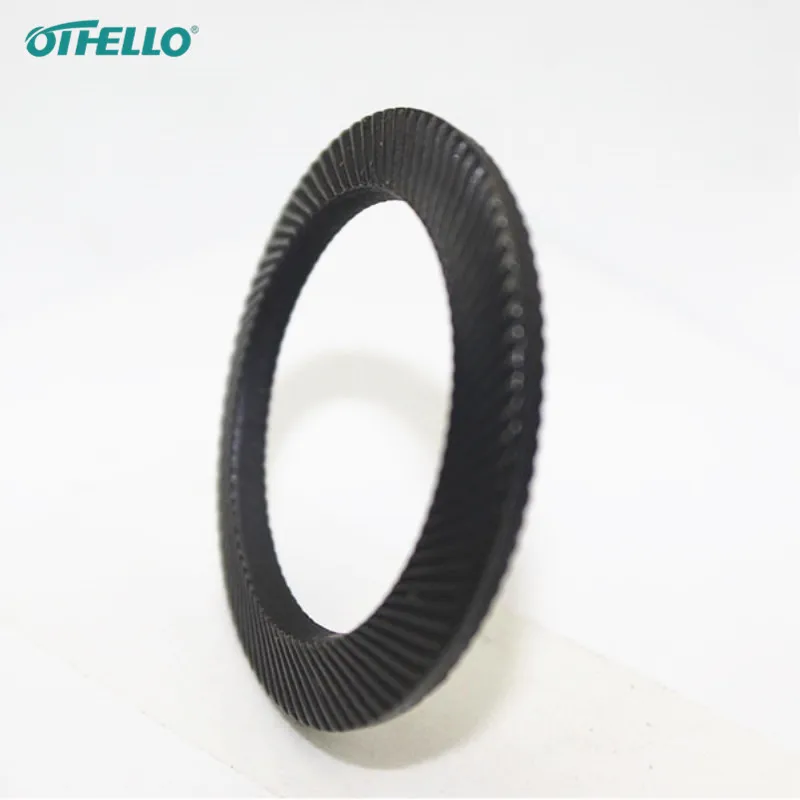

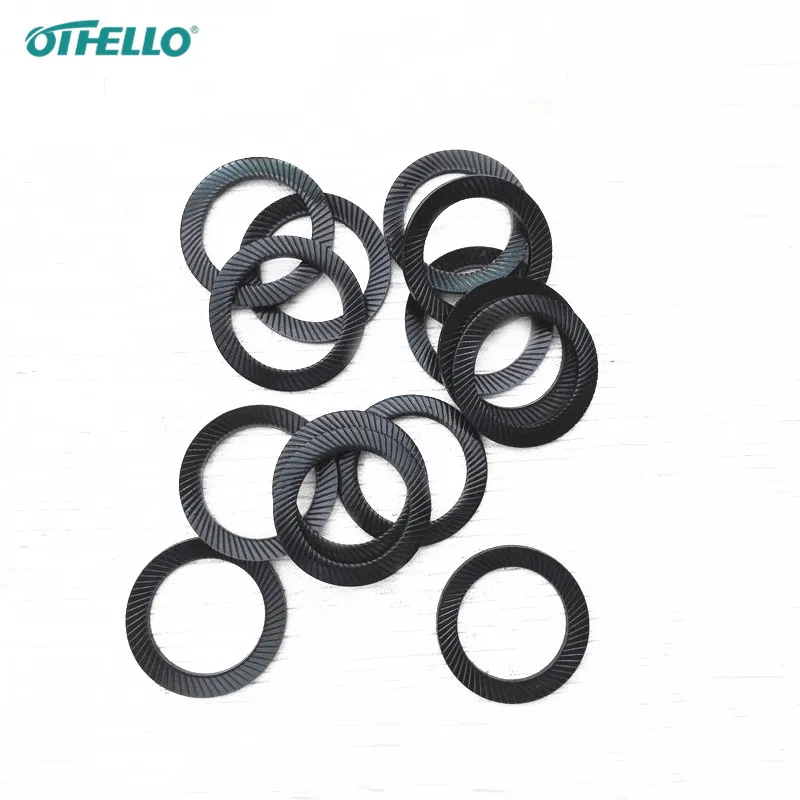

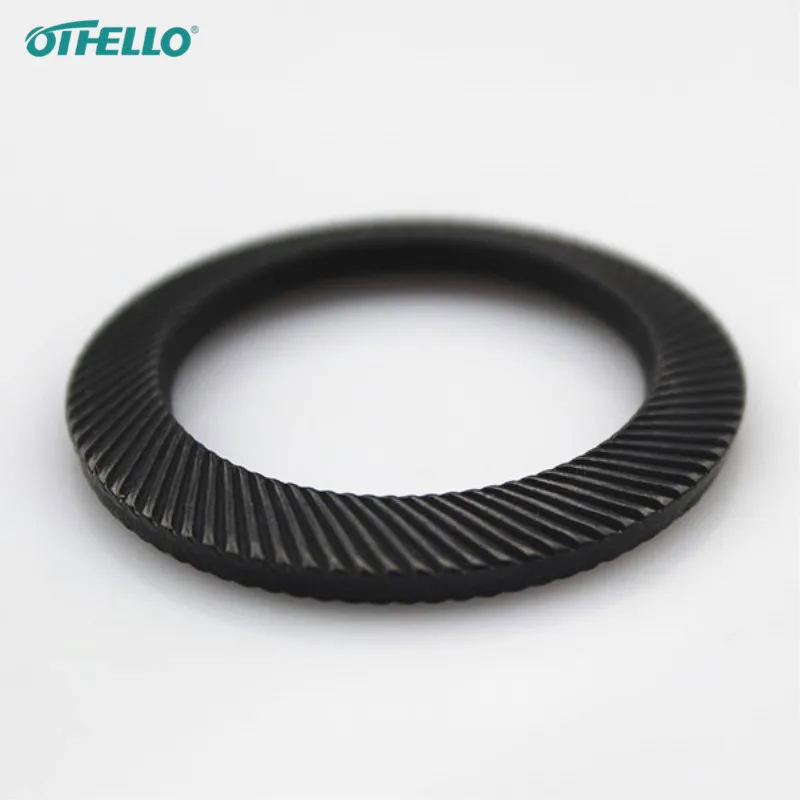

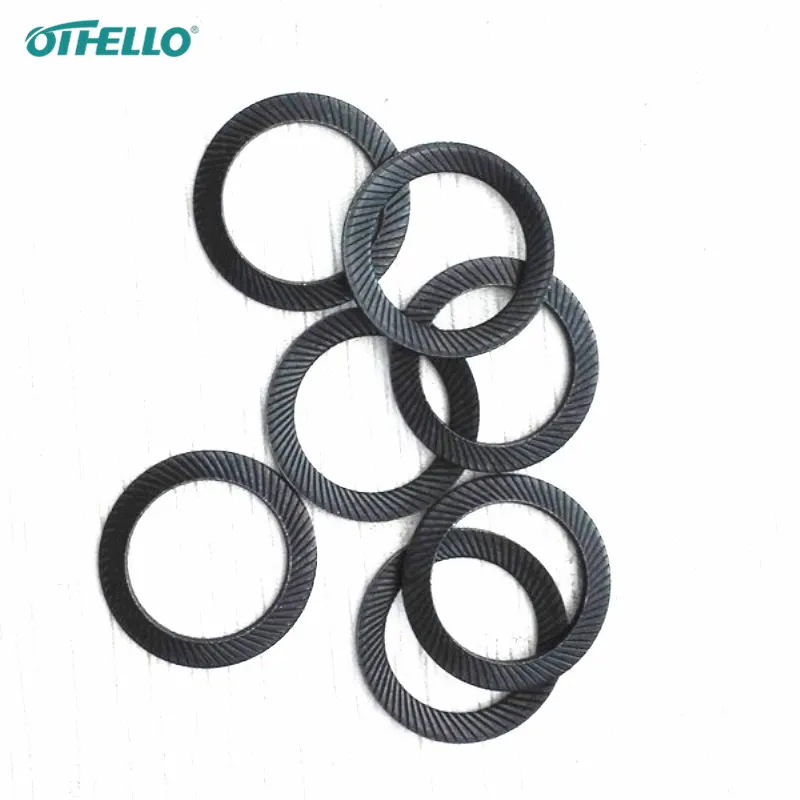

Detailed images of Serrated contact washers schnorr safety washer
More types disc washer for your choose
Certifications
Using reports
Using reports of Serrated contact washers schnorr safety washer
