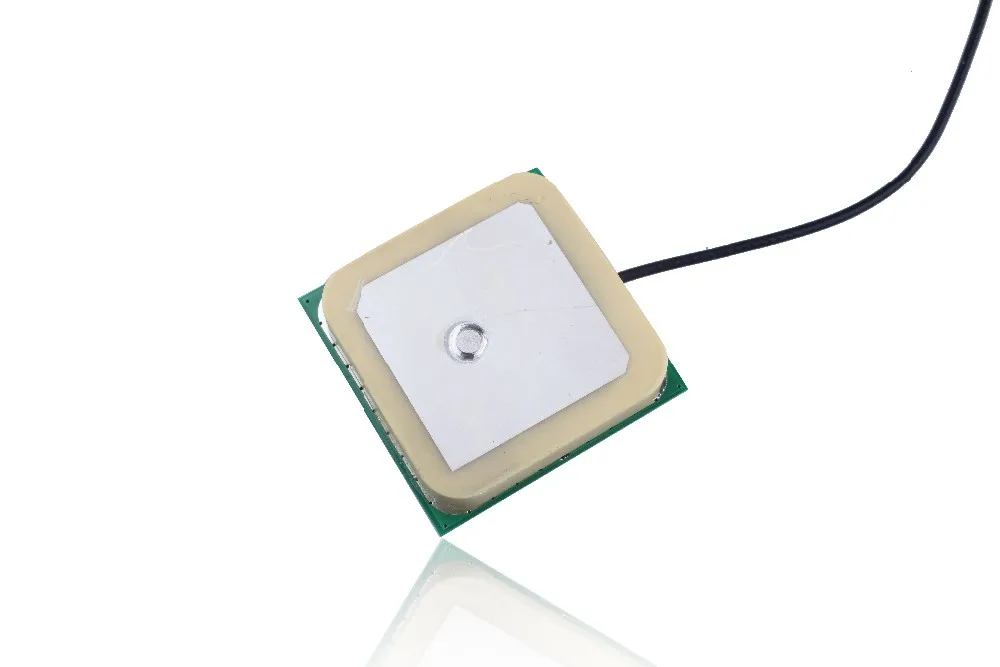

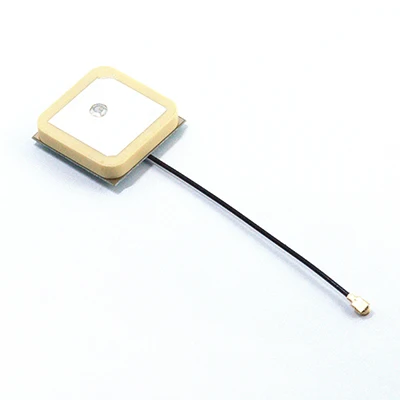

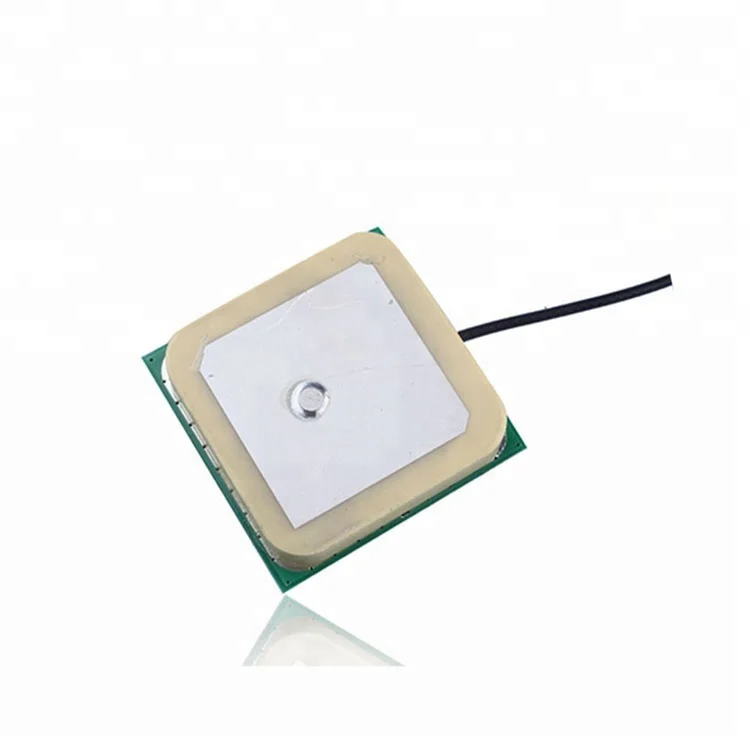

JIAKANG Ceramic Dielectric Microwave Internal GPS Active Antenna

Antenna

1

Antenna model

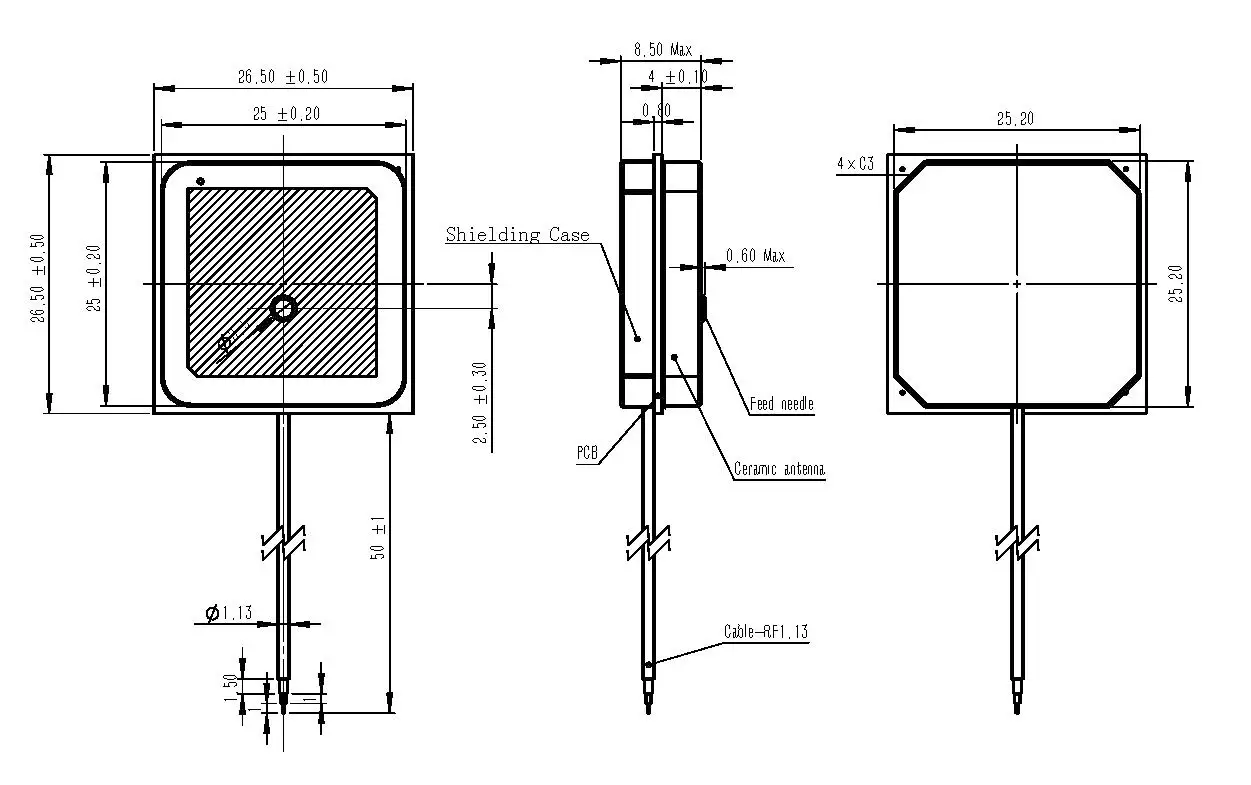

2540A(25mm*25mm*4mm)

2

Frequency Range

1575.42MHz±1.02 MHz

3

V.S.W.R

<2.0

4

Band With@10dB

>10MHz

5

Gain

2.0 dB typ @27mm*27mm groundplane

6

Impendence

50Ω

7

Polarization

RHCP

LNA

1

Frequency Range

1575.42MHz±1.02 MHz

2

DC Voltage

3.3±0.3V

3

DC current

11±2mA(@3.0V)

4

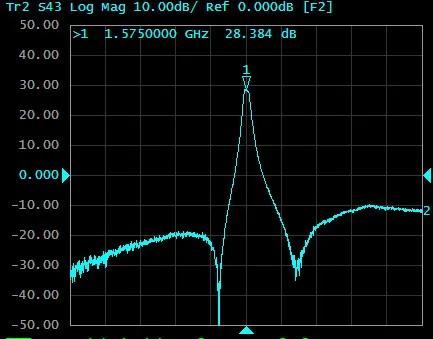

Gain

28±3 dB(without cable @25°C±10°C)

5

Output VSWR

2.0 MAX

6

Noise Figure

2.2 MAX

Overrall performance(Complete module including RF connector)

1

Frequency Range

1575.42MHz±1.02 MHz

2

DC Voltage

3.3±0.3V

3

DC current

11±2mA(@3.0V)

4

Gain

23 dB Typ

5

Noise Figure

2.2 MAX

6

Band With@10dB

>10MHz

7

V.S.W.R

<2.0

8

Impendence

50Ω

Environment Condition

1

Working Temp

-40°C~+85°C, 10%~95% RH

2

Storage Temp

-55°C~+100°C, 10%~95% RH

3

Vibration

Sine sweep @1.5mmAM

10~55Hz each   Axis

  Our microwave dielectric products mainly include dielectric patch antennas, filters, duplexers and GPS modules, which are widely used for positioning, satelliate broadcasting receiver system,RFID,ETC and so on. We are dedicated in the development of core technologies and have achieved the leading position in the ceramic powder formula,manufacturing processes and test technologies. Some products and processes are authorized national patents.Customized products are available.

  Memo: Above specification subject to change without further notice.Please contact us for more details.
