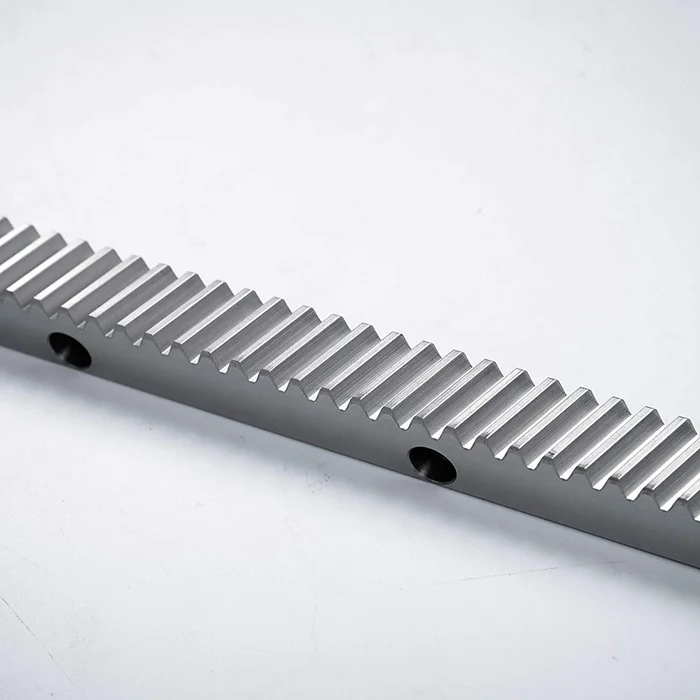

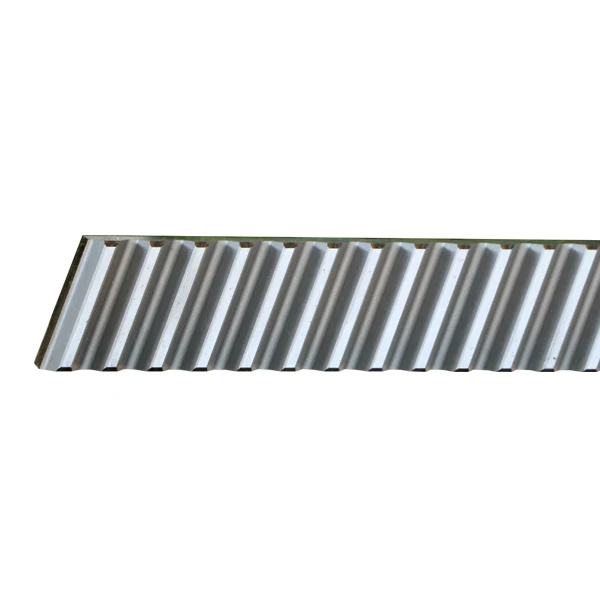

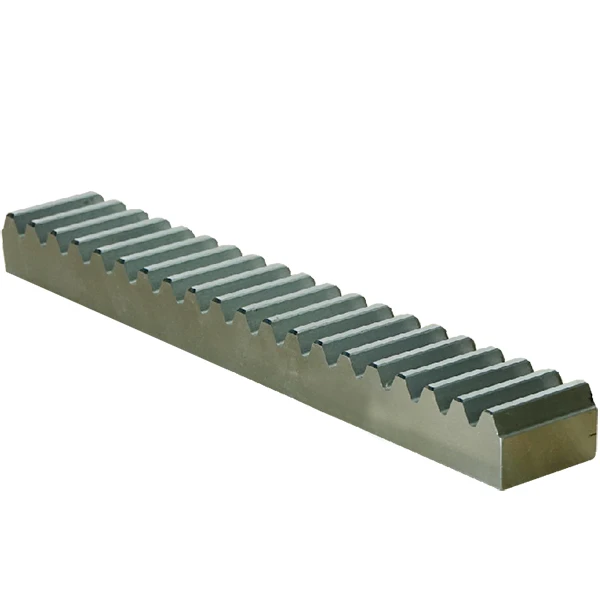

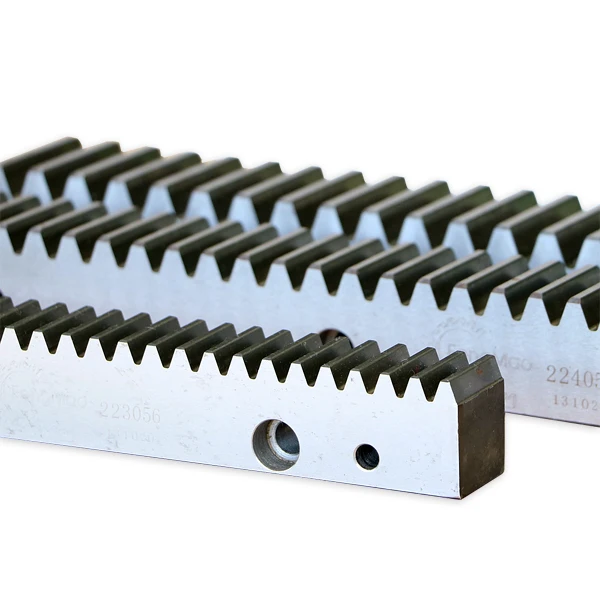

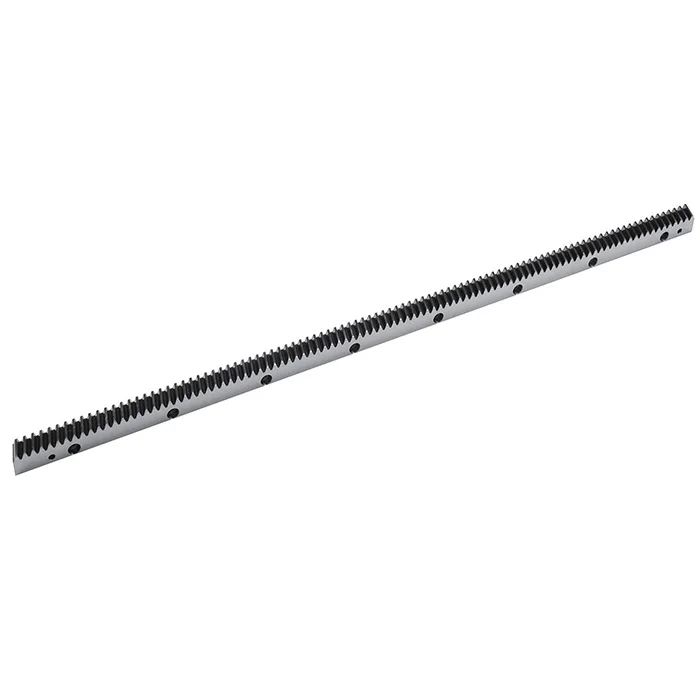

custom low price brass ground cylindrical gear racks

A rack is generally used for converting rotational motion into linear motion. It is a flat bar onto which the teeth of a pinion gear are engaged. It is a kind of gear whose axis is at infinity. These gears are designed to accommodate a wide variety of applications.

1.Our gear rack is produced as per AGMA, DIN, JIS standard by Finish gear milling machine
2.Pressure angle: 20°/14.5°or as your requirement

3. Teeth type: Spur rack gear, Helical rack gear
4.Module: M0.5-M25/DP1-DP2
5.Max length:2500mm
6. Material: Q235, C45, SS304, SS316L, Aluminum, copper, nylon and so on.
7.Standard gear rack available and special gear rack as per your drawing or samples

Product Name	Spur gear rack, helical gear rack, staight tooth rack gear
Material	C45, 40CrMnTi, SUS 304, Brass, Aluminum, Nylon etc.
Process	Shaping, Finish Milling, Casting, Molding
Standard	AGMA, DIN, JIS, ISO
Grade	AGMA 8-12, JGMA 2-6, DIN 6- 6
Heat treatment	Carburizing, Quenching, Tempering, Nitriding
Surface treatment	Galvanizing/Zinc plating, Chrome plated, Black oxide
Application	automotive, electronics, textiles, printing, packaging, medical equipment, food processing ,wind power, chemical, and pneumatics

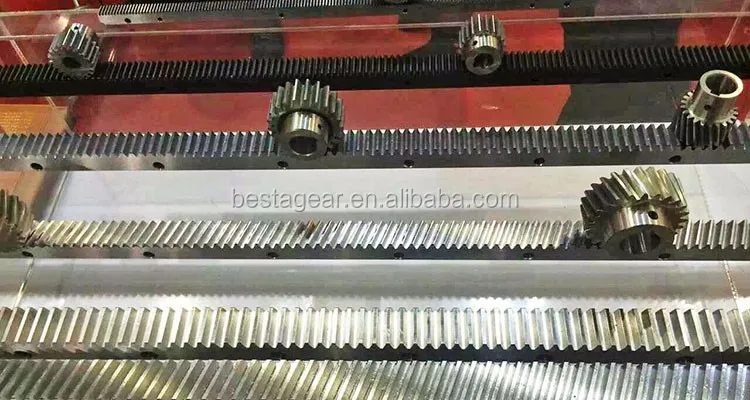

Products Show

Our Company

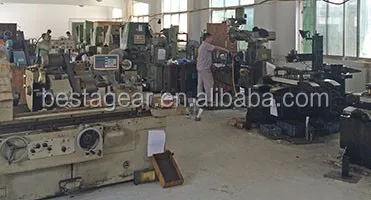

Factory

Our Factory

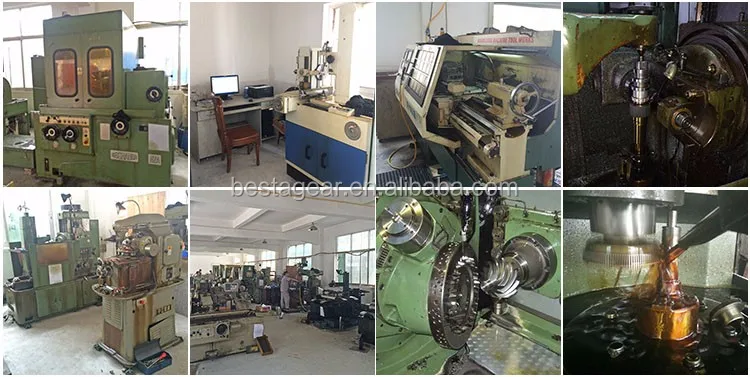

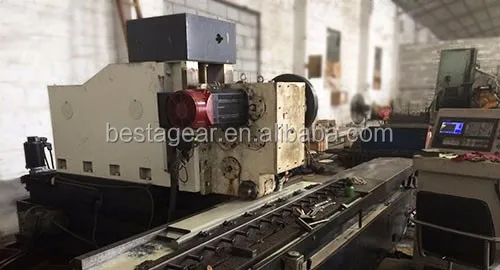

CNC Rack Shaping machine

Our Equipment

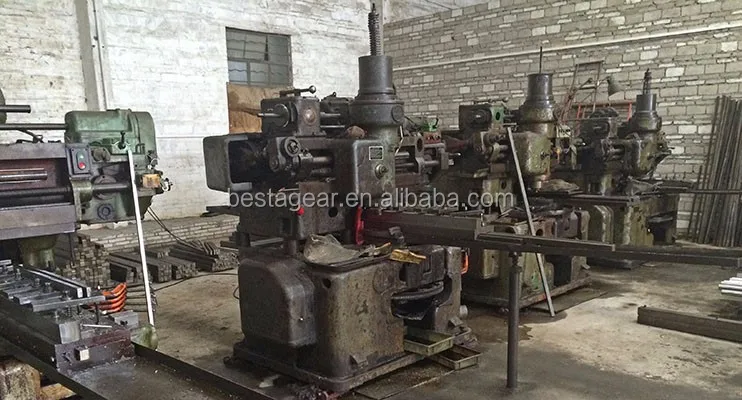

CNC Rack milling machine

Our Equipment

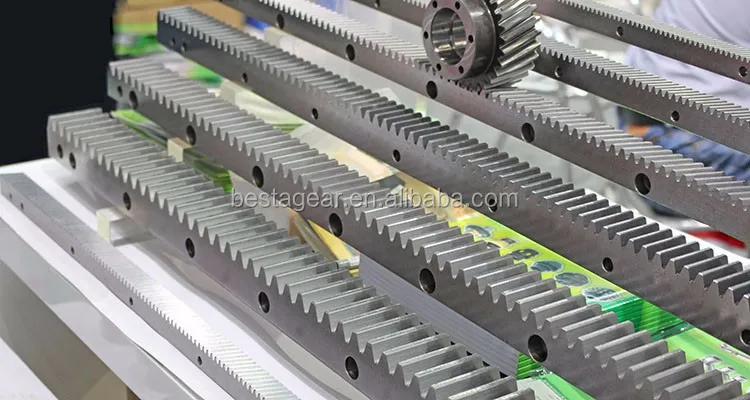

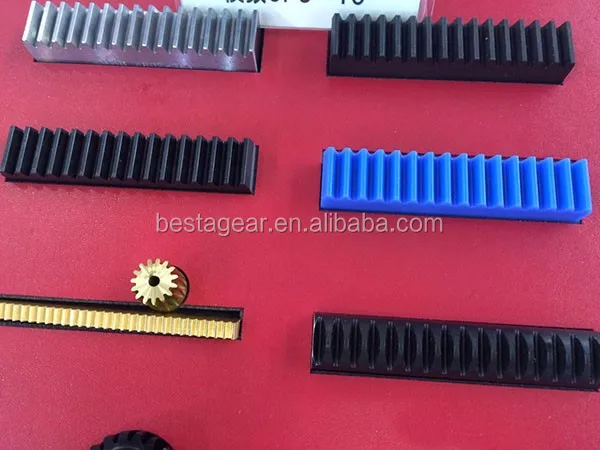

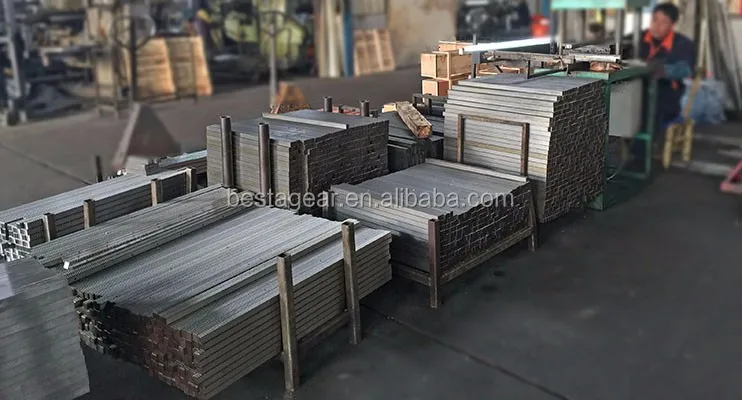

Stock Rack

Our Rack Product

Capability

We can fabricate plastic gears, rack pinion , precision rack gear, pinion gear as your customized drawings.

- Spur gear racks, OEM small rack and pinion gears
- Stainless steel spur gear
- Helical gear racks (helix gear racks)
- Worm gear racks (worm wheel)
- Screw gear racks
- Internal gear racks
- With / without Ground teeth
- With / without Hardened teeth

(Precise grade :Grade DIN 7-10 Material:C20 C45, 40cR)

There are various standard rack with difference module and length available below.

M1	10x10x1000 10x15x1000	M1	15x15x250 15x15x500	M3	30x30x250 30x30x500	M5	50x50x250 50x50x500
M1.5	15x15x1000 15x20x1000	M1	15x15x1000 15x15x2000	M3	30x30x1000 30x30x2000	M5	50x50x1000 50x50x2000
M2	20x20x1000 20x25x1000	M1.5	17x17x250 17x17x500	M4	22x22x250 22x22x500	M6	60x60x250 60x60x500
M2.5	25x25x1000 25x30x1000	M1.5	17x17x1000 17x17x2000	M4	22x22x1000 22x22x2000	M6	60x60x1000 60x60x2000
M3	30x30x1000 30x35x1000	M2	20x20x250 20x20x500	M4	30x30x250 30x30x500	M8	80x80x250 80x80x500
M4	40x40x1000 40x45x1000	M2	20x20x1000 20x20x2000	M4	30x30x1000 30x30x2000	M8	80x80x1000 80x80x2000
M5	50x50x1000 50x55x1000	M2.5	25x25x250 25x25x500	M4	40x40x250 40x40x500	M10	100x100x250 100x100x500
M6	60x60x1000 60x65x1000	M2.5	25x25x1000 25x25x2000	M4	40x40x1000 40x40x2000	M10	100x100x1000 100x100x2000

Packing & Delivery

Packing Details  : Packing, solid bicycle saddle, 50pcs/carton

Delivery Details : 3-30 days after order of Solid bicycle tire tubes

1. Solid wooden case

2. Solid wooden case

3. Solid wooden box

Customer Photo

Favorable Comment

Our quality gears have been exported to more than 20 countries, in many field with our excellent product performance, we favored consistent high praise from domestic and overseas customers.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
