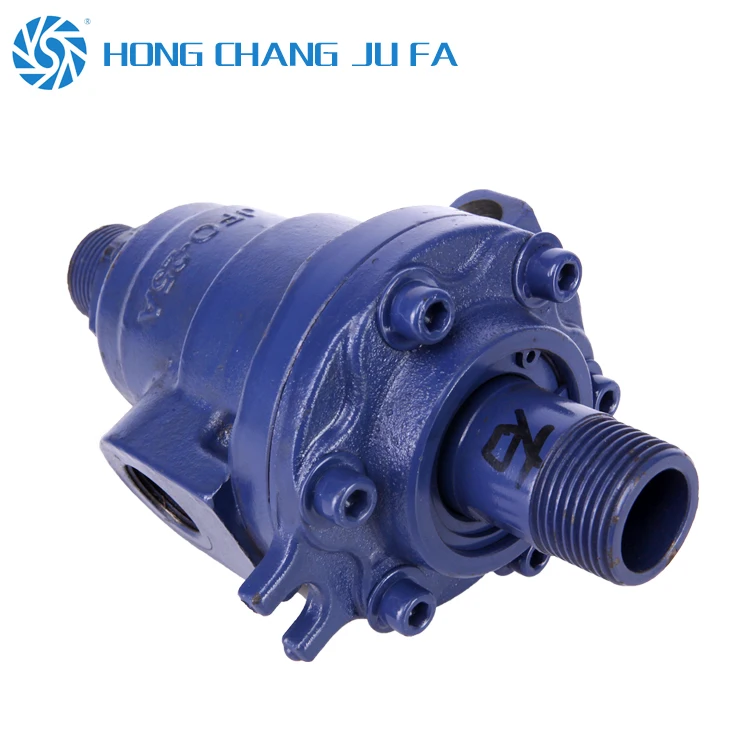

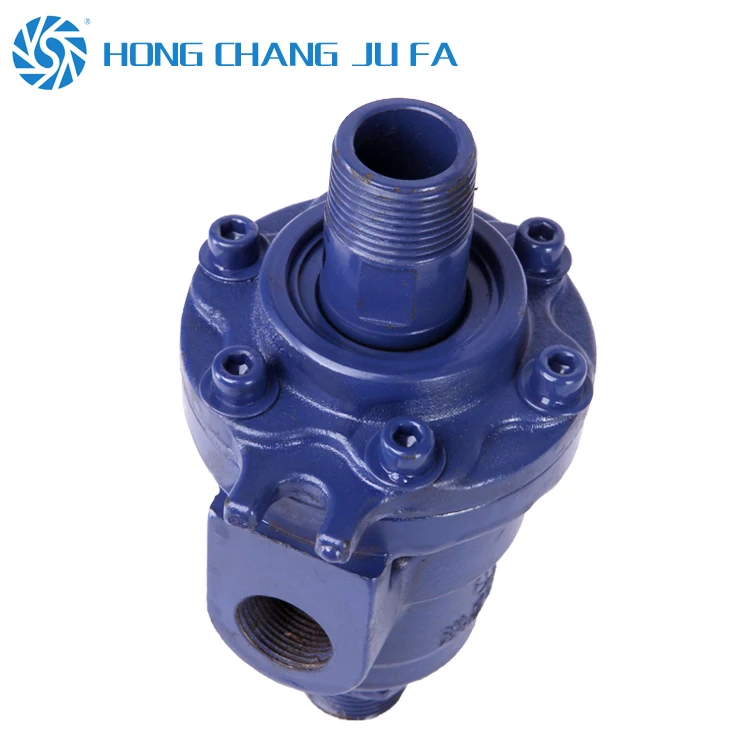

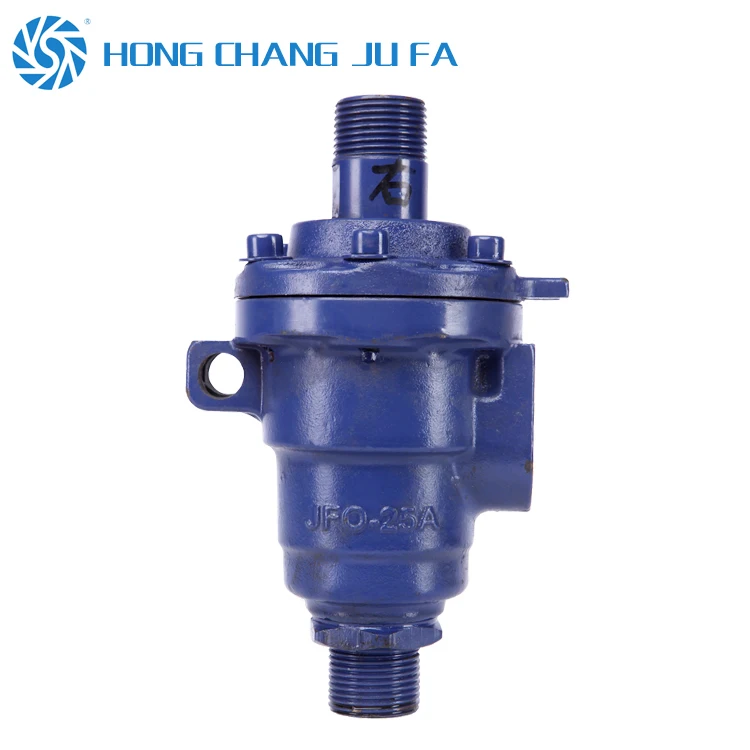

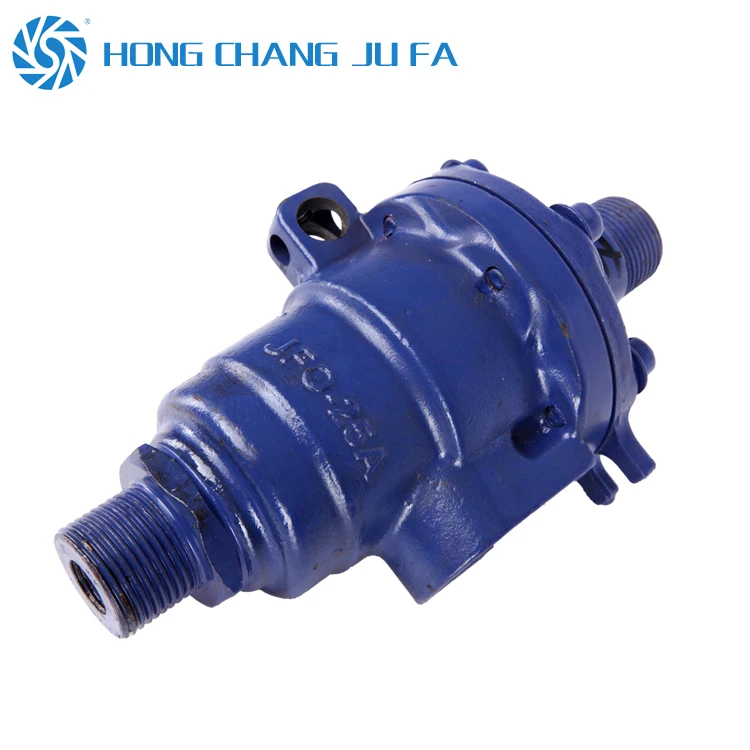

High pressure high temperature 1 inch thread rotary joint/swivel joints.

Product Overview

Description

High pressure high temperature

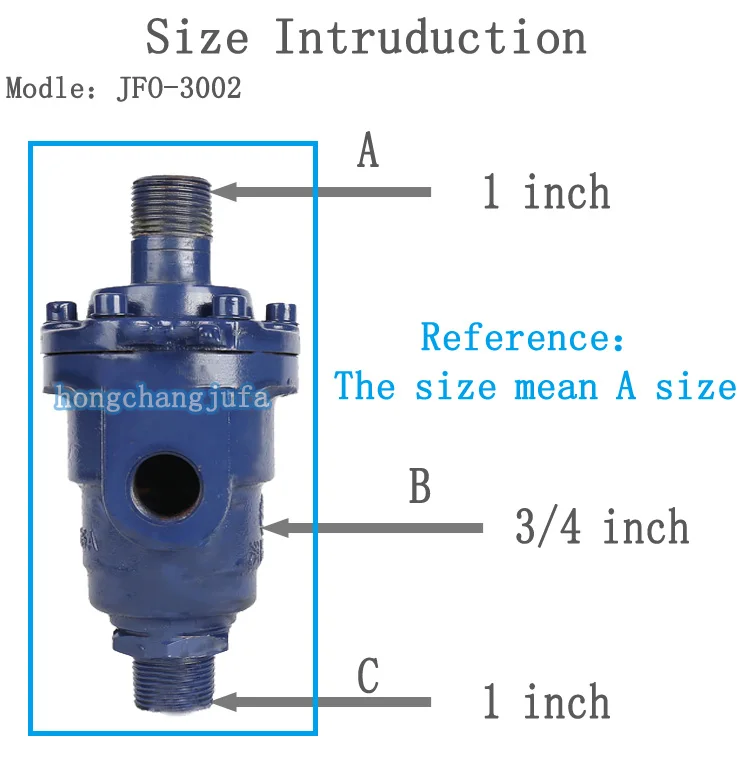

1 inch  thread  rotary joint/swivel joints.



Selecting the rotary joint / swivel joint must consider five elements, the size, medium, temperature, pressure, speed.

Guide for choose

Rotary joint Series		Size ( inch )	Medium	Temp ( ℃ )	Pressure ( PN )	Speed (rpm)
JFW Series	2001	3/8 - 3	Water	≤ 100℃	≤ PN 16	≤ 500-3000
	2002	1/2 - 1.5	Water	≤ 100℃	≤ PN 16	≤ 500-3000
JFO Series	3001	1/2 - 6	Oil	≤ 250℃	≤ PN 25	≤ 200
	3002	3/4 – 2.5	Oil	≤ 300℃	≤ PN 25	≤ 200
	3003	1/2 - 3	Oil / Water	≤ 220℃	≤ PN 16	≤ 500
JFS  Series	1001 (D MODEL)	3/4 - 4	Steam	≤ 180℃	≤ PN 25	≤ 200
	1001 Plum blossom	1 - 4	Steam	≤ 180℃	≤ PN 25	≤ 200





Parameter

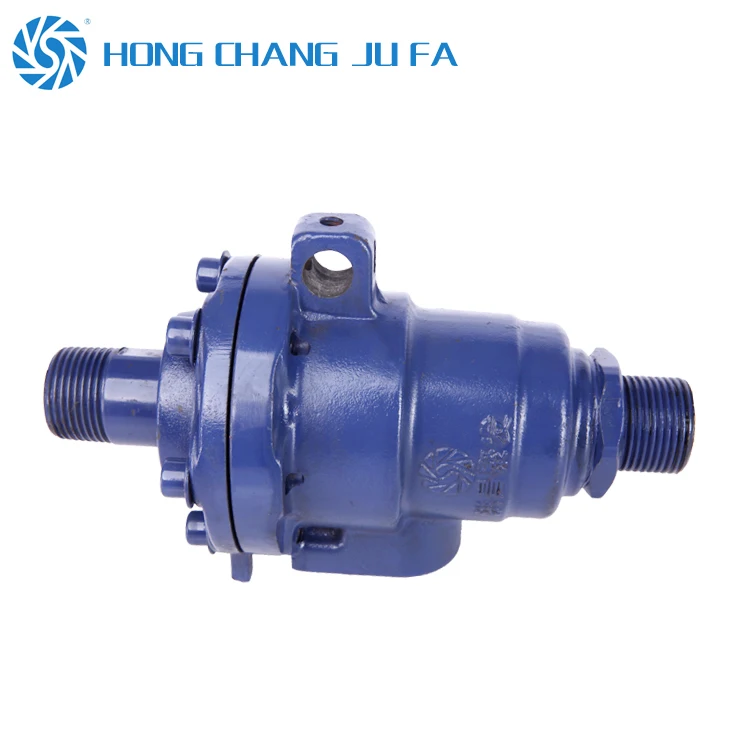

Model number	JFO-3001(New style)	Connection type	Thread
Main merterial	QT-600;Stainless steel 304	Thread standard	BSP/ NPT
Media	Heat transfer oil;air;steam; hot water	Thread	Male / Female
Working temperature	≤300℃	Flange standard	ANSI / BS / EN / DIN / GB
Working speed	≤200r/min	Passage	Single / Double
Pressure	2.5Mpa	Inner pipe	Stationary / rotation

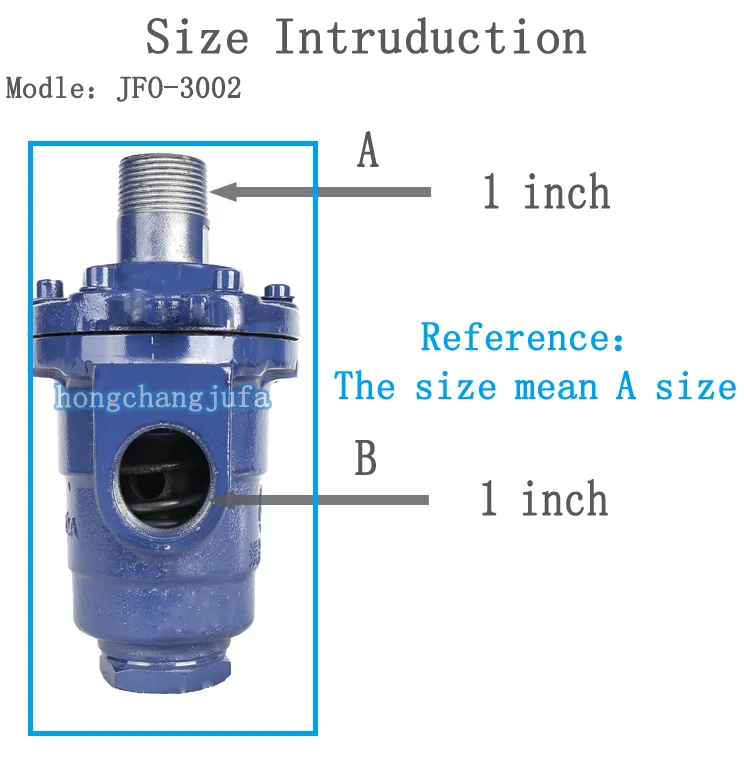

Size	3/4" inch - 3" inch	Seal	Graphited seal

Advantage:

1.The housing made by Precision Molds. It's very smooth and strong,suitable for thermic oil, steam, hot water under high pressure and high temperature condition.

2. The seal imported from Germany, which gurantee the excellent  SEAL performance.

3.

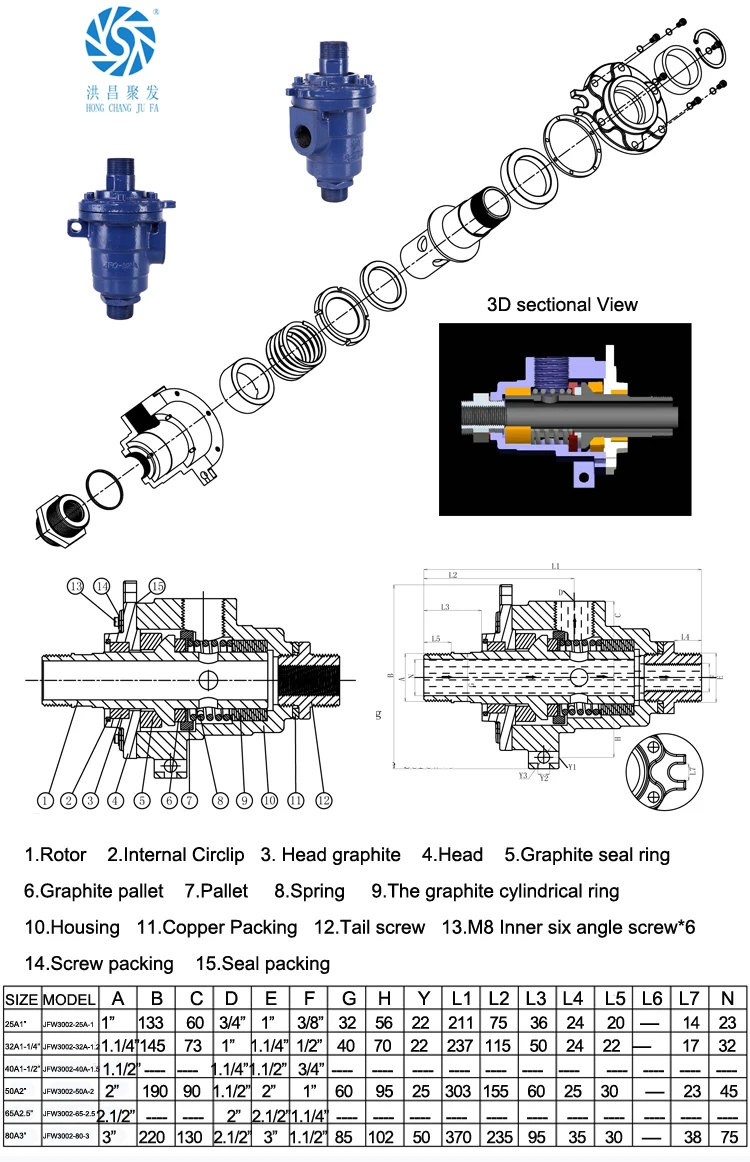

4. Using graphite pallet balance and ss 304 spring, it enhance the compensator and avoids  corrosive.

5. There are two type of it, monoflow and douflow.

6. we provide ONE-YEAR GUARANTEE.























 Foshan Hongchang Jufa Electromechanical Valve Co., Ltd  is a factory set up in 2006. We are specialized in

researching, developing and manufacturing different kinds of Rotary joint Flexible metal hose Rubber expansion joint PTFE braided  hose in China Mainland.

Our factory is covering over 10,000 square meters. Our R&D department consists of 3 engineers. Also, we have experienced QC personnel to check all our products strictly before packing. Every rotary joint will be test before shipping.

Our mission is: Offer high-quality goods, excellent service, and reasonable price to customers; Use our product, you will get more benefits!







1. How about the Hongchang Jufa Co.,Ltd. ?

 We are a factory, mainly product Rotary joint ,Flexible metal hose ,Rubber expansion joint ,PTFE braided  hose.



2. How about your Products?

Quality is our Culture! Our products includes rotary joint, expansion joint, flexible metal hose

and hydrualic rubber hose. Every products thoroughly pressure tested before deliver.



3. What is the Minimum Order Quantity?

 Our MOQ is 1 piece.



4. Can i get a Sample?

Yes, we provide sample to every customer. But the sample is not free and the freight should be paid by you also.



5. How about the Payment?

Normally 30% deposit in advance, the balance should be paid before shipment.

T/T,western union and Paypal is common payment term.



6. How about the Delivery Time?

If you order the common size, we could send it with 3 days. But if you order in special size or

material, it would be depend on the production time.



7. Could i custom the products?

Yes, please sent us drawing or the basic information.
