Table Type CNC Boring and Milling Machine


The table type boring and milling machine can do drilling, boring, reaming, milling and turning, threading etc. under a clamping.

The sliding block on rotating plate can radial feed during plate turning, to boring big hole, turning excircle, turning surface and grooving etc.

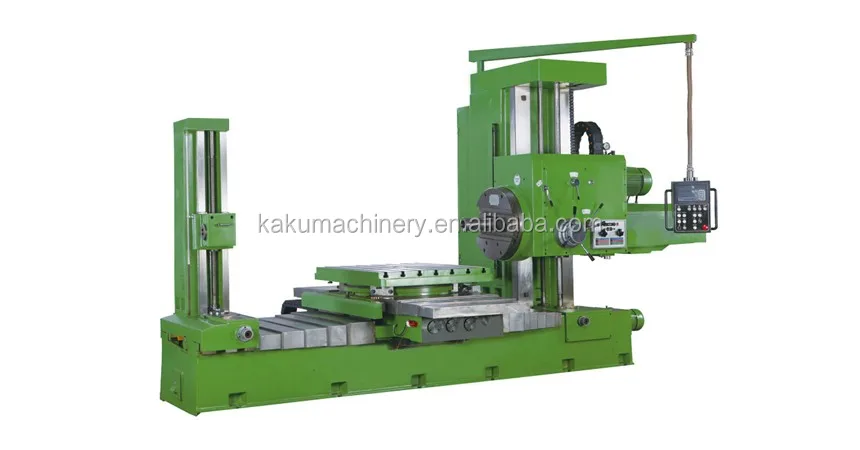

Detailed Images

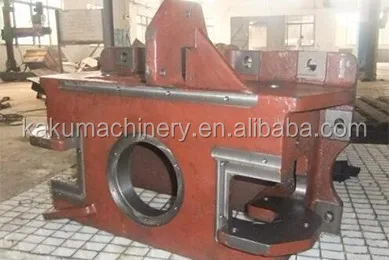

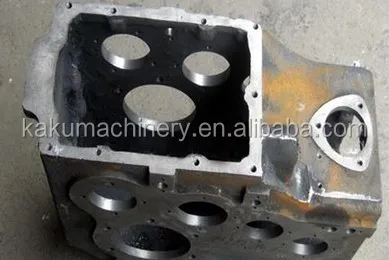

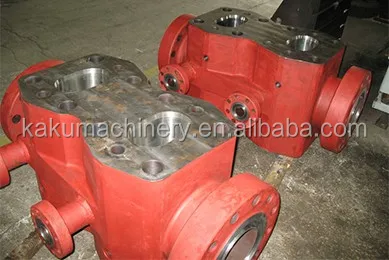

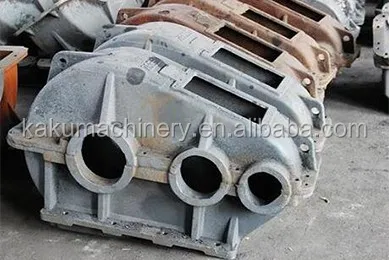

Typical workpiece


Parameter
\t
Parameters
\t
Unit
\t
TPX6111B
\t
TPX6111B/2
\t
TPX6111B/3
\t
Table size
\t
mm
\t
1100*960
\t
1100*960
\t
1250*1100
\t
X/Z axis travel of worktable
\t
mm
\t
900*1000
\t
1250*1000
\t
1600*1400
\t
Number/Width of T-slot
\t
mm
\t
7-22
\t
7-22
\t
7-22
\t
Vertical travel of headstock
\t
mm
\t
900
\t
900
\t
1200
\t
Max. load of worktable
\t
kg
\t
2500
\t
2500
\t
3000
\t
Spindle diameter
\t
mm
\t
110
\t
110
\t
110
\t
Spindle travel
\t
mm
\t
600
\t
600
\t
600
\t
Facing head tool holder's radial travel
\t
mm
\t
180
\t
180
\t
180
\t
Spindle taper
\t

\t
MT6
\t
MT6
\t
MT6
\t
Spindle speed range
\t
rpm
\t
8-1000
\t
8-1000
\t
8-1000
\t
Facing head speed range
\t
rpm
\t
4-200
\t
4-200
\t
4-200
\t
Spindle motor power
\t
kw
\t
7.5
\t
7.5
\t
7.5
\t
Rapid travel(X/Y/Z/W)
\t
mm/min
\t
2500
\t
2500
\t
2500
\t
Overall dimension
\t
mm
\t
4910*2454*2750
\t
4910*2870*2750
\t
5117*3359*3079
\t
Machine weight
\t
kg
\t
13000
\t
14500
\t
18000
