Product Overview
Description
Product Description
It is mainly used for deburring, removing rust, rounding and polishing all sorts of metals, non-ferrous metals and non-metals parts. The workparts after surface finishing, not only remain the shape accuracy of the original state, but also improve the precision of surface roughness of parts.
SPECIFICATIONS FOR VIBRATORY DRYER MACHINE XXHG-D200 | ||||||
Vibratory Finishing Machine | Machine Type | XXHG-D200 | SET | |||
Motor | 1.1 | KW | ||||
Motor Speed | 1440 | RPM | ||||
Main parameters | Machine Size | 1260*1290*880 | MM | |||
Process Vessel Volume (L) | 200 | L | ||||
Process Vessel Width | 280 | MM | ||||
Other information | Lining | Rubber lining/without lining | rubber | |||
Lining thickness | 8-15 | MM | ||||
Voltage | 220V-440V | 3 Phase | ||||
Detailed Images
Product Application
1. Vibratory dryer machine is designed for the workparts drying process and tiny polishing the workparts.
2. The machine can be linked
with vibratory finishing machine directly to dry the workparts automatically and continuously.
Adoption of organic media to dry the workparts without pollution.
3. It will eliminate the water mark trace after drying.
Workparts and medias can be separated automatically. heating temperature can be set.
4. Two ways of heating to make the performance better.
5. Lined with high temperature resistant rubber lining, it has good performance than the common PU lining, it has resist the high temperature more than 100°.

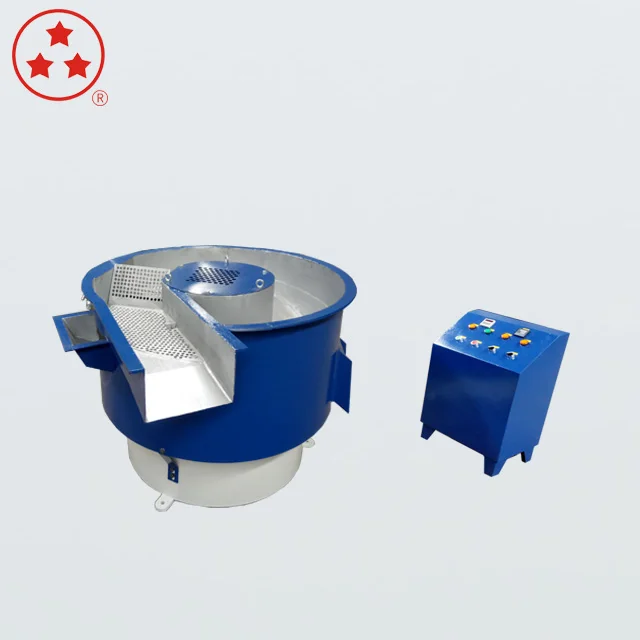

Vibratory Drying Machine
Name: Vibratory dryer
Brand: Xingxing
Original: Zhejiang, China

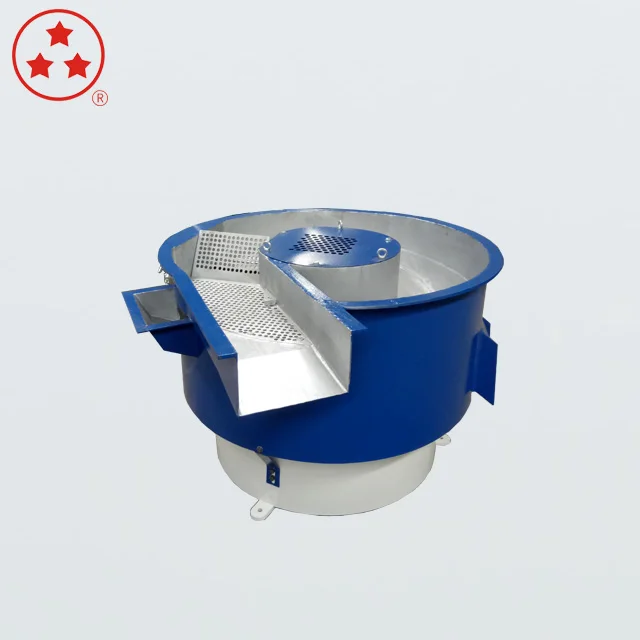

The XXHG-D200
vibratory dryer machine
Name: Vibratory Dryer Machine
Brand: Xingxing
Original: Zhejiang, China
Brand: Xingxing
Original: Zhejiang, China

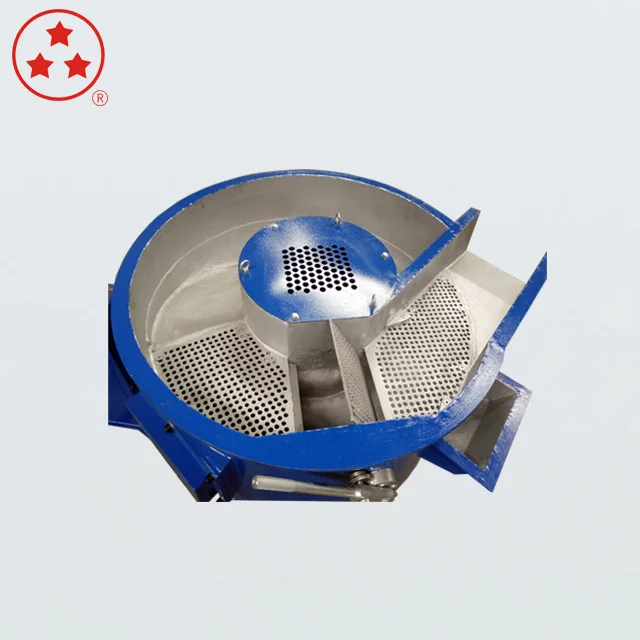

The vibratory dryer machine with separate screen, could separate the workparts after dryering process.
Brand: Xingxing
Original: Zhejiang, China
vibratory dryer machine, with corn cob or walnut shell media, drying the wet work parts from vibratory finishing machine in contorlled cycle time.The maximum temperature that Heat resistant rubber lining can withstand is 120 degrees celsius. Generally speaking, the temperature when the machine works is 60-80 degrees celsius.
Original: Zhejiang, China
vibratory dryer machine, with corn cob or walnut shell media, drying the wet work parts from vibratory finishing machine in contorlled cycle time.The maximum temperature that Heat resistant rubber lining can withstand is 120 degrees celsius. Generally speaking, the temperature when the machine works is 60-80 degrees celsius.
Brand: Xingxing
Original: Zhejiang, China
With pneumatic flap, the air cylinder control the flap drop and rise
With pneumatic flap, the air cylinder control the flap drop and rise
Brand: Xingxing
Original: Zhejiang, China
Can be customized according to the size of the device.
Can be customized according to the size of the device.

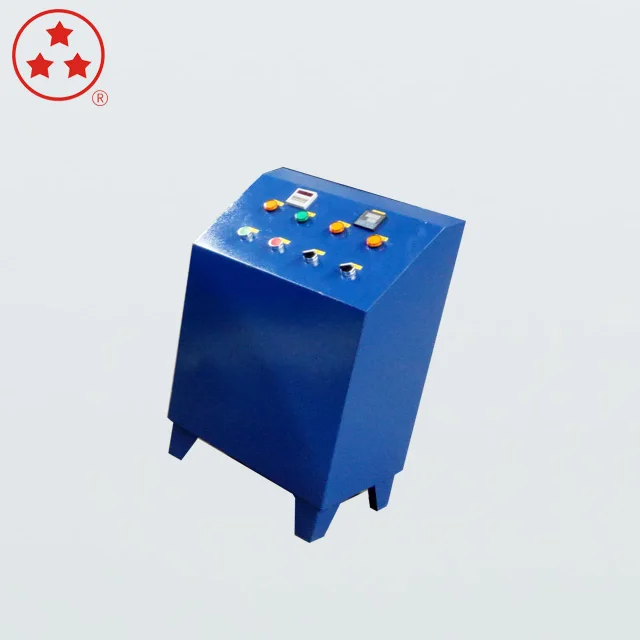

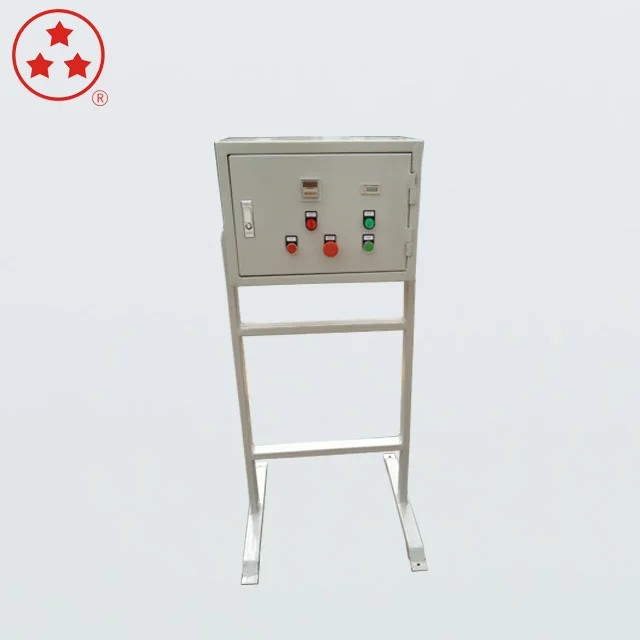

Name: Temperature Control box Vibratory dryer machine
Brand: Xingxing Original: Zhejiang, China
1. With temperature controller
2. DC24 control voltage for safe operation
3. Indication light for machine operation
4. Standard Control cabinet
5. Emgerency button
6. Volage: As per request
