Hybrid Wind Solar Charge Controller 600W Regulator 24V/12V Auto switch
- Category: >>>
- Supplier: Shenzhen Huaxiao Technology Co. Ltd.Shenzhen Ltd.
Share on (60503610866):
Product Overview
Description
Product Introduction

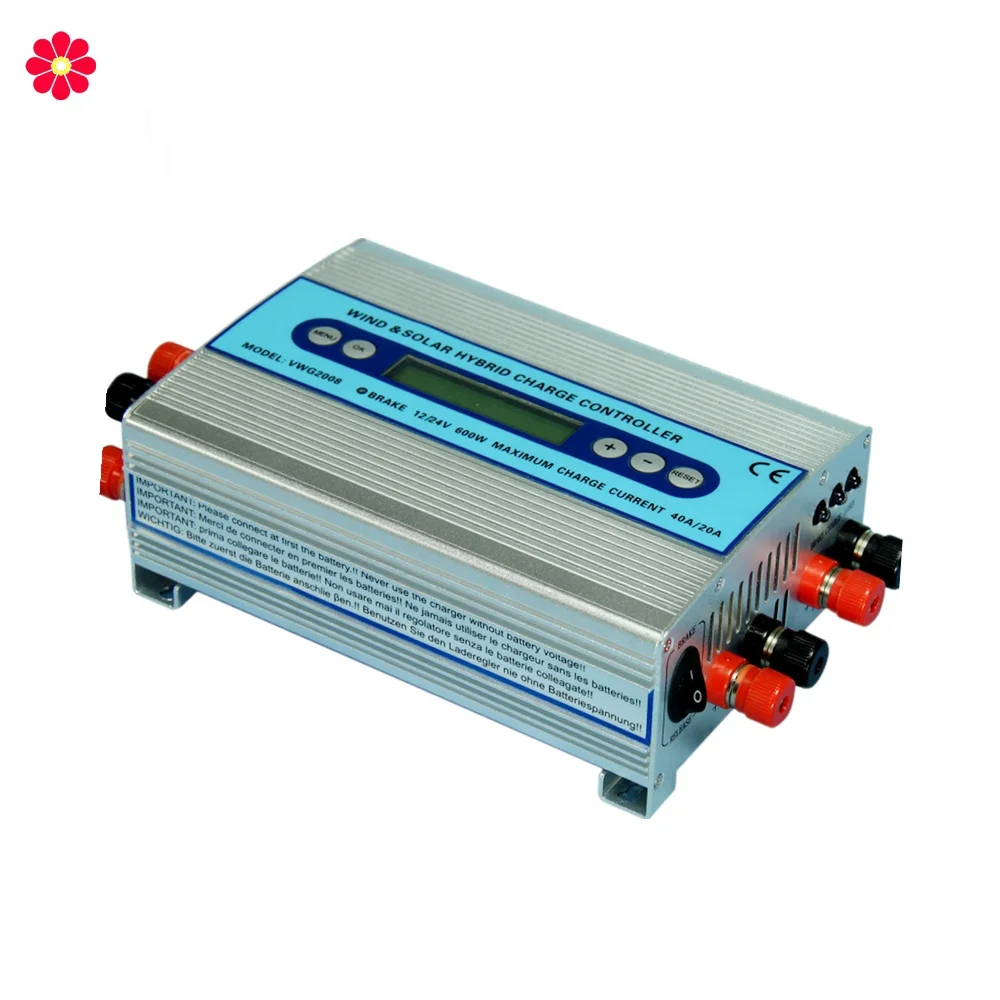

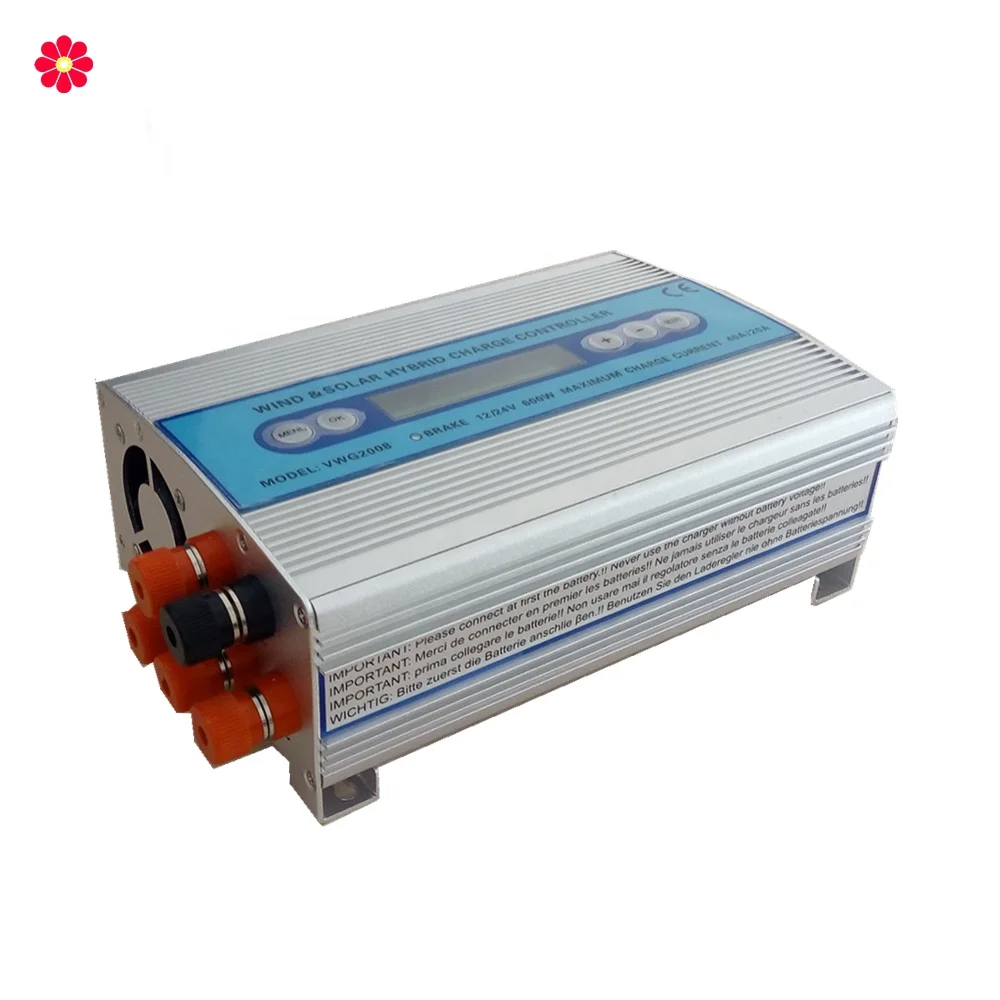

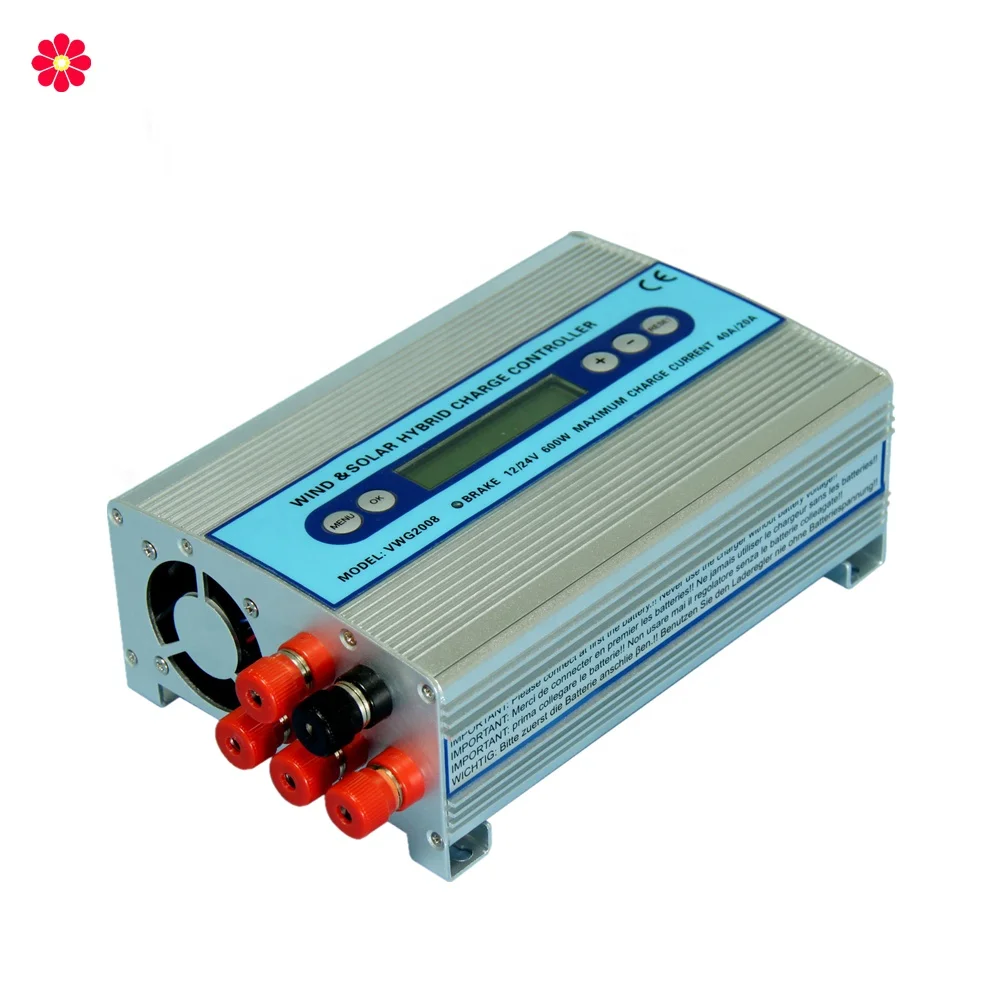

600W wind solar charge controller wind turbine solar system controller
The VWG2008 hybrid charge controller is a smart controller. The integrated micro computer monitors all the necessary inputs and outputs to ensure precise control. Sophisticated systems and automated monitoring systems to display all kinds of data. User also can make your settings on the LCD display according to the factors that best match your situation.
Product Features
Perfect Protection：
Low Voltage Protection
Over Voltage Protection
Overload Protection
Overcharge protection
Reverse Polarity protection
Short Circuit protection
Lightning protection
Automatically brake protection
Perfect Function:
The unit Auto-Senses battery type voltage (12 or 24 volt).

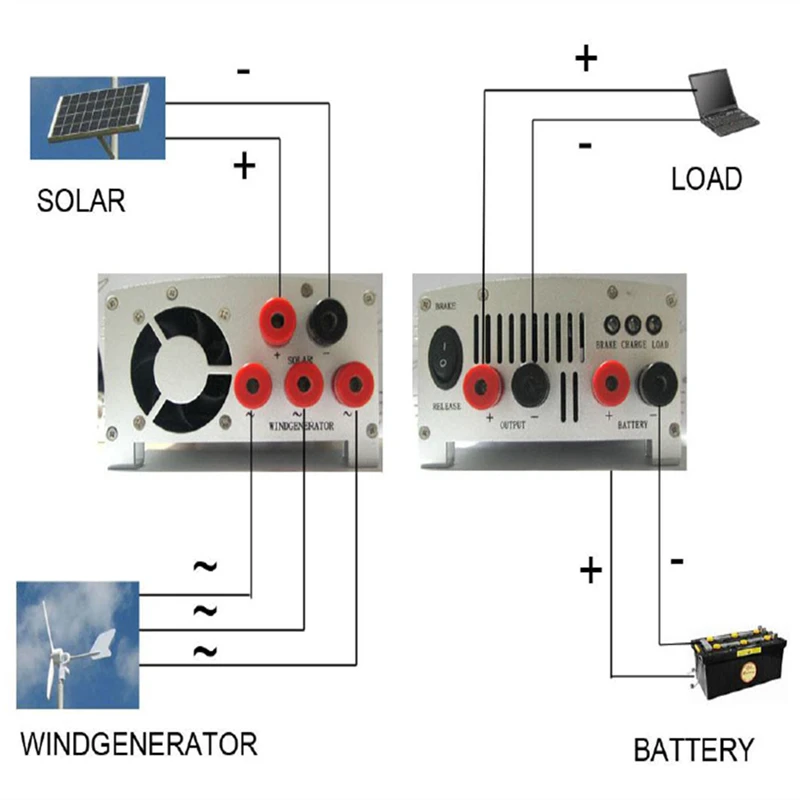

The unit accepts “3 phase AC” directly from your wind turbine so there is no need for a separate rectifier.
The BRAKE switch allows you to manually slow or stop your turbine for an extended period of time.
The internal fan protects against overheating during heavy operation caused by high wind events.
The buttons and display on the top panel allows you to select the setting you would like to adjust or
view.
Product Parameters
Specifications:
MODEL | VWG2008 |
Rated Power | 600W（Wind generator + Solar） |
Applicable batteries | 12/24V,100-300Ah(automatic distinguish voltage) |
Wind turbine automatically braking voltage | 17.5V/32.5V (DC voltage after rectification) |
Battery full charge cut | 14.4V/28.8V(default, adjustable) |
Battery low voltage disconnect load | 10.5V/21.8V（default，adjustable） |
Load on voltage | 12.6V/25.2V(default, adjustable) |
Charge current max | 40A/20A |
Load current max | 35.61A/17.80A |
Recovery time after the automatic braking | 1min(default, adjustable） |
No load loss | ≤40mA |
Working environment | Environment temperature -10℃～+50℃,Relative humidity 0～90％ |
Dimensions | 228×133×75mm |
Weight | 1.2kg |
The HX-VWG2008 hybrid charge controller is preconfigured with default settings in the user programmable locations.
Default 12 volt battery | Default 24 volt battery | |
Charge off | 14.32 volts | 28.64 volts |
User of | 10.98 volts | 21.97 volts |
User on | 12.44 volts | 24.88 volts |
Brake current | 40 amp | 20 amp |
Brake time | 50 seconds | 50 seconds |
