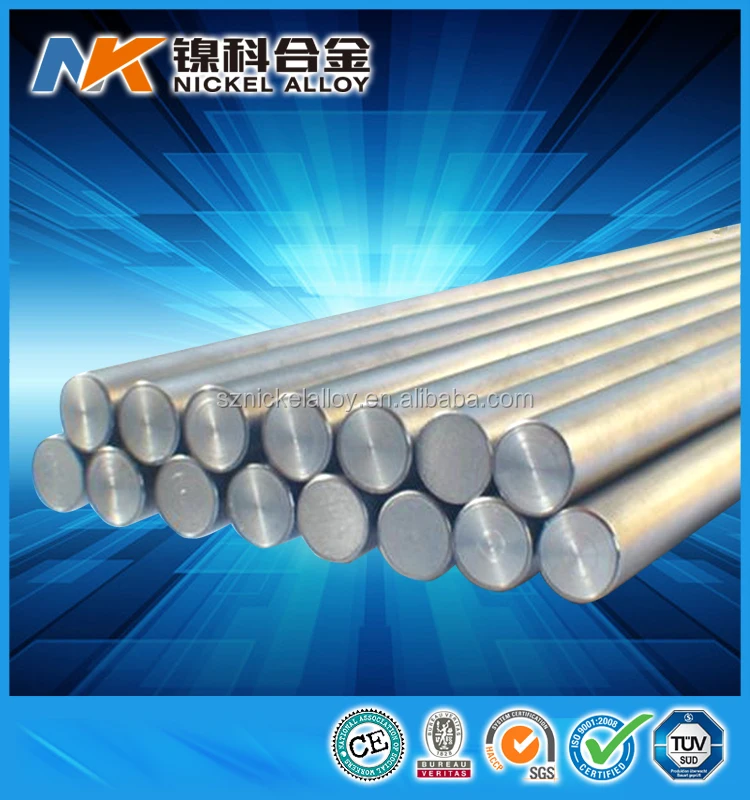

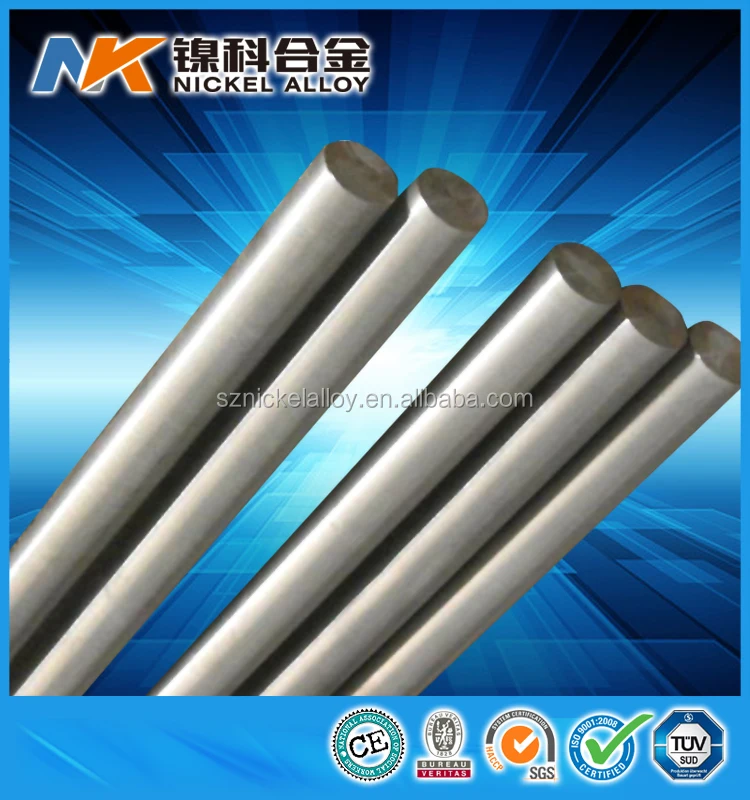

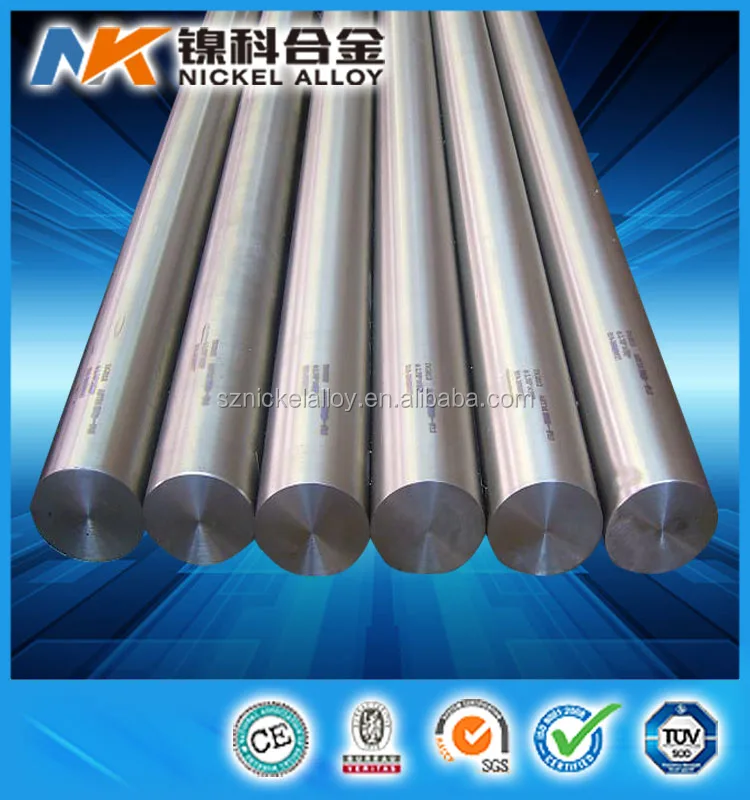

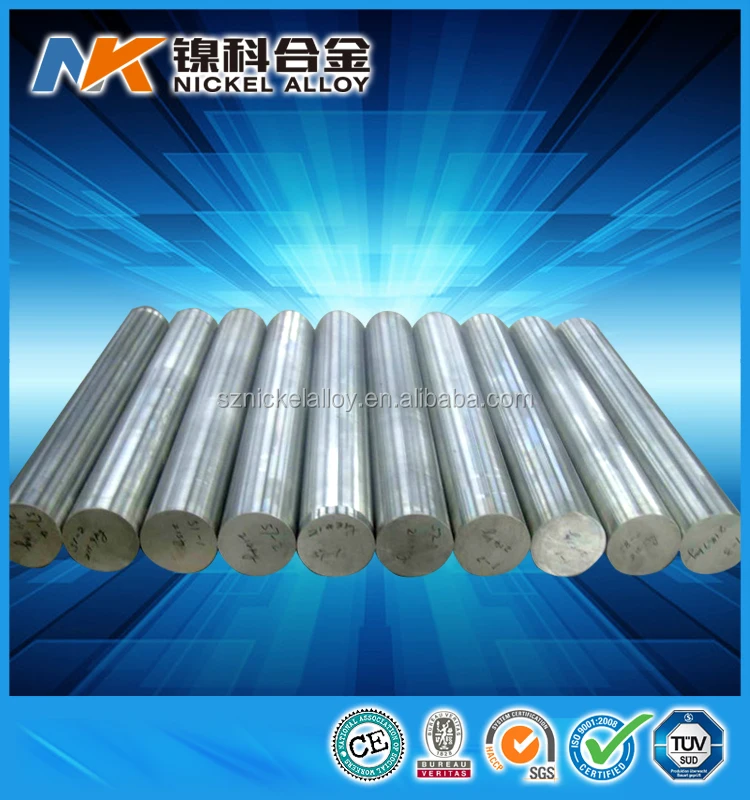

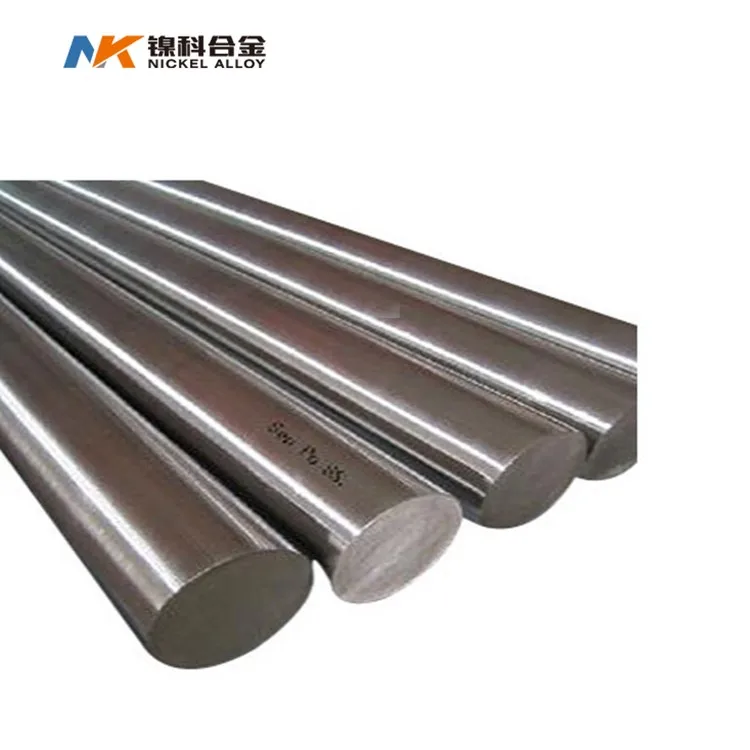

custom iron nickel cobalt alloy rod hiperco 50 bar

Product Overview

Description



hiperco 50 bar
Grade: hiperco 50 bar
stable resistance
highest magnetic saturation
long life service



                                    custom iron nickel cobalt alloy rod hiperco 50 bar



Hiperco 50



Hiperco 50 is an alloy of 49% Cobalt, and 2%Vanadium, balance Iron, Hiperco 50 have the highest magnetic saturation of all soft-magnetic alloys and excels in applications where this attribute is needed. Hiperco 50 maintains its strength after heat treating making it your best choice for applications that experience high forces (e.g. rotating parts).



1. Chemical composition(%)



Hiperco 50 & 50A Chemistry
maximum % unless noted
	Hiperco 50	Hiperco 50A
Iron	Bal	Bal
Nominal Nickel	0.25	0.25
Nominal Cobalt	49	49
Chromium	0.15	0.15
Carbon	0.025	0.025
Manganese	0.15	0.15
Silicon	0.15	0.15
Nominal Vanadium	1.9	1.9
Nominal Niobium	0.05	na
Phosphorus	0.015	0.015
Sulfur	0.010	0.010



2. Physical properties



Hiperco 50 & 50A Physical Properties
		Hiperco 50	Hiperco 50A
Density	lb/cu in	0.293	0.293
Specific Gravity		8.12	8.12
Curie Temp	°F	1724	1724
	°C	940	940
Melting Point	°F	2600	2600
	°C	1427	1427
Electrical Resistivity	Micro-ohm-cm	40	40
	ohm-cir mil/ft	241	241
Thermal Conductivity	W/cm °C	0.29	0.29
	BTU-in/sq. ft-hr-	200	200
Specific Heat	kJ/kg - °C	0.10	0.10
	BTU/lb - °F	0.10	0.10
Thermal Expansion	ppm / °F (75°F to 932°F)	5.8	5.8
	ppm / °C (25°C to 500°C)	10.4	10.4



3. Magnetic properties



Hiperco 50 & 50A Typical DC Magnetic Properties - 0.014" Strip
	Hiperco 50	Hiperco 50A
Saturation Induction - Gausses	24,000	24,000
Maximum Permeability	12,000	15,000
Coercive Force - Oersteds	0.9	0.4
Coercive Force - A/m	72	32



Product sizes are:

Hiperco 5 Application

Special Motors for the Aerospace Industry (e.g. applications where high magnetic saturation and high strength is required with as little weight as possible); Electromagnets for medical applications (e.g. to focus beams for radiation therapy in medical radiology applications); Electrical Generators; Specialty Transformers (e.g. electrical circuits and magnetic circuits where frequencies must be varied); Pole Pieces for Electromagnets; Magnetic Bearings (e.g. applications where rotating parts are levitated); High Magnetic Flux Devices and Instruments.











Why Choose SZNK Heating Resistance Alloys



All our raw material is made from prime material, not recycle material. We have more than 25 years experience in manufacturing resistance heating alloys.



In the market, not all the NiCr alloys are with standard chemical composition and stable resistance. Professional and reliable is the soul of our business.



1) We achieve consistent production from smelting to complete products, we are able to supply satisfactory products.



2) We have has the world's advanced level of German ALD - VIDP1000 - 8000KG vacuum induction furnace and wire drawing machines from Japan.



3) With our skilled spooling knowhows, we have successfully magnified the take - up weight on spool. For example, even a superfine wire of 0.04 mm in diameter can be wound and shipped on a 3 - 4 kg bobbin, thus immediately contributing to your productive efficiency.



4) In order to prevent a wire from loosening, we have introduced a developed tension controlled systems into our take - up machine and respooling machine.

We think you can anticipate smooth despooling.



5) Rolling mill with 4 stands in tandem is applied to our ribbons (rolled wires) manufacturing.



Why Us:



•Good quality control in production process, ISO9001:2008,SGS,BV approved.



• Excellent quality and Competitive price, OEM is available.



• Available in an extensive range of stock or custom size.



• The whole process from material to finished products can be traced.



Our Service:



• Your inquiry related to our product & price will be replied within 24hours.



• Well-trained & experienced staff are to answer all your inquiries professional in English of course.



• OEM is highly welcomed. We have strong R&D team here to help.



• Good after-sale service offered, please get back if you got question.



Q1.Do you attend exhibition every year?



A .Yes



Q2.Is there any discount of the nickel wire?



A.  Yes. Bigger quantity will get a discount.



Q3.Information needed if I want a quotation?



A  Name, Standard, Material Grade(Chemical Composition), Size Quantity, Weight.



Q4. Can we visit your company/factory before place the order?



A. Yes. Welcome anytime



Q5: How does your factory do regarding quality control?



A. Quality is priority. We always attach great importance to quality controlling from beginning to end.



How to contact us?



Send your inquiry details in the below for free sample, click "send" now.
