China top supplier automatic Hydraulic Hole Puncher
- Category: >>>
- Supplier: Zhangjiagang City Universal Machinery Manufacturer Co. Ltd.
Share on (60503747903):
Product Overview
Description
Technical Parameter
NO. | Item UM-CH50 | Data |
1 | Size | Single line, Double line |
2 |
Processing catagory set : | Single punch, not equidistant punching, equidistant punching rotary 360 degree ( can be customized ) |
3 | Diameter and thickness of punching processing : | Φ 50 × t 3 --- Φ 40 × t 12mm |
4 |
Processing of pipe diameter ( can be customized ) : | square tube : 20×20 ---120×120mm |
rectangular tube : 15×30 --- 60×120mm | ||
angle iron : 30×30 --- 120×120mm | ||
channel iron : 25×50 --- 120×120mm | ||
5 | Punching hole distance : | 0.1mm - 11900mm |
6 |
Punching speed : | 0.8-1.5 secound/ per hole, max 180mm stroke. |
7 | Maximum punching distance : | 12000mm ( can be customized ) |
8 | Standard length of processing : | 12000mm ( can be customized ) |
9 | Transmiss parts : | flock and pinion drive, ball screw drive |
10 | Ram pressure : | 5T --- 60T |
11 | Punching hole method | Oil pressure |
12 | Power | 380V 50HZ |
| Item | UM-CH100 | ||||||
| Max pipe out diameter | 80mm/80mm×80mm( Steel pipe) | ||||||
| Max process wall thickness | 3.0mm | ||||||
| Punching hole size | 4mm-20mm/4.5mm×16mm(Customise as per the request-14mm) | ||||||
| Max feeding length once | 180mm | ||||||
| Continously process hole quantity | Not limited | ||||||
| Max work piece length | 6000mm | ||||||
| Work efficiency | 2.5-3.5seconds/Hole | ||||||
| Max feeding speed | 800mm/seconds | ||||||
| Rectilinear accuracy(Oil cylinder feed ) | ±0.1mm | ||||||
| Operation mode | Automatic/Manual/Touch switch | ||||||
| Load/Unload Material mode | Manual | ||||||
| Machine weight | 1200kg | ||||||
| Power supply | 380° ±10V ,50HZ | ||||||
| Voltage | 3-phase 380V 50HZ (can made to order) | ||||||
| Total power | 10KW | ||||||
| Max work pressure | 140Mpa | ||||||
| hydrau-cylinder diameter | 100mm × 2 | ||||||
| Machine dimension | L1650×W750×H1450mm | ||||||
China top supplier automatic Hydraulic Hole Puncher
Feature
1.Touch Screen settings, NC control system, precise servo motor positioning, module storage memory function.
2. Structure:Steel plate welded structure
3. Mould replacement: change the die easily without adjusting the dies to reduce the mould damage rate and pipe fittings rejection rate due to the dies setting error. Skilled workers can change the mould within 10 minutes.
4. Punching Category: 1.single hole punching; 2.double hole punching; 3.Isometric hole punching; 4. none- Isometric hole punching; rotary punching.
5. Hydraulic and Servo System.
6. Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.
7. When the oil cylinder is moving downward, the machine is designed with hydraulic difference driving loops rated at high or low RPM .it is also featured with high speed downward moving, low speed processing and hi-speed position resume .it is available to increase the formation stability of work pieces during puncturing .in addition to increasing the activation speed, it can effectively reduce HP load to save electrical energy.
8. The electrical control system is designed with the human machine interface, range adjustment use digital scale, setting low speed position, floor level position, and operation precise and easy.
China top supplier automatic Hydraulic Hole Puncher

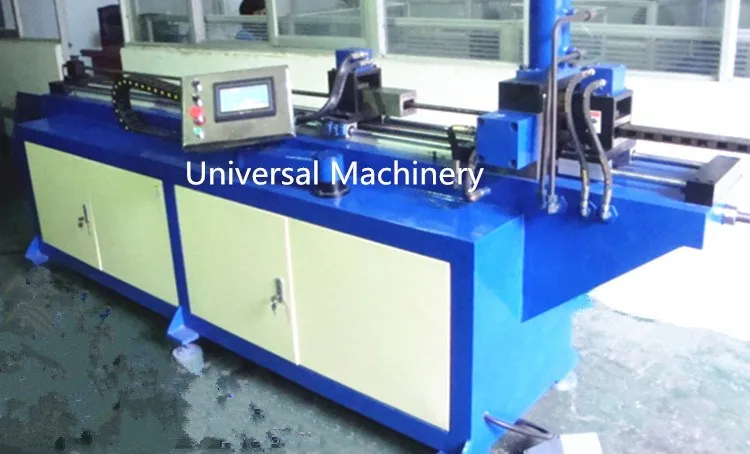

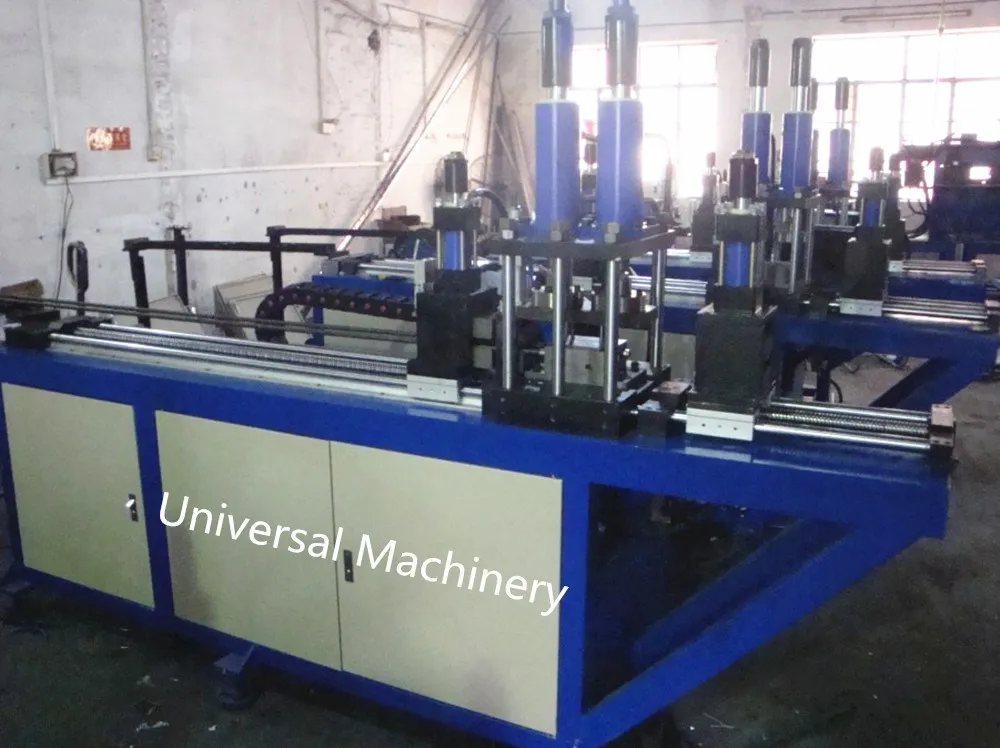

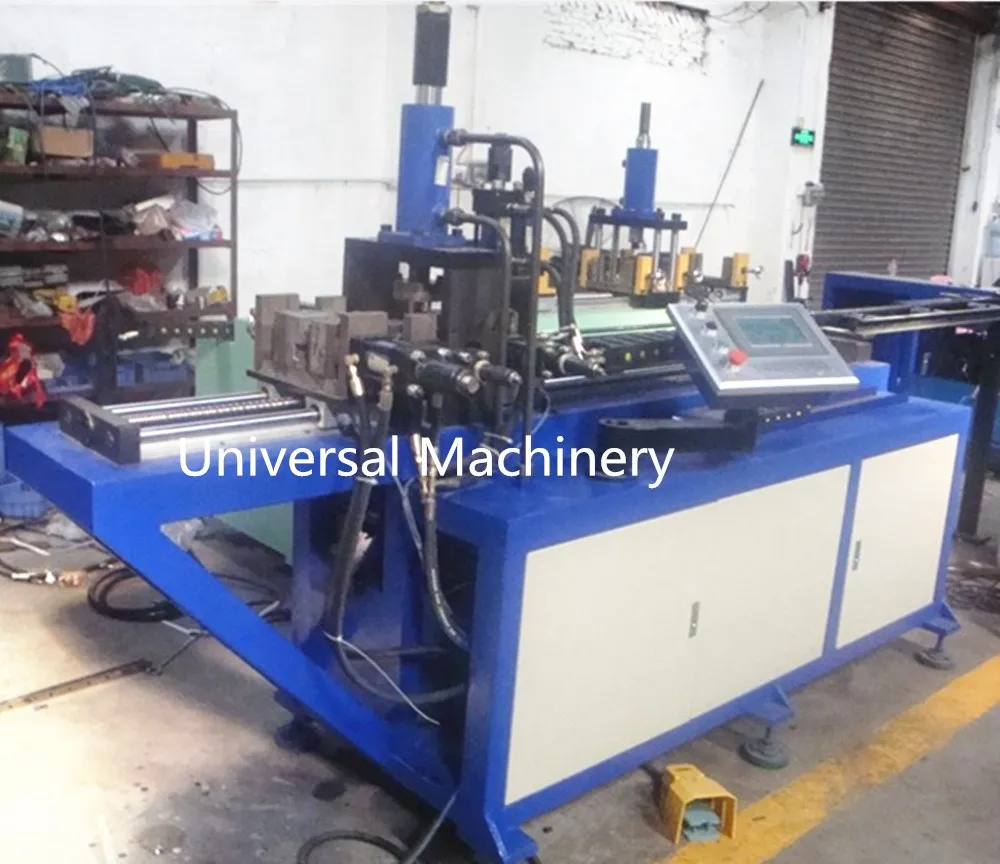

Machine Sample
