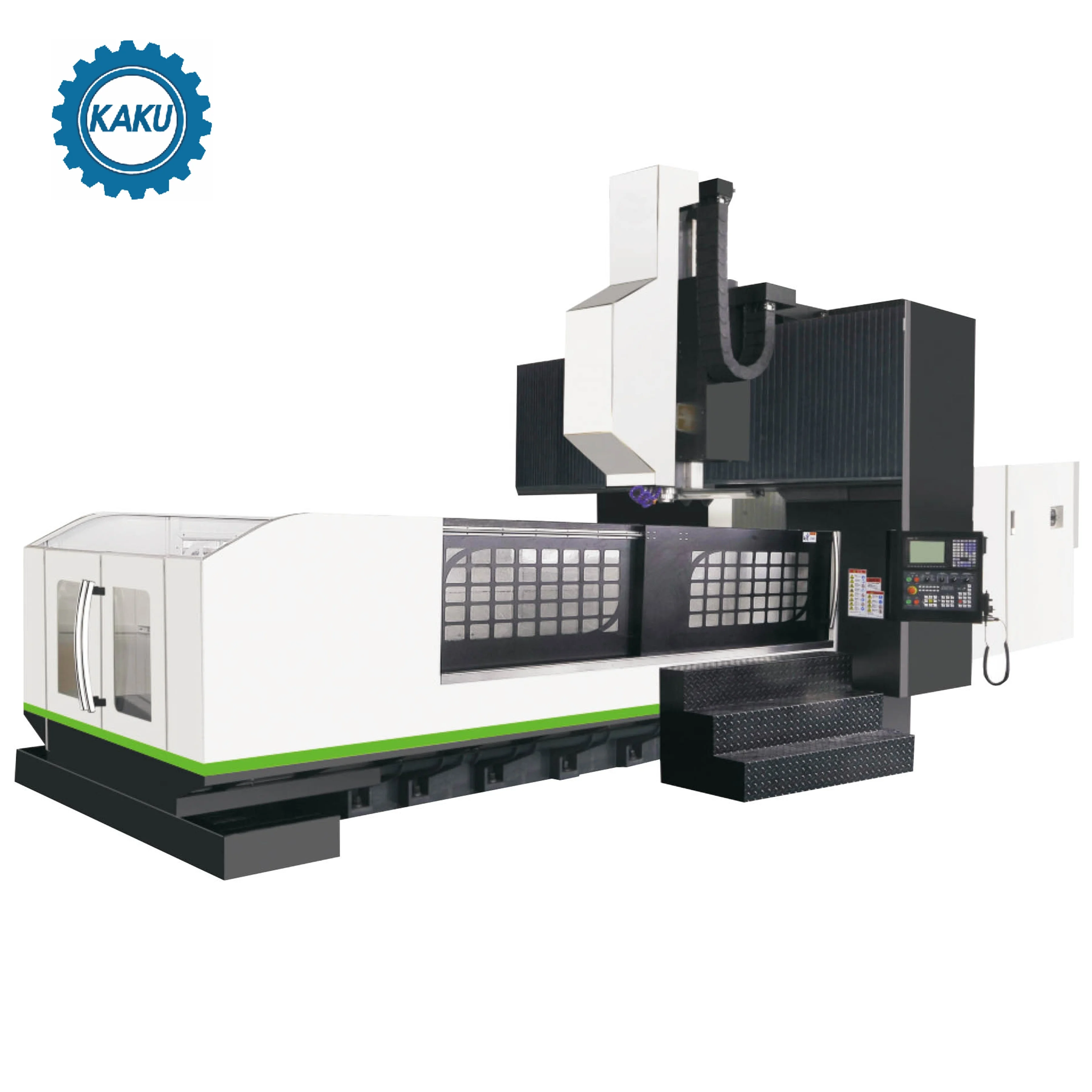

GMC3016 CNC gantry (milling machine) machining center
- Category: >>>
- Supplier: Chongqing Kaku Machinery Imp & Exp Co. Ltd.
Share on (60503879075):
Product Overview
Description
Product Description
GMC3016 Gantry Machining Center
GMC3016 gantry machining center is mainly suitable for parts processing in aviation, aerospace, automotive, military, energy, information, mold and other industries. It is aimed at processing small and medium-sized complex parts of ferrous and non-ferrous metals. It has the characteristics of high precision, high speed, high flexibility and environmental protection. Its performance indicators and accuracy indicators are in full compliance with national standards. With modular design, the products can be serialized and customized according to market demand. Its good performance-price ratio is the best choice for customers at home and abroad.
The design of the machine tool conforms to ISO international standards, and the measurement units of all parts, components and various instruments adopt the International System of Units (SI) standard.
Standard configurations |
Spindle orientation function |
Three-axis encoder feedback system |
Siemens 828D/FANUC Oi MF (5) CNC system |
Automatic lubrication system |
X, Y axis guide rail protection |
Machine tool semi-protection |
Chip removal system (including pump, double screw chip conveyor, chain plate chip conveyor and chip storage trolley) |
Rigid tapping |
Movable hand pulse generator |
Work lights and warning lights |
Pistol cleaner |
Spindle blowing function |
Machine tool numerical control cabinet with dust-proof and dehumidifying air conditioner (electric control cabinet cooler) |
Standard technical files: 1. A set of mechanical manual 2. A set of electrical instructions 3. A set of certificates of conformity 4. A set of packing list 5. A set of maintenance catalogs 6. A floppy disk for system parameter backup 7. Numerical control system operation programming and diagnosis booklet each |

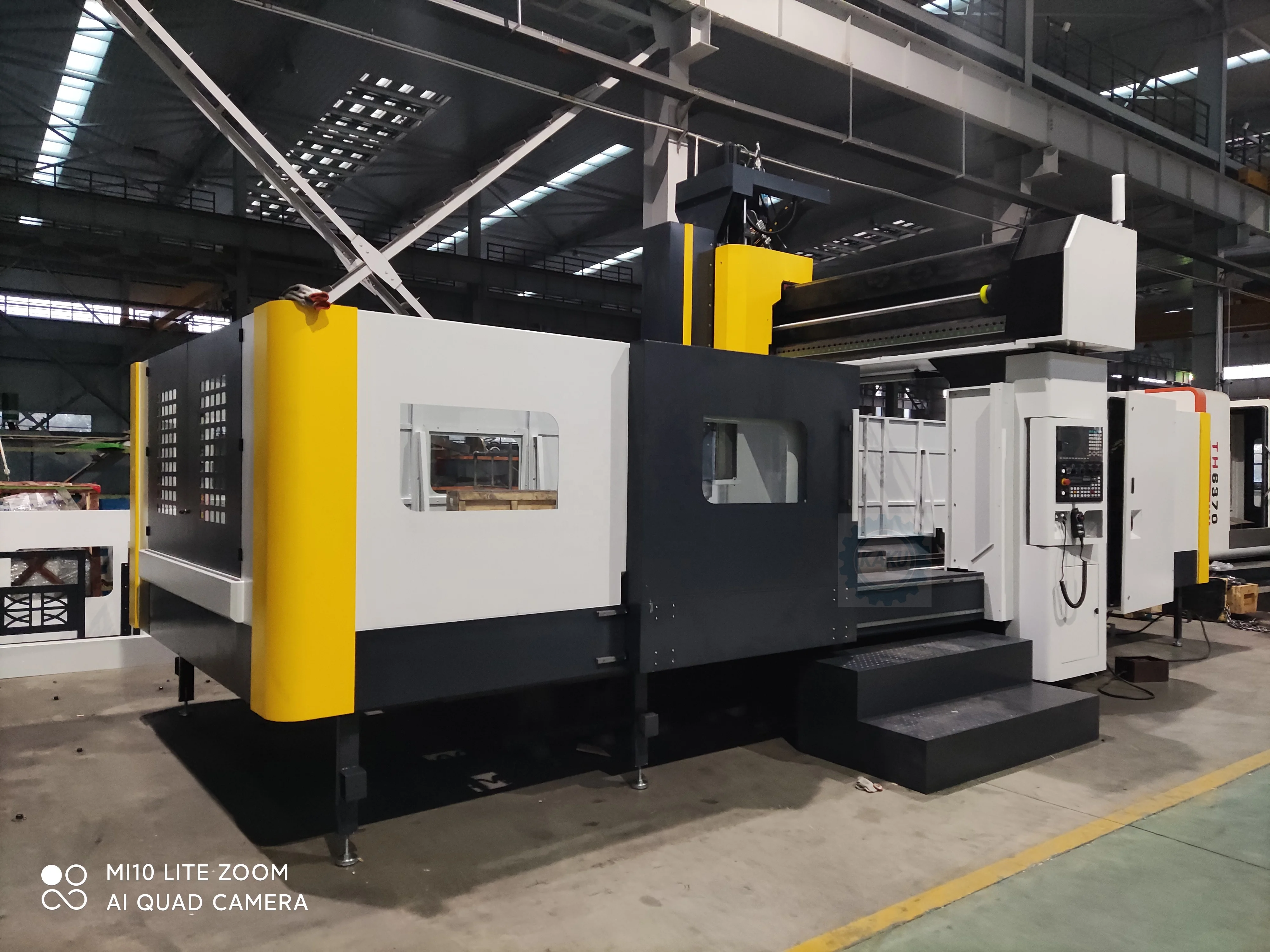

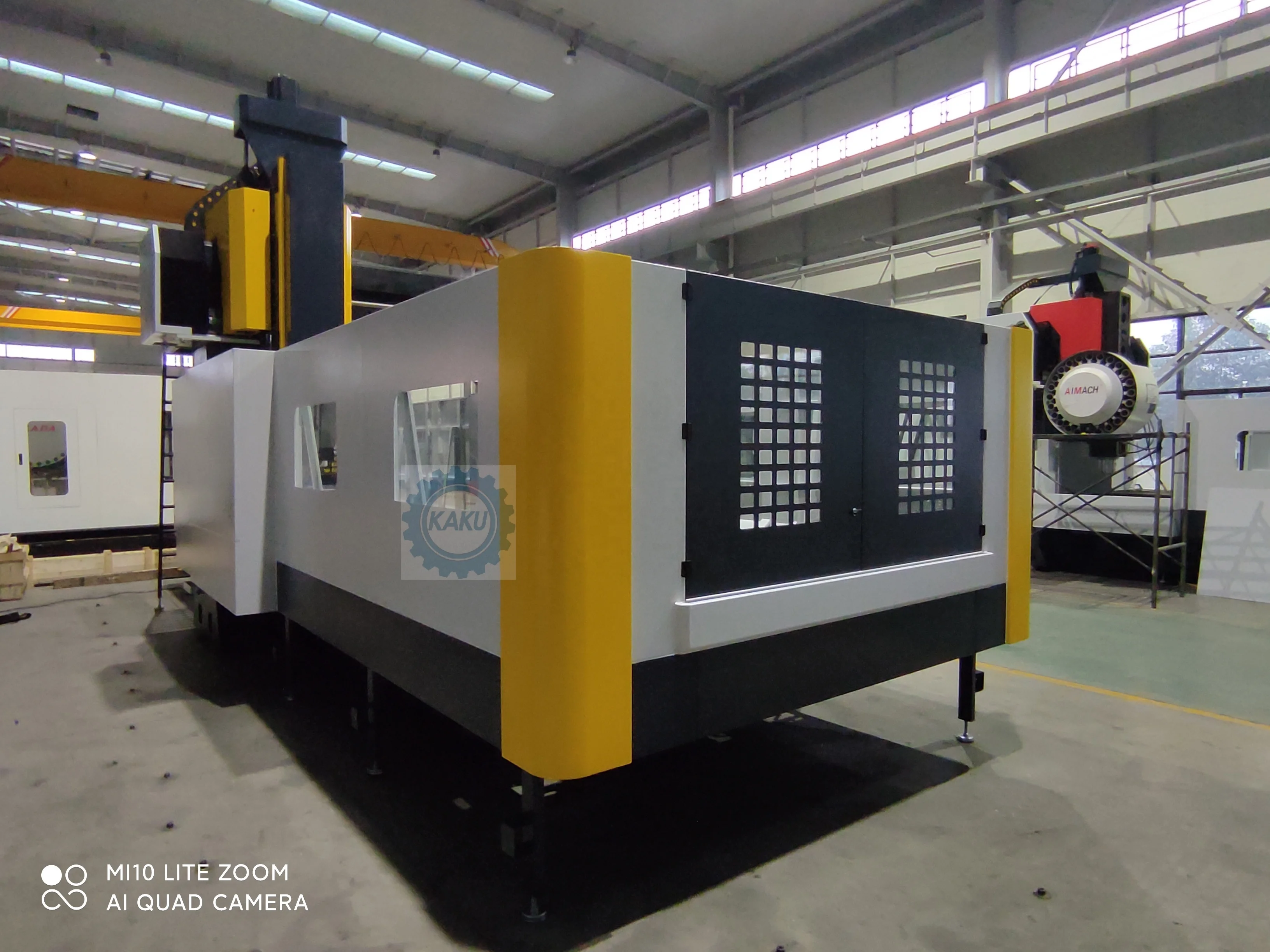

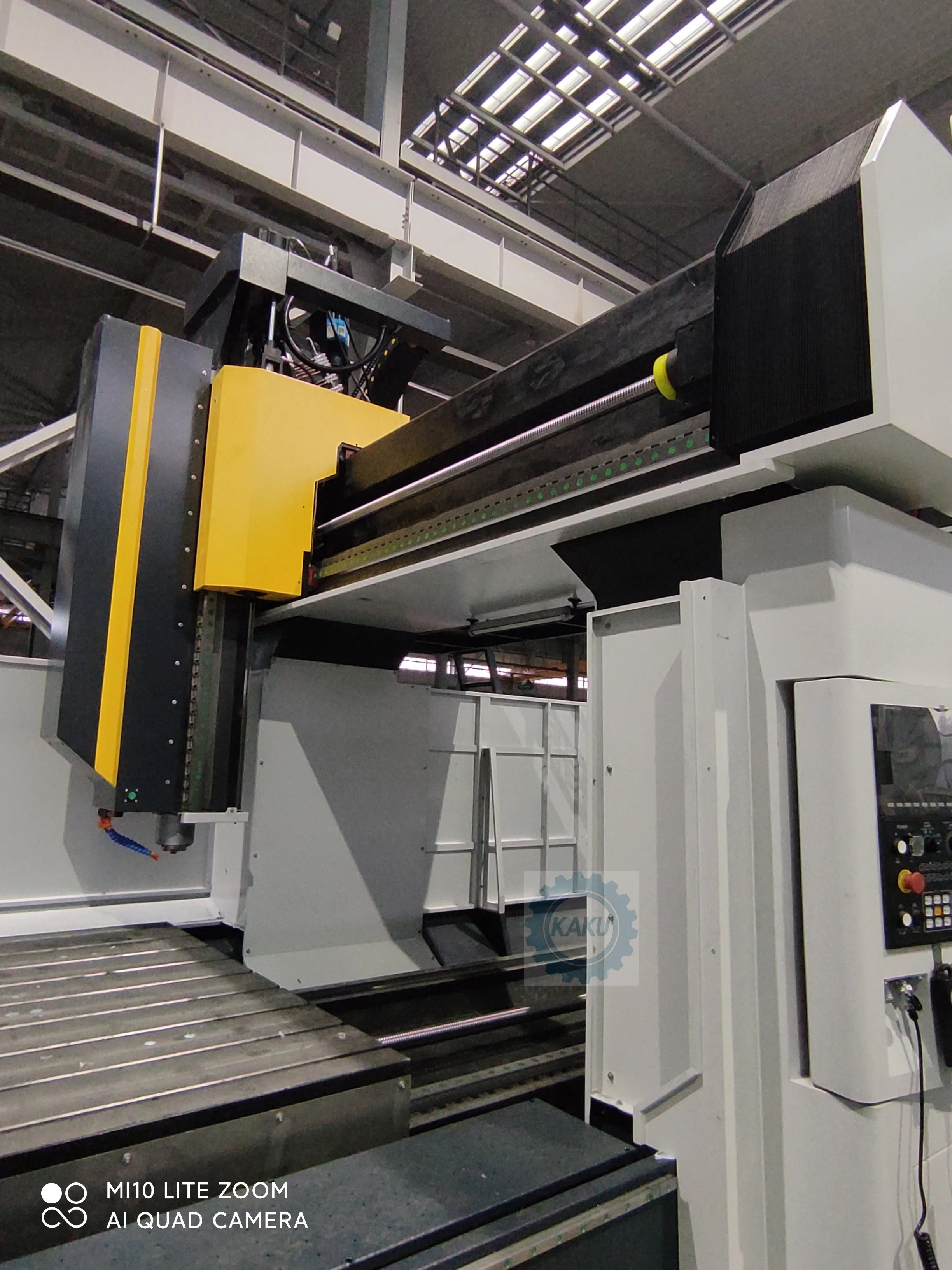

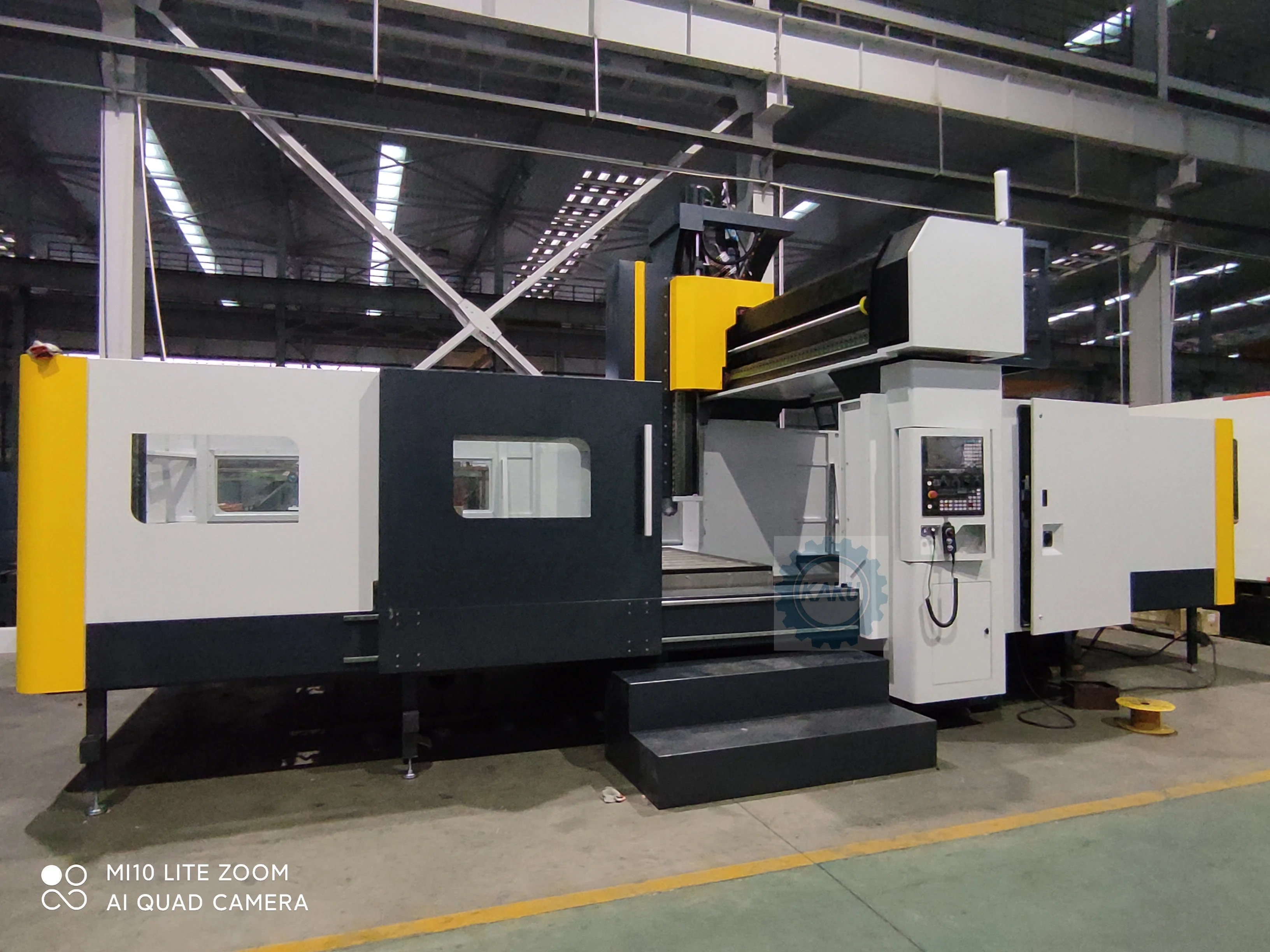

Detailed Images

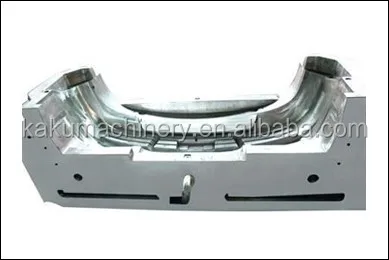

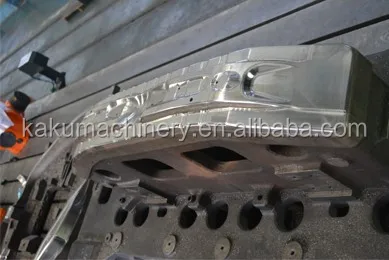

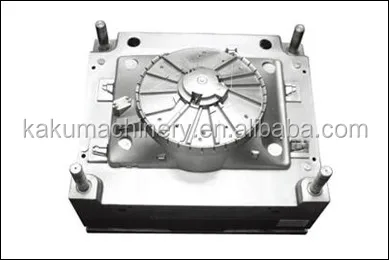

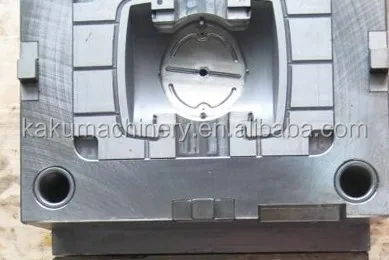

Typical workpiece
Parameter
Item | Unit | GMC1185 | GMC1316 | GMC2016 | GMC3016 |
X/Y/Z-axis travel | mm | 1100/850/600 | 1700/1300/700 | 2200/1600/800 | 3200/1600/800 |
Gantry width | mm | 850 | 1300 | 1600 | 1800 |
Distance from spindle end to worktable | mm | 150-750 | 150-850 | 150-950 | 150-950 |
Max. Spindle speed | rpm | 10000 (BT40) 6000 (BT50) | 6000 | 6000 | 6000 |
Spindle taper | - | BT40/BT50 | BT50 | BT50 | BT50 |
Spindle motor | kw | 7.5 | 15/18.5 | 18.5/22 | 18.5/22 |
X/Y/Z axis feed motor power | Nm | 18/15/28 | 32/32/32 | 32/32/32 | 36/36/36 |
X/Y/Z axis fast moving speed | m/min | 24/24/24 | 24/24/24 | 20/20/16 | 20/20/16 |
Cutting feed rate | mm/min | 5000 | 10000 | 10000 | 6000 |
working desk size | mm | 1200X800 | 1600X1000 | 2000X1400 | 3000X1400 |
Workbench bearing | T | 1.5 | 2 | 3 | 5 |
T-slot (number of slots-slot width x spacing) | - | 5-22X150 | 5-22X180 | 7-22X150 | 7-22X150 |
Tool magazine (optional) | |||||
Tool magazine capacity | pcs | 16 | 24 | 24 | 24 |
Maximum tool diameter (full tool/adjacent tool) | mm | 90/160 | 115/225 | 115/225 | 200/300 |
Maximum tool length | mm | 300 | 350 | 350 | 350 |
Maximum tool weight | kg | 8 | 15 | 15 | 18 |
Machine weight | kg | 6000 | 14500 | 18000 | 19500 |
