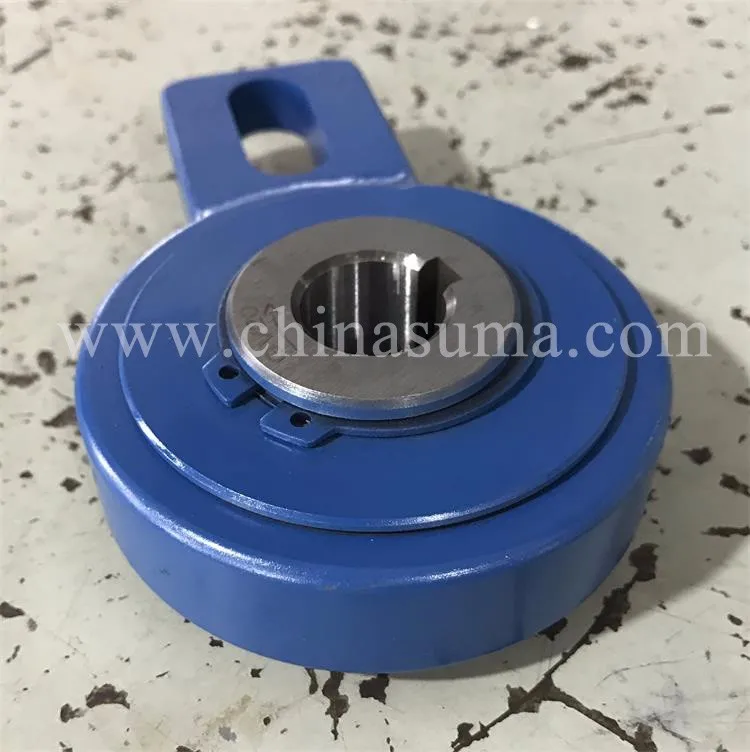

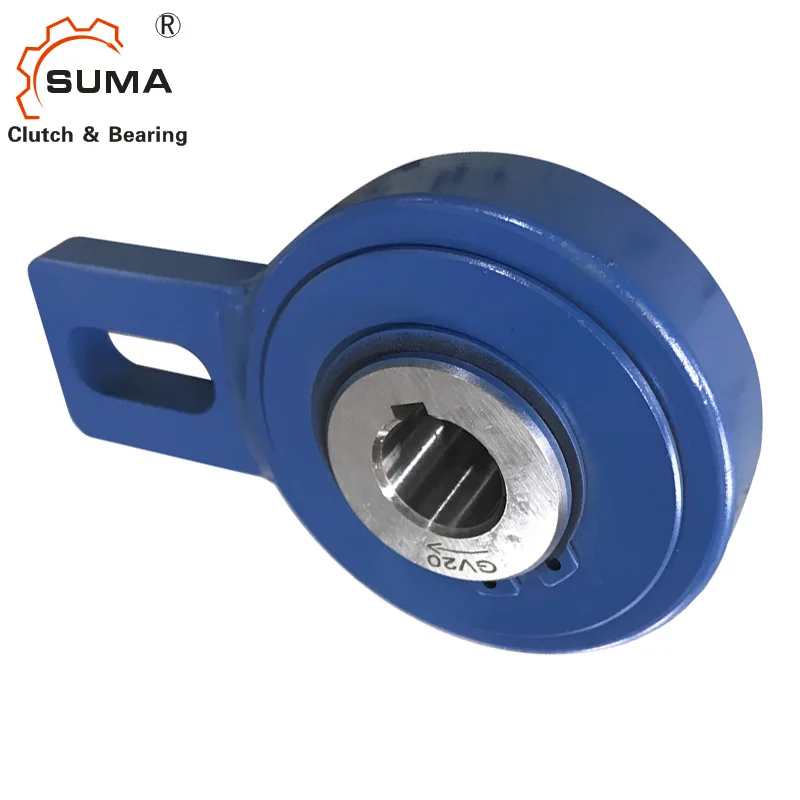

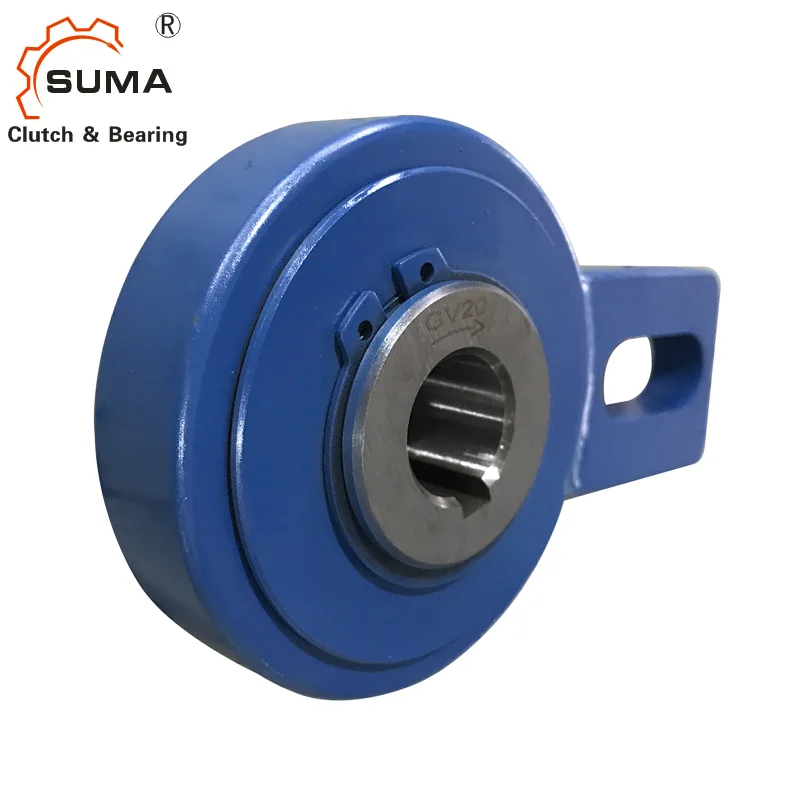

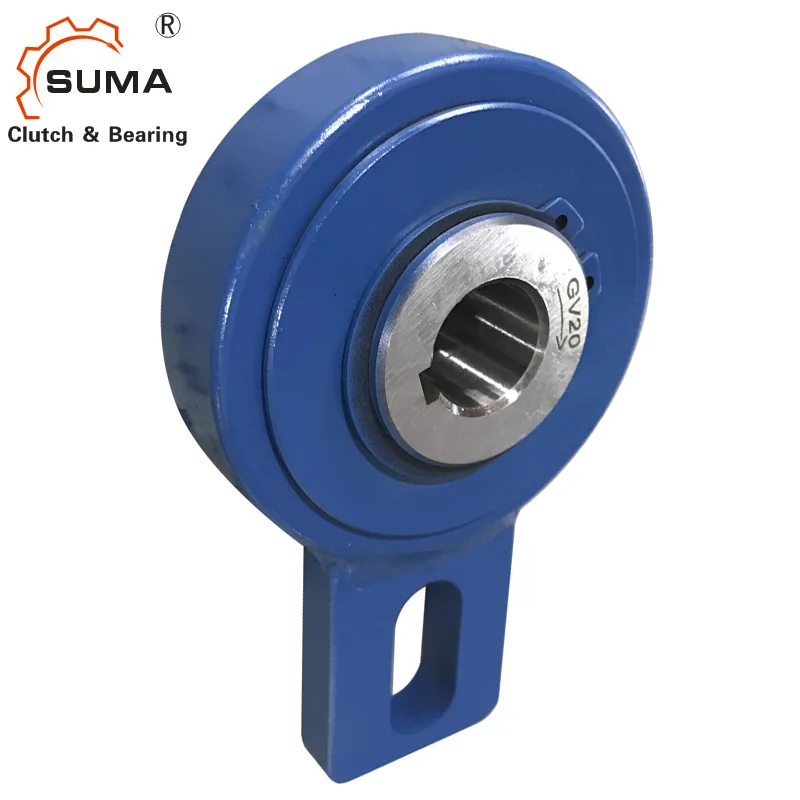

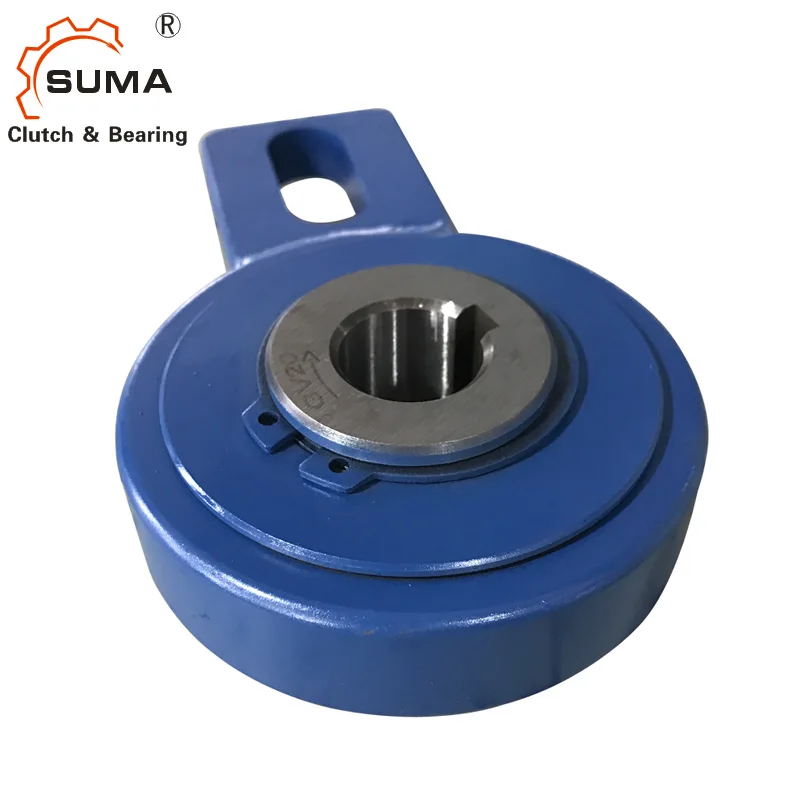

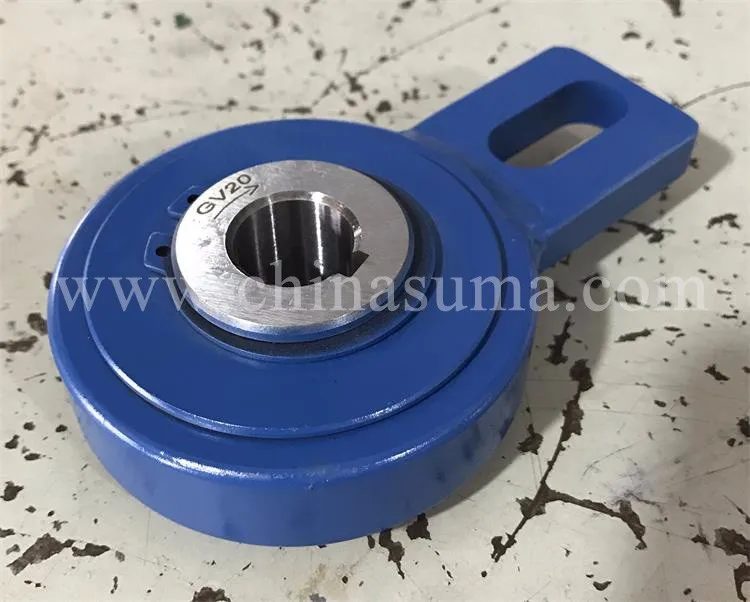

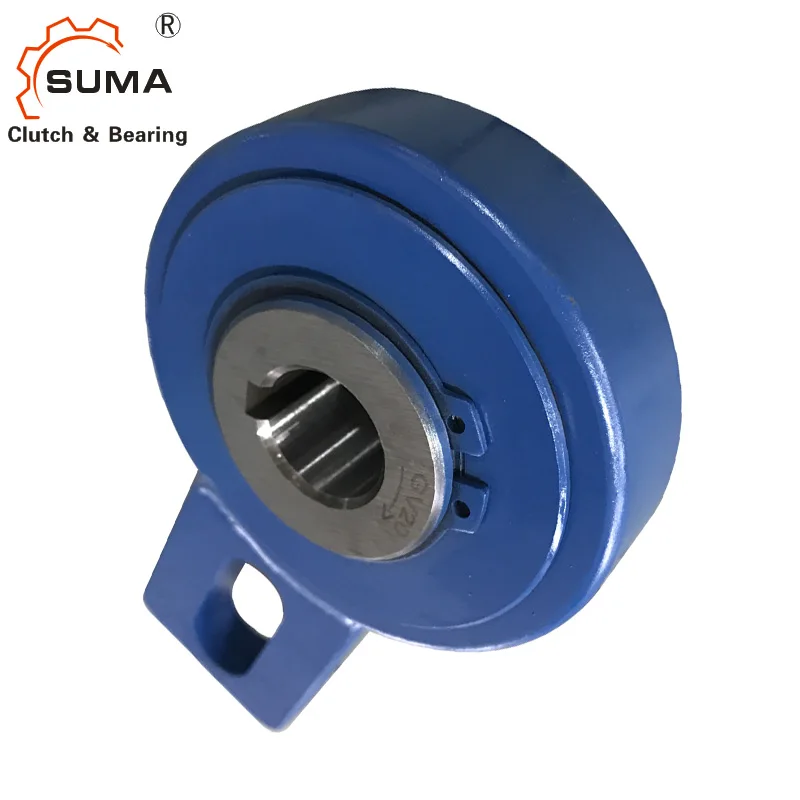

GV50 China Manufacturer One Way Bearing Backstop
- Category: Other Ball Bearings >>>
- Supplier: Changzhou Suma Precision Machinery Co. Ltd.
Share on (60503893090):
Product Overview
Description
GV50 China Manufacturer One Way Bearing Backstop
Product Description
Data Sheet
| Item | GV |
| Material | GCr15 |
| Bore size | 50 mm |
| Outer dia. | 155 mm |
| Thickness | 54 mm |
| Torque | 2180 Nm |
| Drag torque | 2.2 Ncm |
| Weight | 5.7 kg |
| Max. speed | 300 rpm |
| Port | Shanghai;Ningbo |
| Delivery time | 10-20 days |
Different Sizes For Your Reference
Model | dH7 | D | L | B1 | L1 | b2 | l2 | l3 | l4 | Weight (kg) | Max.speed (rpm) | Torque (Nm) | Drag Torque (Ncm) |
GV20 | 20 | 83 | 35 | 40 | 12 | 15 | 35 | 5 | 90 | 1.3 | 450 | 275 | 0.2 |
GV25 | 25 | 83 | 35 | 40 | 12 | 15 | 35 | 5 | 90 | 1.3 | 450 | 275 | 0.2 |
GV30 | 30 | 118 | 54 | 40 | 15 | 15 | 35 | 8 | 110 | 3.5 | 320 | 1250 | 1.2 |
GV35 | 35 | 118 | 54 | 40 | 15 | 15 | 35 | 8 | 110 | 3.4 | 320 | 1250 | 1.2 |
GV40 | 40 | 118 | 54 | 40 | 15 | 15 | 35 | 8 | 140 | 3.3 | 320 | 2180 | 1.2 |
GV45 | 45 | 155 | 54 | 80 | 15 | 18 | 35 | 10 | 140 | 5.8 | 300 | 2180 | 2.2 |
GV50 | 50 | 155 | 54 | 80 | 15 | 18 | 35 | 10 | 140 | 5.7 | 300 | 2180 | 2.2 |
GV55 | 55 | 155 | 54 | 80 | 15 | 18 | 35 | 10 | 140 | 5.6 | 300 | 2180 | 2.2 |
GV60 | 60 | 155 | 54 | 80 | 15 | 18 | 35 | 10 | 140 | 5.5 | 300 | 2180 | 2.2 |
GV70 | 70 | 155 | 54 | 80 | 15 | 18 | 35 | 10 | 140 | 5.3 | 300 | 2180 | 2.2 |
GV80 | 80 | 190 | 64 | 80 | 20 | 20 | 40 | 10 | 155 | 8.7 | 200 | 2930 | 3.5 |
GV90* | 90 | 260 | 90 | 120 | 25 | 30 | 50 | 20 | 220 | 24.5 | 150 | 7250 | 3.5 |
GV100* | 100 | 260 | 90 | 120 | 25 | 30 | 50 | 20 | 220 | 23.5 | 150 | 7250 | 3.5 |
GV110* | 110 | 260 | 90 | 120 | 25 | 30 | 50 | 20 | 220 | 22.5 | 150 | 7250 | 3.5 |
GV120* | 120 | 300 | 110 | 120 | 30 | 30 | 50 | 20 | 240 | 42 | 130 | 11100 | 6 |
Company Information
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Our Advantages
1. Advanced producing equipment.
2. Strict requirement for the raw material
3. Complete&perfect process flow
4. Good quality of each batch of the product
5. Different grades of price for different quality
Certificate
FAQ
Q: How do you pack the goods?
- Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
- Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
- Small items: In stock.
- Medium Items: 10-15 Days
- Big items: 20-25 Days
