BC5510081 2mm flexible test Lead with M4 Screw probe leads dongguan bochao electronic
BC5510081 2mm flexible test Lead with M4 Screw probe leads dongguan bochao electronic
BC5510081 2mm flexible test Lead with M4 Screw probe leads dongguan bochao electronic

BC5510081 2mm flexible test Lead with M4 Screw probe leads dongguan bochao electronic

Share on (60503938907):


Price:$1.00

Quantity:


Product Overview

Description






Product Description

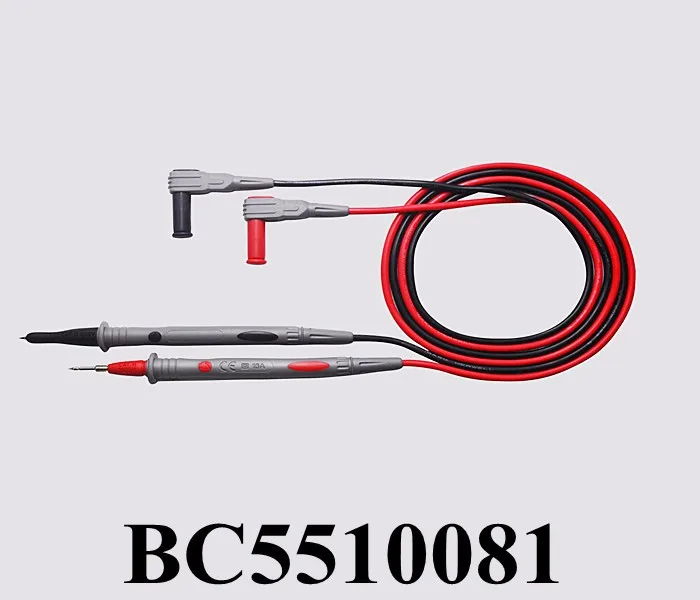

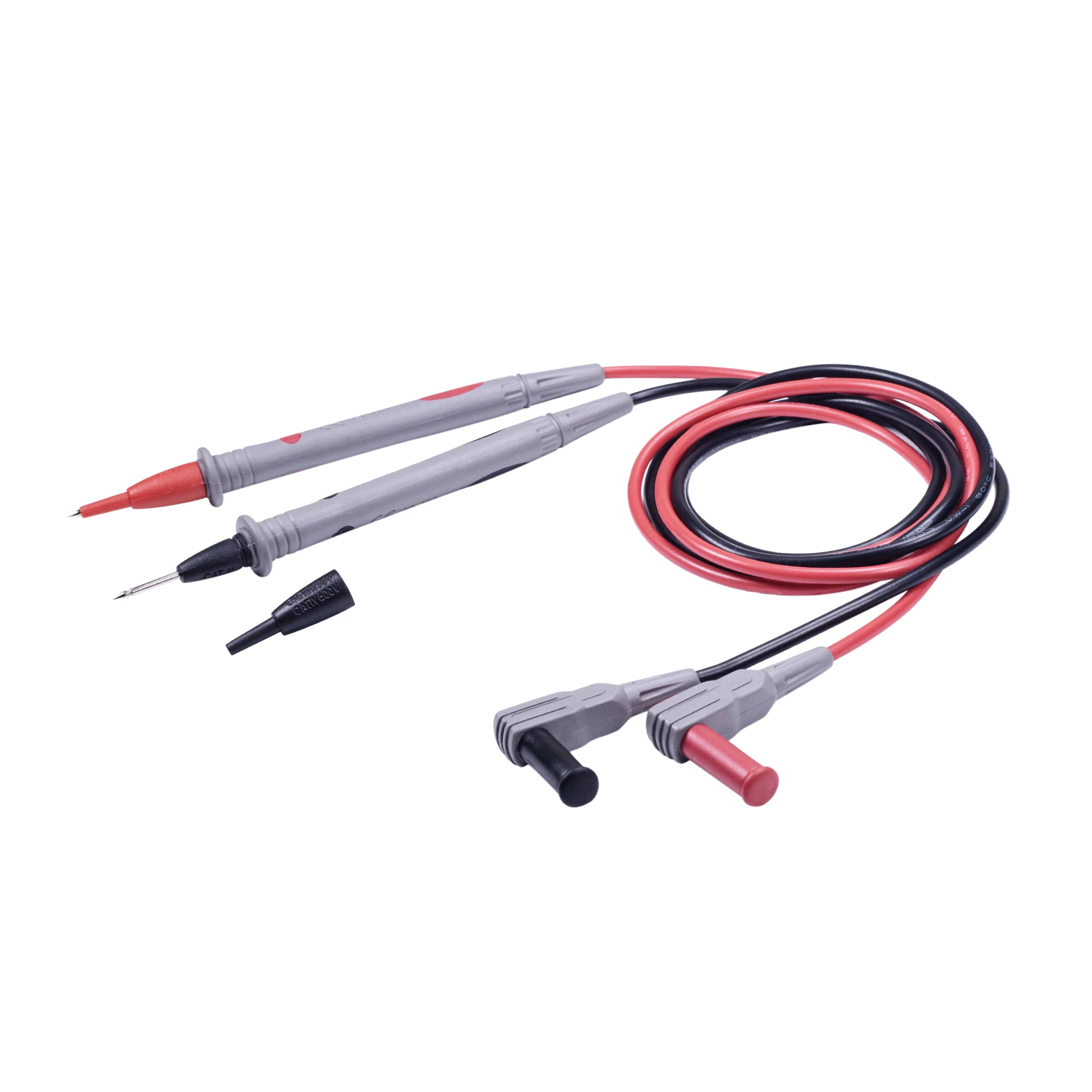

2mm flexible test leads with M4 screw probe leads dongguan bochao electronic

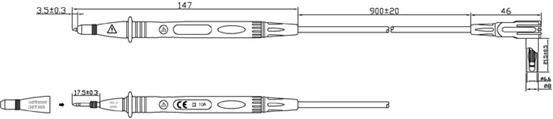

Drawing for reference:









Bullet Points:





*Apply to test instrument such as Multi-Meter, voltage tester...


*Use high quality UL1803 18 AWG PVC double insulated wire.


*2mm straight brass test probe with M4 screw, safety cap is supplied.


*4mm right angle copper plug on the other end, with insulated sleeve & head to prevent accidental touching.


*Double injection process wined maximum safety and durability


*Highly flexible leads could meet different size requirement.


*Complying with IEC:61010,EN:61010.





Rated Voltage:   CAT III 1000V/CAT IV 600V


Rated Current:   10A


Standard Lead:   900MM, PVC, UL1803 18AWG DOUBLE INSULATED WIRE


Model Number:  BC5510081


Available color :  Black/Red/Customer’s color






Our Services


1. Free samples


2. Quick responce


3. Problem solving timely











Company Information


Dongguan BoChao Electronic Co., Ltd was established in 2010, Mainly focus on designing ,developing and manufacturing the accessories of Electorinc test and measuring instrument , Our factory is located in DongGuan, China with more than 3000 square meters .


About our company:
1. Speciallized in providing a comprehensive range of Test accessories including: Test Leads, Crocodile clamp, Test Probe, Banana plug, Connecting lead, BNC Lead, Connectors , Power Cord etc.
2. With skilled workers & professional test equipment such as High Voltage & High Current Teters, Continuity testers, Mechanical tension machine etc.
3.  CE/Rohs Certified, part of products are UL approval.
4. Competitive price, high quality, and good service are our factory key principle.
5. Have rich experience cooperated with big retialer in U.S. , European , Japan market etc, well known international quality requirement .
