TPX series CNC horizontal milling and boring machine

This series of machine is a universal one in that they complete a variety machining on castings, steel parts, and parts made of non-ferrous matals, for example, drilling, enlarging, boring, and reaming holes, milling planes, facing spots and cutting threads.The slide of face plate of this machine can feed in a radial direction thus enlarge the dimension of boring, turning and grooving.
All core spare parts from SYMS (Shenyang No.1 Machine tools). High Quality, Strong Rigidity, Competitive Price!
Worktable: optical sighting device is employed to achieve high positioning accuracy.
Spindle: exhibits high accuracy on account of three-point stay, as well as high hardness and long service life thanks to surface nltrogen treatment.
Face plate: it is able to porcess larger holes, external cutting and grooves.

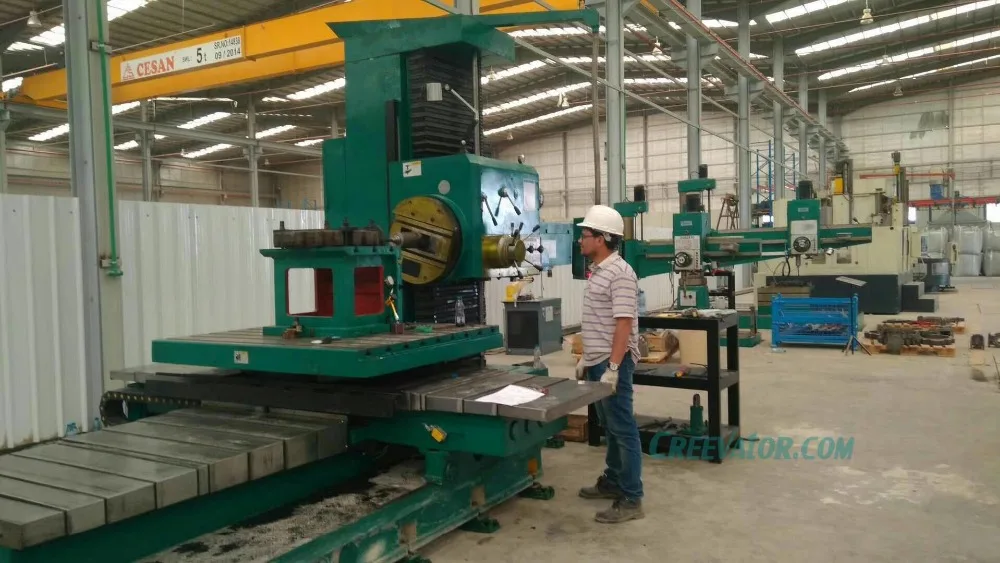

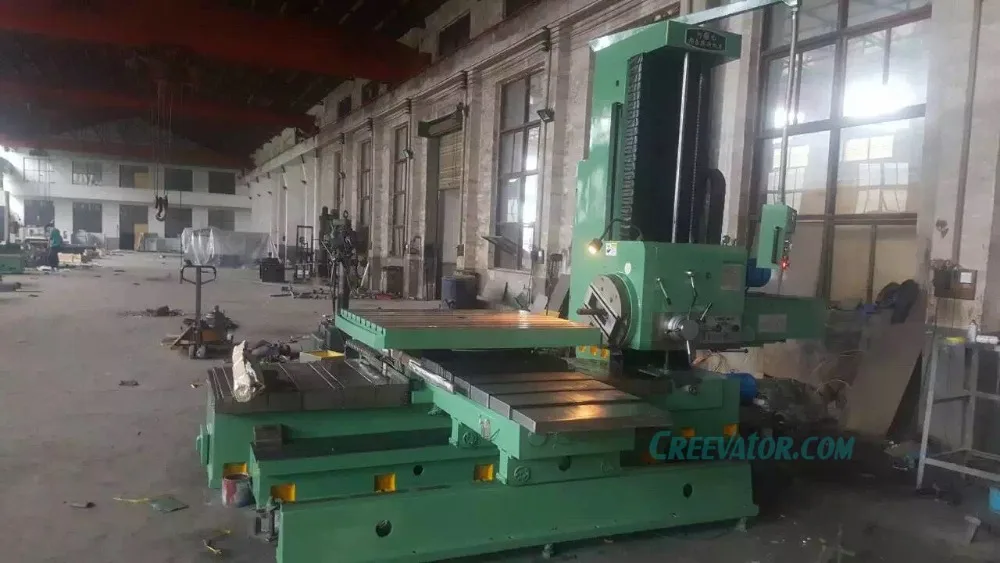

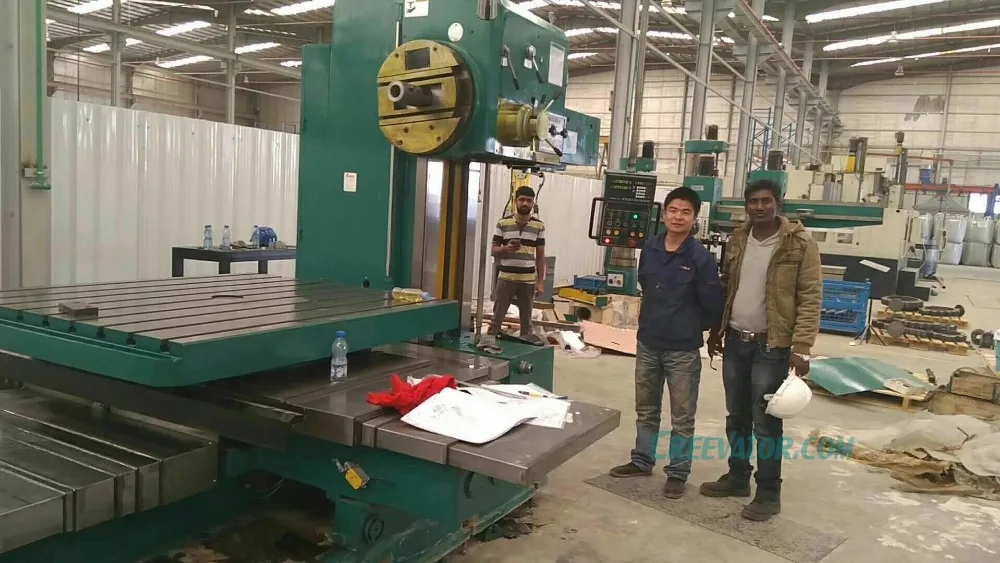

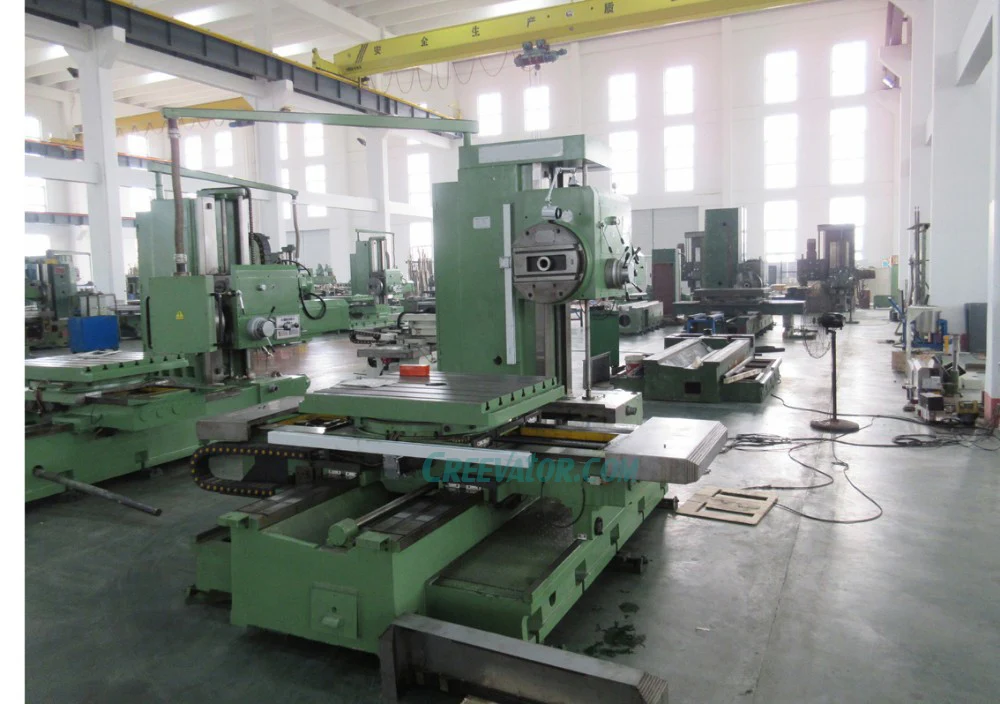

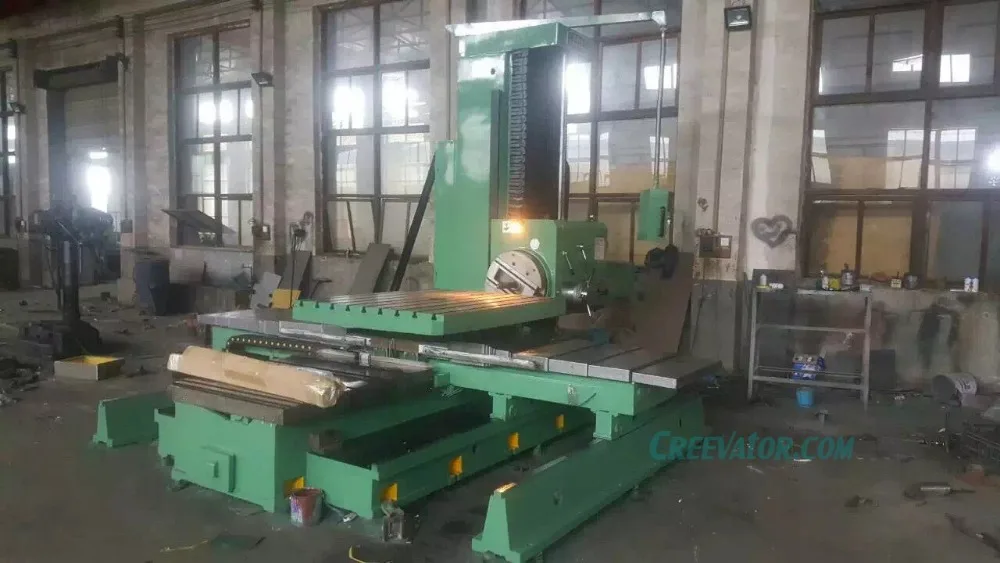

Detailed Images
Parameter
\t
Main parameters
\t
Unit
\t
TX6111C/2
\t
TX6111C/3
\t
Spindle diameter
\t
mm (in)
\t
Φ110 (4.3’’)
\t
Spindle taper
\t

\t
ISO 50
\t
Spindle speed
\t
r/min
\t
18 steps; 9-1000
\t
Main motor power
\t
KW
\t
7.5
\t
Max drilling capacity of spindle
\t
mm (in)
\t
65 (2.6’’)
\t
Max boring capacity of spindle
\t
mm (in)
\t
300 (12’’)
\t
Speed of facing head
\t
r/min
\t
14 steps; 6-221
\t
Travel of facing head slide
\t
mm (in)
\t
170 (6.7’’)
\t
Max boring capacity of facing head
\t
mm (in)
\t
600 (24’’)
\t
Table size (L x W)
\t
mm (in)
\t
1200x1100 (47’’x43’’)
\t
Max load of table
\t
kg
\t
4000
\t
Transverse travel of table
\t
mm (in)
\t
1300 (51’’)
\t
1600 (63’’)
\t
Vertical travel of spindle head
\t
mm (in)
\t
1100 (43’’)
\t
1400 (55’’)
\t
Longitudinal travel of table
\t
mm (in)
\t
1400 (55’’) (equipped with end support)
\t
Axial travel of spindle
\t
mm (in)
\t
600 (24’’)
\t
Range of axes speed per spindle rotation
\t
mm/rev
\t
0.04-6 12steps
\t
DRO
\t

\t
X, Y
\t
Overall dimension (L x W x H)
\t
mm (in)
\t
5200 x 3500 x 3300 (205’’x138’’x130’’)
\t
Net weight
\t
kg
\t
18300
