HA5400 series is a high power multi-ports optical amplifier with gain spectrum band within 1540~1563nm. It is mainly designed for the application of CATV or 1~8 continuous banding channel (ITU wavelength). It offers a flexible and low-cost solution for CATV large area coverage of metropolises and medium-sized cities.
HA5400 optical amplifier adopts the world's top class pump laser and active optical fiber. Perfect APC, ACC and ATC control, excellent design in the ventilation and heat-dissipation ensure the long life and high reliable work of pump laser.
HA5400 has extremely low noise figure, the entire unit adopts twin-stage amplification, and the pre-amplifier adopts low noise EDFA, output cascade adopts high power EYDFA. When input optical power Pin=0dBm, the noise figure of unit is ≤5.5dB Unlike other kind of product which need high optical power input to maintain lower noise figure.

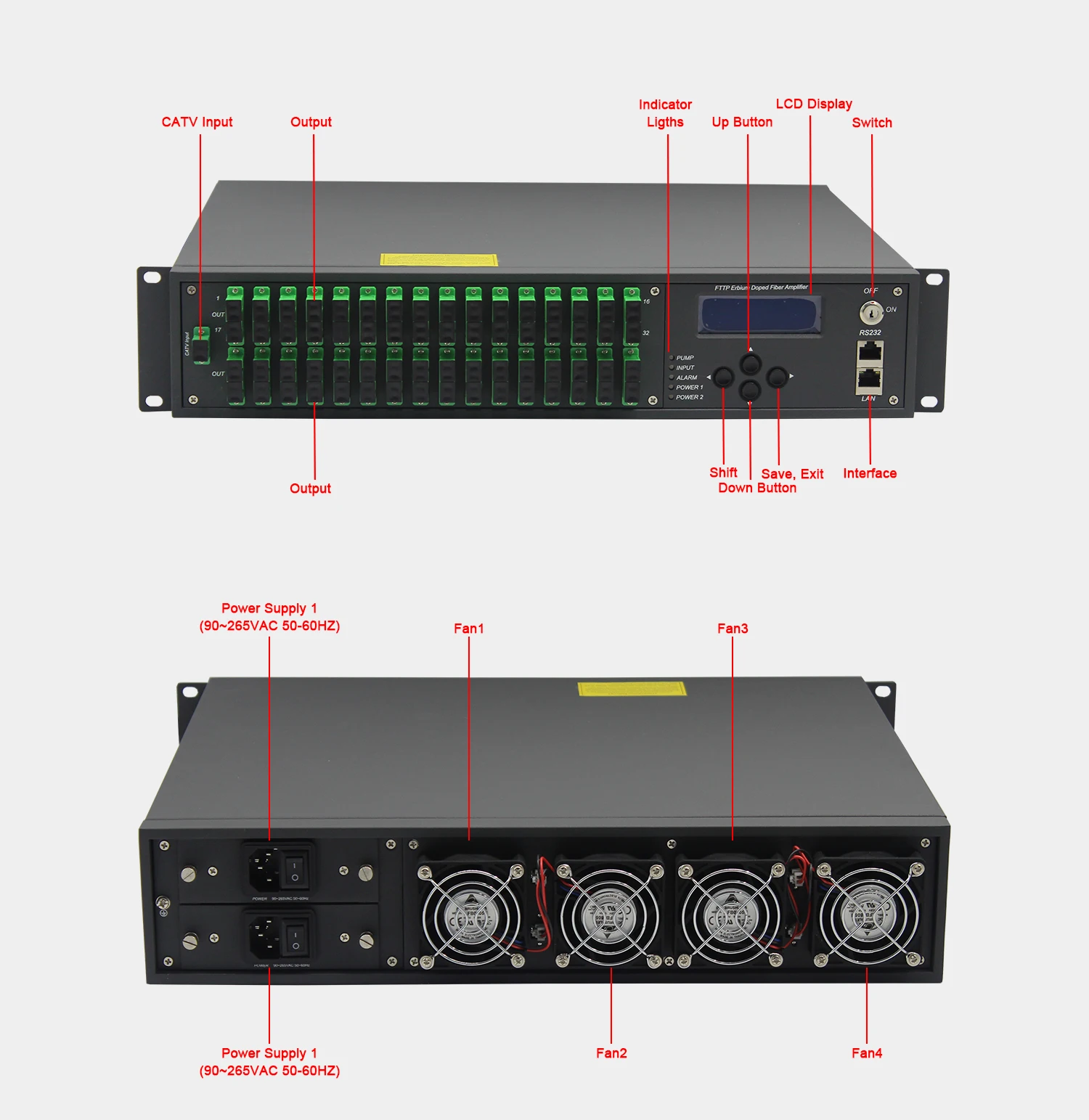

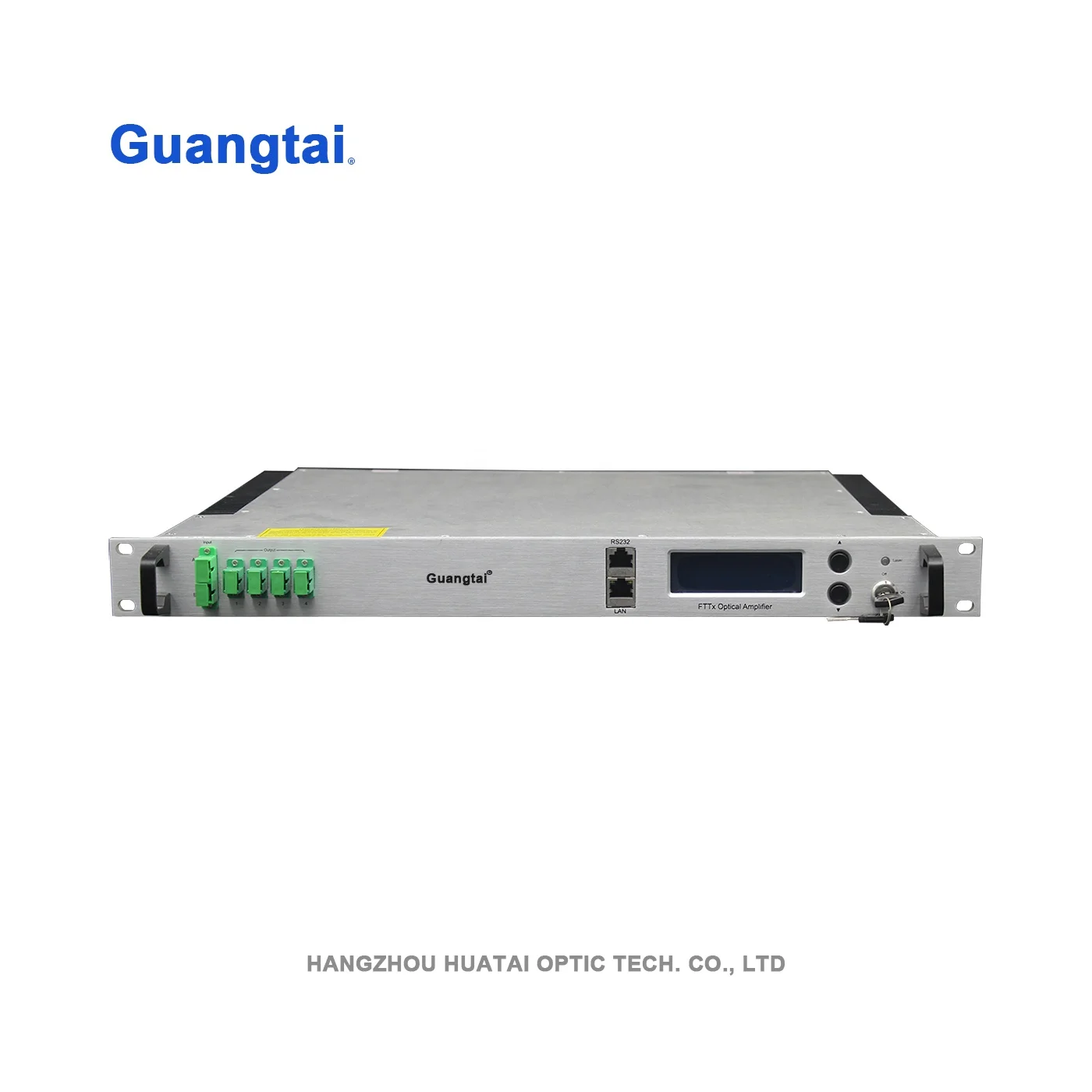

HA5400 LCD at the front panel offers the work index of all equipment and warning alarms. The laser will switch off automatically if optical power is missing, which offers security protection for the laser.RS232 and RJ45 offer serial commutation and SNMP network management port. All the optical port of optical amplifier can be installed in the front panel or back panel.
HA5400 optional two-way optical input (built-in 2x1 optical switch), can be used for self-healing ring network or redundant backup network.
HA5400 optical amplifier adopts the world's top class pump laser and active optical fiber. Perfect APC, ACC and ATC control, excellent design in the ventilation and heat-dissipation ensure the long life and high reliable work of pump laser.
HA5400 has extremely low noise figure, the entire unit adopts twin-stage amplification, and the pre-amplifier adopts low noise EDFA, output cascade adopts high power EYDFA. When input optical power Pin=0dBm, the noise figure of unit is ≤5.5dB Unlike other kind of product which need high optical power input to maintain lower noise figure.
HA5400 LCD at the front panel offers the work index of all equipment and warning alarms. The laser will switch off automatically if optical power is missing, which offers security protection for the laser.RS232 and RJ45 offer serial commutation and SNMP network management port. All the optical port of optical amplifier can be installed in the front panel or back panel.
HA5400 optional two-way optical input (built-in 2x1 optical switch), can be used for self-healing ring network or redundant backup network.
Product Features
1. Total output power optional 500~80000mW(27~49dBm)

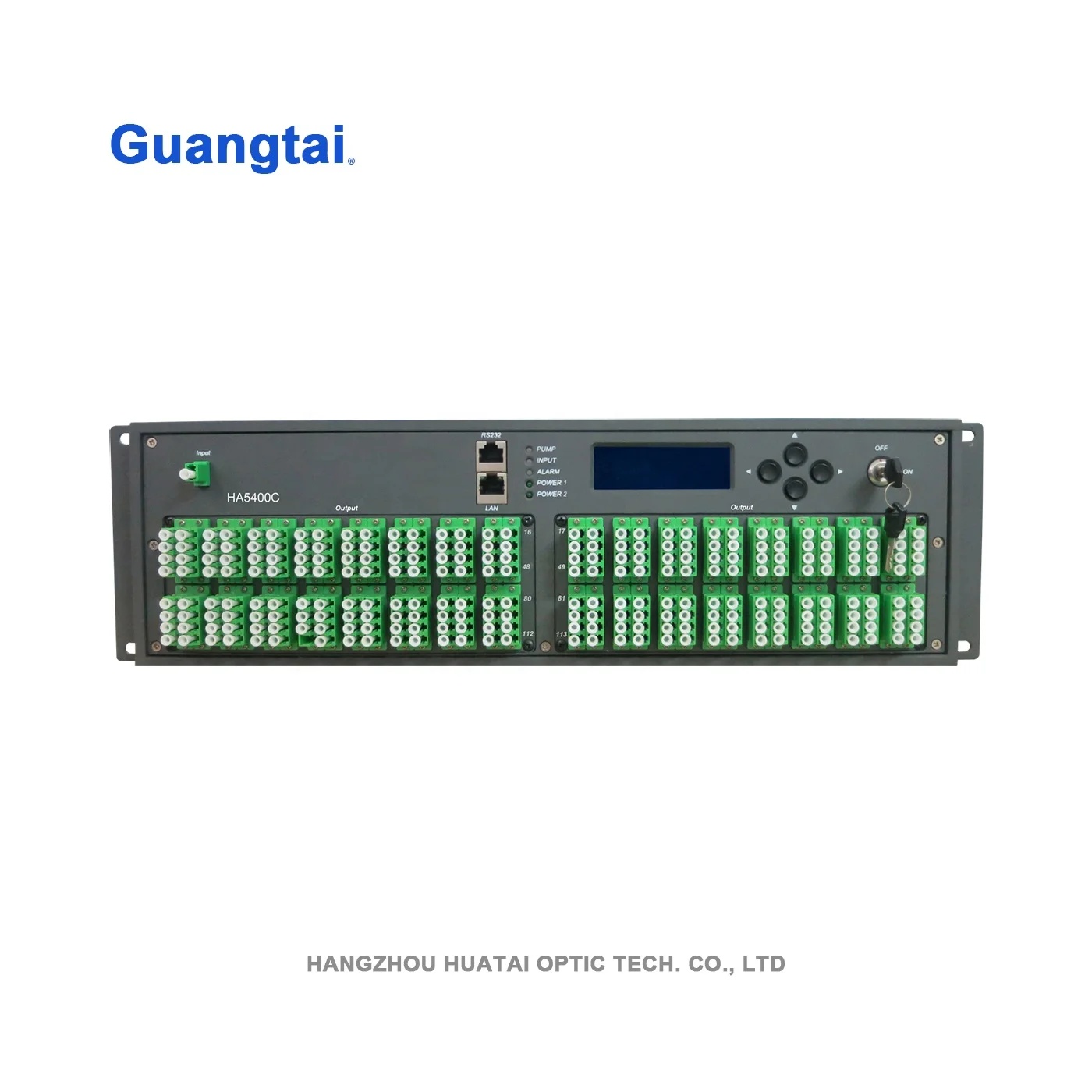

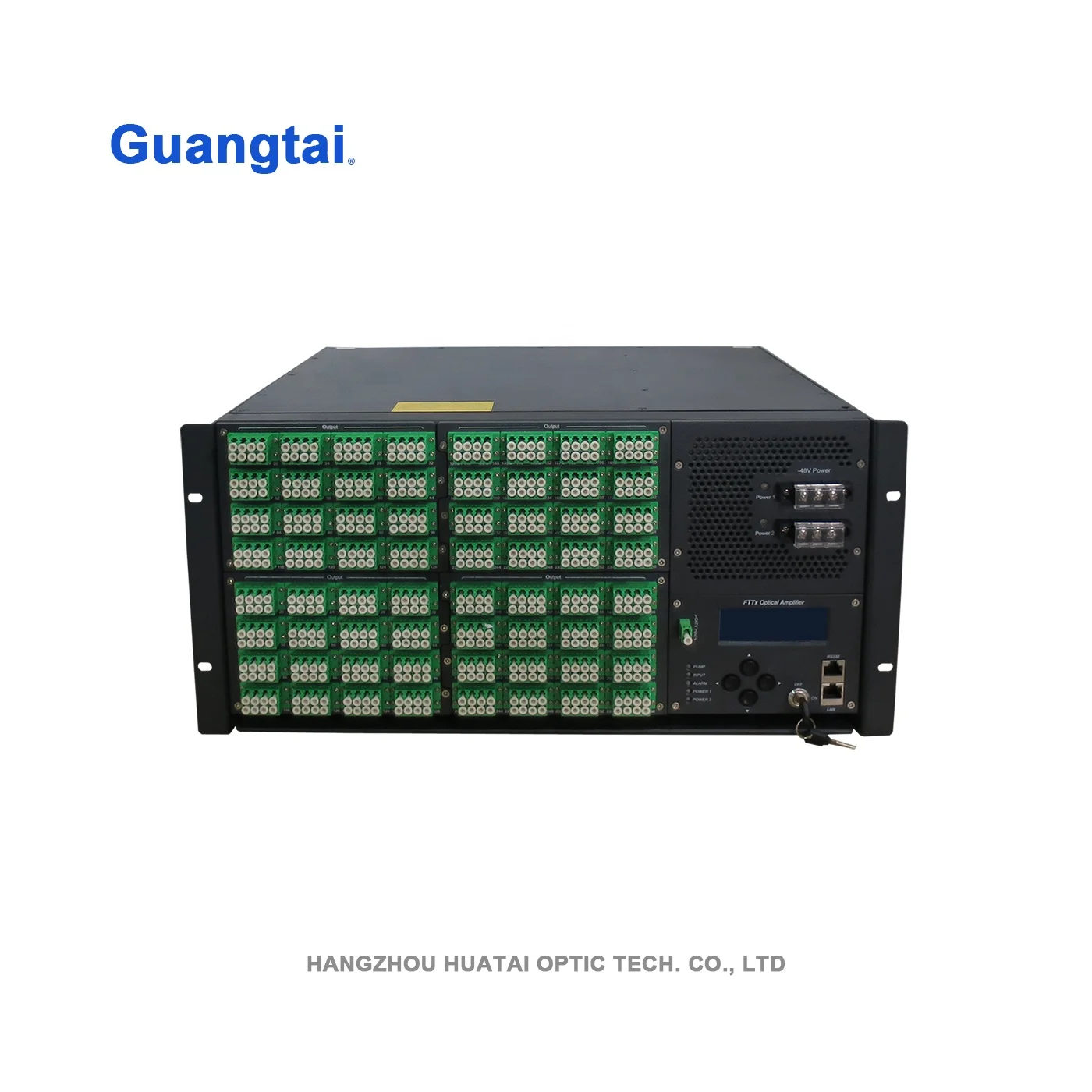

2. 19'' 1RU rack, optional output port up to 512 optional port.
3. Built-in low noise pre-amplifier, not necessary EDFA cascade, extremely lower the
4. CNR, MER degradation of the system
5. Low noise figure ≤5.5dB
6. Perfect RS232, SNMP
7. Telecom level safety reliability and network management.
8. Simplified machine-room links, improve the system reliability.
9. Simple and reliable in construction/maintenance
10. Optional dual optical input, built-in 2 × 1 optical switch

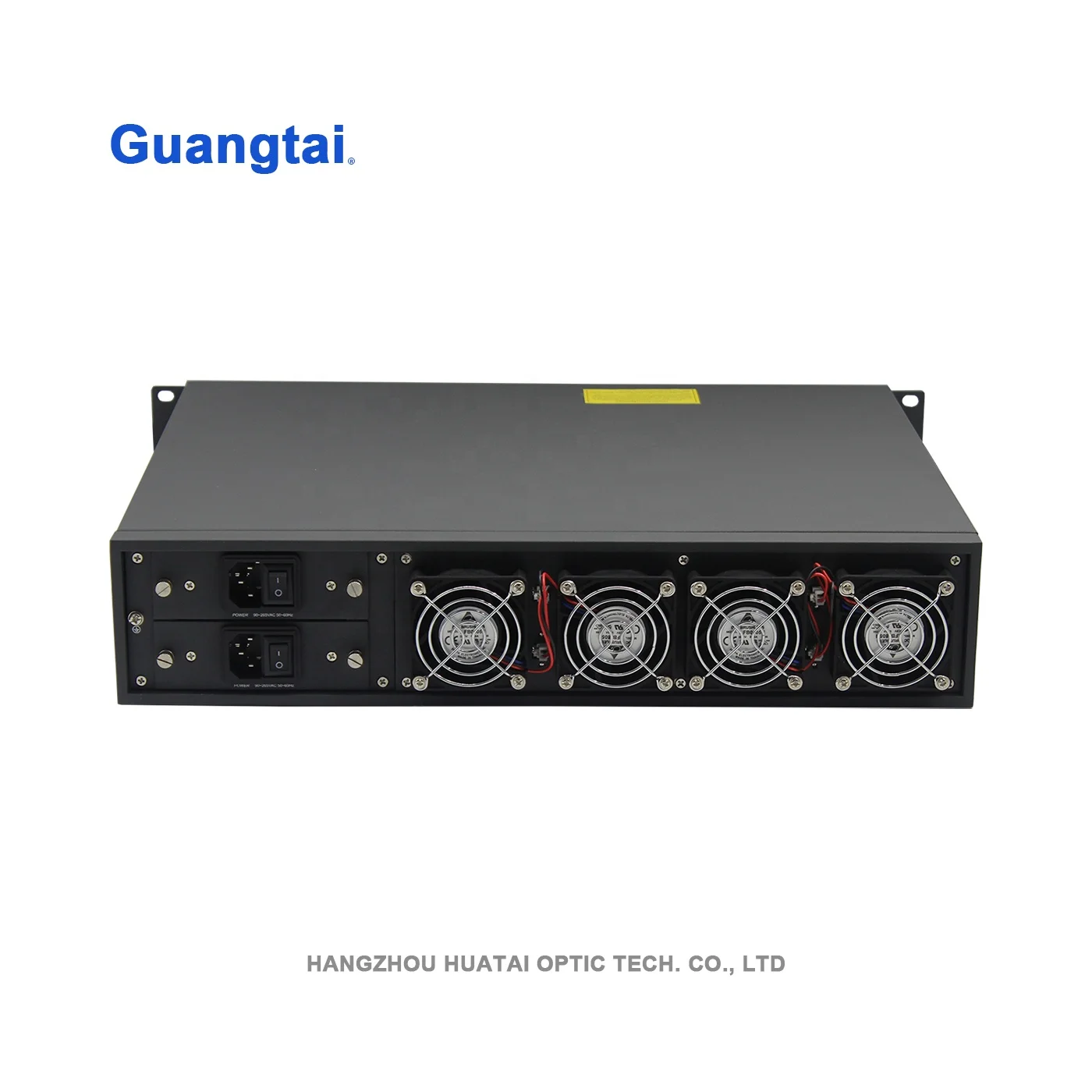

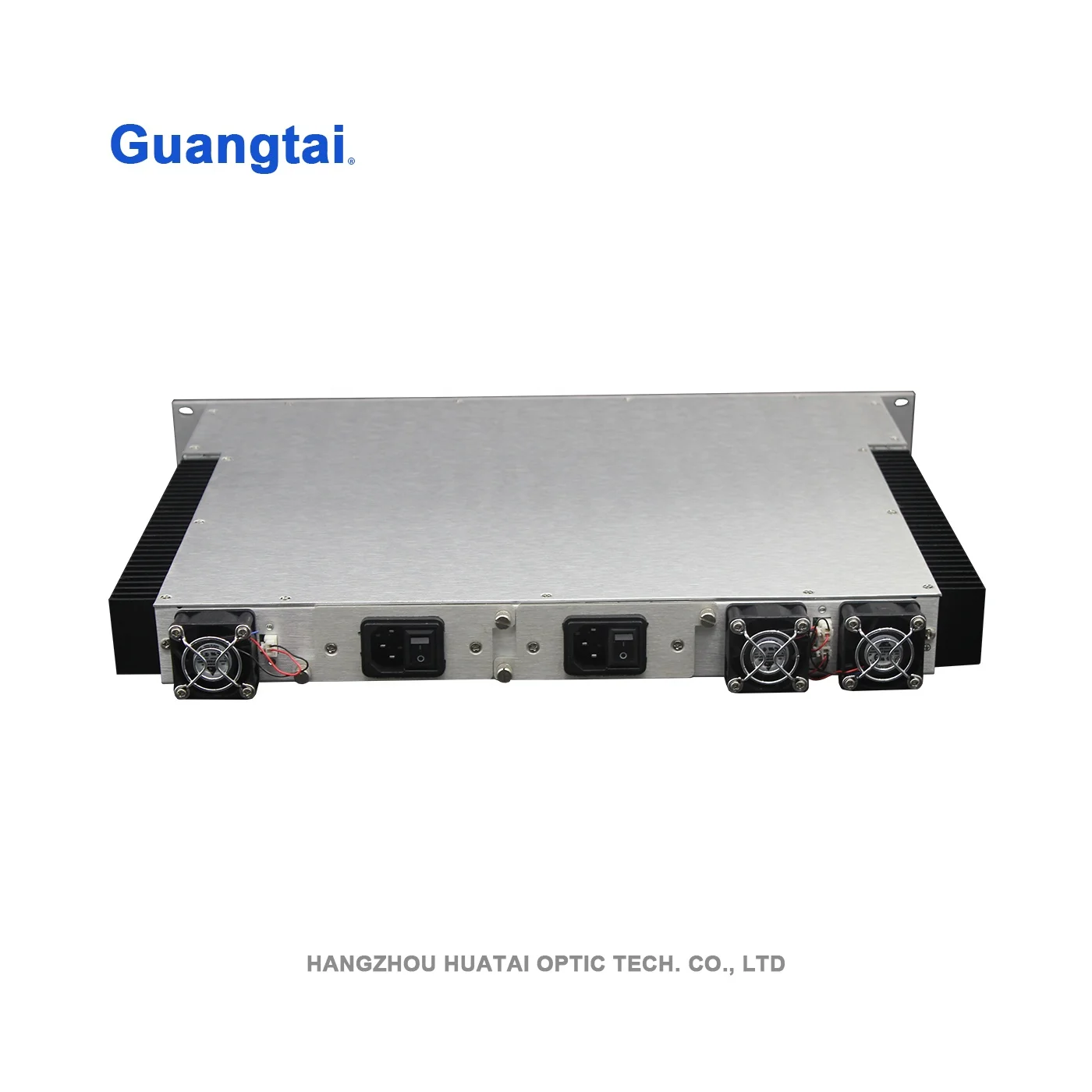

11. Dual power supply optional, 1+1 backup
12. Can reduce the 98% device space usage
13. Can reduce the 85% device purchase cost
14. Can reduce 95% power consumption
15. The best cost performance in industry
2. 19'' 1RU rack, optional output port up to 512 optional port.
3. Built-in low noise pre-amplifier, not necessary EDFA cascade, extremely lower the
4. CNR, MER degradation of the system
5. Low noise figure ≤5.5dB
6. Perfect RS232, SNMP
7. Telecom level safety reliability and network management.
8. Simplified machine-room links, improve the system reliability.
9. Simple and reliable in construction/maintenance
10. Optional dual optical input, built-in 2 × 1 optical switch
11. Dual power supply optional, 1+1 backup
12. Can reduce the 98% device space usage
13. Can reduce the 85% device purchase cost
14. Can reduce 95% power consumption
15. The best cost performance in industry
Main Application
1. AM CATV
2. Digital CATV
3. DBS & MMDS
4. FTTx PON
2. Digital CATV
3. DBS & MMDS
4. FTTx PON
Technical Index
Performance | Min. | Typ. | Max. | Supplement | ||||
Optical feature | Operating wavelength range | (nm) | 1540 | 1563 | CATV | |||
Input power | (dBm) | -10 | +10 | |||||
Total output power | (dBm) | 49 | ||||||
Number of output port | (pcs) | 512 | ||||||
Each output power | (dBm) | 0 | 22 | |||||
Difference of each output power | (dB) | -0.5 | +0.5 | |||||
Output optical power monitoring | (dB) | -20 | Optional | |||||
Output power adjustable range | (dBm) | -6 | 0 | Optional | ||||
(dB) | 4.5 | 5.5 | HA5400-1x口口口 | |||||
5.0 | 6.0 | HA5400-2x口口口 | ||||||
Switching time | (ms) | 8.0 | HA5400-2x口口口 | |||||
Polarization dependence loss | (dB) | 0.3 | ||||||
Polarization dependence gain | (dB) | 0.4 | ||||||
Polarization mode dispersion | (ps/nm) | 0.3 | ||||||
Input/output isolation | (dB) | 30 | ||||||
Pump power leakage | (dBm) | -30 | ||||||
Echo loss | (dB) | 55 | APC | |||||
General feature | Serial interface | RS232 | ||||||
SNMP network management interface | RJ45 | |||||||
90 | 265 | 220VAC | ||||||
30 | 72 | -48VDC | ||||||
(W) | 50 | HA5400A ( 1RU, 19'' ) | ||||||
50 | HA5400B ( 2RU, 19'' ) | |||||||
189 | HA5400C ( 3RU, 19'' ) | |||||||
289 | HA5400E ( 5RU, 19'' ) | |||||||
Work temp. | ( ℃ ) | -5 | 65 | |||||
Storage temp. | ( ℃ ) | -40 | 80 | |||||
Relative humidity | ( % ) | 5 | 95 | |||||
( " ) | 19 × 14.3 × 1.75 | HA5400A ( 1RU, 19'' ) | ||||||
19 × 14.3 × 3.5 | HA5400B ( 2RU, 19'' ) | |||||||
19 × 14.7 × 5.25 | HA5400C ( 3RU, 19'' ) | |||||||
19 × 14.7 × 8.25 | HA5400E ( 5RU, 19'' ) | |||||||
