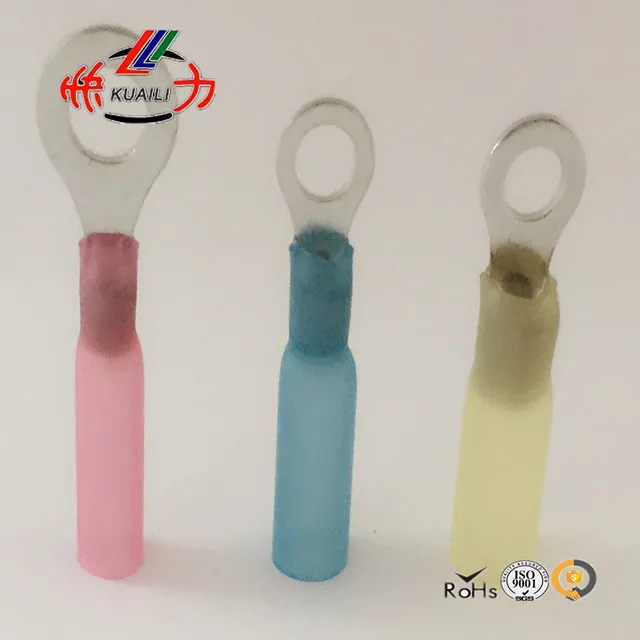

Heat Shrink Ring round crimp terminal
- Category: >>>
- Supplier: Yueqing Kuaili Electric Terminal Appliance Factory
Share on (60504338278):
Product Overview
Description
Heat Shrink Ring Terminal
Heat Shrink Ring round crimp terminal/ round terminall in copper
Insulated Ring Terminal AWG 12-10 STUD SIZE#8
We are leading and professinal terminal manufacturer.
We can supply heat shrink Ring Terminal Insulated Ring Termina , Quick Connectors connector terminal like Quick Splice Connector, Closed-End Connector, connector, cable connector, wire connector, insulated ring terminals, fork pre-insulated terminals, pin pre-insulated terminals and pipe pre-insulated terminals.
We can provide good quality and good service with competitive prices.
Insulated Ring Terminal AWG 12-10 STUD SIZE#8 Insulated Ring Terminal
SHRINK HEAT Ring Terminal Specifications electric supplies
| 1,Maximum Electric Rating:150.C 600V | |||||||
| 2,Maximum Electric Current:22-16 AWG/0.5-1.5mm2:19A;16-14AWG/1.5-2.5mm2:27A;12-10AWG/4-6mm2:48A | |||||||
| 3,Terminal Body:Copper | |||||||
| 4,Insulation:Heat Shrink Tube | |||||||
| 5,Plating:Tin |
| Item No. | Wire range mm2/Awg | Tab Size | Dimension (mm) | Insulation Color | ||||
| d1 | d2 | W | L | D | ||||
| HSRV 1.25-3 | 0.5-1.5mm2 22-16AWG | #4 | 1.7 | 3.2 | 5.7 | 28.5 | 4.8 | Red |
| HSRVM 1.25-3.5 | #6 | 3.7 | 6.6 | 31.5 | ||||
| HSRVS 1.25-4 | #8 | 4.3 | 6.6 | 31.5 | ||||
| HSRVL 1.25-4 | #8 | 4.3 | 8 | 31.5 | ||||
| HSRVS 1.25-5 | #10 | 5.3 | 8 | 33.5 | ||||
| HSRVS 1.25-6 | 1/4 | 6.4 | 9.8 | 39.5 | ||||
| HSRV 1.25-6 | 1/4 | 6.4 | 11.6 | 36.5 | ||||
| HSRV 1.25-8 | 5/16 | 8.4 | 11.6 | 39.5 | ||||
| HSRV 1.25-10 | 3/8 | 10.5 | 13.6 | 43 | ||||
| HSRVS 2-3.5 | 1.5-2.5mm2 16-14AWG | #6 | 2.3 | 3.7 | 6.6 | 28.5 | 5.8 | Blue |
| HSRVS 2-4 | #8 | 4.3 | 6.6 | 31.5 | ||||
| HSRVS 2-5 | #10 | 5.3 | 8.5 | 33.5 | ||||
| HSRV 2-6 | 1/4 | 6.4 | 12 | 33.5 | ||||
| HSRV 2-8 | 5/16 | 8.4 | 12 | 39.5 | ||||
| HSRV 2-10 | 3/8 | 10.5 | 13.6 | 43 | ||||
| HSRVS 5.5-4 | 4-6mm2 12-10AWG | #8 | 3.4 | 4.3 | 7.2 | 35 | 6.8 | Yellow |
| HSRV 5.5-5 | #10 | 5.3 | 9.5 | 35 | ||||
| HSRV 5.5-6 | 1/4 | 6.4 | 12 | 43 | ||||
| HSRV 5.5-8 | 5/16 | 8.4 | 12 | 43 | ||||
| HSRV 5.5-10 | 3/8 | 10.5 | 15 | 43 | ||||
Insulated Ring Terminal AWG 12-10 STUD SIZE#8 Insulated Ring Terminal
WORK SHOP SHOW electrical connectors and terminals
Insulated Ring Terminal AWG 12-10 STUD SIZE#8 Insulated Ring Terminal
Insulated Ring Terminal AWG 12-10 STUD SIZE#8 Insulated Ring Terminal
Certificate Show
Insulated Ring Terminal AWG 12-10 STUD SIZE#8 Insulated Ring Terminal
How to get good price for this terminal:
1.contact the alibaba 'contact now'
2.E-mail us with the terminal you are interested in
3.We will reply to you ASAP
If you are interested in our products, we will immediately send a sample to you. We can assure you of the quality,favorable terms and credit.
We are looking forward to receiving your early inquiry,and assuring you that your requirements will have our very best and prompt attention.
transport:
Normally,the terminal you order will be sent by express when the payment is clear
(Quantity is few).
Also,we can transport the goods by air or by ship.
In
Packing:
Our normal packing is 1000/500 pcs per bag,one bag in a box,carton outside.
We also can pack as customers' requirement.
12-10 STUD SIZE#8 Insulated Ring Terminal
