Ротогравюрная машина для печати на металле

Use:

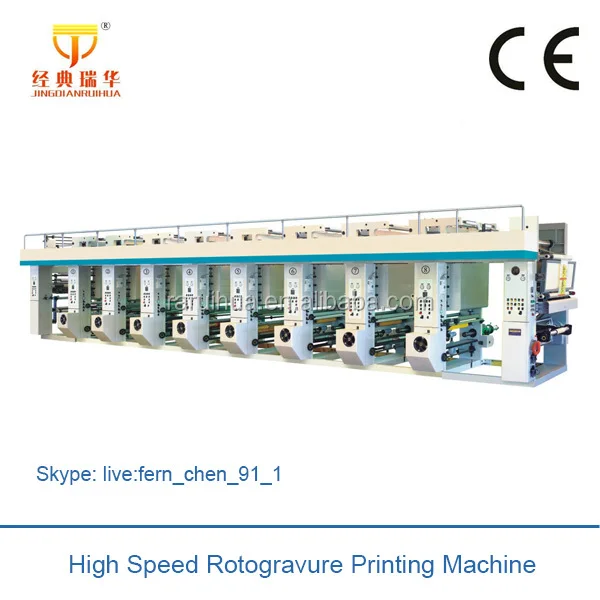

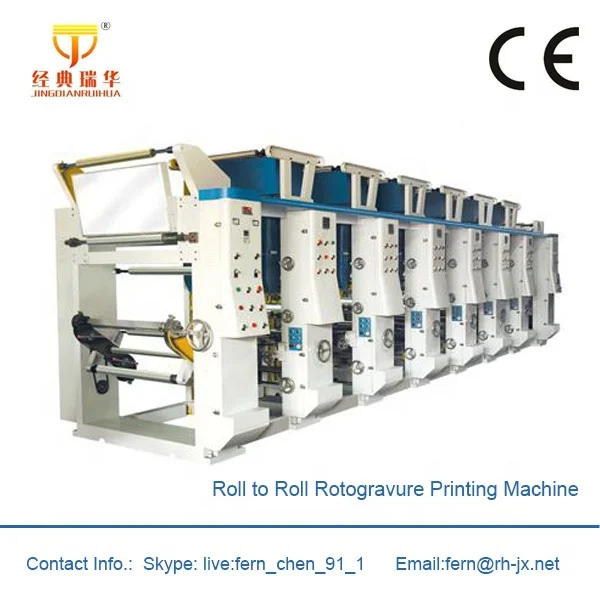

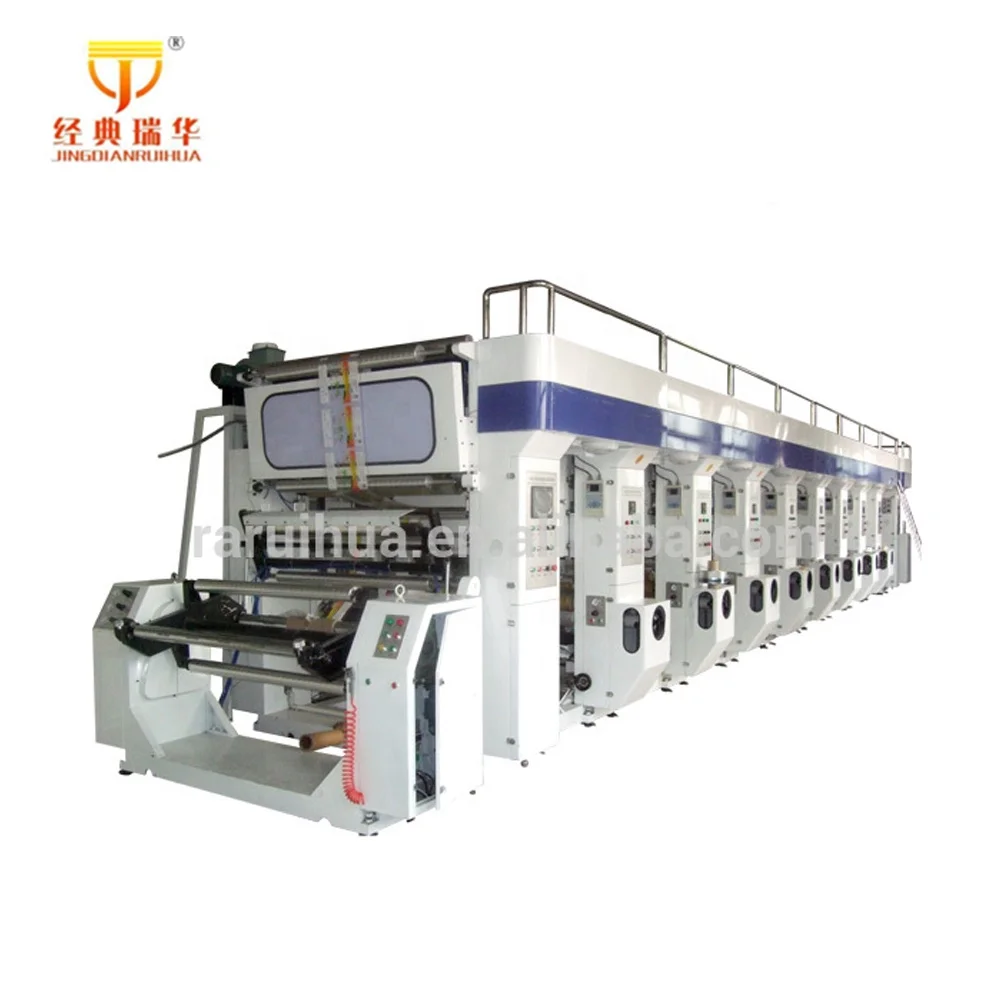

Rotogravure Intaglio Printing Press Machine is suitable for various materials roll to roll printing, like film(BOPP. PET. PVC. PE.), paper, aluminium foils, etc. Machine is with good printing performance for rolling material with continuous printing.

Specifications:

1. Rotogravure Intaglio Printing Press Machine consists of several printing sets, can do front and back printing for multi colors in one process. Printing color unit can be increased or decreased according to the customers' needs.

2. Rotogravure Intaglio Printing Press Machine is with automatic tension controller for unwinding and rewinding parts, both are controlled by magnetic powder tension controller

3. Rotogravure Intaglio Printing Press Machine is with automatic ink recycle system

4. Printing plate is with 360 degree of adjustment system, ease of operation, and stability.

5. The parts of transmission are adopted with gear structure with full sealing lubrication.

6. Rewinding part is with torque motor control. Unwinding and rewinding are both with double station for working, which can achieve non-stop material feeding.

7. Printing speed is controlled by the stepless motor.

8. Machine foundation is made of channel steel, stable.

Main Technical Parameters

Model of Machine

ASY-A1000

Effective Printing Width

1000mm

Max. Width of Base Material

1050mm

Max. Printing Speed

100m/min

Max. Mechanical Speed

150m/min

Max. Dia. Of Rolling of Releasing

600,,

Inside Dia. Of Roll Core of Base Material

Φ 76mm

Dia. Of Printing Plate Roller

120-300mm

Modified Accuracy of Computer Registration

± 0.15mm(Whole Machine)

Control Range of Tension

0~25kg/Full width

Heating Power of Oven

75kw

Total Power of Machine

85kw

Weight of Machine

13000kgs

Overall Dimensions(L*W*H)

12400× 2900× 2550mm
