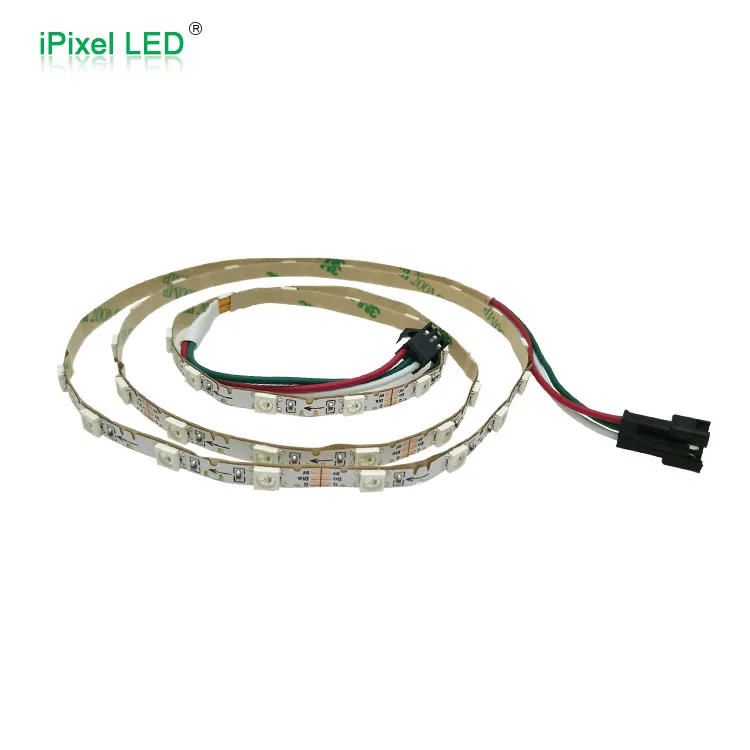

5mm Width S Shape Addressable LED Strip 48leds/m Sk6812 Led Strip DC5V Ipixel LED White Epistar 2 Years 30 60 140 Degree 12W
- Category: >>>
- Supplier: Shenzhen Ipixel Led Light Co. Ltd.
Share on (60504564565):
Product Overview
Description
Addressable S Shape LED strip 5mm width 48leds/m sk6812 led strip DC5V
Product Description
Addressable full color led strips(sk6812) ——sk6812 IC built-in 5050 RGB LED chip.
Individually control —— 1IC & 1LED chip.
Standard Reel Lengt: 1meter/roll, also can be customized.
Cutted: 1 integrated RGB LEDs per segment, can be cutted per 3LED.

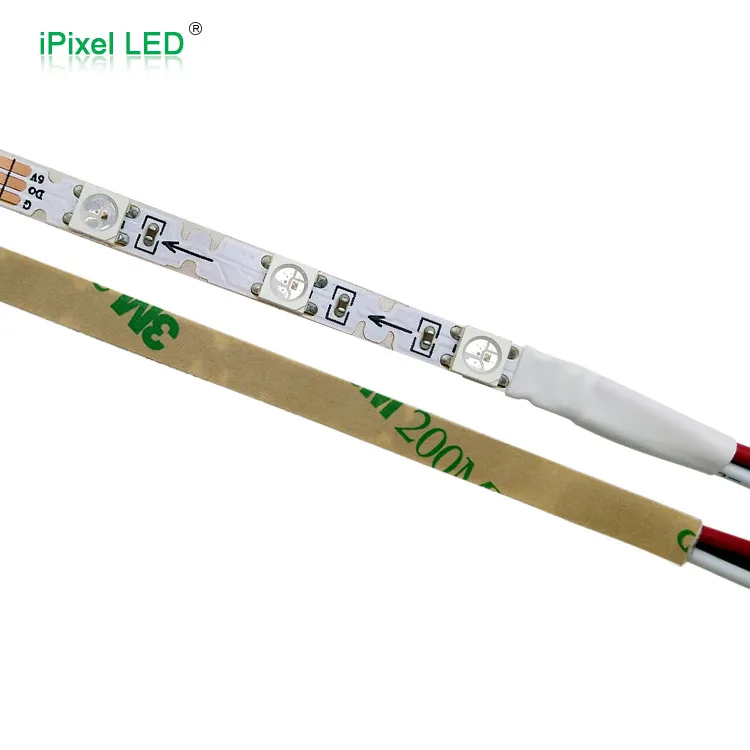

Sticky: with 3M adhesive on back side for sticky.
screw+silicon clip, or 3M adhesive back side.
Type: waterproof--white PCB; non-waterproof--black PCB;
waterproof--black PCB; non-waterproof--white PCB.
Brand: iPixel LED
Product Features
LED Chip | SMD5050 RGB LED chip |
IC Chip | sk6812 IC built-in 5050 RGB LED chip |
LED Quantity | 48 LEDs/m |
Input Voltage | DC5V |
Watts | 12W |
IP Rate | IP20(non-waterproof), IP65(Silicon-tube waterproof) |
PCB Color | White PCB |
View Angle | 140° |
Standard Reel Length | 1meter/roll, also can be customized |
PCB Width | 5mm |
Operating Temperature | -10 ~ +50°C |
Storage Temperature | -40 ~ +80°C |
Color | Addressable full color |

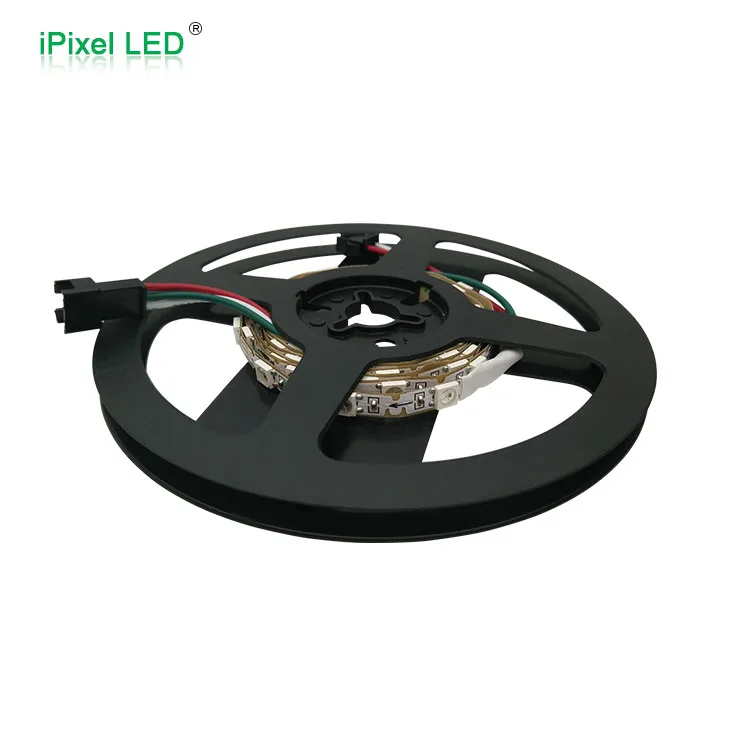

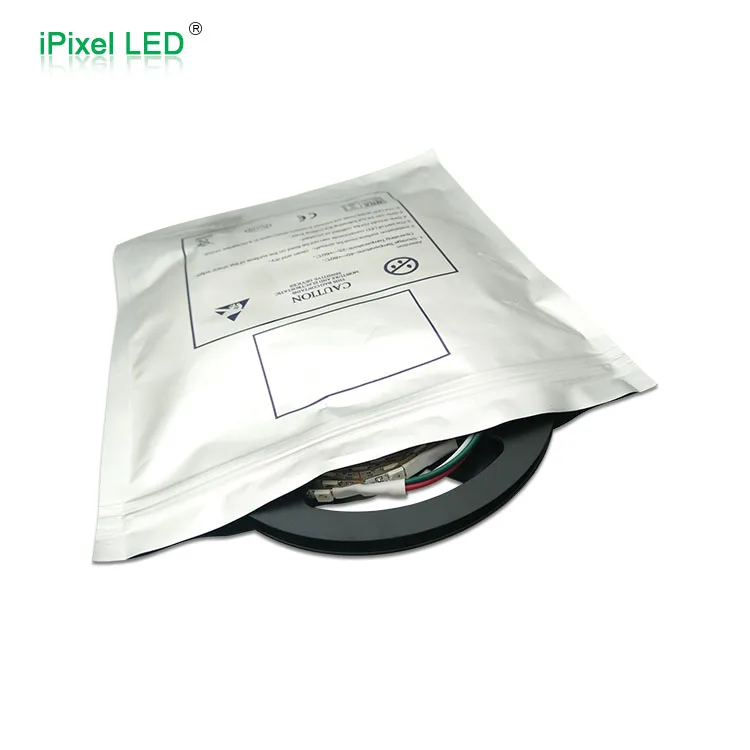

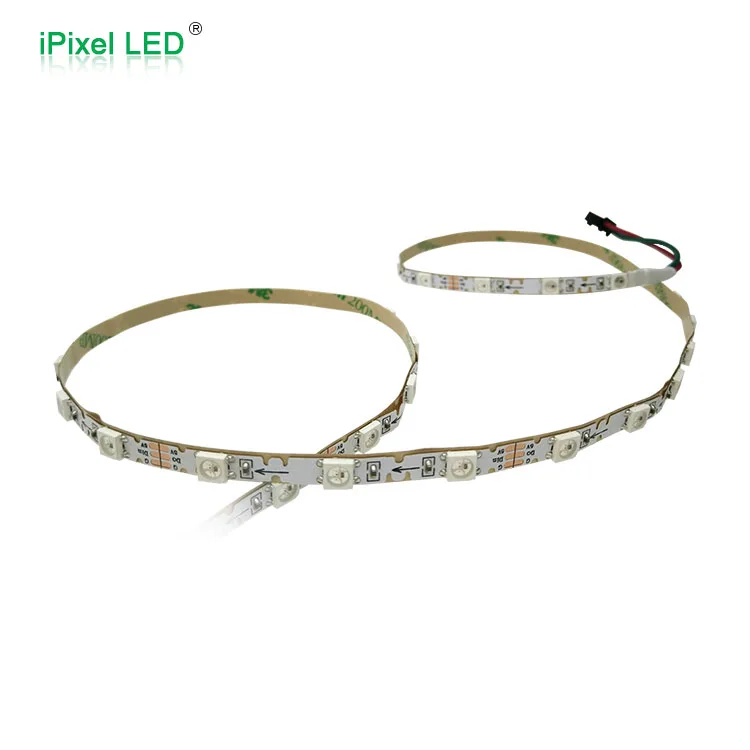

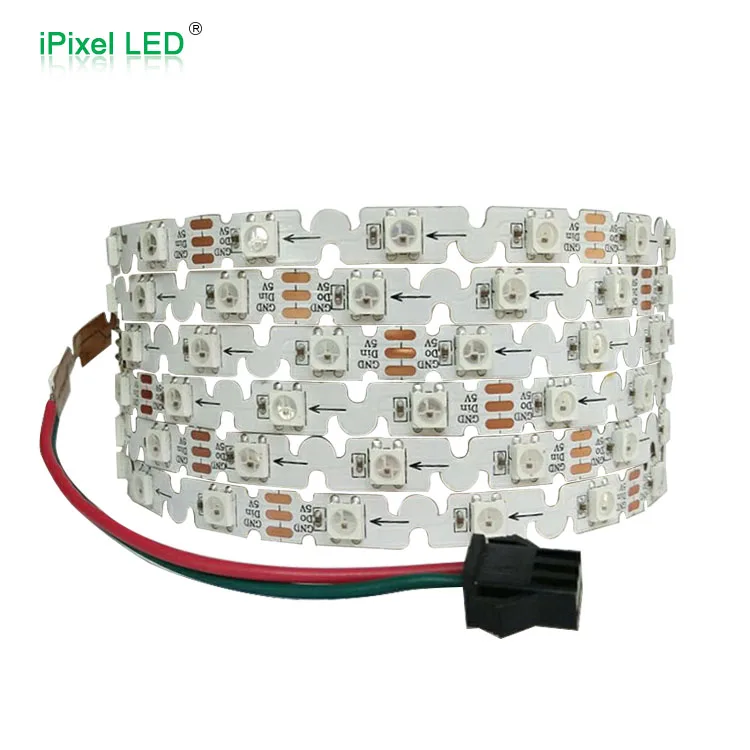

Detailed Images

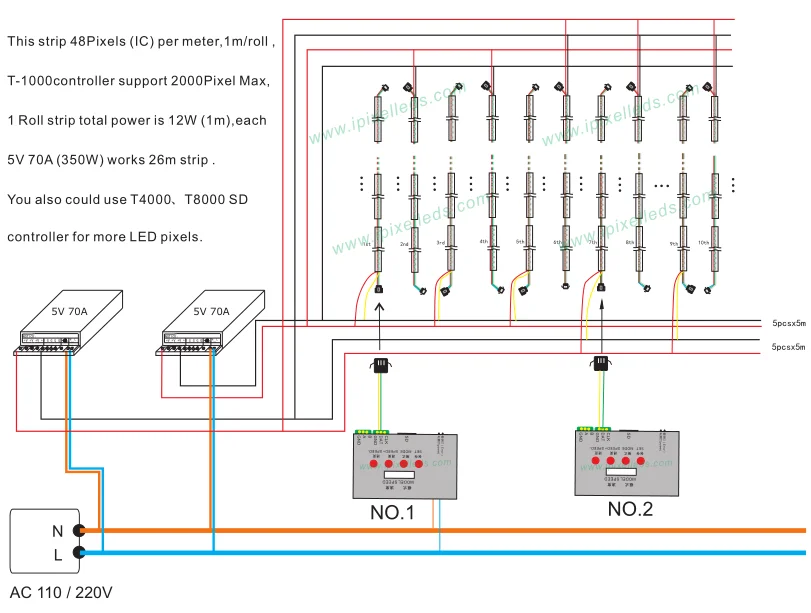

Connection Map
SPI signal: LED Strip+LED power supply +LED controller
DMX control: LED Strip+LED pwer supply+DMX Controller+DMX decoder
LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino...
(offline / PC online)

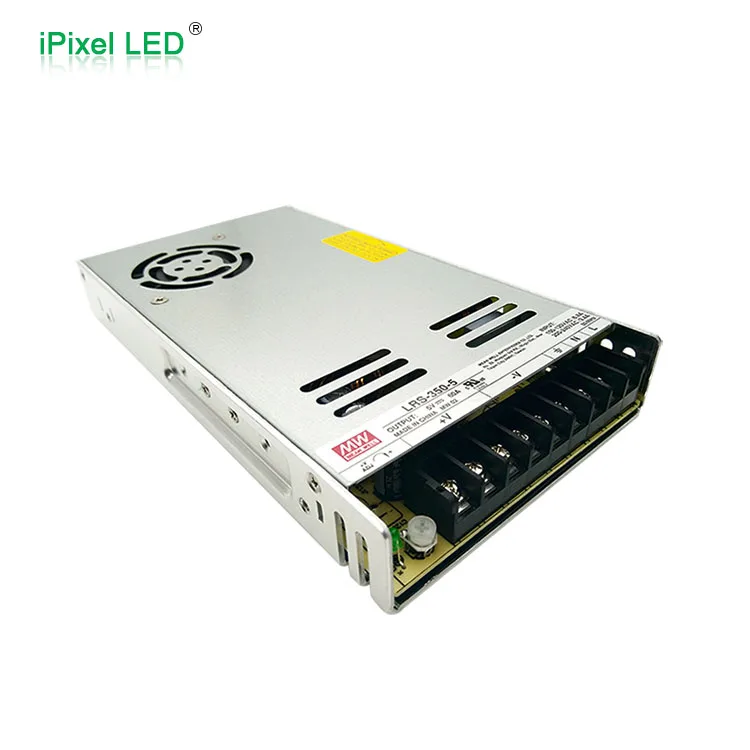

LED power suppply: Meanwell power supply, T- series, A- series power supply...
(waterproof / non-waterproof)

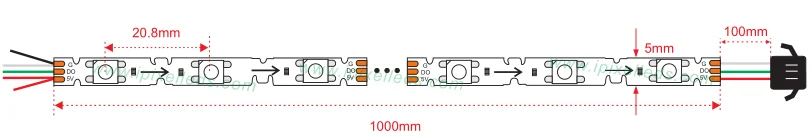

Structure Diagram
