Вращающаяся струйная головка с распылителем 3D 2 дюйма 360
- Category: >>>
- Supplier: Cleaning Intelligent Equipment Technology (guangzhou) Co. Ltd.
Share on (60504610070):
Product Overview
Description

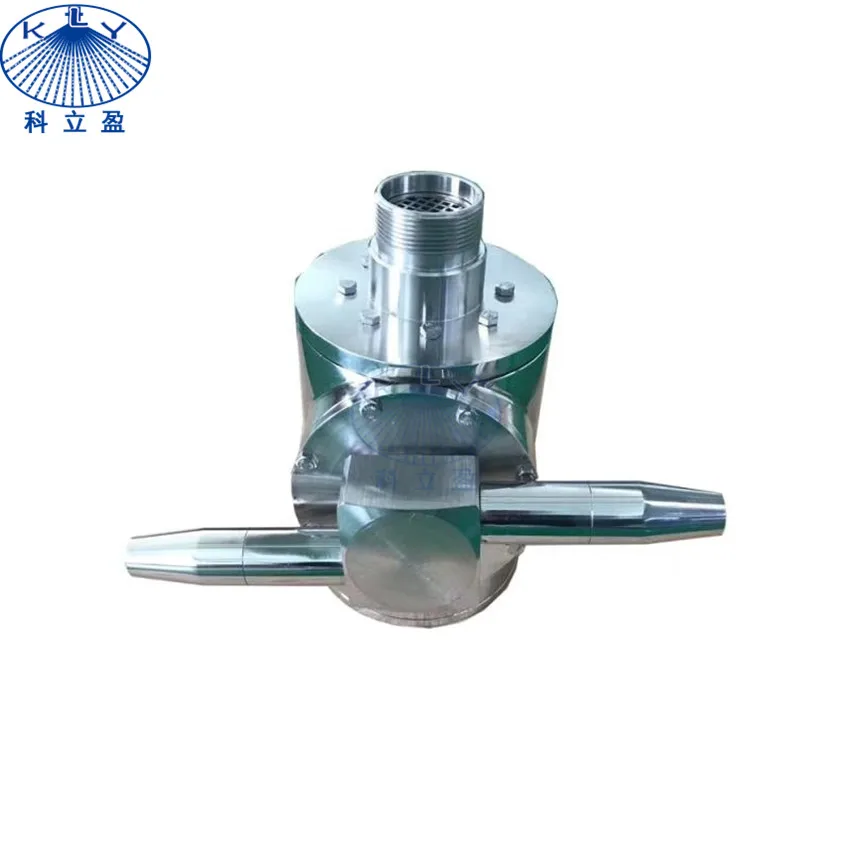

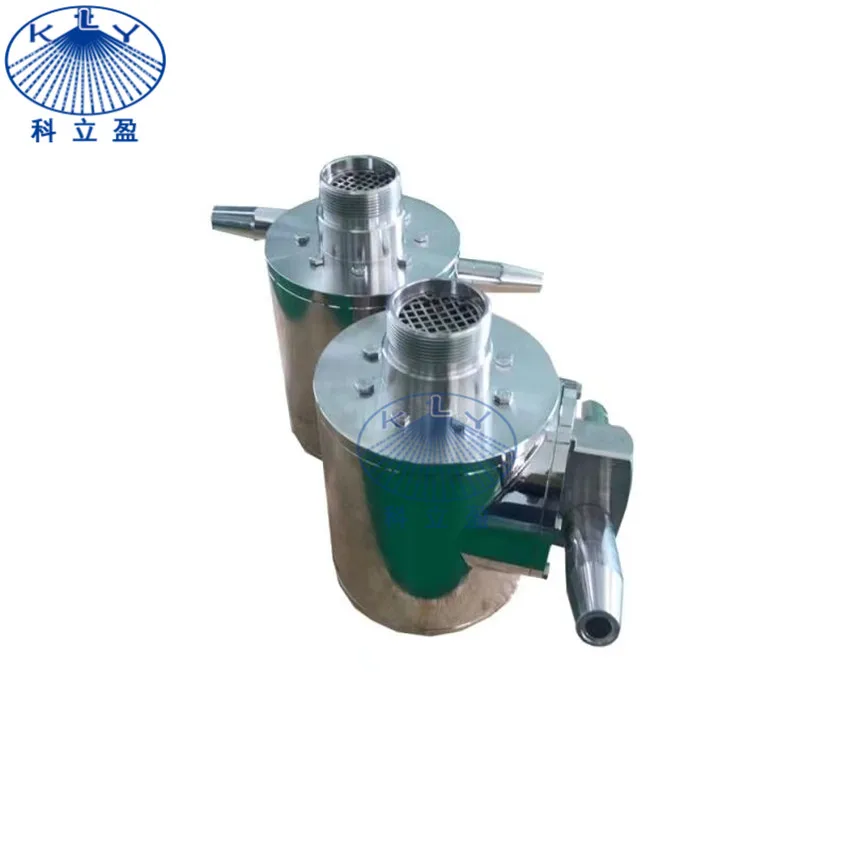

360 Spray 3D rotating rotary jet head
Model | 360 Spray 3D rotating rotary jet head |
Material | 316L SS |
Max tank diameter | 21.5m |
Operation pressure | 6-12 bar |
Connection | 2" BSPP, 2" NPT thread |
Filtration: | line strainer with a mesh size of 0.3mm / 50 mesh |
Temperature range | 120° |
Installation | Vertically facing downward |
Application | High effcient cleaning, washing |
Design feature | 3D rotating |
It can also be used as a fixed installation either mounted on a standpipe from deck or submerged, installed in the bottom of the tanks as an effective compliment to any deckmounted machine.
The symmetrically opposed nozzles are driven by an integrated turbine and gearing unit providing safe and reliable starting and stable speed control. Rotation in the horizontal plane combined with vertical movement provides an almost spherical cleaning pattern. Speed will vary slightly according to nozzle size and pressure with one full cycle taking approximately 30 minutes.
Design feature:
1 High performance cleaning
2 Very high cleaning performance already at low pressure
3 Driven and lubricated by the cleaning fluid
4 Systematically cleans the entire tank interior(360°)
5 Robust, low-maintenance stainless steel construction
6 Driven by an integrated turbine and gearing unit
Common application:
Cleaning tanker trucks
Cleaning rail cars
Cleaning petrochemical reactors
Cleaning residues from chemical tanks
Cleaning sewage tanks
Cleaning silt from water supply tanks
Cleaning pharmaceutical tanks
Cleaning food processing tanks
Cleaning pulp storage/processing tanks
Cleaning blenders
Cleaning storage tanks
Oil tankers
Product tankers
Chemical tankers
Dry bulk carriers
Barges
Offshore supply vessels (OSV) for driling mud tank cleaning systems
Platform supply vessels (PSV) and drill ships for mud pit tank cleaning systems
Anchor handling tugs
Drill ships
Platforms
Ferries
Cruise ships
The symmetrically opposed nozzles are driven by an integrated turbine and gearing unit providing safe and reliable starting and stable speed control. Rotation in the horizontal plane combined with vertical movement provides an almost spherical cleaning pattern. Speed will vary slightly according to nozzle size and pressure with one full cycle taking approximately 30 minutes.
Design feature:
1 High performance cleaning
2 Very high cleaning performance already at low pressure
3 Driven and lubricated by the cleaning fluid
4 Systematically cleans the entire tank interior(360°)
5 Robust, low-maintenance stainless steel construction
6 Driven by an integrated turbine and gearing unit
Common application:
Cleaning tanker trucks
Cleaning rail cars
Cleaning petrochemical reactors
Cleaning residues from chemical tanks
Cleaning sewage tanks
Cleaning silt from water supply tanks
Cleaning pharmaceutical tanks
Cleaning food processing tanks
Cleaning pulp storage/processing tanks
Cleaning blenders
Cleaning storage tanks
Oil tankers
Product tankers
Chemical tankers
Dry bulk carriers
Barges
Offshore supply vessels (OSV) for driling mud tank cleaning systems
Platform supply vessels (PSV) and drill ships for mud pit tank cleaning systems
Anchor handling tugs
Drill ships
Platforms
Ferries
Cruise ships
Application:

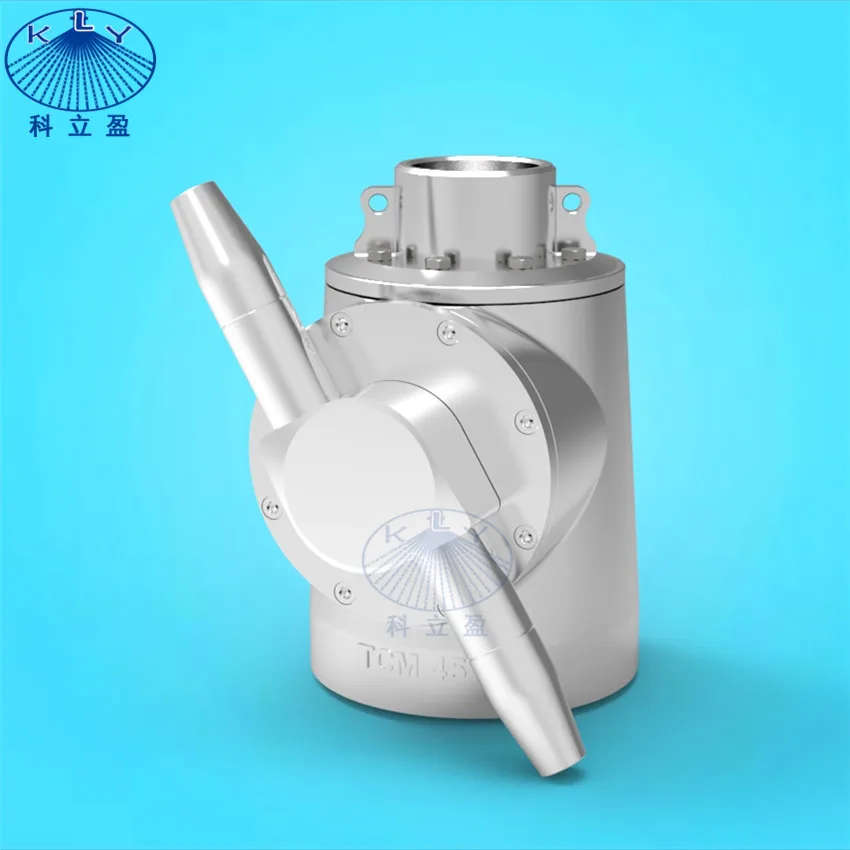

The TCM45 is a twin nozzle, nonprogrammable tank cleaning machine ideal for portable use. Particularly suitable for corrugated tanks where cleaning is required at more than one level without the use of fixed multi-stage systems.

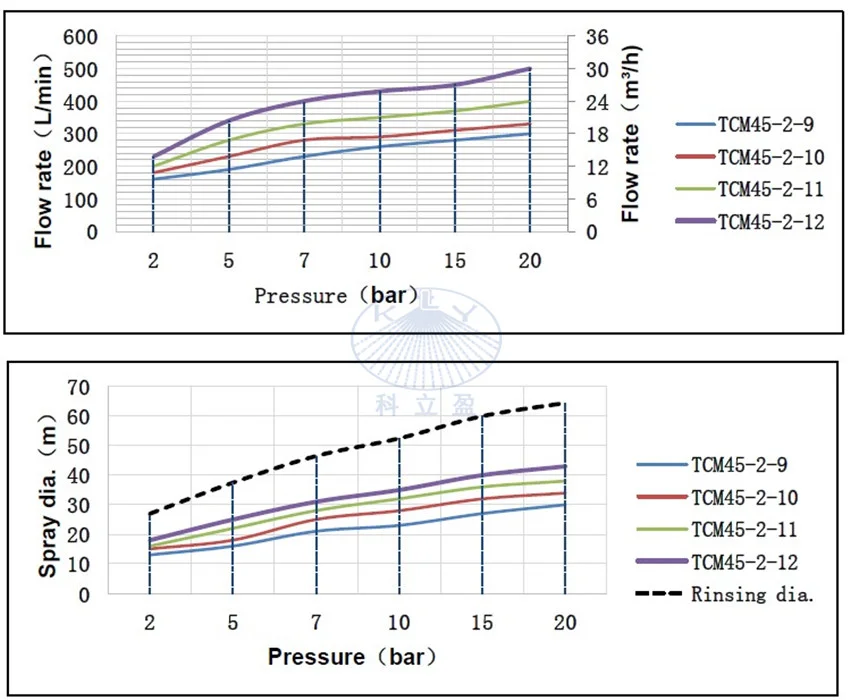

Performance data:

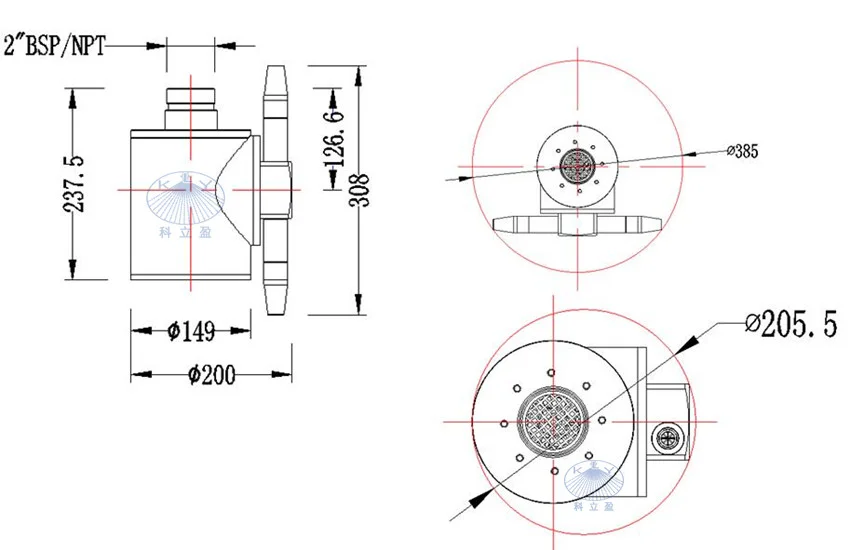

Dimensions of tank cleaning nozzle:
Cleaning process:
Cleaning effect:
Application of 3D rotary tank cleaning nozzle:
1：Can the products be customized?
Yes, we accept OEM, just send us your layout or actual sample, we can arrange production according your design.
2:Is the MOQ fixed ?
For mass production orders,the MOQ cannot be lowered according to production requirements.For stock items,order quantity can be negotible.
3:How to order?
Please send one RFQ to us, our sales will confirm with you about the specification or other required things, then will send an official invoice to you via mail, which will be included the details of your order and bank information of our company.
4:How to pay?
We accept the payment via ESCROW, T/T (bank transfer) and Western Union, please inquire us about the details in advance.
5:How long about the production leadtime?
Different products and quantities have different procedures and different timing,normally it needs about 7-14 working days.
6: How to Deliver?
By air, by sea or by express(Fedex, DHL, UPS, TNT etc)
7:How to return?
Acceptable to the returns when you receive the products because of the following reasons.
1. Product was damaged, lost or missed
2. Different specification from required one.
Before ordering, please select a suitable product for you. As you know, all of us don't expect the return. If your return is the result of our error (you received an incorrect or defective item, etc.) we will cover the cost of return shipping. Please note that you are responsible for the cost of shipping for returns not due to our error.
