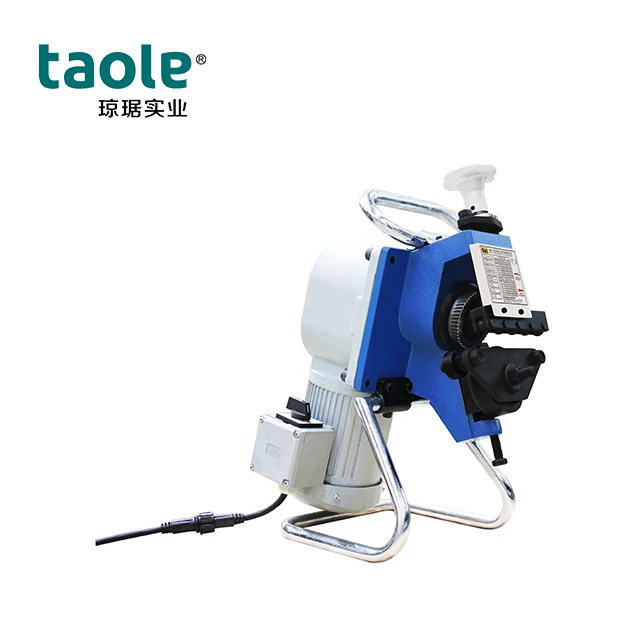

Handy Beveling Machine Pipe And Plate Bevel Gear Cutting Machine For 4 16mm Plate GBM 6D
- Category: >>>
- Supplier: Shanghai Taole Machine Co. Ltd.
Share on (60504635389):
Product Overview
Description
Product Name:
Hand Beveling Machine Pipe and Plate Bevel Gear Cutting Machine For 4-16mm Plate GBM-6D
Product Description
Products Description for Hand Beveling Machine Pipe and Plate Bevel Gear Cutting Machine For 4-16mm Plate GBM-6D
This series machine is mainly for Metal Plate Edge Beveling & Chamferring for welding preperation.It is widely used in some aerospace, shipbuilding, metallurgy, pressure vessels, petrochemical and welding manufacturing fields, can process low carbon steel, stainless steel, aluminium alloy etc.
Note: This model with multi function to Process both Metal Plate and Pipe /tube
Model No. | GBM-6D |
Power Supply | AC 380V/220V 50Hz |
Motor Power | 400W |
Clamping Plate Thickness | 4-16mm |
Min.Processing Plate Width | ≥55mm |
Net Weight for Machine | 33kg , 39KG (Including Car) |
Beveling Width | Single beveling width: 6mm Max. beveling width: 8mm |
Beveling Angle | 25°, 30°, 35°, 40°, 45°( Match bevel angle) |
Beveling Speed | 1.2 - 1.8m/min |
Packaging Details | 1. 540*640*740mm,N/W:33KG, G/W:55KG 2.540*640*740mm,N/W:45KG,G/W:60KG (Including Car) |
Range of application | This type machine, which is mainly used in aerospace, shipbuilding, metallurgy, pressure vessels, petrochemical and welding manufacturing fields, can process low carbon steel, stainless steel, aluminium alloy etc. |

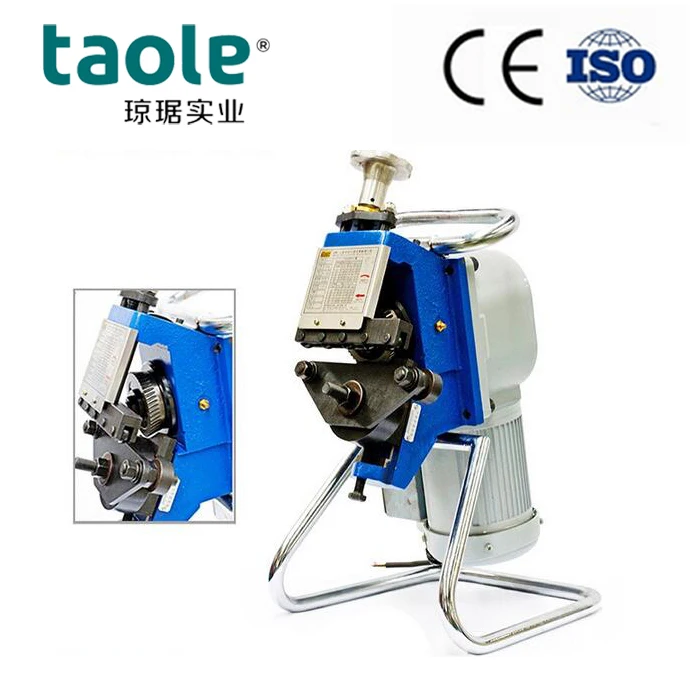

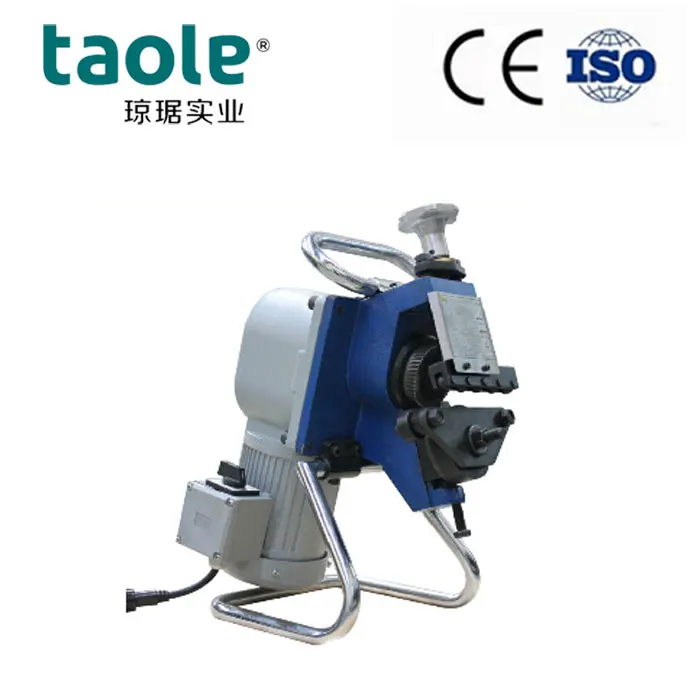

Real Pictures:
Features:
- High quality transmission reducer with efficiency and stability.
- Shock absorption to move with fast bevelling.
- Process with electric and easy adjustable for even un-professional worker to reduce labour cost.
- Low noise while processing by imported motor.
- Processing material could be : Stainless stell,carbon steel,AL Alloy ,Clad Plate .etg
- Feeding used efficient gear system.
- Electrical wiring comply with CE standard and safty systerm.
- Special parts used high wear-resisting and hardness material
- Favourite price for a high quality tool.
- Accessories & parts and tools will be offered in a tool box with manual .
Order Guide:
Before you place order to us, please let us know the following information:
Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase)
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound preparation)
Advise your Plate material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed
We have 5 models as per customers processing needs, Below Specifications for reference:

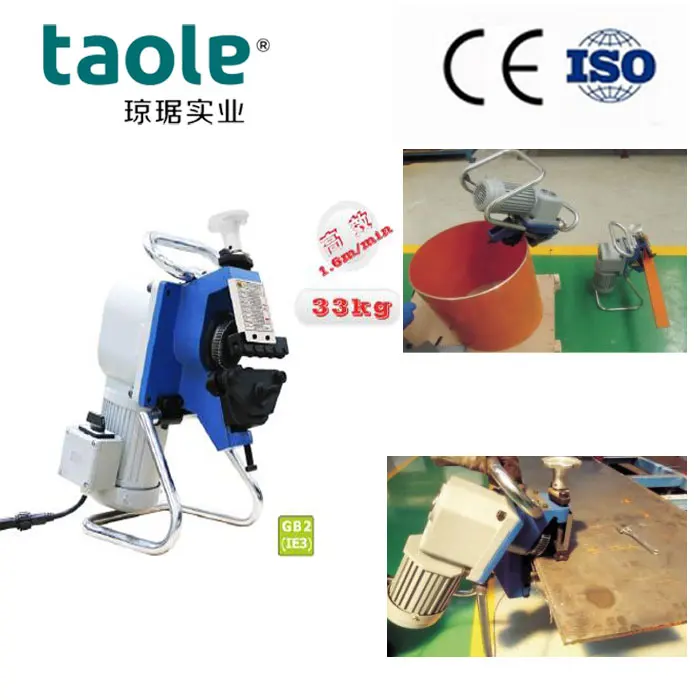

Processing Reference from Customer Site:
Note: Below Link for Other 4 Model Metal Plate Beveling & Chamfering Machine
1) GBM-12D Specially for plate thickness 6-30mm,25-45degree,Working 1.5-2.6m/min
2) GBM-12D-R Same with 12D but Turnable for double side bevel
3) GBM-16D Specially for Plate thickness 9-40mm,25-45degree,working 1.2-1.6m/min
4) GBM-16D-R Same with 16D but turnable for Double Side Bevel
Packaging & Shipping
Metal Steel Construction Machinery for Metal Beveling and Metal edge Chamfering .All machines will be packed in wooden case after Factory Inspection and Testing.
Company Information
Metal Steel Construction Machinery for Metal Beveling and Metal edge Chamfering --- Shanghai Taole machinery Co., Ltd. provides high quality Metal Processing Machines like metal plate edge beveling & milling machines, Pipe cutting & beveling machines. We have more than 12 years' service and technical experience in the welding industry, we are one integrated industrial company who owns professional team from Designing, Production, Sales, Aftersales Service.
Certifications
Our Services
1. We are available for ODM/OEM with our own development department.
2. All machines with 1 year guarantee and life-long maintenace service.
3. All machines with Operation manual and special tools
FAQ
Q: How can you guarantee the Good Quality we received?
A :Firstly, We have QC department for Quality control from Raw material till finished products. Secondly, We will do Inpsection during production and after Production. Thirdly, All our products will be tested before packing and sending out. We will send Inspection or testing video if customer not coming for checking personly.
Q: What about warrenty?
All our Products having 1 year warrenty and Life-Long Maintenance. We will provide you with free technical support.
Q: Do you provide any help regarding Products Operation?
A: All machines within products introduction, Manuals in English which is having all the operation suggestions and Maintenance proposals during using. Meanwhile, We could also support you with other way, Like provide you Video, Show and teach you while you are in our factory or Our engineers in your factory.
Q: Can I get Spare Parts?
A: We will enclose some quick wear parts with your order , As well some needed tools for this machine which is free will be send together wtih your Order. We have all spare parts drawing within the Manual. You could just tell us your spare parts No. In future. We could support you all the way.
Q: How Can I get more details about this machine or silimars?
A: Pls write down your questions and requirements in to below inquiry box. We will check and reply you by Email or Phone in 8 Hours.
