DW38NCB Hydraulic Pipe Bending Machine Automatic Tube Bender
- Category: >>>
- Supplier: Jiangsu Hefeng Mechanical Making Co. Ltd. [Jiangsu China]Jiangsu
Share on (60504641127):
Product Overview
Description
Hydraulic Pipe Bending Macine

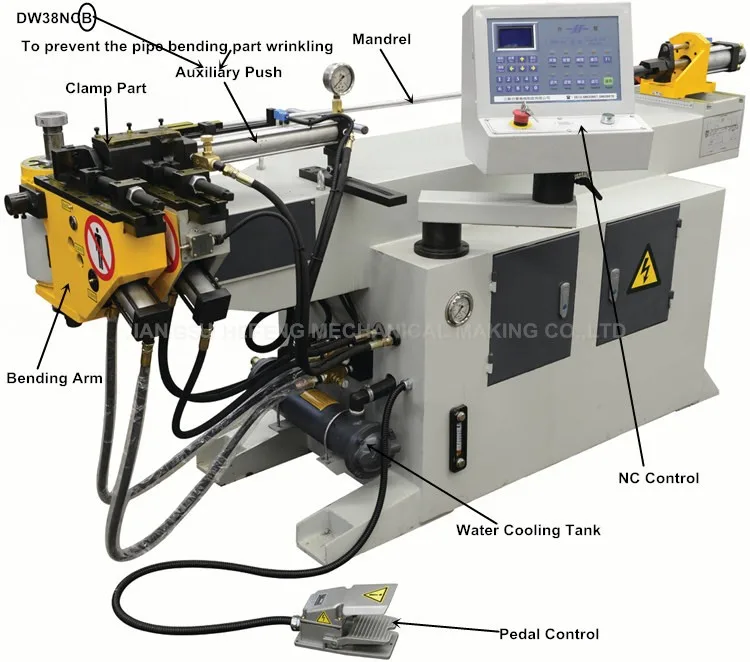

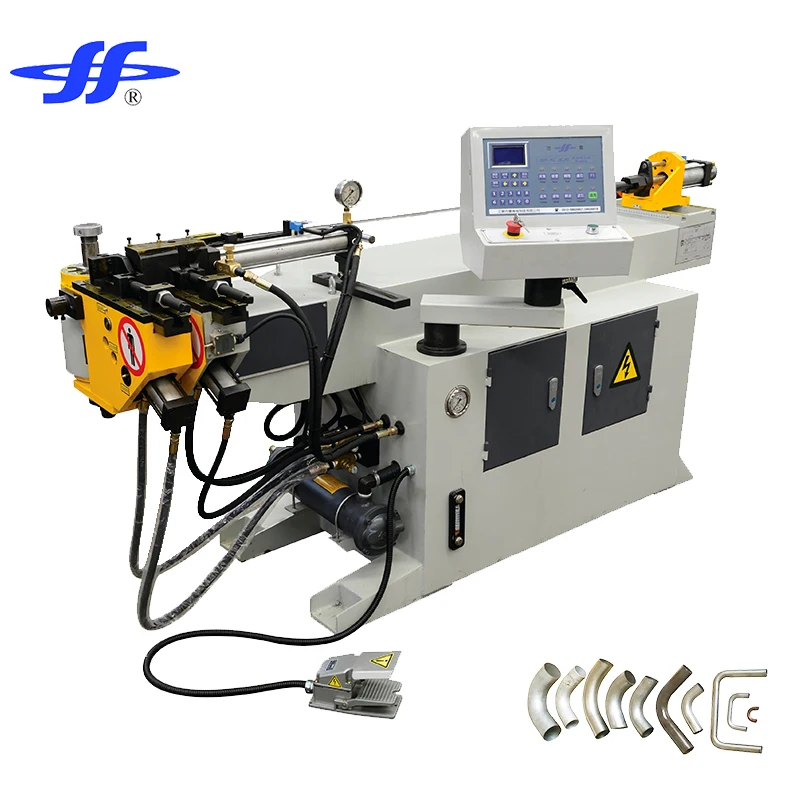

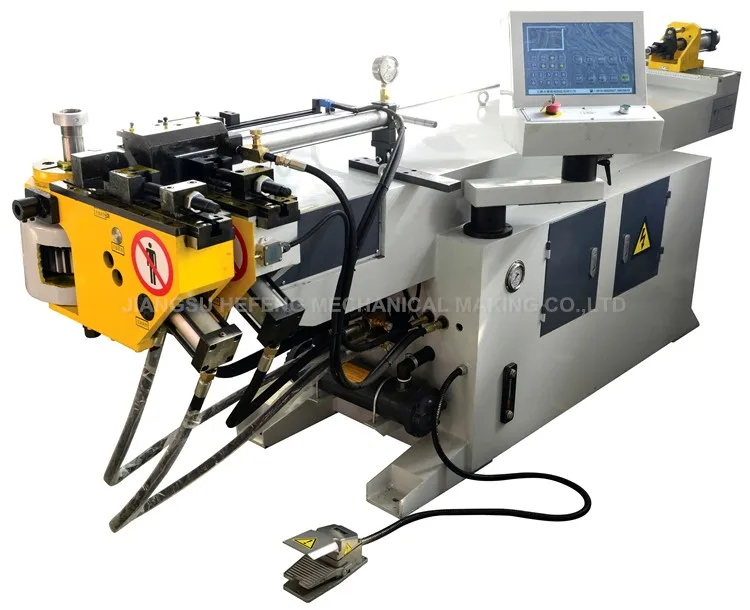

DW38NCB Hydraulic Pipe Bending Machine Automatic Tube Bender
Product Details

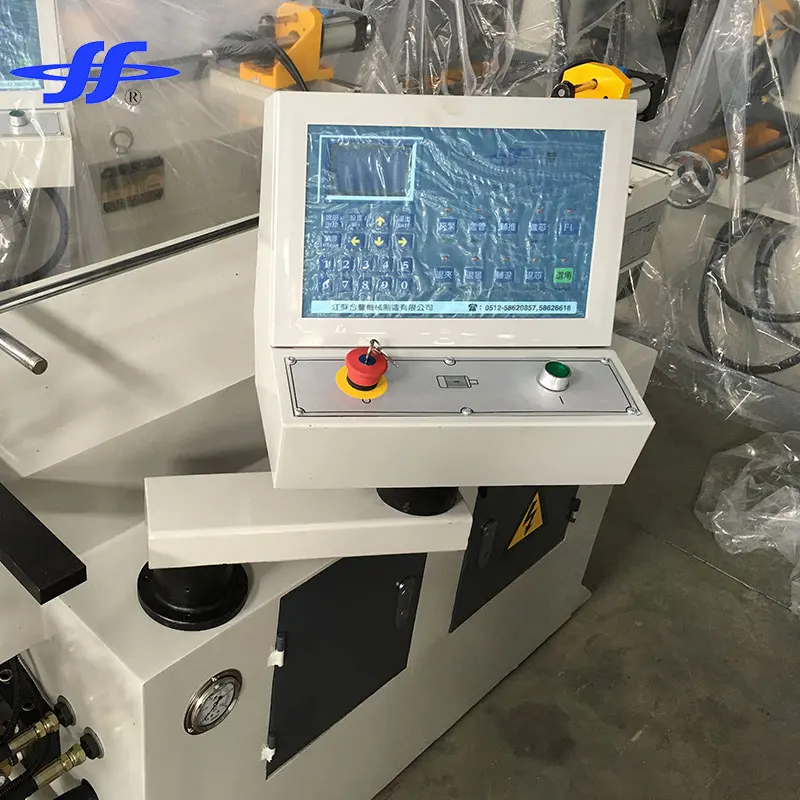

- NC Control Unit,imported electric and hydraulic elements.

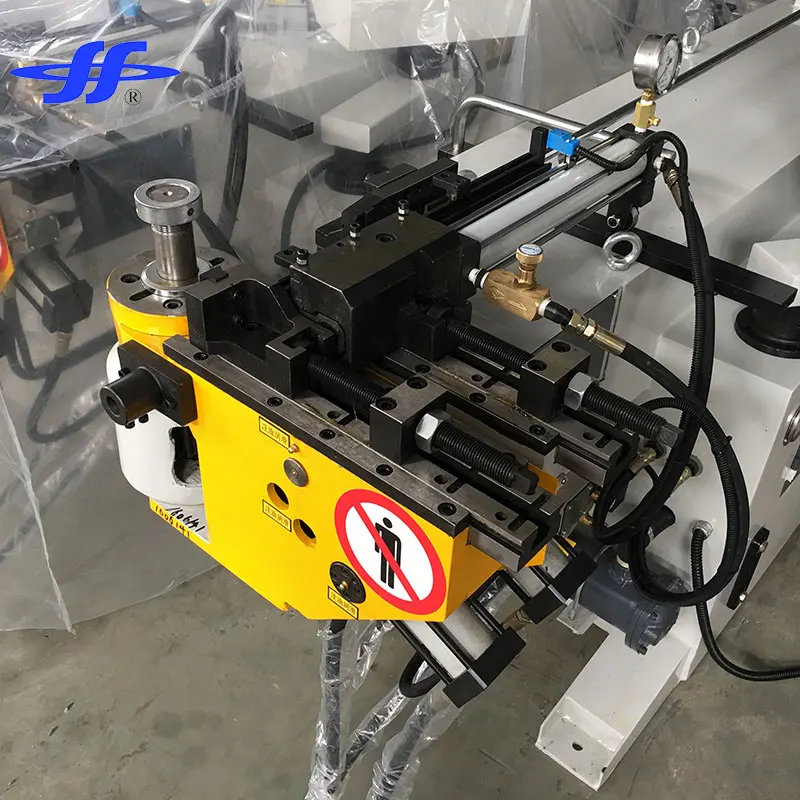

- Direct Acting Hydraulic clamping.
- Easy Operator Interface and Easy Data Input by English.
- Large Program Storage Capacity.
- Automatically lock angle and the bending accuracy is high.
- Angle changing is controlled by coder.
- The foot-switch with multiple-function:automatic start,emergency stop and resuming,The safety is high.
- Self Diagnosis and Error Messages

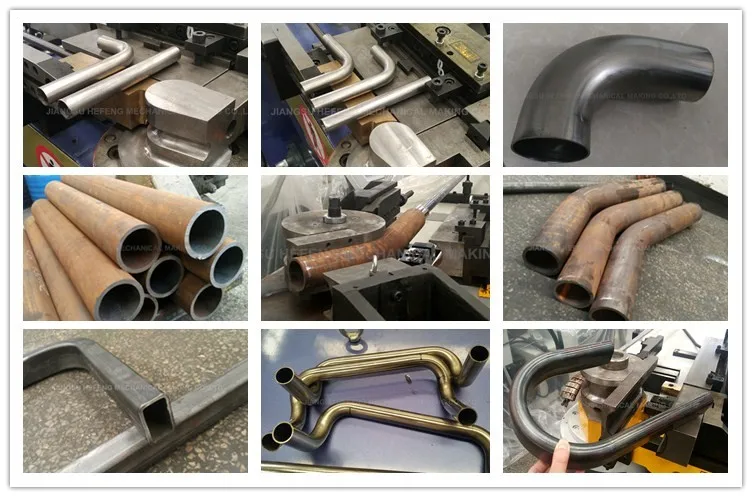

- Suitable materials:Steel pipe,Stainless steel pipe,copper pipe,aluminum pipe,iron and others.
No. | Item | Data |
1 | Max Round Tube Mild Steel | 38.1x2 mm |
2 | Non Ferrous | 38.1x4 mm |
3 | Square Tube Mild Steel | 30x30x2 mm |
4 | Solid Bar | 20 mm |
5 | Min/Max Bend Radius | 25 - 200 mm |
6 | Clamp Stroke | 55 mm |
7 | Pressure Slide Stroke | 55 mm |
8 | Max Bend Angle | 205 Deg |
9 | Max Length Over Mandrel | 1760 mm |
10 | Bending Speed | 50 Deg/Sec |
11 | Bending Precision | +/-0.3 Deg |
12 | Hydraulic Motor | 4 Kw |
13 | Total Power | 4 Kw |
14 | Hydraulic Pressure | 120 Bar |
15 | Hydraulic Tank Capacity | 120 L |
16 | Machine Size | 2400x670x1210 mm |
19 | Machine Weight | 700 Kg |

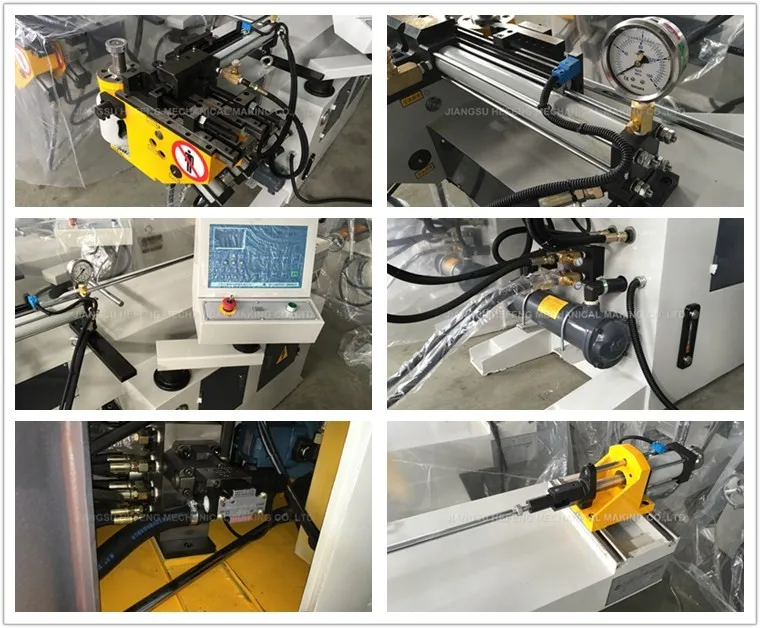

Product Show
Company Profile
Certificate&Logistic
Advantage
Contact Us
FAQ
Q: Are you a manufacturer or trading company? |
A: We are a manufacturer. We focus on metal pipe/tube processing machinery for over 30 years. |
Q: How to choose the pipe/tube bending machines? |
A: You have to inform us following details:Max. outside diameter,Wall thickness,Bending radius (CLR),The pipe material,The drawings if possible |
Q: What is the biggest bending capacity you could offer? |
A: As of now the biggest bending capacity is 168mm outside diameter for cold bending. |
Q: Where is your factory located? How can I visit there? |
A: Our factory is located in Zhangjiagang city (beside to Shanghai). You can fly to Shanghai Hongqiao or Wuxi airport directly. All our clients, from home or abroad, are warmly welcome to visit us! |
Q: How does your factory do regarding quality control? |
A: Quality is our culture. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained SGS, CE certificate.
|
