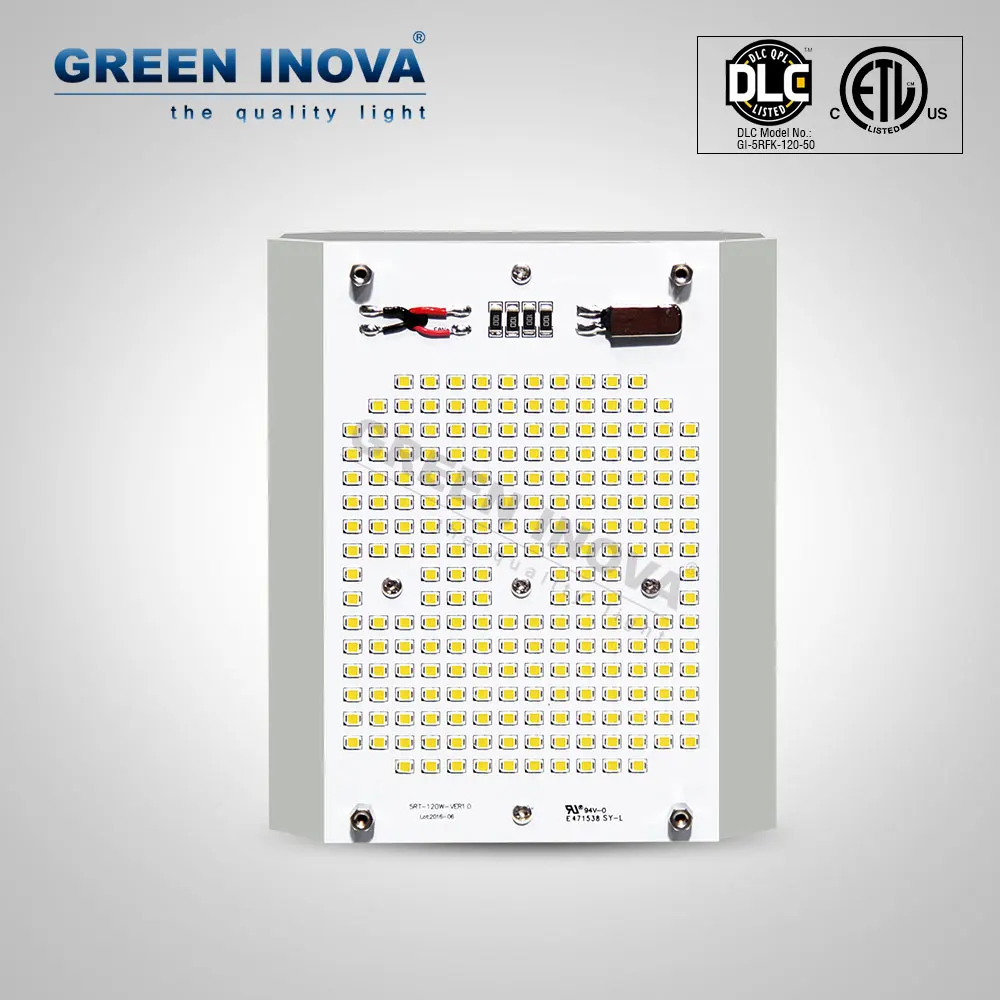

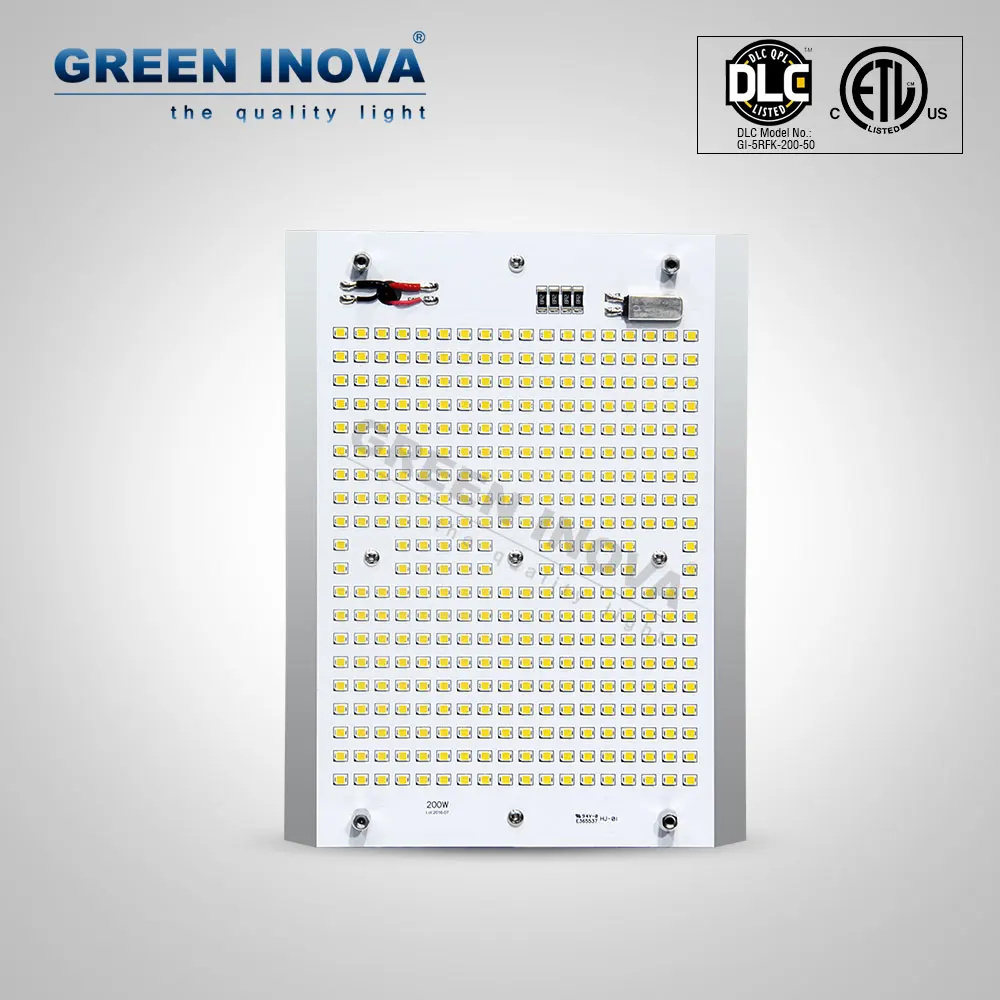

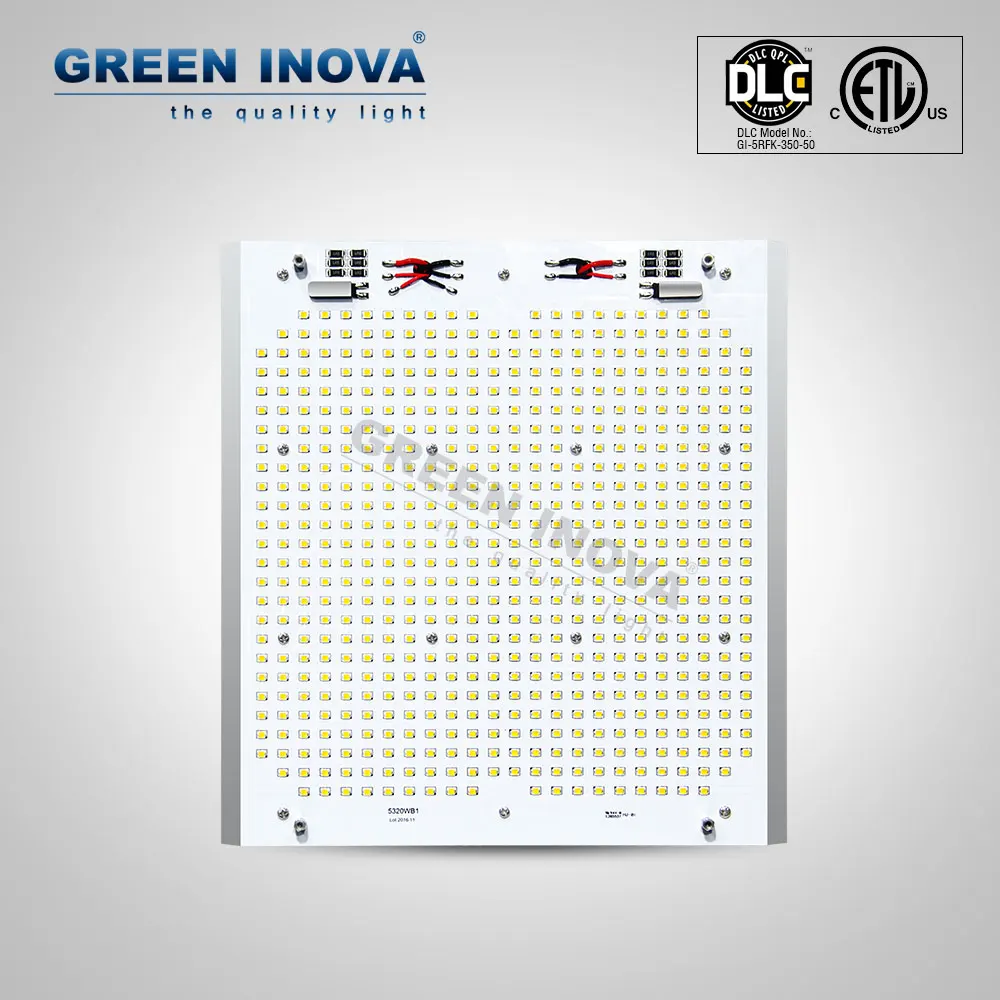

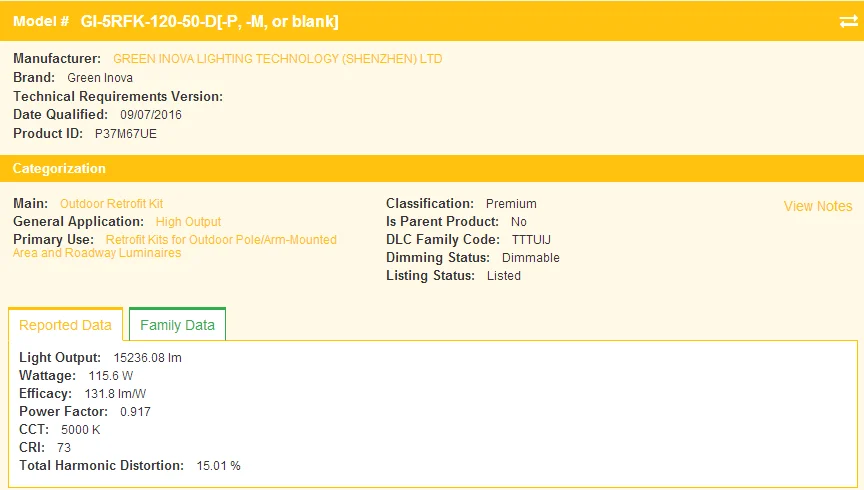

DLC Premium 100000 hours lifespan slim LED shoe box Light for parking lot retrofit kit

LED Retrofit Kit

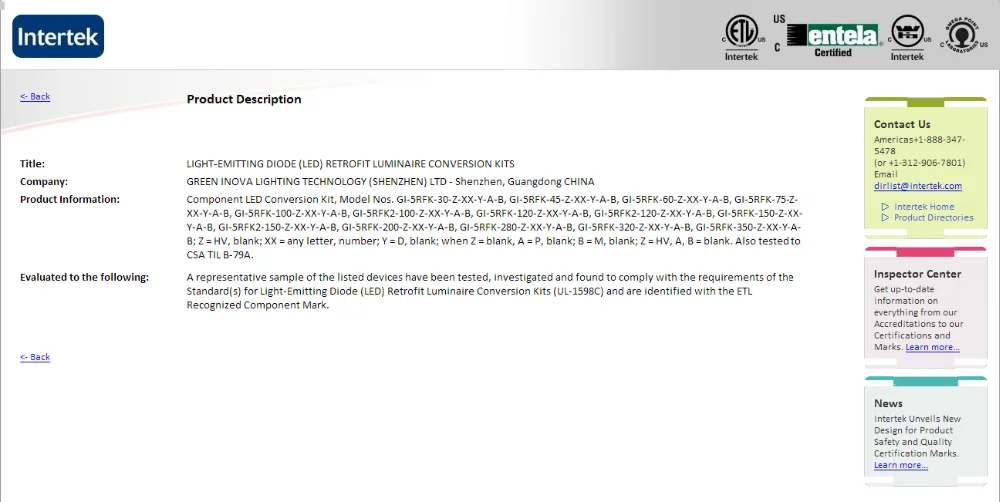

Features of DLC ETL cETL LED shoe box Light for parking lot retrofit kit:

1). Both Utility Model & Product Appearance Patents.
2). It' s the lowest total cost solution, they can replace existing Metal Halide or High Pressure Sodium Bulbs, the old housings will be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
3). Industry-leading thermal management utilizing patented technology
4). Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
5). The LED retrofit kits contain no any mercury or lead.
6). Does not produce UV rays that harm people' s eyes.
7). Directional light means no light pollution, dark sky compliance
8). Fast and safety installation method.

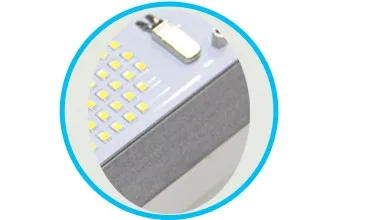

Latest Nichia Technology chips

1.Long L90 lifetime: using Nichia' s latest LED technology, the L90 life is 60% longer than Philips 3030 LEDs.

2. Import from Japan Nichia directly
3.Super high light efficacy.
4.Engineered with proprietary binned LM-80-rated LEDs, which are specially rated for higher thermal performances, provide uniform color consistency.
5.To make the color more consistent, we always use the exact same bin for all the lights in a single project. We finer tune the binning.

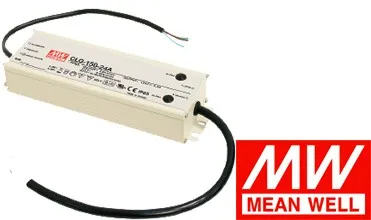

Real Mean Well driver

One of our subsidiary corporations is a Mean Well distributor, allowing us quality source for Mean well drivers.

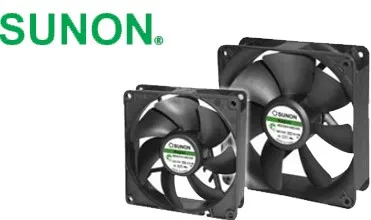

Sunon Fan Technology

1. Unique design with fan (fans) inside, more uniform structure.

2. Smaller size, almost zero noise.

3. 70,000+ hour operating life suitable for 24/7 operation, providing an exceptionally cool running LED unit, efficiently transferring the heat from the heat sink to the outer surface.

New Patented heat sink design

1. Adopting AL6063 material of high structural intensity.

2. Lower profile heat sink design, more slim.

3. Flat outer surface on the heat sink, more elegant.

How to install the DLC ETL cETL LED shoe box Light for parking lot retrofit kit into the traditional fixtures?

All models are simply installed in 4 mins. ( Remark: USE A LICENSED ELECTRICIAN TO PERFORM THE INSTALLATION.)
1). Remove the plastic cover from the LED head.

2). Remove the existing component reflector and ballast inside the fixures.
3). Put the driver in the place of the previous ballast.
4). Mouning the pre-assembled bracket to the fixtures.
5). Fix the retrofit kit to the the pre-assembled bracket.
6). Connect the electric wires.

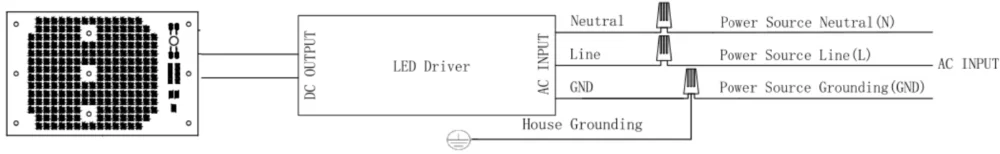

Wiring of the DLC ETL cETL LED shoe box Light for parking lot retrofit kit.

1). Install the LED driver in place of the ballast.
2). Wire the input source to the LED driver. The proper AC input connections to the driver are marked on the driver. There is a Ground, ACN (Neutral) and ACL (Line). VERY IMPORTANT: MAKE SURE THE WIRING IS PROPERLY GROUNDED.
3). Connect the output wires of the driver to the input wires of the LED Head: Make certain to connect the Red Wire of the driver output to Red Wire of the LED head, and connect the Black Wire of the driver output to the Black Wire of the LED head.
4). Re-assemble remaining parts of the fixture and restore power.
5). Never dim a non-dimmable LED driver. Not intended for use with emergency exits.

IQC

1.Most stringent raw material selection. 2.100% inspection of incoming raw materials.

IPQC

1. Testing all PCB after soldering with electricity.
2. Integrating sphere testing
3. Waterproof testing
4. Cooling effect testing.
5. 100% 48 hours aging testing(72 hours for high voltage products).

FQC

1. 100% appearance checking
2. 100% lable checking
3. 100% function checking
