LINKJOIN LZ 643 portable gauss meter handheld digital magnetic field meter gaussmet manufacture with CE trade assurance supplier

Share on (60504823982):


Price:$450.00 - $500.00

Quantity:


Product Overview

Description


 LINKJOIN LZ-643 portable gauss meter handheld digital magentic field meter gaussmeter manufacture with CE trade assurance supplier





1. Brief Introduction


* Portable


* Both in AC & DC fields


* N/S polarity display


* Embedded 2 sets 64RAM


* USB interface


* Probe alterable: transverse probe or axial probe








2. Main Features



  • Portable, convenient to handle and store, for on site measurement

  • Automatically shut down time can be set, continuously use for more than 30 hours

  • DC/AC magnetic field

  • DC/AC maximum value hold

  • DC field polarity judge function (N/S)

  • Probe automatic zero, relative measurement, upper and lower limit alarm sorting

  • Units: G,T,Oe,A/m

  • two 64 readings memory for recording measurement data in real time

  • USB interface and dedicated acquisition software

  • Transverse probe with individual calibration value

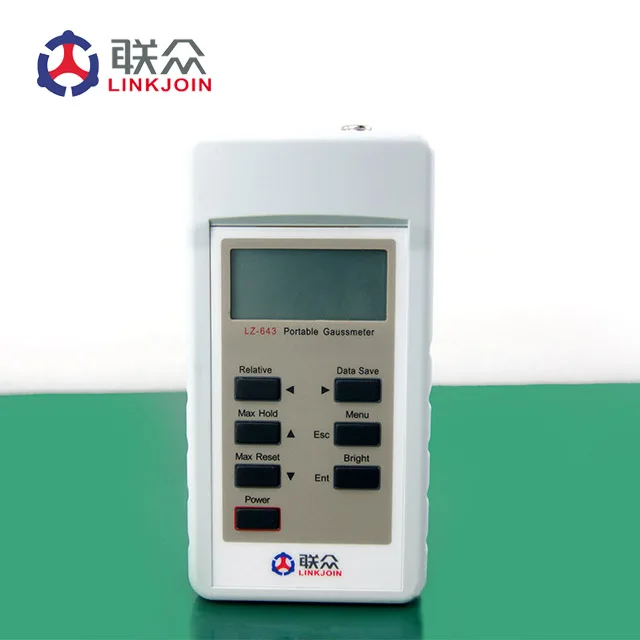

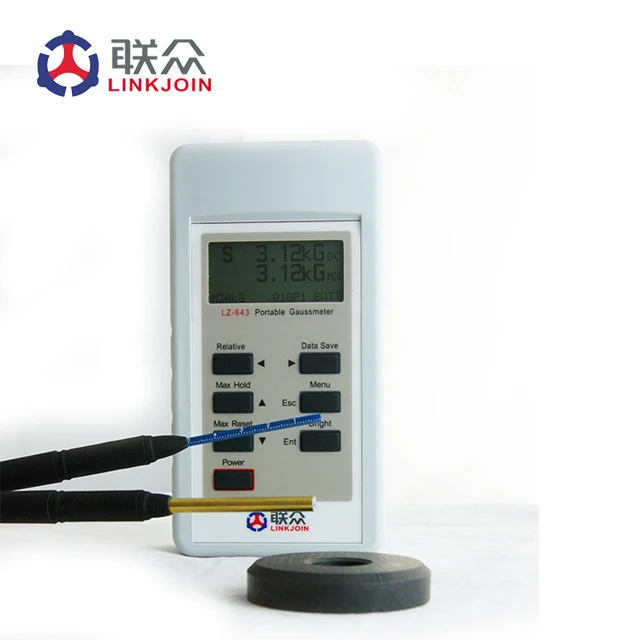

Product Overviews



LINKJOIN LZ-643  (4).jpgLINKJOIN LZ-643  (5).jpgLINKJOIN LZ-643  (12).jpg




3. Specifications





















































   Power Source   4*AA alkaline batteries
   Display   3 3/4 digits LCD display
   DC

   Range:30kG,3kG,300G
   Resolution:10G,1G,0.1G
   Accuracy:±(2% reading+0.1% range)
      B<20kG,probe temperature15—35°C
   Temperature Coefficient:Max.±(0.06% reading+0.01G)/°C
    Probe 15—35°C
   Refresh Rate:2.5 r/s


   AC   Range:3kG,300G
   Resolution:1G,0.1G
   Frequency:10Hz—10kHz(sine field)
   Accuracy:±(5% reading+0.2% range)
    Efficient measuring range, 1kHz sine field
   Efficient measuring range :>0.33% range
   Rated measuring range:>1% range
   ZERO point error:<0.2% range
   Temperature Coefficient:Max.±(0.06% reading)/°C
   Probe temperature15—35°C
   Refreshing rate:2.5 r/s
   Measuring Ambient   Device:15—35°C(Rated Accuracy)
   5—45°C(Accuracy reduce 0.2%)
   Probe:15—35°C( Rated Accuracy )
   5—45°C(Accuracy reduce 1%)
   Humidity:35—75%

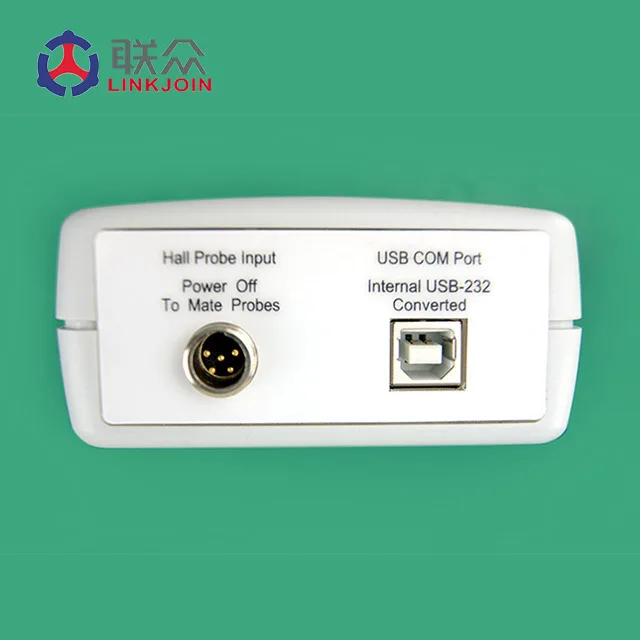

   Interface   5-pins probe socket, B type USB socket
   Dimension   173×91×42mm(L×H×W)











* Probe


.jpg

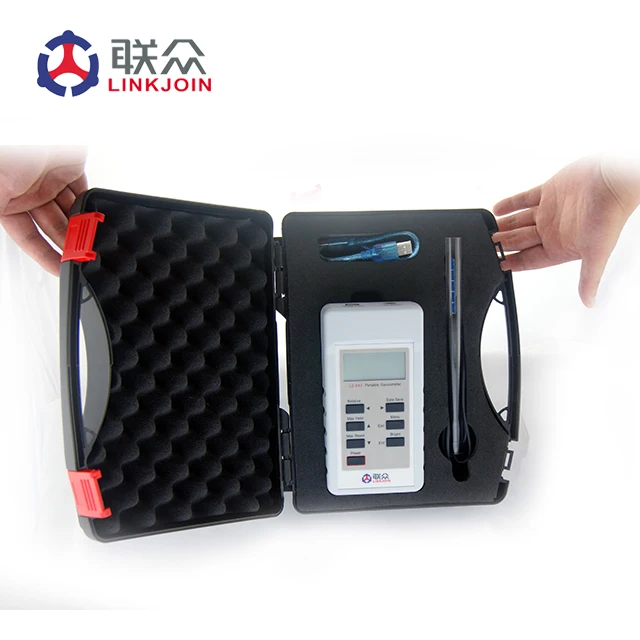

Packing Photoes


LINKJOIN LZ-642 Gaussmeter (2).jpgLINKJOIN LZ-642 Gaussmeter (5).jpgLINKJOIN LZ-642 Gaussmeter (6).jpgLINKJOIN LZ-642 Gaussmeter (1).jpg








Related Products


Related products.jpg





CE Certificate


CE Certification.JPG





Company Information







Our services


HUNAN LINKJOIN TECHNOLOGY CO., LTD. warrants each instrument of its manufacture to be free from defects in material and workmanship. Our obligation under this warranty is limited to servicing or adjusting any instrument returned to our factory for that purpose. The warranty period is 18 months. On returning the equipment under warranty, the buyer bears the costs for the shipment to LINKJOIN; LINKJOIN bears the costs for returning the device to the buyer. However, the buyer bears all the costs for shipment, taxes and duties, if the device is returned to LINKJOIN from abroad.


The warranty period begins on the date of delivery of the product or later on the date of installation of the product if the product is installed by LINKJOIN, the warranty period begins on the 31st day after delivery, provided that if you schedule or delay the LINKJOIN installation for more than 30 days after delivery.



LINKJOIN warrants the product only if it has been sold by an authorized LINKJOIN employee, sales representative, dealer or LINKJOIN headquarter.


The warranty period does not apply to defects of product result from improper or inadequate maintenance, repair or calibration;unauthorized modification or misuse; improper site preparation or maintenance. Caution: the hall probe is easy to damage; it's not in the warranty scope list.





Exhibition Shows







Advantages


1. 100% Manufacture


Both our factory and company are founded in Loudi, Hunan Province. We are specialized in manufacture and


sales of magnetic measurement instruments. All the products are made by our own factory. So our price is


competitive.





2. Quality control


From the material to the final product. All the components together with production procedure are inspected


and controlled. We ensure the products have been fully inspected by our QC one by one before shipment.





3. Reliable after sales service


Free training for the operation of equipment in our company, which is provided by our professional training


department.


We provide 18months warranty for the maintenance without charges for components change or repairing.


(except for fragile parts) . And we are responsible for lifelong repair, and charge appropriately for repair


service out of warranty period.





FAQ


Q1: What are the terms of payments?


A1: We accept T/T, Western Union, Paypal, and cash.





Q2: How long it will take to delivery the goods?


A2: If we have the goods in stock, we will delivery them within3 working days after we get your payment. If we


 do not have in stock, we will delivery them before the deadline which we both parties agreed on.





Q3: What kind of package you offer?


A3: We pack the goods by the export box,fill with foam to make sure the goods in good condition for storage


 and shipment.





Q4: What kind of shipment ways are available?


A4: By sea to your nearest port.


   By air to your nearest airport.


   By express(DHL, UPS, FedEx, TNT, EMS) to your door.


   If customers have their own express account number, transportation fee paid by such accounts are also


welcome.We will provide you a tracking No. after we ship the goods, so that you can track the goods


conveniently.
