KSD303 Electric Circuit Breaker Thermostats 10A 250V Temperature Switch refrigerator Parts
Product Description

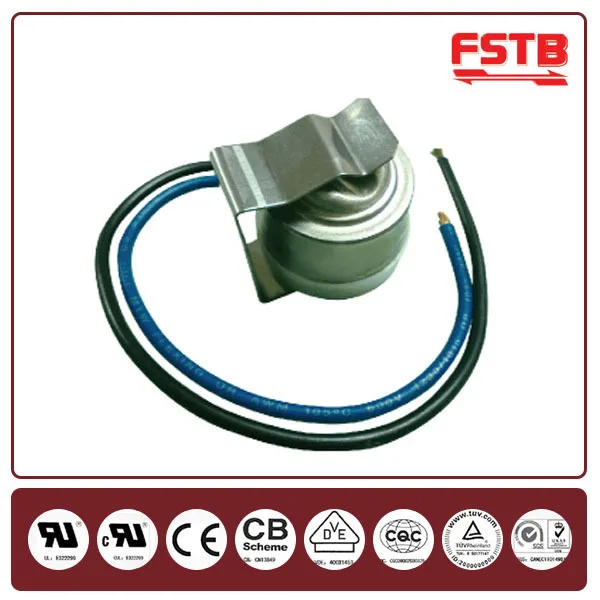

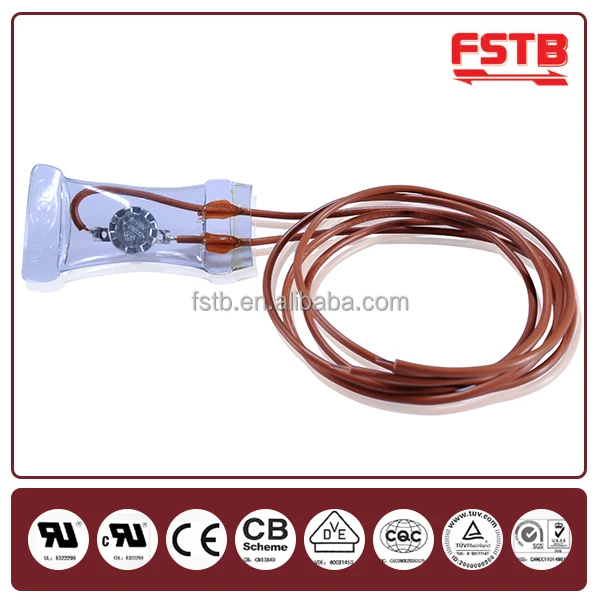

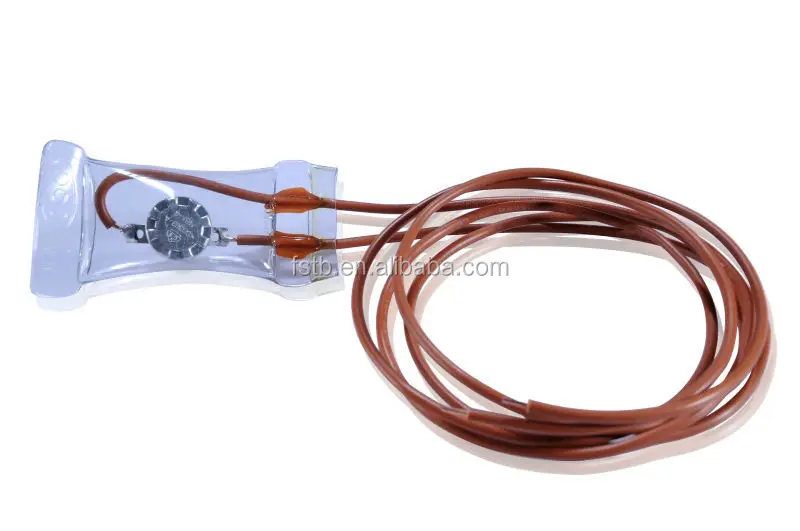

KSD303-D series snap-action defrost thermostat is a kind of miniature waterproof and hermetically seal bimetal thermal protector. It is of single-pole single-throw structure and works under resistive load.
Thermostat is enveloped in cold-resistant and flame-retardant plastic tube or sealing gum for possible underwater applications.
The product series is widely used as heating compensated switch or automatic defrosting control switch in air-cooling frostless refrigerators.
According to different structures, KSD303 series is divided into five sub series as: KSD303-A, KSD303-D.

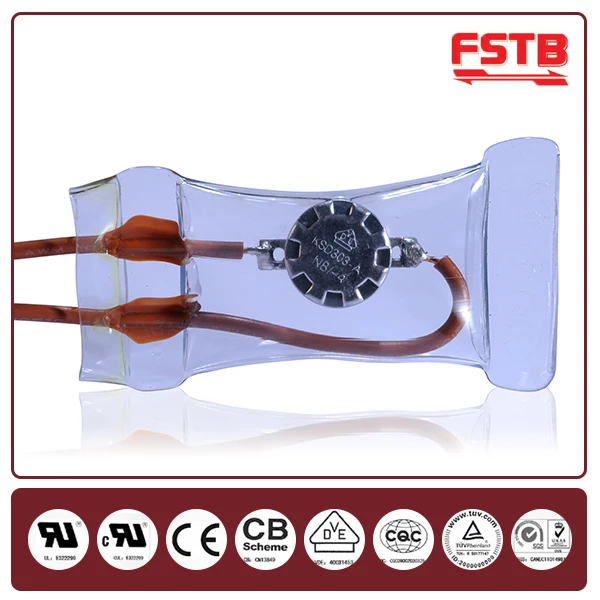

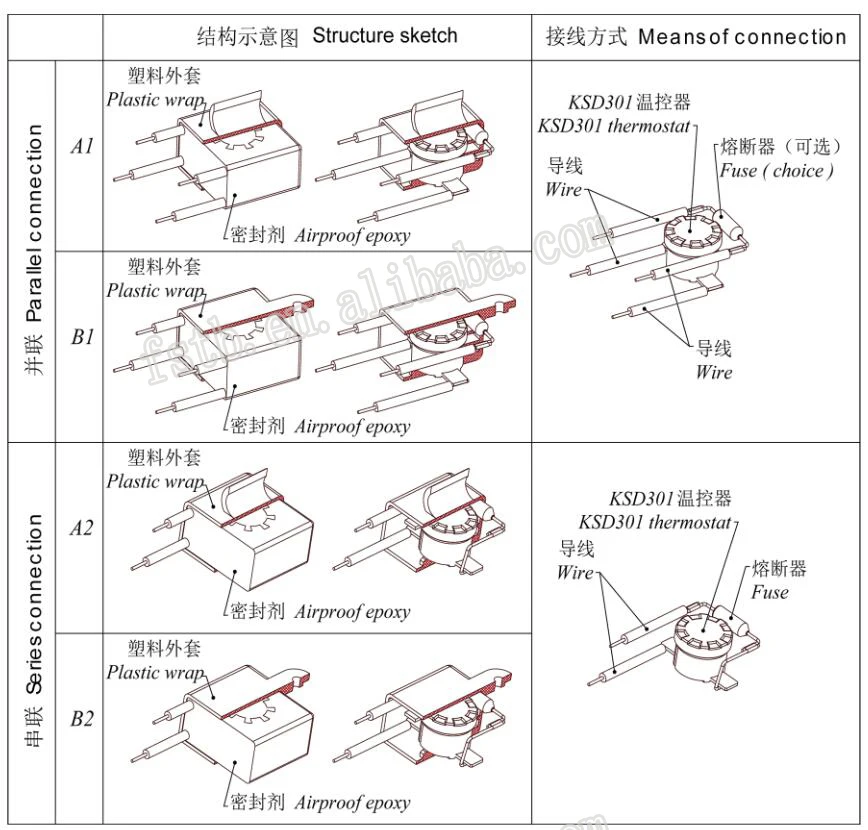

KSD303-A:

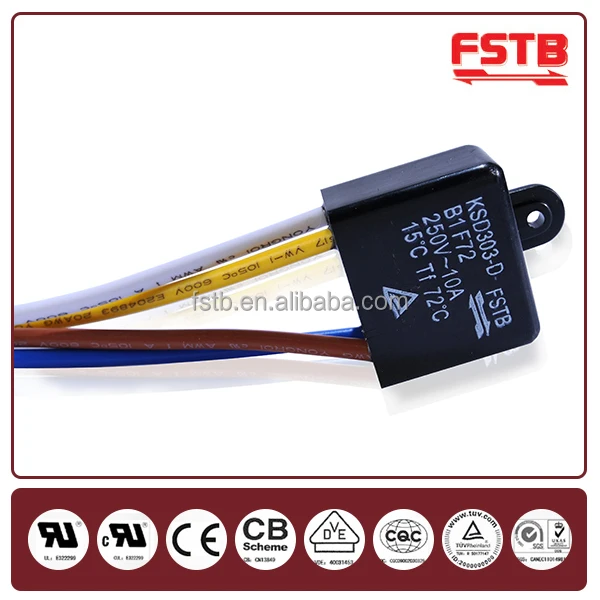

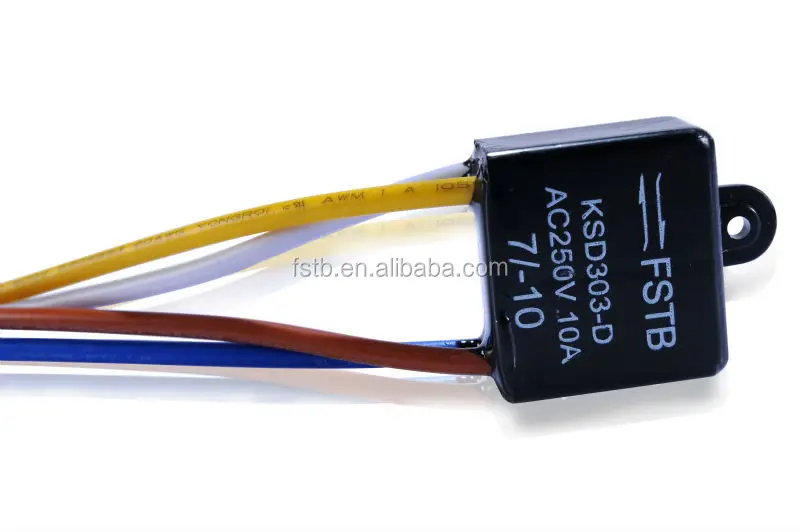

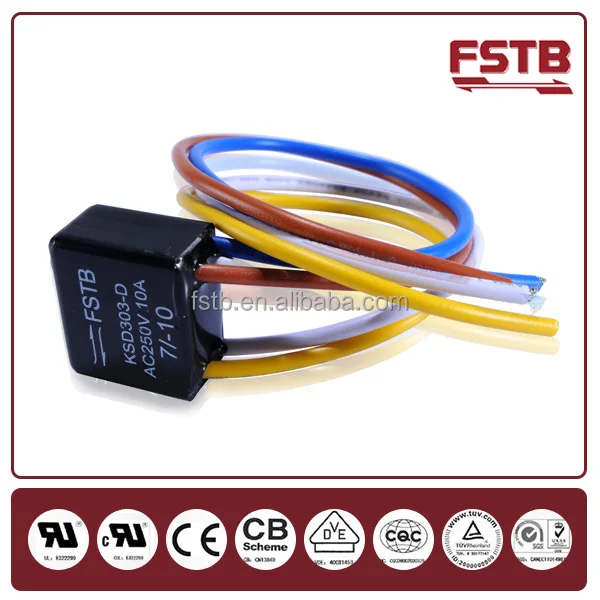

KSD303-D :
Advantages:
- High durability
- No breakdown, no flashover.
- Every product will be tested, extremely high temperature pass rate.
- High precision.
- Water proof.
- Assemble the fuse and thermostat in one product .
Parameter:
Use | Defrost/Temperature control/Protection |
Appliance | refrigerators |
Reset type | Automatic |
Base material | resist heat resin base |
Amperage | 3A/6A/10A |
Max. Operating Temperature | 50°C |
Differential | Refer to the regulation |
Min. Diff | 8°C |
Tolerance | Refer to the regulation |
Cold-resistant Temperature | -40°C |
Limit of the tolerance(OFF) | ±2°C |
Limit of the tolerance(ON) | ±4°C |
Contact material | Silver |
Dielectric Strength | Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover. |
Insulation Resistance | With a DC 500V megger, borne DC 500V, the tested value is over 10MW. |
Resistance Between Terminals | Below 50mW |
Temp. characteristics: | Normal close, Normal open |
Maximum ambient temperature | 90°C |
Diameter of bimetal disc | F12.8mm(1/2″) |
Approvals | UL/CQC/TUV |
Line | Color: white/brown/yellow/blue Length: customized |
Terminal type | Customized (Refer to our specification) |
Cover/Bracket | Customized (Refer to our specification) |
Dimension of the main body:
KSD303-A:
KSD303-D:
Safety certificate:
KSD303-A
| Rates | Cycles | Max. OT | Certificate |
| 250V 6A | 10,000 | 25 | TUV,CQC |
| 250V 5A / 125V 7A | 10,000 | 15 | UL |
KSD303-D
Rates | Cycles | Max. OT | Certificate |
250V 10A | 10,000 | 40 | TUV |
Installation and Direction for Use:
- In the event that the thermostat is employing contact temperature sensing, its cover shall be adhered to the installation position of a controlled appliance.
- The cover shall show no cave-in or deformation resulting in operating temperature variation or bad influence on other performances.
- No excessive force shall be applied to working parts, to prevent them from defects such as cracking base, distorted terminal and wire lead coming off.
- The plastic envelope must be kept intact in the course of installation and usage.
Major series of snap-action thermostats are as follows:
Series | Diameter of bimetal disc | Max. operating Temp. | Max. | Switch structure
| Service purposes |
rated | |||||
current | |||||
KSD301
| F12.8mm (1/2″) | 280°C
| 16A
| SPST
| Temperature control and overheating protection for low-duty electric heating applications. |
KSD301-U
| F12.8mm (1/2″) | 280°C | 16A
| SPST
| One shot type fuse for low-duty electric heating applications. |
KSD302
| F22.25mm (7/8″) | 125°C | 25A
| SPST
| Temperature control and overheating protection for high-duty electric heating applications. |
KSD303
| F12.8mm (1/2″) | 50°C | 10A | SPST | Defrosting and temperature compensation for refrigerator. |
KSD305
| F22.25mm (7/8″) | ||||
KSD307 | F12.8mm (1/2″) | 220°C | 20A | SPST | PTC power cut out for electric heater, commercial appliance |
KSD309
| F12.8mm (1/2″) | 280°C
| 16A
| SPST
| Temperature control and overheating protection for high temperature heating applications. |
KSD310
| F19mm (3/4″) | 50°C | 35A
| SPST
| Defrosting for big current refrigerator, air conditioner or other commercial cooling appliances |
KSD314
| F19mm (3/4″) | 220°C | 45A
| SPST
| Temperature control and overheating protection for big current heating applications. |
KSD315 | F19mm (3/4″) | 125°C | 16A | DPST | Manual reset for water heater protection |
