Roller Conveyor H Beam Shot Blasting Machine CleanerTM
The type Q698 CleanerTM roller conveyor blast machine is mainly designed for the treatment of H beams or profiles in the steel construction or steel preparation industries. The machines can be delivered as standalone units or integrated into an automatic transportation or sawmill/bore line.
The standard Roller Conveyor is our type CleanerTM blast machine, available in throughfeed widths from 600 mm to 5000 mm.
Automatic loading/unloading systems are optional.
Find more detailed information about the offerings from each model below.
Advantages
Q698 CleanerTM Roller conveyor H beam shot blasting machinesare self contained, robustly built and designed for the economical and efficient surface treatment of H beams and profiles.
• Solid manganese rolls in blast compartment • Tested and proven WildblastTM blast wheels • Automatic abrasive removal system • Automatic PLC control • Installed without the need for further exhaust ducting • Quick turnaround, easy assembly and commissioning
• High life time by use of S-WindTMair separator.
The systems can be used as single machines or integrated into descaling and anti-corrosion treatment lines.
Parameter
Type
Q698
Q6915
Q6920
Q6930
Q6940
Machine Entrance Width
800 mm
1200 mm
1500 mm
2000 mm
2500 mm
Machine Entrance Height
550 mm
800 mm
1500 mm
1600 mm
1800 mm
Wheels*Power
4*7.5 kw
6*7.5 kw
6*11 kw
8*11 kw
8*11 kw
Abrasive Loading
4000 kg
4000 kg
5000 kg
5000 kg
6000 kg
Work Speed
0.5-4 m/min

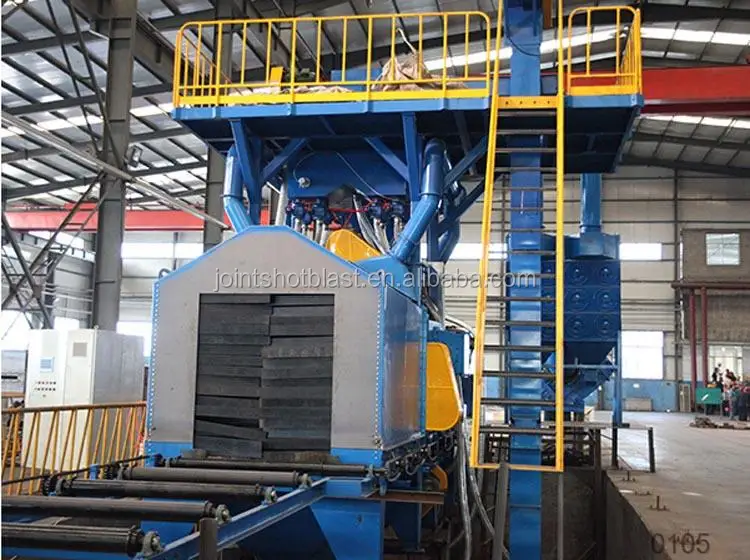

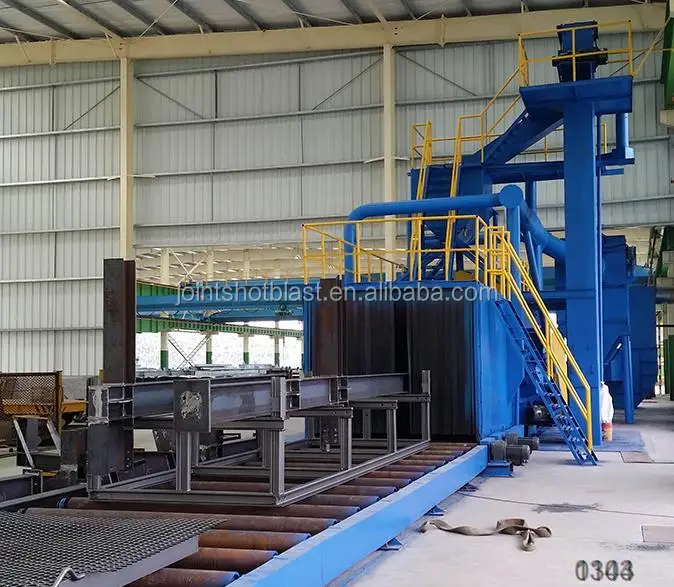

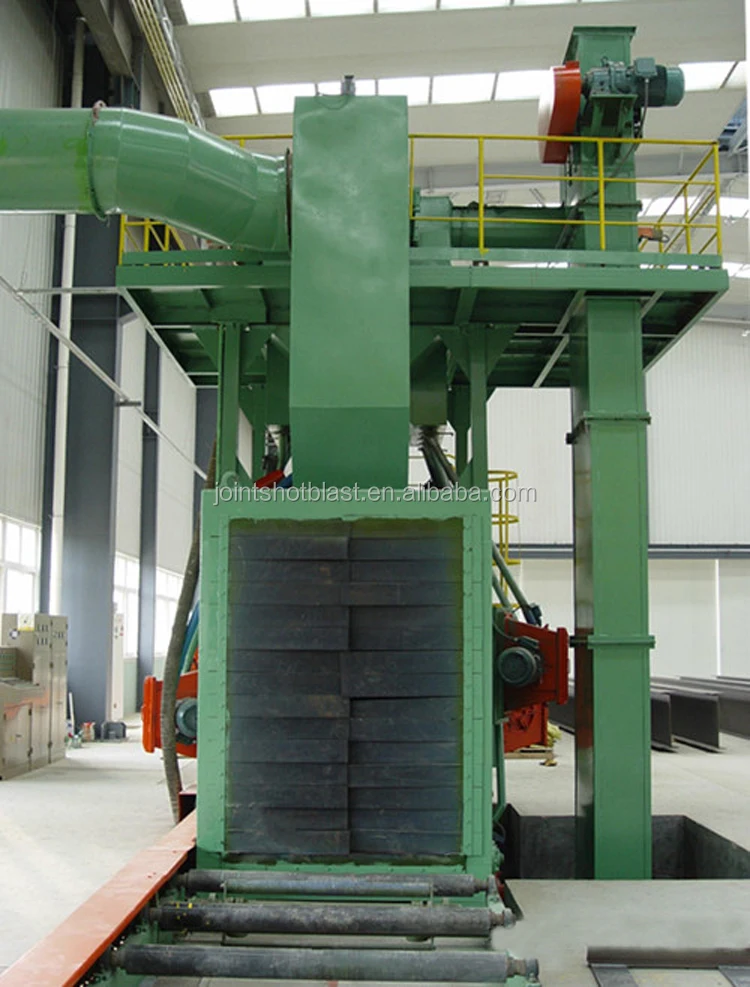

Detailed Images
Key components
Packaging & Shipping
Seaworthy plastic bag+plywood box. 20' GP or 40' GP.
Company Information
As a leader in surface preparation technology, Joint Group designs, manufactures and sells worldwide a complete range of high quality shot/sand blasting machines for the foundry and forging industries.Located in China, Joint Group shot/sand blasting machines and parts are working in over 60 countries’ workshop.
Leading companies in the foundry, automotive, aerospace, energy, marine, rail, construction and many other industries have used Joint Group’s products and services to improve productivity and profitability for over 50 years.
Joint Group continues to use the experience of having the large installed base in the industry to deliver the best solution for the customer.Joint Group’s approach to solving customers’ operating challenges is unique in the industry. Using insight gained from thousands of different applications across a variety of different industries.
