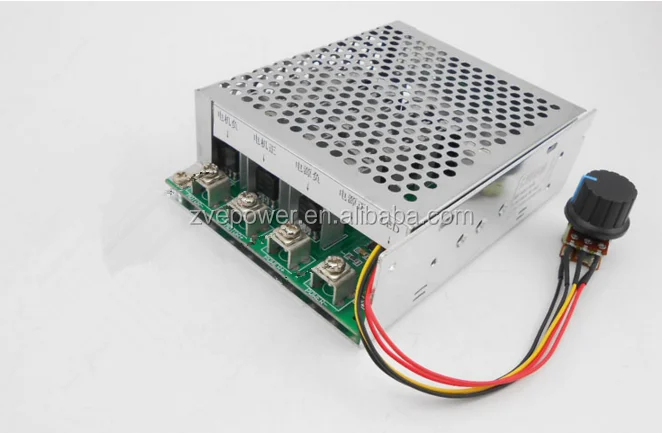

High power 60A PWM DC Motor Speed Regulator Controller Module 12V 24V 36V 48V Switch Control



Specification:

Input voltage: DC 6-60V (positive and negative)
Max current: 0-60A
Continuous current: less than 50A
Timing mode: potentiometer (continuous voltage 0-5V)
Speed range: 0 - 100%
Control frequency: 15KHZ
Knob size: 100K with switch (270 degrees)
Module size: 75MM*56MM*28MM
Weight: 280g



PWM motor controllers-01.pngPWM motor controllers-02.pngPWM motor controllers-03.png
