Rx24 250w 50R золотой алюминиевый корпус с проволочной обмоткой 50 Ом 250 Вт Резистор
- Category: >>>
- Supplier: Sichuan Qixing Electronics Co. Ltd.
Share on (60505353051):
Product Overview
Description
♥Rx24-250w-50R gold aluminum case wirewound 50 ohm 250w resistorr

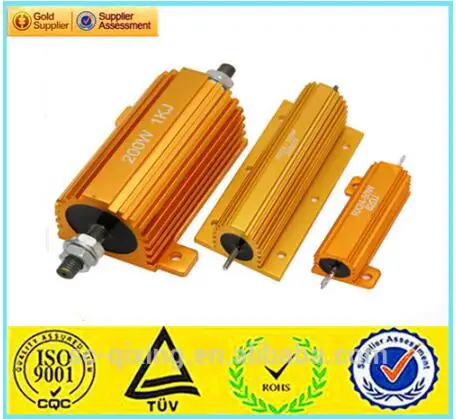

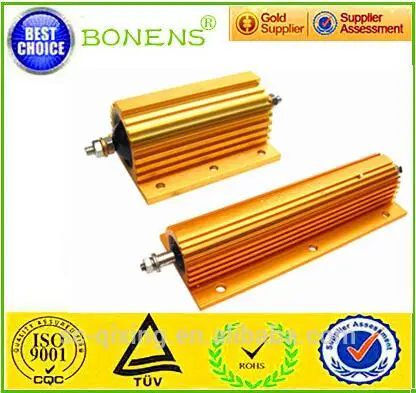

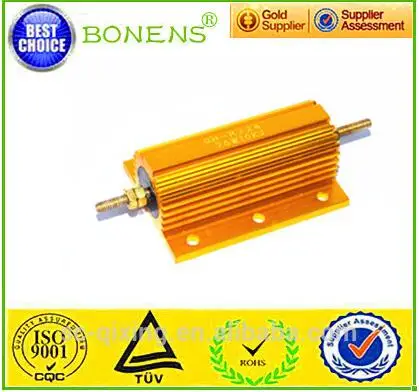

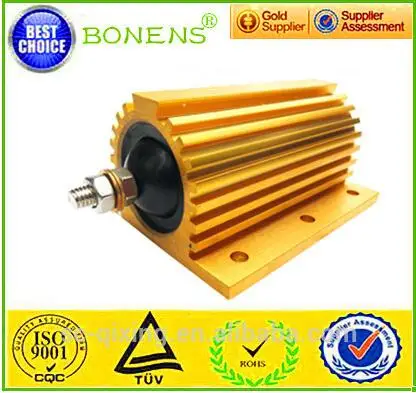

1.RX24 Picture Detail:

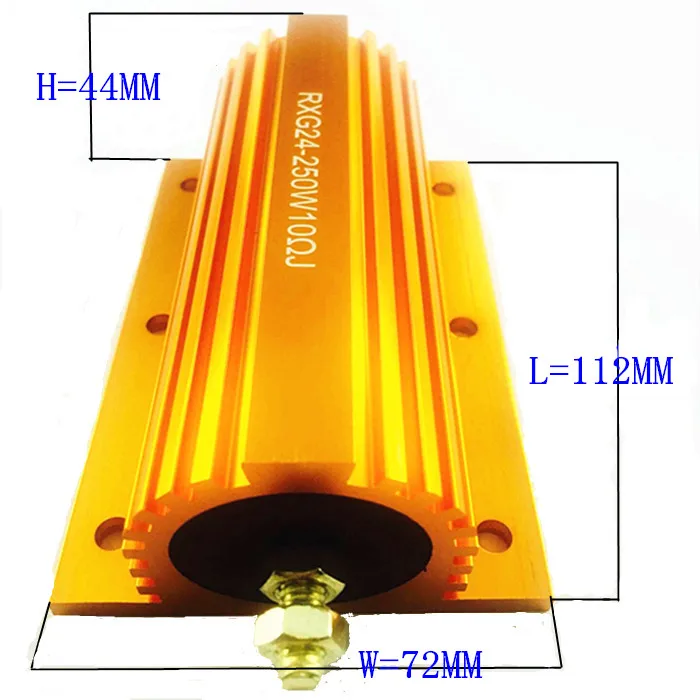

2.RX24 drawings and size:
| Type | Rated power at 25℃(W)with heatsink@25℃ | Dimensions (mm) | Weight(g
) | ||||||||||||
| A max | B | L max | H max | C | l | l1 | M | N | Φ 1 | Φ2 | Surface area (cm2) | Thickness (mm) | |||
| RX24 | 5 | 15.5 | 16 | 36.5 | 8 | 8.5 | 11.4 | 12 | 4.4 | 1.5 | 1.5 | 2.2 | 415 | 1 | 3 |
| 10 | 19.5 | 21 | 40.5 | 10 | 11.2 | 14 | 16 | 5 | 2 | 2 | 2.5 | 415 | 6 | ||
| 20 | 27 | 27 | 48 | 13 | 14.3 | 18.3 | 20 | 7 | 2 | 2 | 3.5 | 535 | 11 | ||
| 30 | 34 | 29 | 55 | 15.5 | 16.3 | 25 | 22 | 7.3 | 2 | 2 | 3.5 | 535 | 18 | ||
| 50 | 50 | 29 | 71 | 15.5 | 16.3 | 40 | 20.5 | 7.3 | 2 | 2 | 3.5 | 995 | 30 | ||
| 75 | 65.5 | 48 | 86.5 | 26 | 27 | 23.5 | 37 | 11.5 | 3.5 | 3 | 4.4 | 995 | 3 | 90 | |
| 100 | 98 | 48 | 119 | 26 | 27 | 35 | 37 | 11.5 | 3.5 | 3 | 4.4 | 995 | 160 | ||
| 150 | 130 | 48 | 151 | 26 | 27 | 52 | 37 | 11.5 | 3.5 | 3 | 4.4 | 995 | 240 | ||
| RXG24 | 75 | 65.5 | 48 | 93.5 | 26 | 27 | 23.5 | 37 | 11.5 | 3.5 | M3 | 4.4 | 995 | 90 | |
| 100 | 98 | 48 | 126 | 26 | 27 | 35 | 37 | 11.5 | 3.5 | M3 | 4.4 | 995 | 160 | ||
| 150 | 130 | 48 | 158 | 26 | 27 | 52 | 37 | 11.5 | 3.5 | M3 | 4.4 | 995 | 240 | ||
| 200 | 92 | 73 | 132 | 45 | 46.5 | 35 | 58 | 21 | 5 | M6 | 5.5 | 3750 | 420 | ||
| 250 | 112 | 73 | 152 | 45 | 46.5 | 45 | 58 | 21 | 5 | M6 | 5.5 | 4765 | 480 | ||
| 300 | 130 | 73 | 170 | 45 | 46.5 | 51 | 58 | 21 | 5 | M6 | 5.5 | 5780 | 580 | ||
| 500 | 204 | 73 | 244 | 45 | 46.5 | 87 | 58 | 21 | 5 | M6 | 5.5 | 8500 | 970 | ||
3.RX24 Main Characteristics:
| Type | Rated power at 25℃(W) | Range (Ω) | Tolerance (%) | T.C.R. | Voltage (V) | |
| With heatsink | Without heatsink | (×10-6/℃) | ||||
| RX24 | 5 | 3 | 0.01~1K | ± 1,±5 | ± 100,±50 | 1000 |
| 10 | 8 | 0.01~1.5K | ||||
| 20 | 12.5 | 0.01~10K | ||||
| 30 | 15 | 0.01~27K | ||||
| 50 | 20 | 0.01~33K | ||||
| RXG24 | 75 | 45 | 0.01~39K | 2000 | ||
| 100 | 50 | 0.01~51K | ||||
| 150 | 55 | 0.01~56K | ||||
| 200 | 50 | 0.01~62K | ||||
| 250 | 60 | 0.01~68K | ||||
| 300 | 75 | 0.01~75K | ||||
| 500 | 200 | 0.01~82K | ||||
4.Samples:
1. Sample: Could provide sample.
2. Samples time: Need 1-7 days to preparing the samples after receiving the payment.
3. Samples payment term: T/T, PAYPAL, Western union.
5.Some of our mian products:
6. Company Information:
Sichuan Qixing Elctronics Co., Ltd is a specialized enterprise engaging in trimming potentiometers, wire-wound potentiometer series, wire-wound resistor series, and RIG High power resistors. It is a high-tech enterprise appraised by state.Our products under the "BONENS" brand that have been widely applied in the fields of instruments, meters and apparatuses, post and telecommunications, electricity power, railway signals, aviation and aerospace.We have attained ISO9001 certificate, and passed the TUV and RoHS. | |||||
 | |||||
 | |||||
 | |||||
 |
7.For more info., please contact me:
Skype ID :Gina.zhou12
QQ ID : 512351005
Mobile number/Whatsapp :+86-18010662198
