Qinhuangdao Yudian SOLAR PANEL IV Tester sun simulator solar panel tester

Product Overview

Description

Sun Flash Solar Tester for IV Testing



Also Called :Solar Modules Test Machine/Sun Simulator/ solar panel flash tester/I-V PV tester/  xenon lamp solar simulator/ solar panel simulator/ solar system simulator







Specification



Items	YDSMT-H-3A	YDSMT-H-B
Light Intensity	100mW/cm²(70~120mW/cm² continuous adjustable)
Non-uniformity of Irradiation	≤±2% [Class A]	≤±3%
Instability of Irradiation	≤±2% [Class A]	≤±3%
Consistency of Testing	≤±0.5%A	≤±1%
Lamp Spectrum	IEC60904-9 and JISC8933 [Class A]
Pulse Width of Single Flash	10ms
Effective Testing Area/Watts	2000mm×1000mm 5W~300W
Measuring Voltage	0~100V(resolution 1mV) Customized
Measuring Current	0~20A(resolution 1mA)
Tested Electric Performances	Isc Voc Pmax Vm Im FF EFF Temp Rs Rsh





Tester Features

- Automatically temperature compensating

- Xenon lamp imported from Germany

- 4-line survey and 14-byte 4-channel high-speed synchronous acquisition card

- 10 preferences on display and testing data illustration in terms of sheets and curves

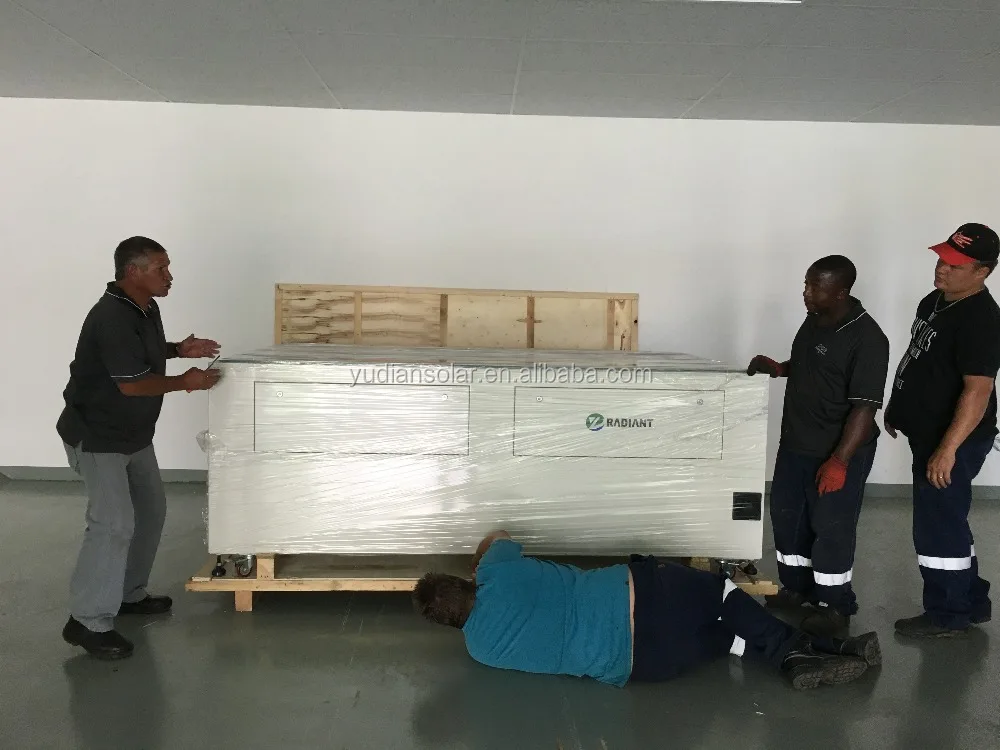

Packages

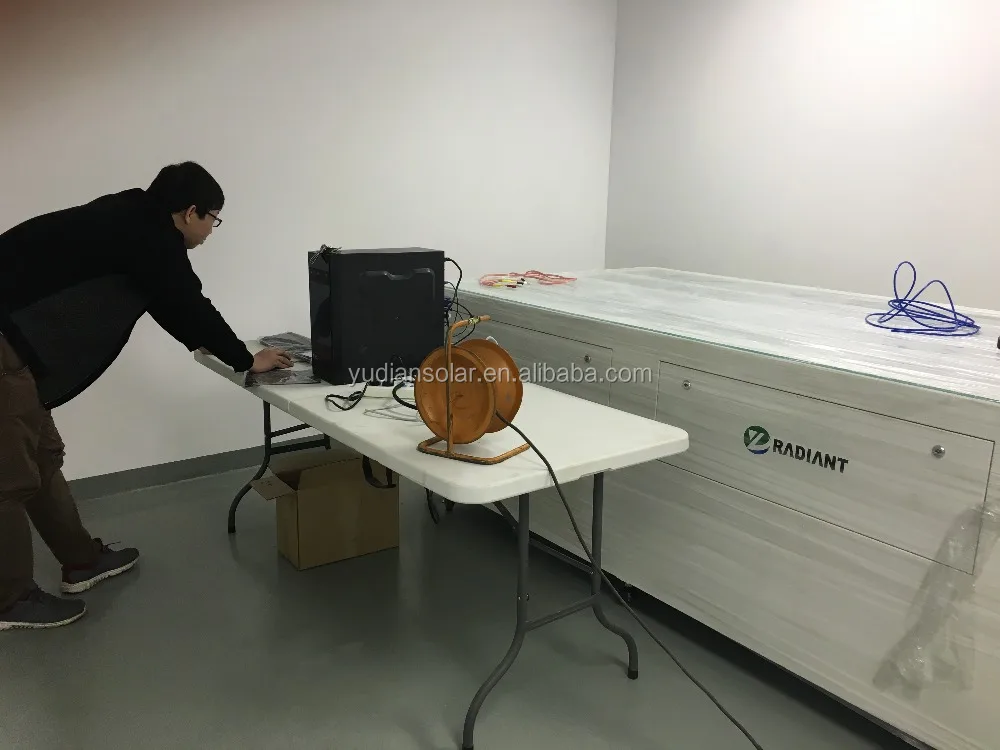

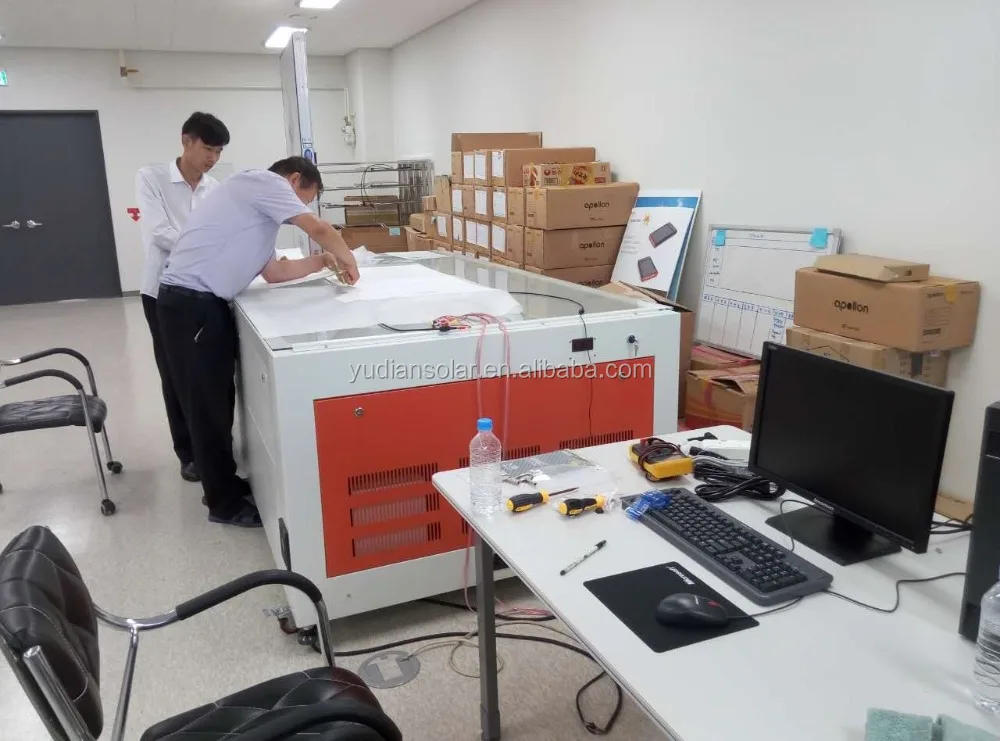

Radiant Exhibition Pictures
