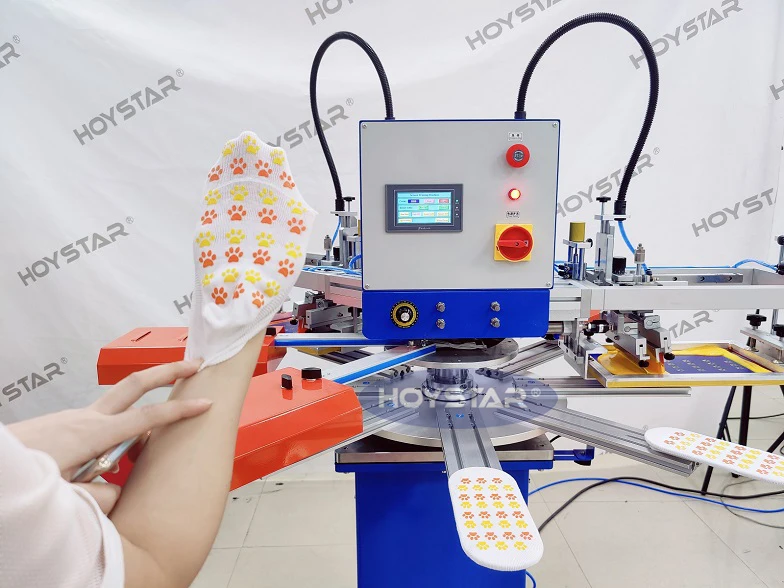

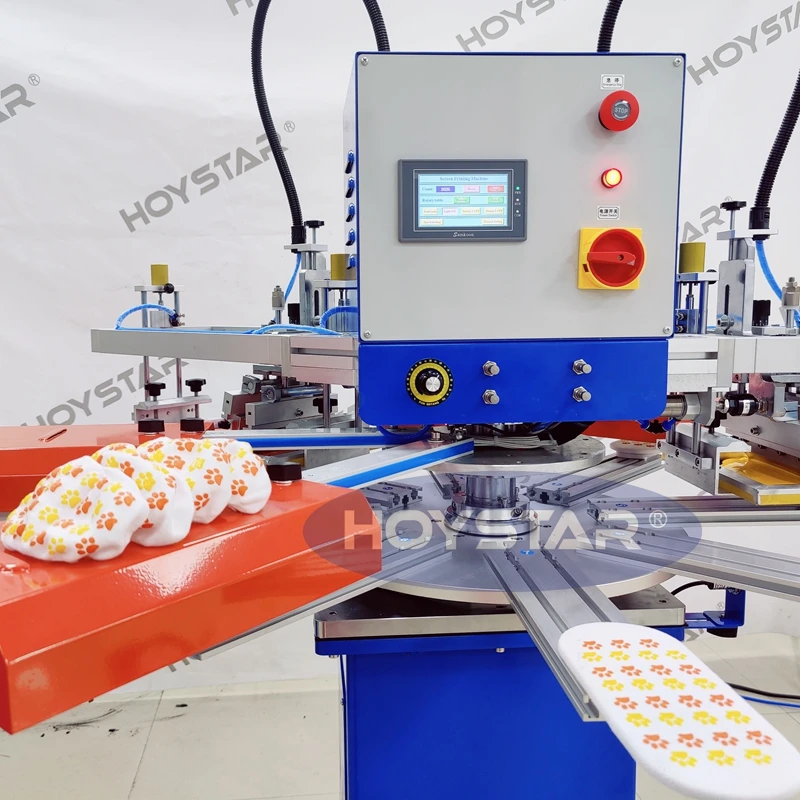

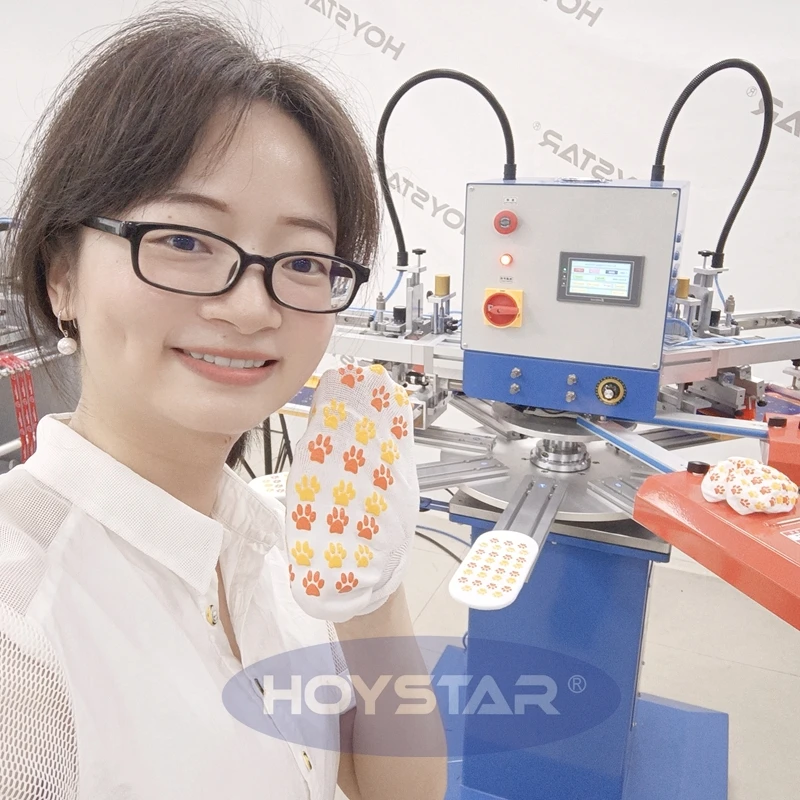

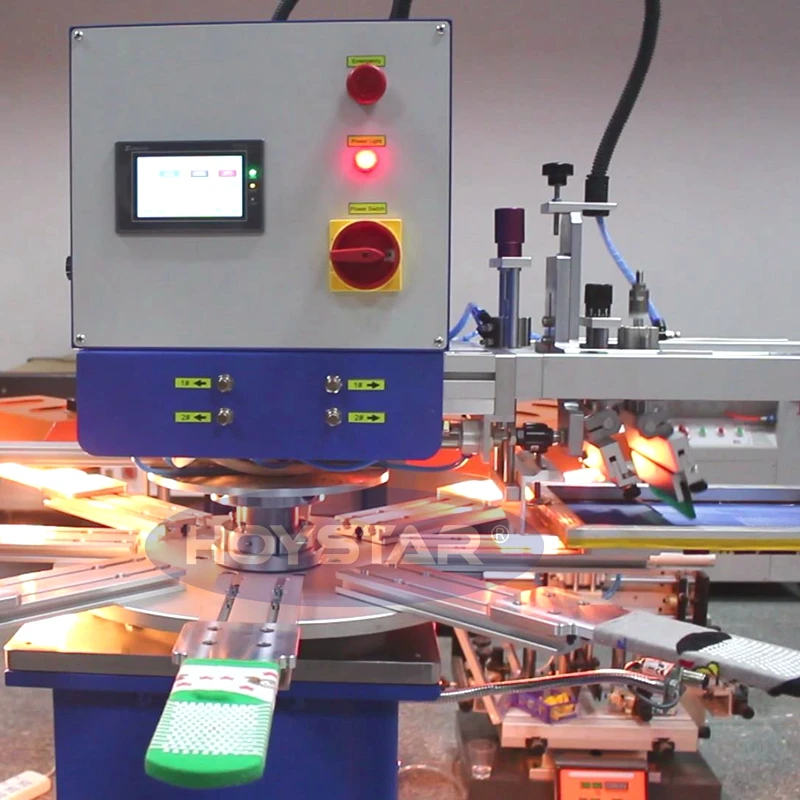

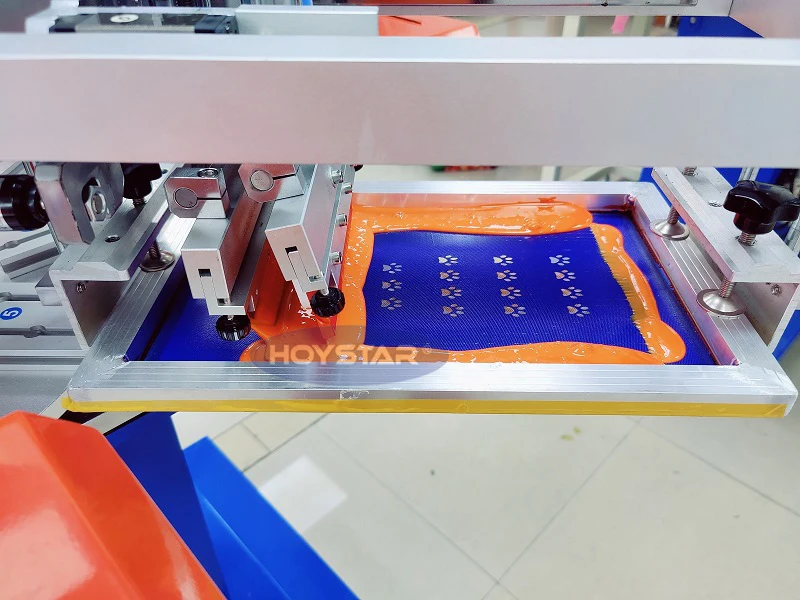

2 color screen printing machine for silicone tape attached for anti slip sock

Main information

Application:
high rapid tagless/label tagless screen printing machine in textile industry,the speed can be up to 2000PCS/Hr,it is suitable for printing garment tagless or label,rotary wortable,very convenient to load or unload products,lots of customers like it very much because of high quality and low price.

Function:

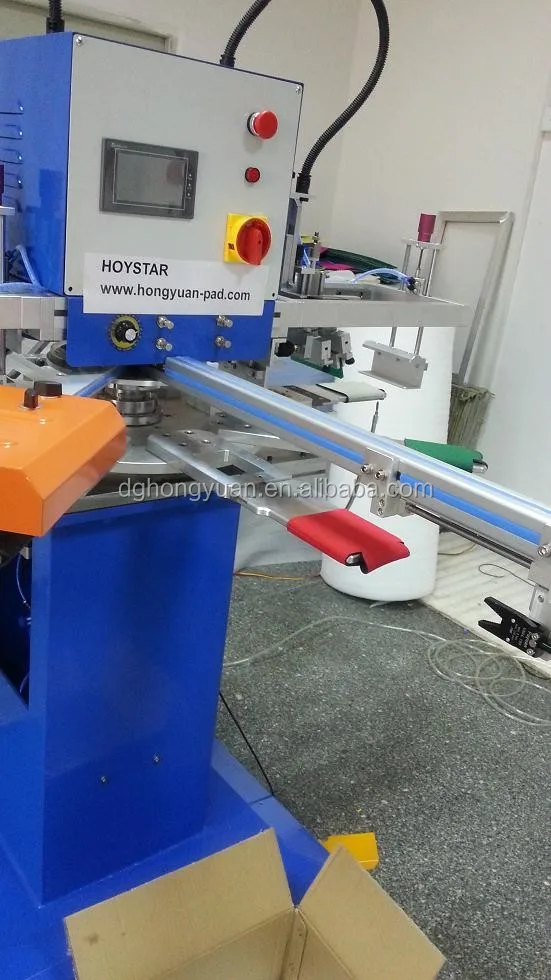

1. Machine control part adopts MITSUBISHI PLC controller,Touch screen control,easy to operate

2. Three printing model to choose,manual/semi-auto/full-auto,printing Interval time is numerical control

3. The rotate worktable adopts electric controll,CHINT AC contactor, Taiwan FOTEK photoswitch

4. Drying system lamp brightness can be adjusted,like this,it can meet different temperatures needing

5. Hihg quality infrared lamps,it can be up to 1500-2000 hours

6. It has "No product,No print" function,you can open and stop machine freely during printing,Product sensors can be 360 degrees adjustable

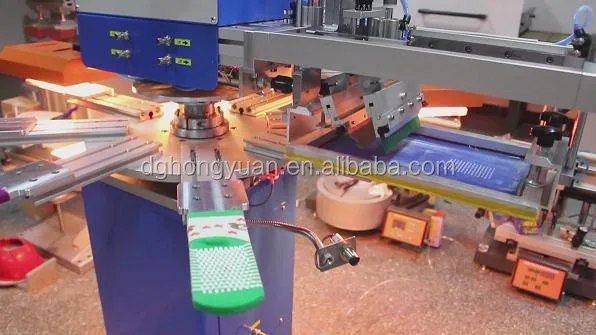

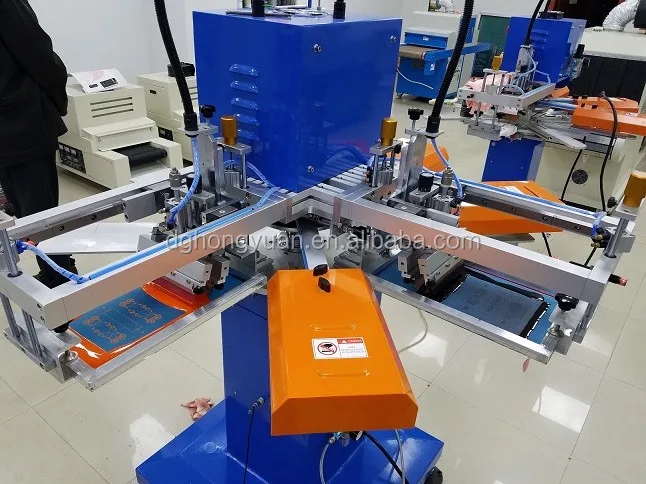

7. It has total 8 pcs of work station,2 pcs of printing work stations,3 pcs of drying systems and 3 pcs of load/discharging work stations

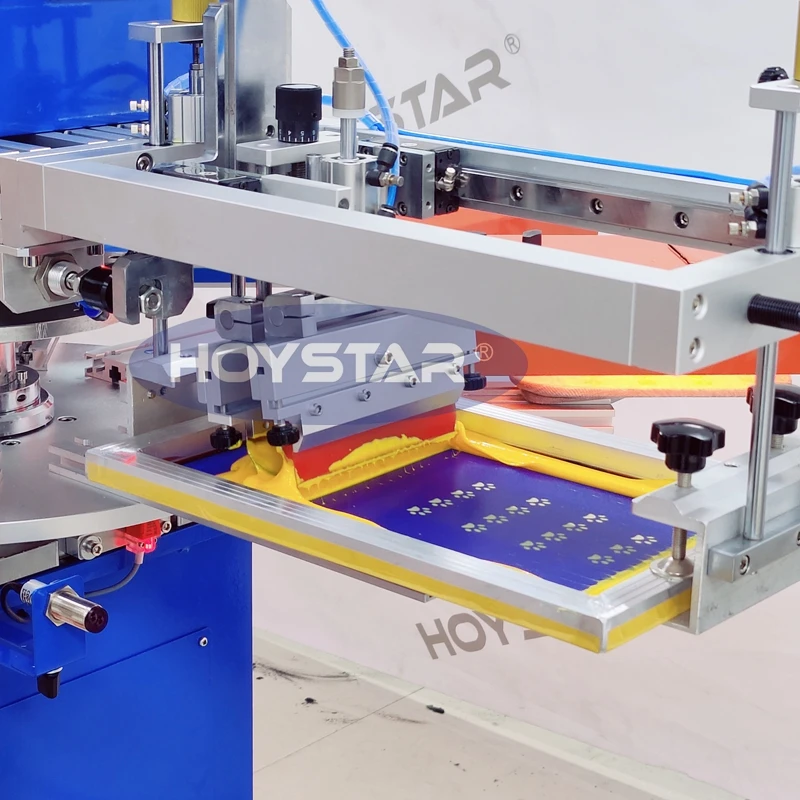

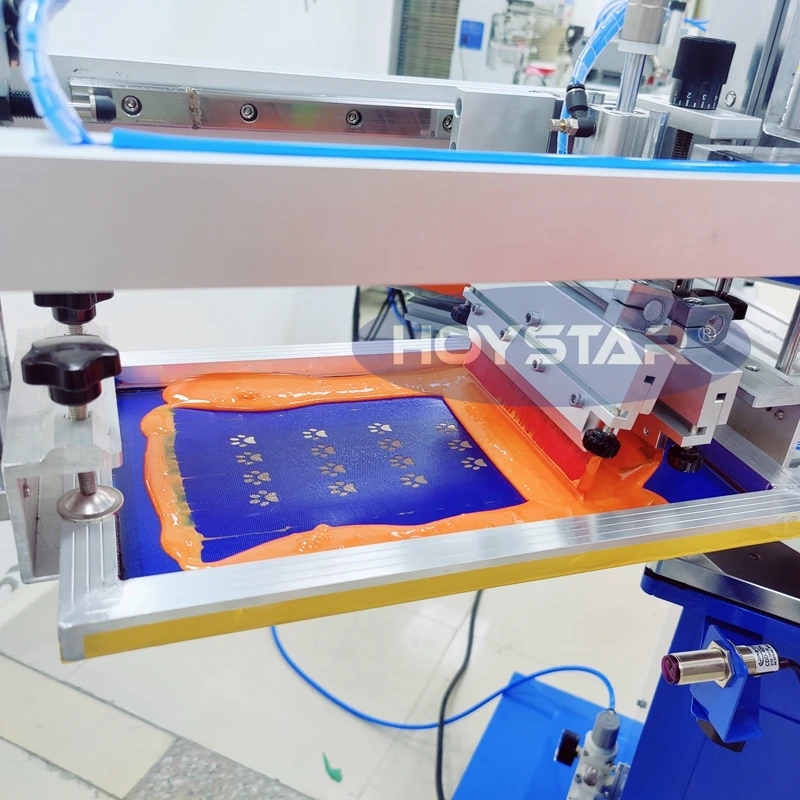

8. The 2 printing head can be controlled independently

9. Pneumatic components control adopts Taiwan brand,front and back printing precision linear Guide rails using Taiwan brand.

10.Machine surface is metallic paint ,beautiful and dignified

Technical parameter:
1.Max.printing area:130*100mm.large printing area can customized
2.Printing speed: 2000PCS/Hr
3.Power:3.2KW
4.Machine size: 1350*1300*1550mm
5.Weight: 210kgs
6.Workstaion: 8 pieces
7.Drying system: 3 pieces

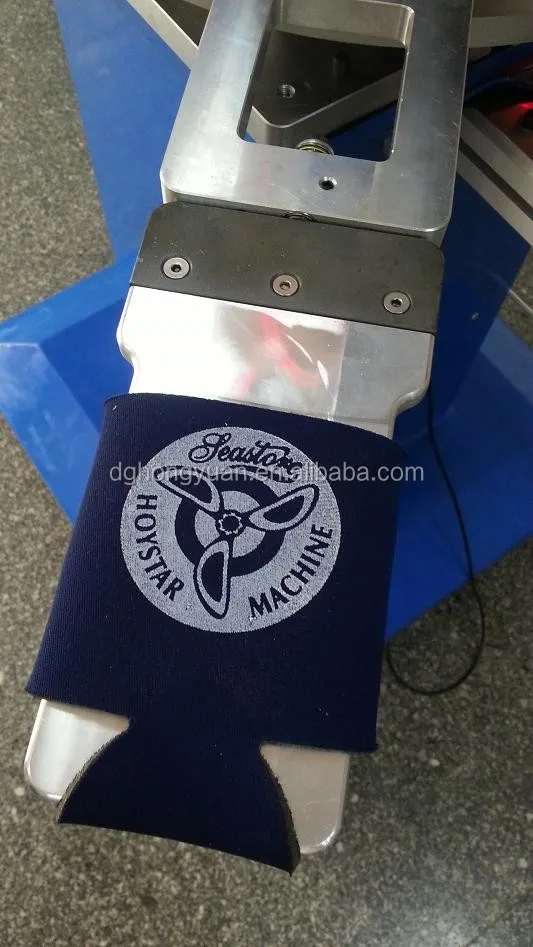

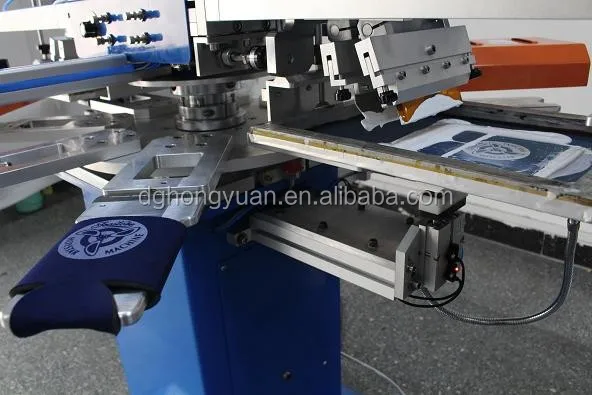

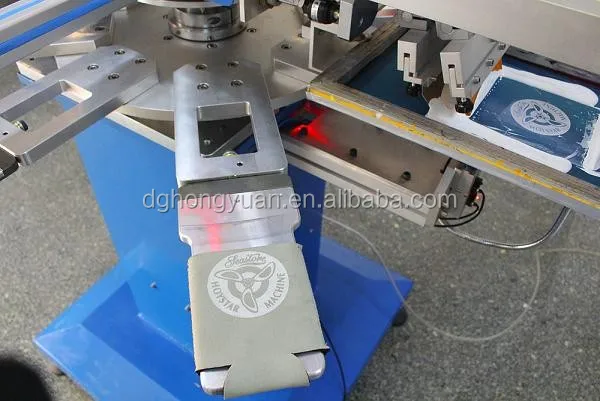

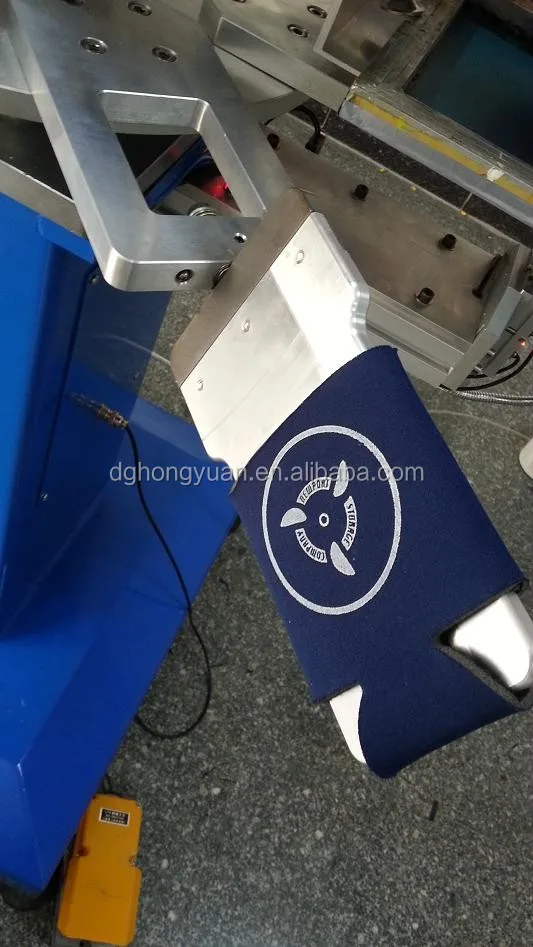

rotate holder for koozies

this koozies holder can rotate to print both sides,auto take off koozies.
