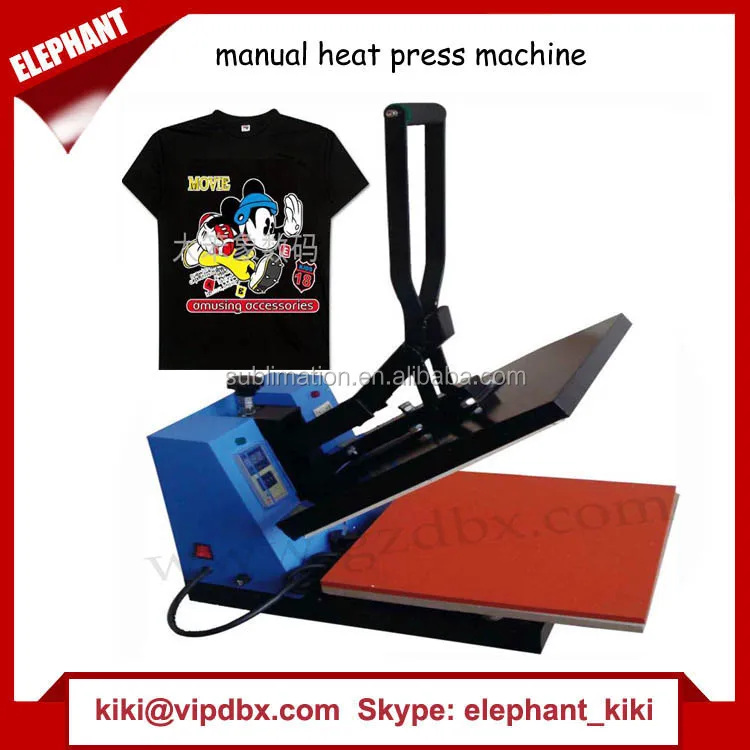

Plate Sublimation transfer heat press machine for t shirts

Product Overview

Description

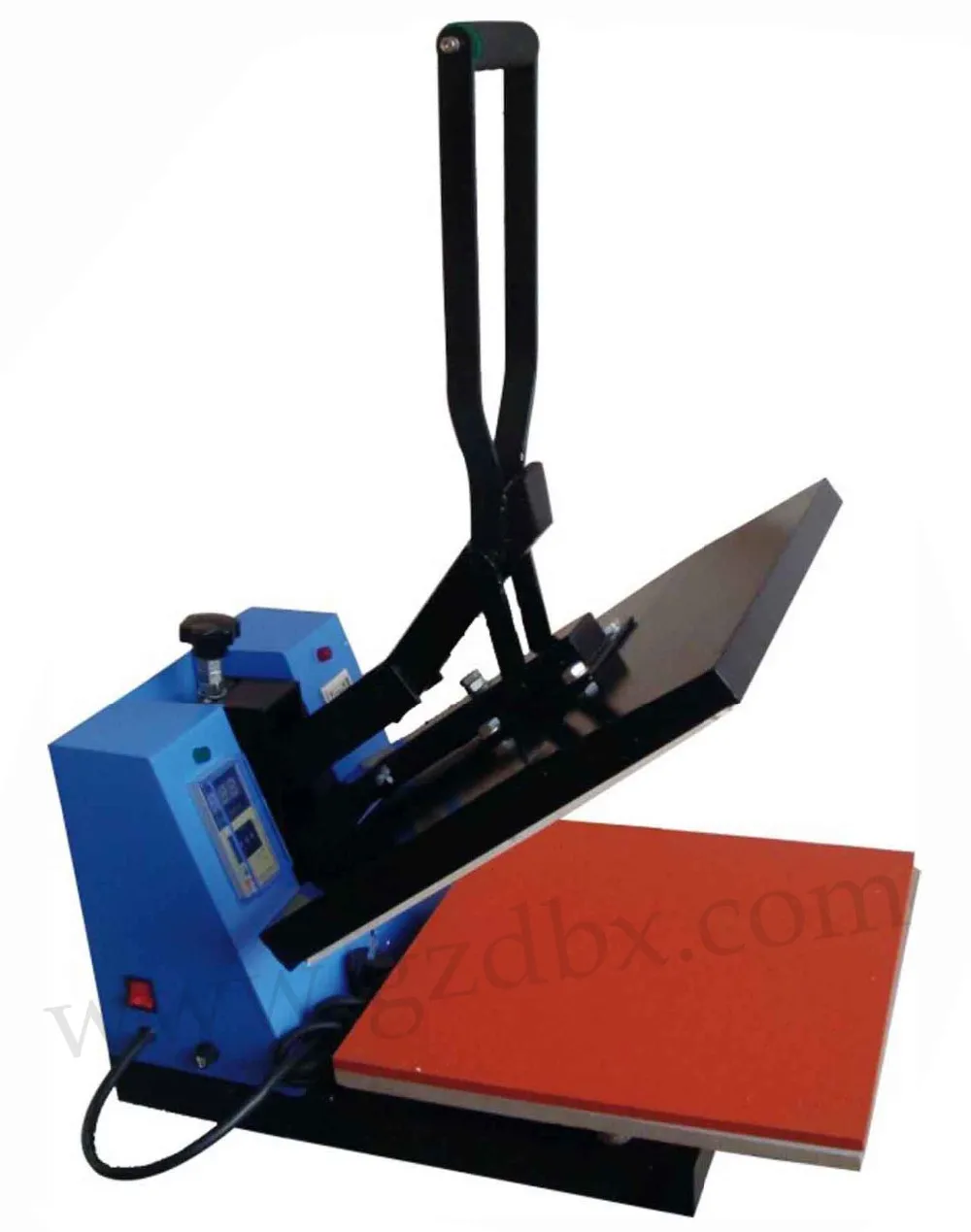

Plate Sublimation transfer heat press machine for t shirts

1.high pressure heat press machine
2.Voltage:220V/50Hz
3.Timing Range:0-399sec.



Specifications:

Heat transfer sheets to be pressed onto all fabric surfaces, or personalised pictures or photos to be pressed to plane surfaces.

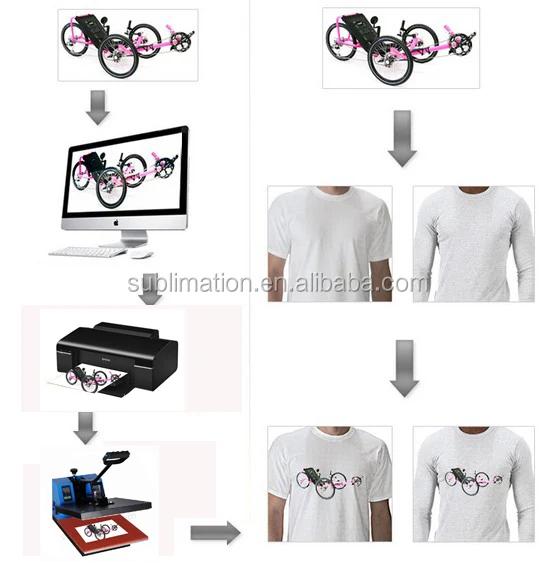

1.Printing an image on the general paper
2.Design your picture
3.Choose the right machine according to the shape of goods.
Plain Heat Press Machine:Cloth,T-shirt,hat,etc.
4.Adopt to alnico of the heat board and motherboard, so can heat up equality, level up the surface.
4.Use the machine to sublimate the ink into the good with 180~220 degrees centigrade about 10-30min.
spec:380*380mm/400*600mm/ 400*500mm etc
power:2.5KW
weight:35KG
package size: 81*61*44cm





Application:
It can imprint T-shirts,  Ceramic Tiles,  Mouse Pads, Jigsaw Puzzles, Fabrics & Materials, Other Misc.





1.Power Plug

2.Power Switch

3.Fuse

4.Temperature Controller

5. Timer

6.Adjust

7. Pressure Adjust

8. Heater

9.Silicon Rubber



Advantage:

1,Electronic constant temperature control.

2,Pressure adjustable, easy and convenient .

3,Basic board high temperature Silicon gel available.

4,Electronic time control: precise time set-up.

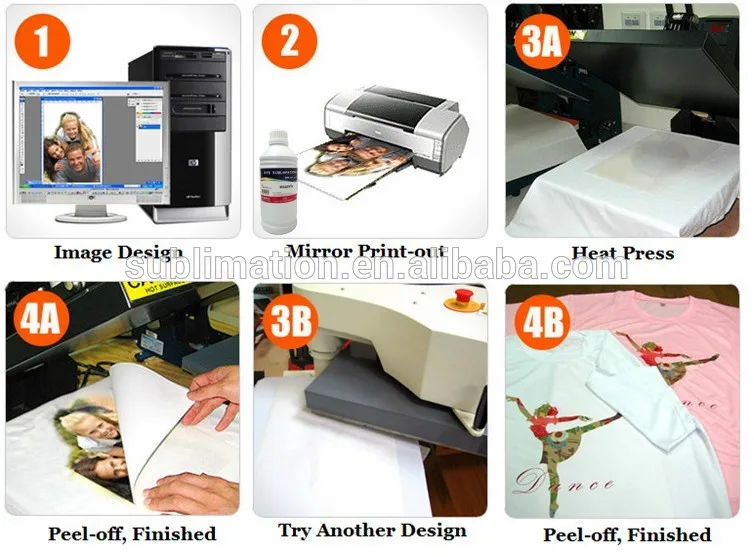

Working processing:

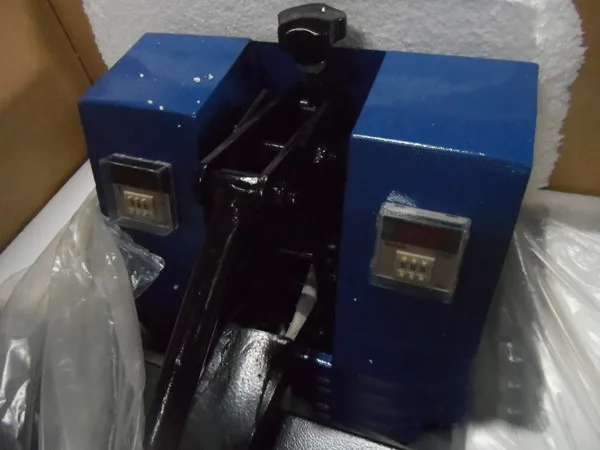

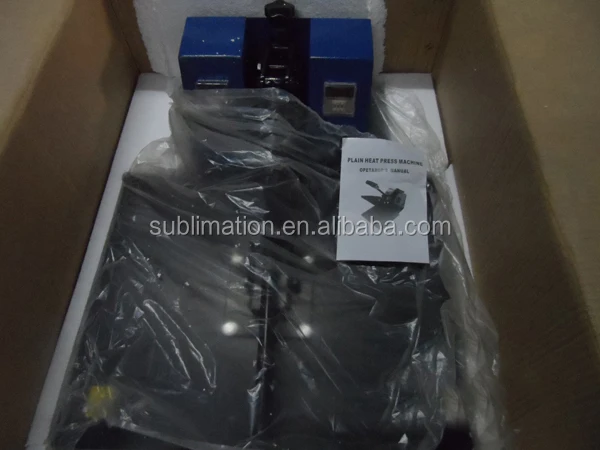

Package:





Operations:

1 Attention: proper and stable protective ground-wire must be prepared for whole machine. 1)Adjust the temperature to requested temperature, which usually between 120°C-200°C. 2) Set the timer to request time which usually between 5s-20s. 3) Put the material on the lower plate then place transfer paper (pay attention on front and back of it), Press handle till the end.

4)Attention: Strength mustn’t exceed thirty kg to protect normal working of handle. Buzzer is working when timer indicated completion of hot-stamping, then replace the handle. 5)If cold peel thermo printing paper, erase it by brush within five to ten seconds then peel the thermo printing paper. If hot peel thermo printing paper, erase it immediately after completion of printing. Perfect thermo-printing requires the cooperation of correct time, temperature and time.

6) Welcome the dealers the entire world to inquire our company for information about thermo-printing

7)All transfer paper must be tested before mass-produce.



Maintenance

1) Pressure: if pressure is insufficient or too strong, adjust the pressure nut."+"means pressure increase while"-"means decrease.

2) Time: if the buzzer doesn’t work or continuously works when time is up, touch contact of micro-switch in after body box must be checked to see if it needs adjusting. If so, adjust it to a suitable position.

3) Temperature: when temperature is up, and it will take approximately 15 minutes to reach 180°C.If heating plate doesn’t work several minutes after operation, please check the circuit.
