CE&ISO Certificated Swimming Pool Heater 35 1000kg/h Automatic Machine Vertical Gas Steam Boiler
CE&ISO Certificated Swimming Pool Heater 35-1000kg/h Automatic Machine Vertical Gas Steam Boiler
CE&ISO Certificated Swimming Pool Heater 35-1000kg/h Automatic Machine Vertical Gas Steam Boiler
CE&ISO Certificated Swimming Pool Heater 35-1000kg/h Automatic Machine Vertical Gas Steam Boiler
CE&ISO Certificated Swimming Pool Heater 35-1000kg/h Automatic Machine Vertical Gas Steam Boiler
CE&ISO Certificated Swimming Pool Heater 35-1000kg/h Automatic Machine Vertical Gas Steam Boiler
CE&ISO Certificated Swimming Pool Heater 35-1000kg/h Automatic Machine Vertical Gas Steam Boiler

CE&ISO Certificated Swimming Pool Heater 35 1000kg/h Automatic Machine Vertical Gas Steam Boiler

Share on (60506095420):


Price:

Quantity:


Product Overview

Description


News Report




News Report about Yano——


Yano Assist in  the National 'Coal to Electricity' Project

Product Description

CE&ISO Certificated Swimming Pool Heater 35-1000kg/h Automatic Machine Vertical Gas Steam Boiler


Application in Industry:

Ironing washing, Food industry, Biological equipment industry, Chemical industry, Packaging industry, Concrete conservation , Pharmaceutical industry, Cleaning, Bath Heating,Leisure Industry,Service Industry, Textile Industry,Foodservice Industry, etc..

Advantage of 35-1000kg/h Automatic Machine Vertical Gas Steam Boiler

Automatic LCD intelligent control system
1.,Safety and Science :with a safety valve, pressure controller, water level control protector,
2,multiple chain protection device, safe and reliable.
3,Choose imported Italian burner, burning more fully, more stable operation and lower noise.
4,High quality parts adopt domestic famous brand Delixi electric appliance
5,High Quality Steam Rapidly
6,Easy to install and operate
7,the boiler thermal efficiency above 93%
8,Product quality ensured by :Hydraulic teat ,X-ray ,non-destructive test .

Technical Parameter of 35-1000kg/h Automatic Machine Vertical Gas Steam Boiler

\t
Type/Spec
\t
LSS0.2-0.8-Y/Q
\t
LSS0.3-0.8-Y/Q
\t
LSS0.5-0.8-Y/Q
\t
LSS1.0-0.8-Y/Q
\t
Rated Evaporation (kg/h)
\t
200
\t
300
\t
500
\t
1000
\t
Thermal Efficiency (%）
\t
≥93
\t
≥93
\t
≥93
\t
≥93
\t
Rated Pressure (MPa)
\t
0.8
\t
0.8
\t
0.8
\t
0.8
\t
Steam Temperature(℃)
\t
175
\t
175
\t
175
\t
175
\t
0#Diesel(kg/h)
\t
12.2
\t
18.3
\t
30.5
\t
61
\t
Coal Gas (Nm³/h）
\t
34
\t
51
\t
85
\t
170
\t
Natural Gas (Nm³/h）
\t
15.2
\t
22.8
\t
38
\t
76
\t
Liquefied Gas (Nm³/h）
\t
11.4
\t
17.1
\t
28.5
\t
57
\t
Product Dimension (mm)
\t
960*960*2380
\t
1100*1250*2440
\t
1200*1500*2650
\t
1480*1480*3300
\t
Package Dimension (mm)
\t
970*970*2390
\t
1110*1260*2450
\t
1210*1510*2660
\t
1490*1490*3310
\t
Steam Caliber
\t
DN25
\t
DN40
\t
DN40
\t
DN50
\t
Drain Outlet Caliber (mm)
\t
DN25
\t
DN25
\t
N25
\t
DN40
\t
Water Inlet Caliber (mm)
\t
DN15
\t
DN25
\t
DN25
\t
DN25
\t
Weight (kg)
\t
700
\t
950
\t
1200
\t
1500

System Drawing of 35-1000kg/h Automatic Machine Vertical Gas Steam Boiler

Design structure

1,Boiler liner uses internationally advanced three-pass vertical water pipe tubular structure
2,The steam boiler and burner as a whole to design,.
3,Internal built-in steam separator

How to use?

1,Build a boiler house
2,Connection pipes
3,Connection power
4,Operating boiler

Detailed Images

LCD Intelligent Controller

Brand: Yano
Original: Shanghai, China
Lifespan：10 years

Boiler Liner

Brand: Yano
Original: Shanghai, China
Lifespan：10 years

Water Pump

Brand: Aolong

Original: Zhejiang,China

Lifespan：10 years

Material: Brass/Stainless Steel

Temperature Resistance: Up To 120 ℃.

Burner

Brand: Bultur
Original:Italy
Lifespan：10 years
Feature：Stable in Operation, Low Combustion Noise, More Energy Efficient.

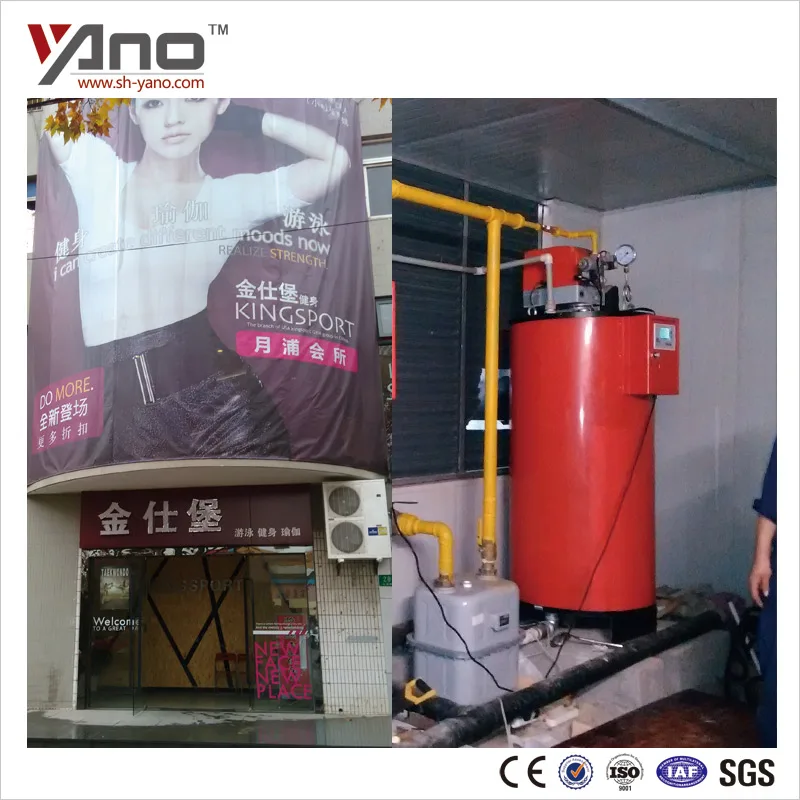

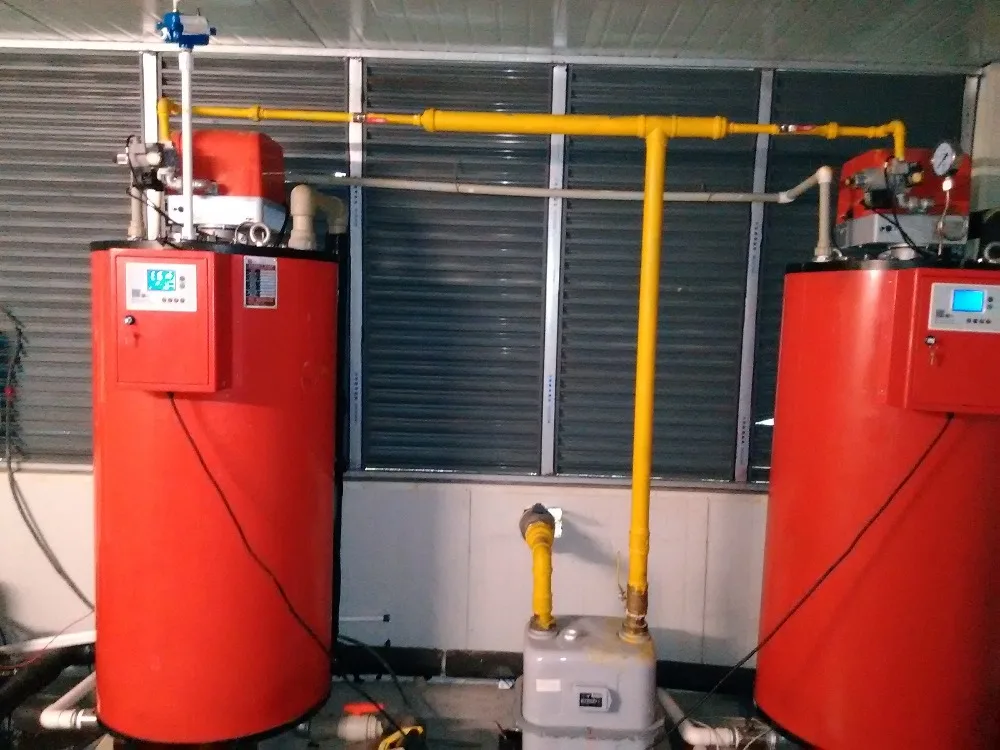

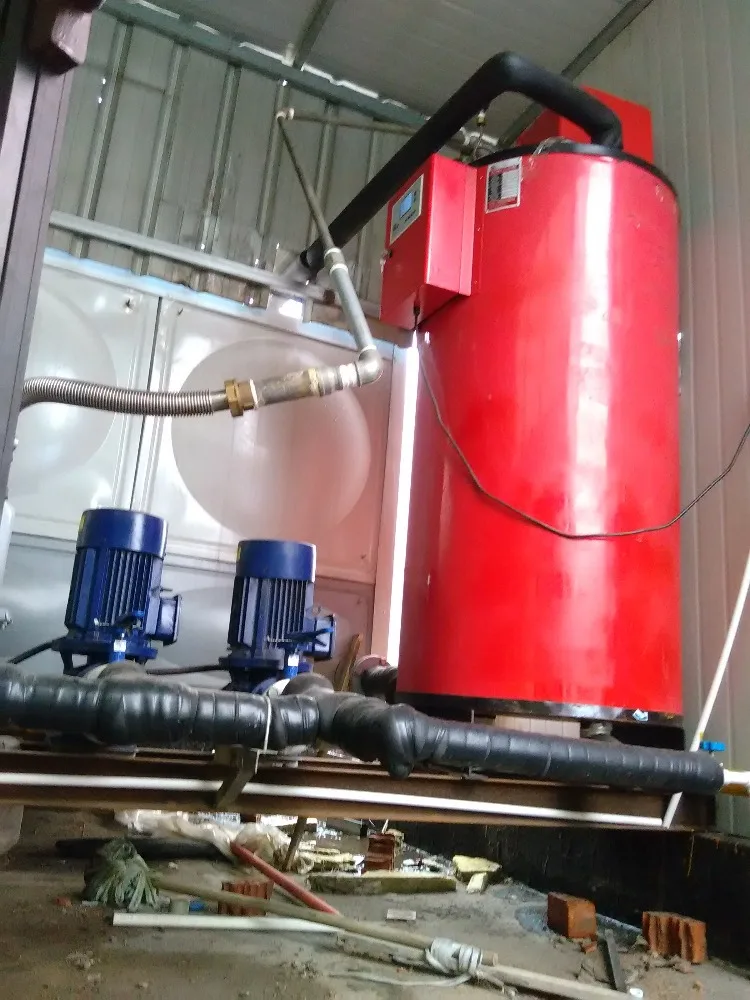

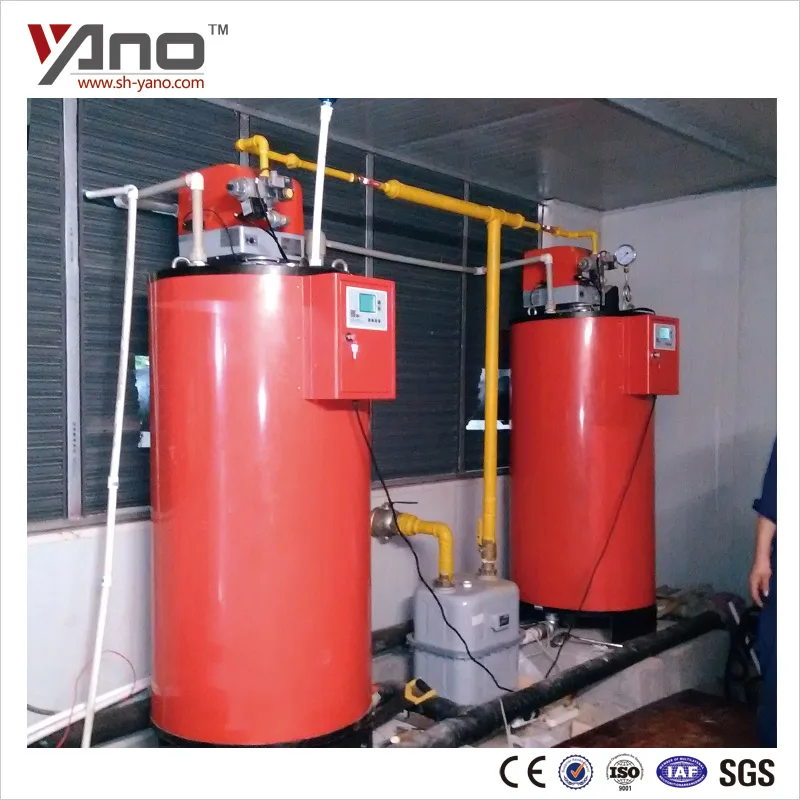

Customer Case

Customer Case of 35-1000kg/h Automatic Machine Vertical Gas Steam Boiler

Packing & Delivery
Certifications

 CE-Oil(Gas) Steam Boiler                    ISO-Steam Boiler                           SGS                                   Manufacturing Licence
