FSTB KSD306 Big Current 250V 16A Bimetal Switch oil heater thermal electric frying oil heaters oven heater pan thermostat
- Category: Water Heater Parts >>>
- Supplier: Foshan Tongbao-Hualong Controls Co. ltd.
Share on (60506149885):
Product Overview
Description

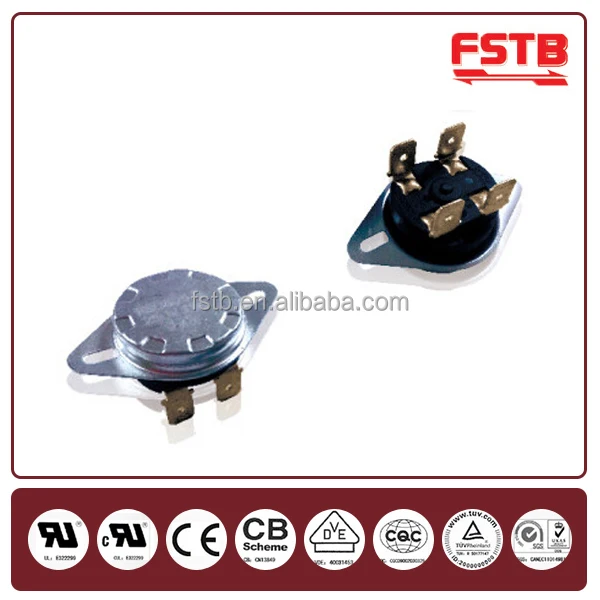

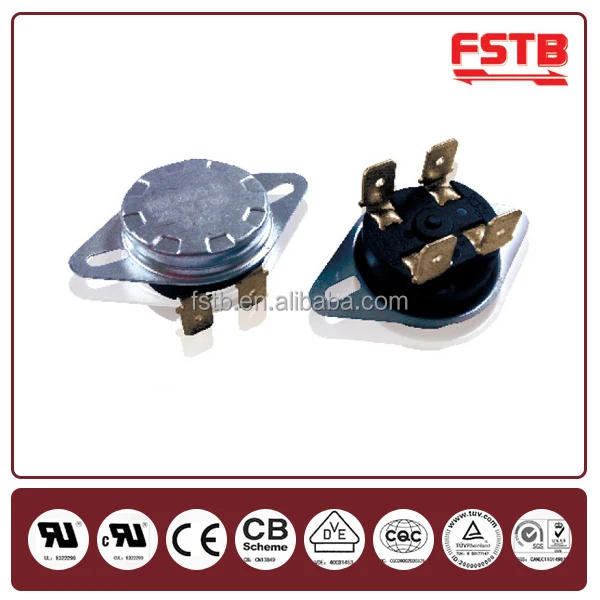

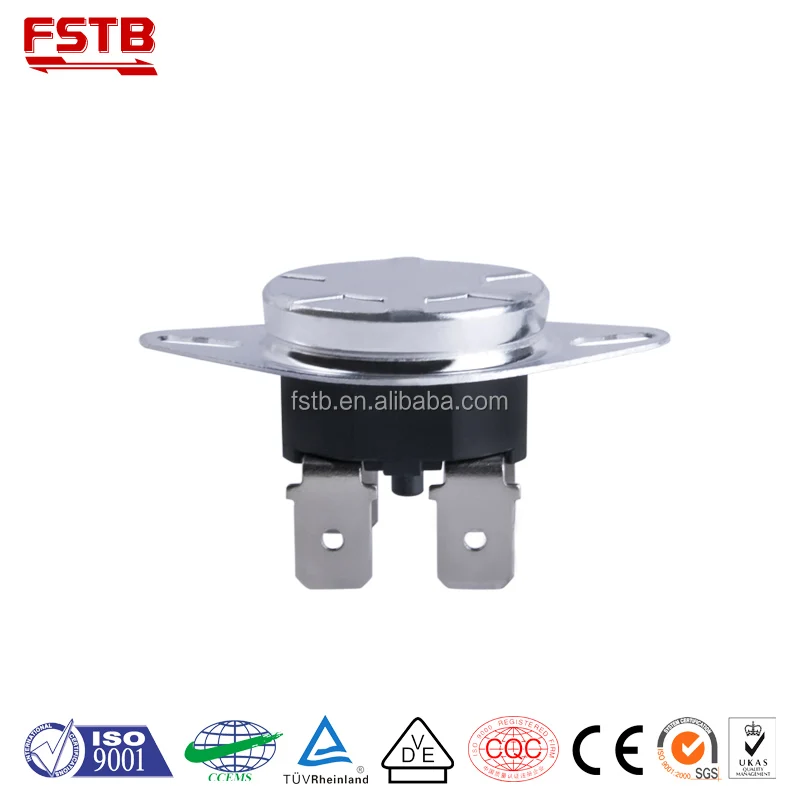

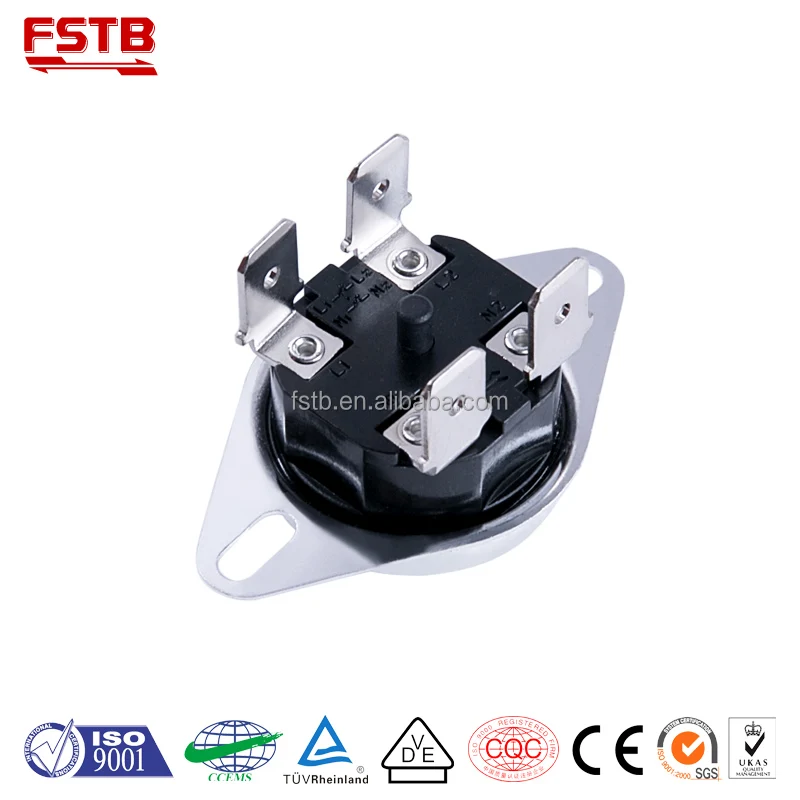

FSTB KSD306 Big Current 250V 16A Bimetal Switch oil heater thermal electric frying oil heaters oven heater pan thermostat
Product Description

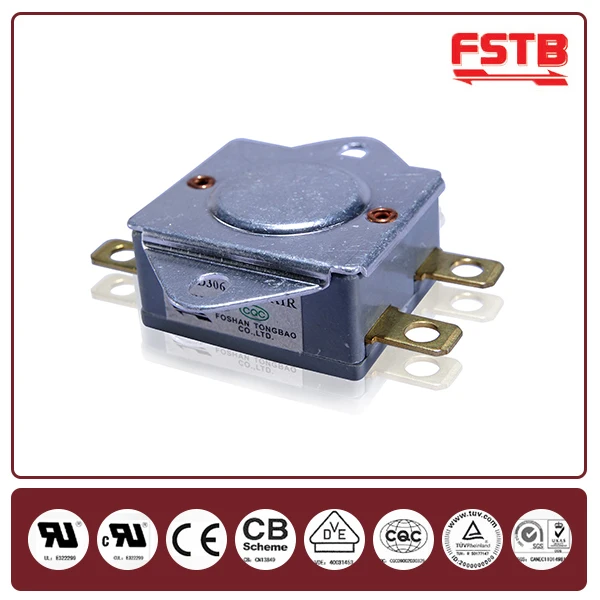

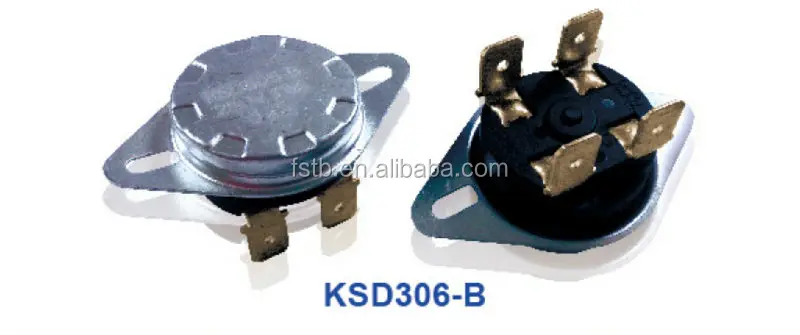

The series of KSD306-B that is of double-pole structure falls in the category of manual reset type high current bimetal thermostat. The product series, safety and reliable, is used in high-duty electric water heater for overheating protection. When the instant snap of bimetal disc occurs at certain temperature, two contacts separate promptly by means of mechanical transition and simultaneously two-phase circuit disconnects in order to completely cut off power supply. Pressing reset lever will restore the power supply.(heavy-duty thermostat)
Advantages:
- High durability
- No breakdown, no flashover.
- Every product will be tested, extremely high temperature pass rate.
- High precision.
- High loading capacity
Parameter:
Use | Overheat protection |
Appliance | Water heater(heater thermostat) |
Reset type | Manual |
Base material | Resist heat resin base |
Amperage | 16A |
Max. Operating Temperature | 125℃ |
Tolerance | Refer to the regulation |
Contact material | Silver |
Dielectric Strength | Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover. |
Insulation Resistance | With a DC 500V megger, borne DC 500V, the tested value is over 10MW. |
Resistance Between Terminals | Below 50mW |
Maximum ambient temperature | 185℃ |
Approvals | CQC/TUV |
Terminal type | Customized (Refer to our specification) |
Cover/Bracket | Customized (Refer to our specification) |
Dismension of the main body:
Major series of snap-action thermostats are as follows:
Series | Diameter of bimetal disc | Max. operating Temp. | Max. | Switch structure
| Service purposes |
rated | |||||
current | |||||
KSD301
| F12.8mm (1/2″) | 280°C
| 16A
| SPST
| Temperature control and overheating protection for low-duty electric heating applications. |
KSD301-U
| F12.8mm (1/2″) | 280°C | 16A
| SPST
| One shot type fuse for low-duty electric heating applications. |
KSD302
| F22.25mm (7/8″) | 125°C | 25A
| SPST
| Temperature control and overheating protection for high-duty electric heating applications. |
KSD303
| F12.8mm (1/2″) | 50°C | 10A | SPST | Defrosting and temperature compensation for refrigerator. |
KSD305
| F22.25mm (7/8″) | ||||
KSD307 | F12.8mm (1/2″) | 220°C | 20A | SPST | PTC power cut out for electric heater, commercial appliance |
KSD309
| F12.8mm (1/2″) | 280°C
| 16A
| SPST
| Temperature control and overheating protection for high temperature heating applications. |
KSD310
| F19mm (3/4″) | 50°C | 35A
| SPST
| Defrosting for big current refrigerator, air conditioner or other commercial cooling appliances |
KSD314
| F19mm (3/4″) | 220°C | 45A
| SPST
| Temperature control and overheating protection for big current heating applications. |
KSD315 | F19mm (3/4″) | 125°C | 16A | DPST | Manual reset for water heater protection |
How can we control our quality:
| Core component | Temperature testing | Synchronization testing | Resistance testing | Dielectric strength testing | Appearance choosing | Final testing |
FSTB | We have our own bimetal material factory, | Every unit! | Every unit! | Every unit! | Every unit! | Every unit! | randomly |
Common supplier | -- | Choose randomly | -- | -- | -- | -- | -- |
Certifications:
Common Packing:
200 pcs/box 5 box/ctn 56 ctn/wooden case
