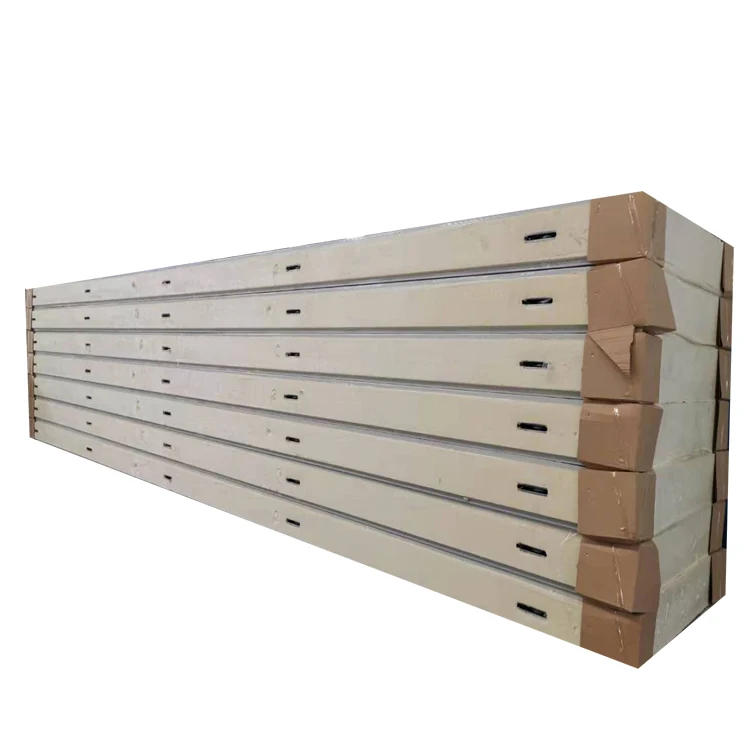

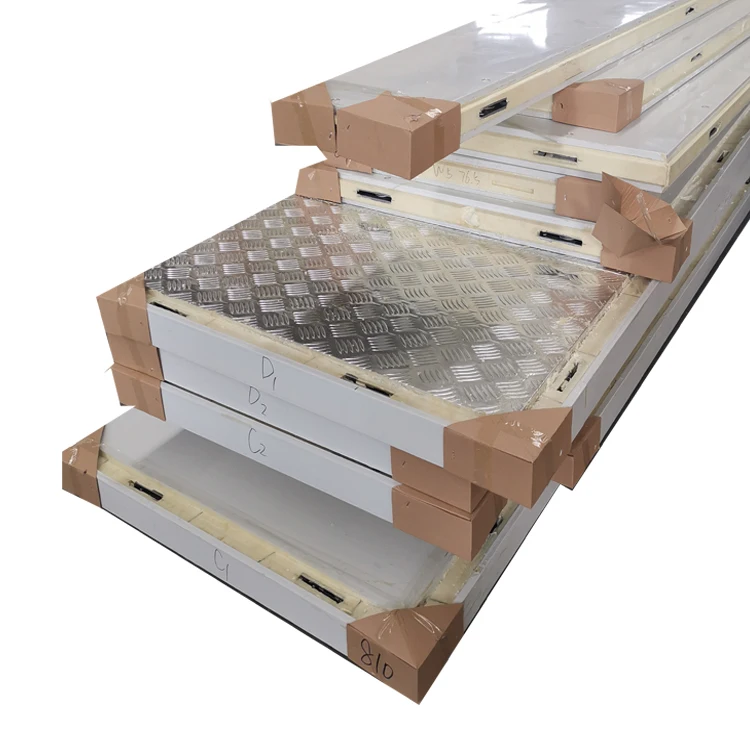

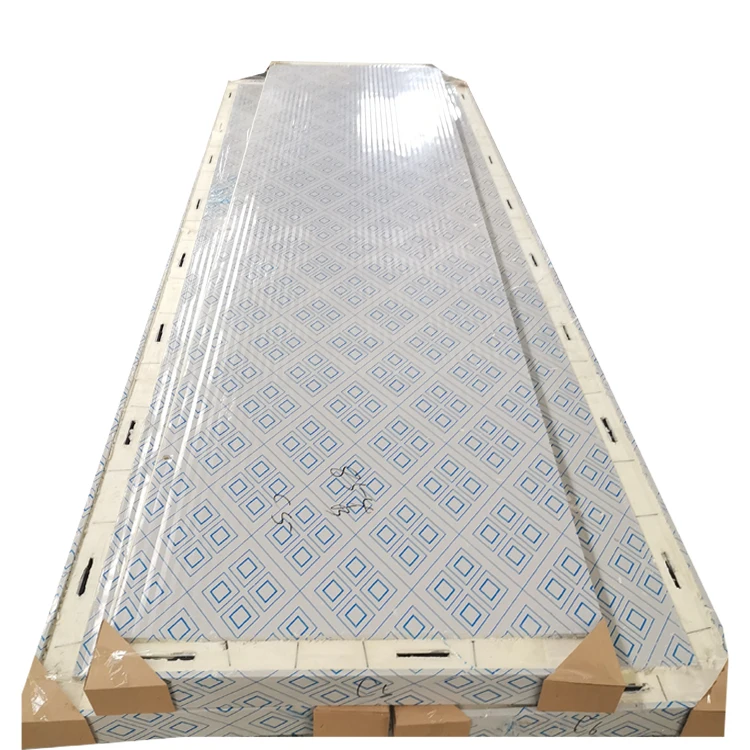

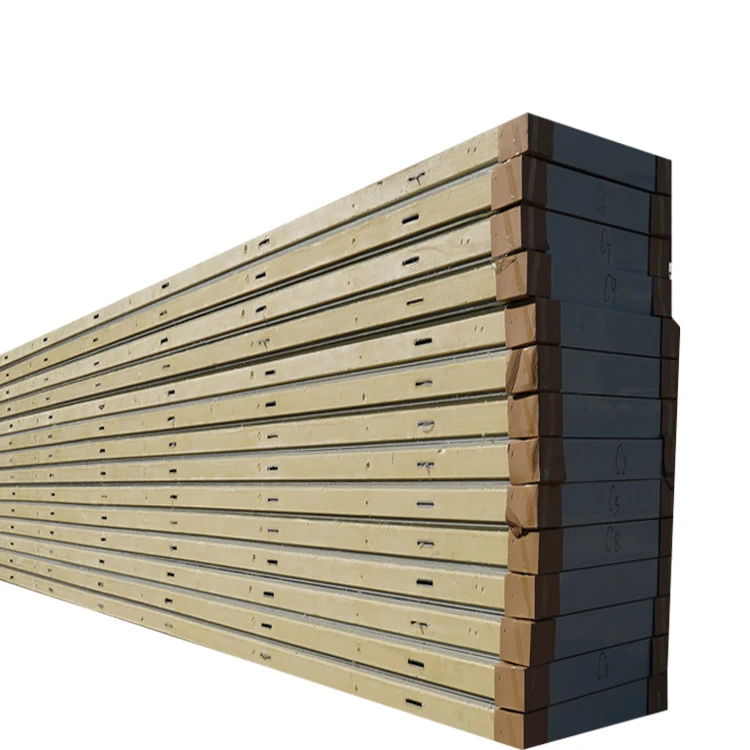

walk in cooler refrigeration and room board panels

Share on (60506209041):


Price:

Quantity:


Product Overview

Description








   MOON CE walk in cooler refrigeration and walkin cooler panels



cold room design


The cold storage is a warehouse creating the suitable humidity and cold condition with the use of cooling facility which is also known as the refrigerated storage. It is a place to process and store the products. It can get rid of the influence of the climate , prolong the storage period of various products to adjust the market supply.





Moon cold storage room is mainly used for the constant-temperature storage of food, dairy products, meat, aquatic products,poultry, fruit and vegetable, cold drink, flower, green plant, tea,medicine, chemical raw material, electronic instrument, etc.Meanwhile Moon team provide the oversea installation guidance and training.

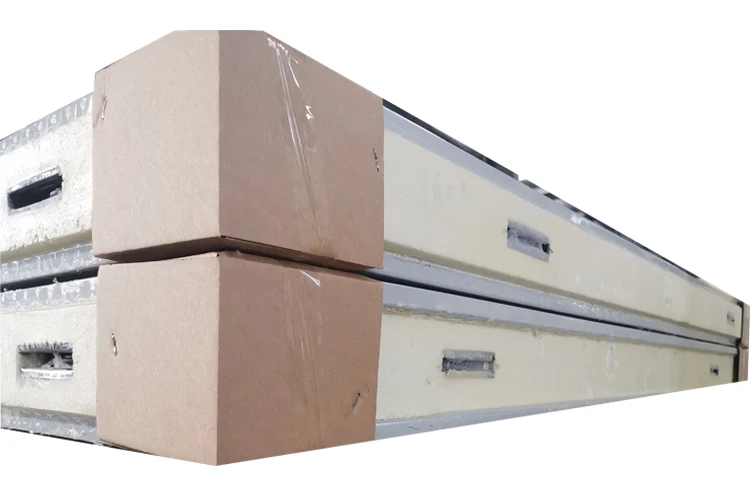

Panels Cam-lock


Tightly connects each panels together and prevent the heat transfer.


Ensures the strongest and 'most durable construction.


Allows the panels be portable-Panels can be easily assembled and


dis-assembled and carried to other places





Panels Cam-lock


Tightly connects each panels together and prevent the heat transfer.


Ensures the strongest and 'most durable construction.


Allows the panels be portable-Panels can be easily assembled and


dis-assembled and carried to other places








Characteristics


1, High intensity and good thermal insulation performance


2. Scientific designing, easy to be assembled or dissembled; Gear shape connection of panels with eccentric sheave lock; the whole panel


is flat and the gaps on the panels are sealed by sealing materials to reach the great efficiency of the freezing system


3. Suitable for low and high temperature controlled applications


4. High thermal performance, maintaining the temperature of the internal environment


5. Providing low air leakage performance


6. Significantly reduce energy usage and running costs


7. Providing a panel system which effectively controls temperature flows, vapor and


humidity levels:




































Thickness of cold storage panel



Usage



Application temperature



50mm



Warehouse/Green house



Temperature 15°C or above



75mm



Warehouse/Green house



Temperature +10°C or above



100mm



Warehouse/Green house/Walk in Cooler



Temperature 0°C~-5°C or above



150mm



Walk in Freezer



Temperature -18°C~-25°C or above



200mm



Blast freezer



Temperature -25°C or below

































































































Name



Temperature(ºC)



Relative humidity(%)



Suitable Scope



Cooling Room



0



/



Meat, eggs, etc



Frozen storage Room



-18 to -23 OR -28 to -30



/



Meat, poultry, rabbit, ice eggs, vegetables, ice cream, fish, shrimp



Cold storage Room



0



85 - 90



Chilled meat, poultry



Preservation room



-2 to 0



80 - 85



fresh eggs



Fresh storage



-1 to 1



90 - 95



Ice eggs, Chinese cabbage, garlic, onion, carrot, kale



Preservation room



0 to 2



85 - 90



Apple, pear



Fresh storage



2 to 4



85 - 90



Potatoes, oranges, lychee



Preservation room



1 to 8



85 - 95



Persimmon pepper, beans, cucumber, tomato, pineapple, citrus



Fresh storage



11 to 12



85 - 90



Banana



Frozen room



-15 to -20



85 - 90



Frozen meat, poultry, rabbit, ice eggs, frozen fruits and vegetables, ice cream



Freezer room



-18 to -23



85 - 95



Frozen fish, shrimp



Ice storage room



-4 to -10







cube ice ,block ice ,ice

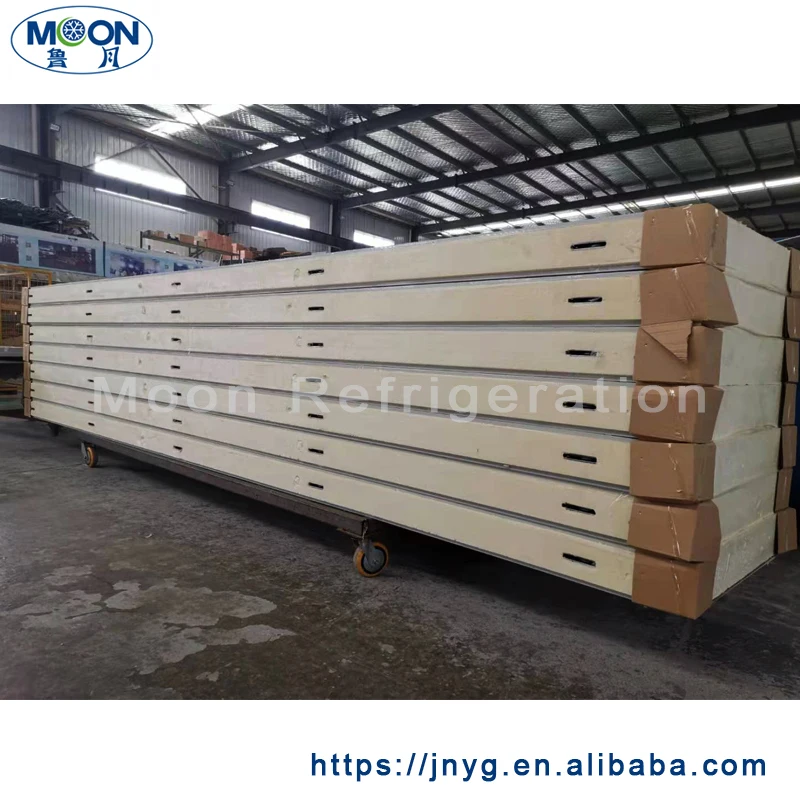

Cold room panel.jpgCold room panel1.jpg


cold room solutions71.jpg


MOON CE walk in cooler refrigeration and walkin cooler panels

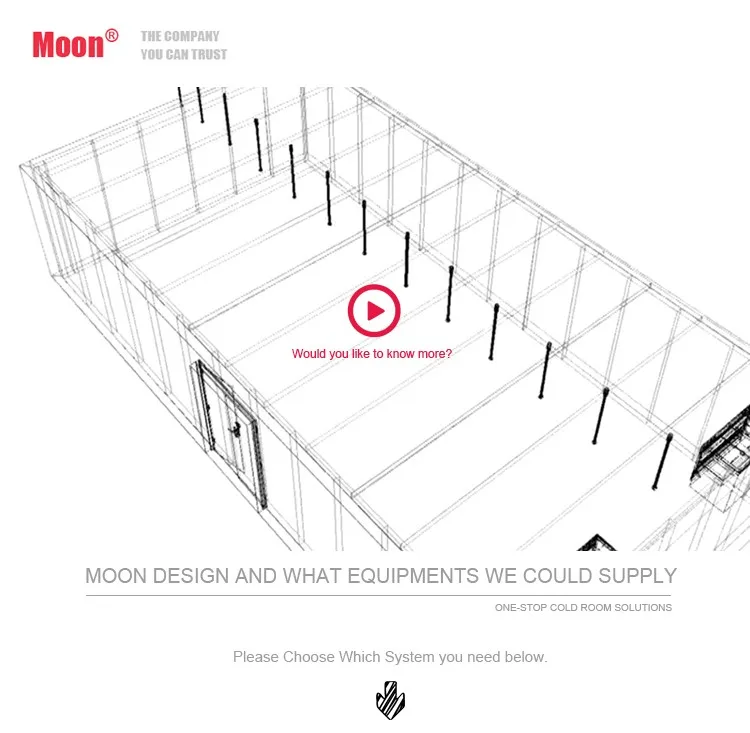

Solution design


Click below VIDEO to play


Moon® Team have the profssional design engineers,we can offer you fully-designed installation CAD/3D drawing.




MOON CE walk in cooler refrigeration and walkin cooler panels



Product description


  Moon team could like to provide you one-stop solution.


panel video.jpg

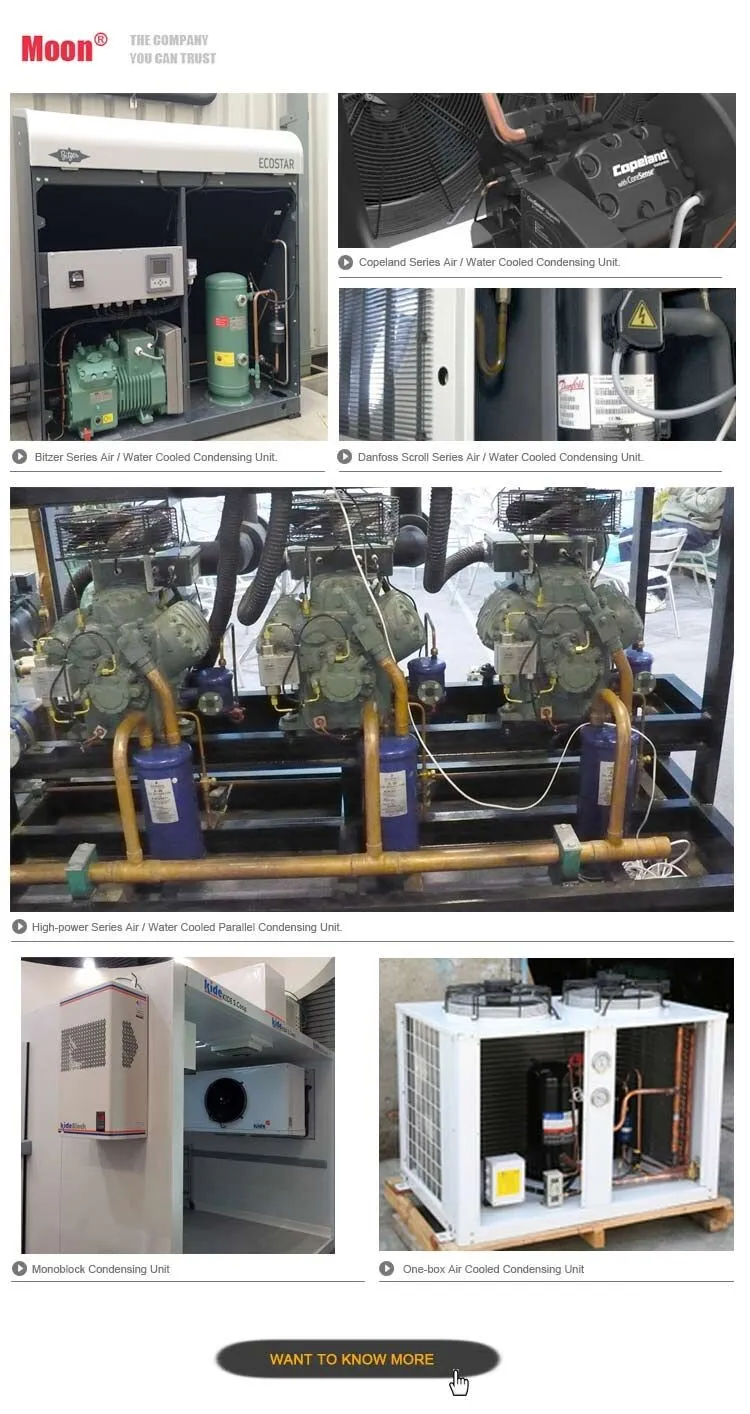

condensing unit video.jpg



air cooler video.jpg


air cooler (2).jpg


door video.jpg





MOON CE walk in cooler refrigeration and walkin cooler panels



Company Information


  Jinan Moon Refrigeration Plant Co., Ltd was found in 2007


and specialized in Manufacturing,Reseach, Design and Sales in Whole Refrigeration Engineering.



Our market are now all over the world: Africa (Egypt, South Afirca), Europe(UK),North America(USA), Asia


(India, Singapore, Philippines, Kuwait), Oceania(Australia),South America(Brazil).





Moon team will continue to work hard to provide global customers high quality products and excellent


services. please believe CHOOSE MOON TEAM, CHOOSE WIN-WIN.
