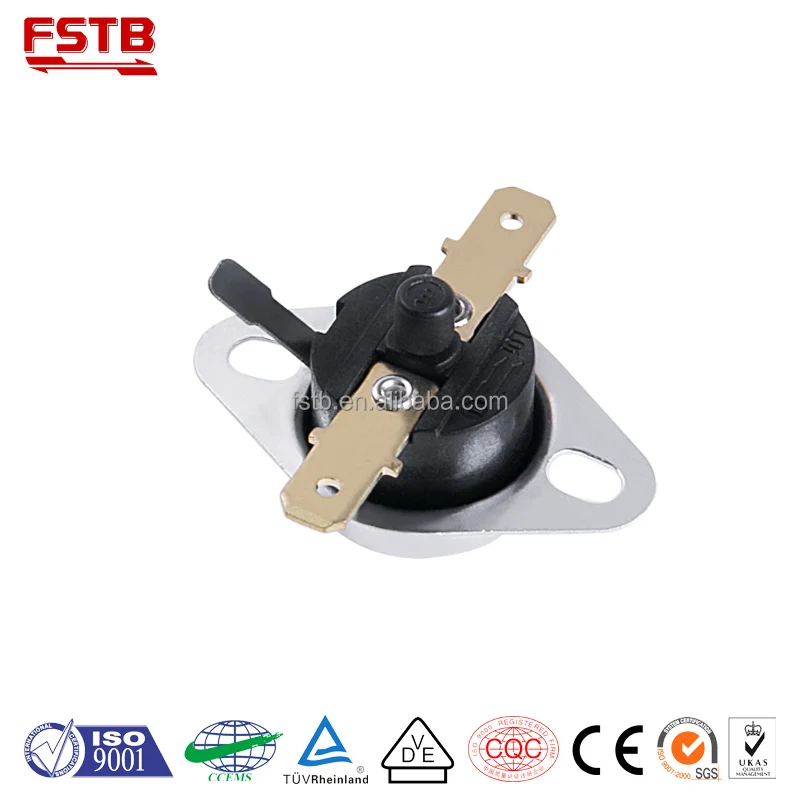

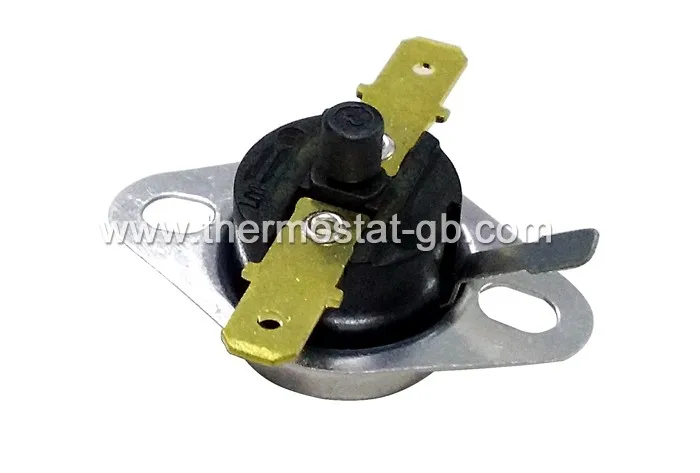

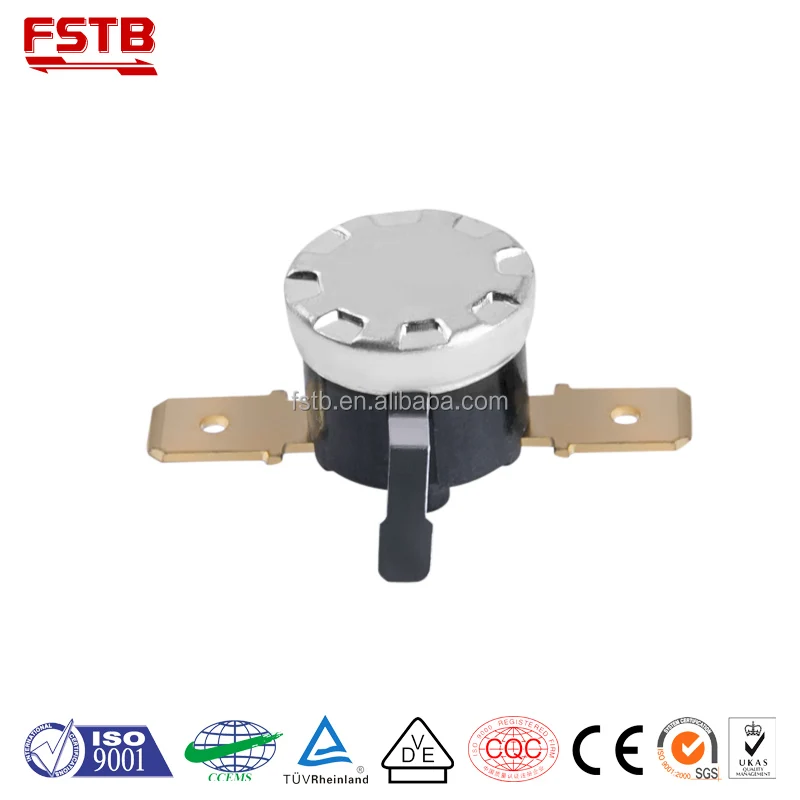

KSD311-R Series interruptible manual reset thermostat (1/2”) is designed upon KSD301-R construction. With interruptible cut-off mechanism, it is available for cutting off the circuit at any time even the temperature not raising to the preset temperature.
Typical usage case: power time limit for coffee maker (means it should be cut off automatically 40mins later after the power supply loaded. ). Generally, there are two options to choose: one is to equip PCB computer control panel, but with high cost; the other is to use KSD311-R series thermostat with advantage of lower cost and reliability design.
Advantages:
Easy mounting.
High precision.
High durability.
Rapid heat transmission.
No breakdown, no flashover.
Every product will be tested, extremely high temperature pass rate.
Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover.
Insulation
Resistance
With a DC 500V megger, borne DC 500V, the tested value is over 10MW.
Resistance
Between Terminals
Below 50mΩ
Temperature
characteristics
Normal type: OFF temperature higher than ON temperature.(Normal close)
One-shot type: The thermostat switches on at room temperature and it won’t be able to reset after switching off.
