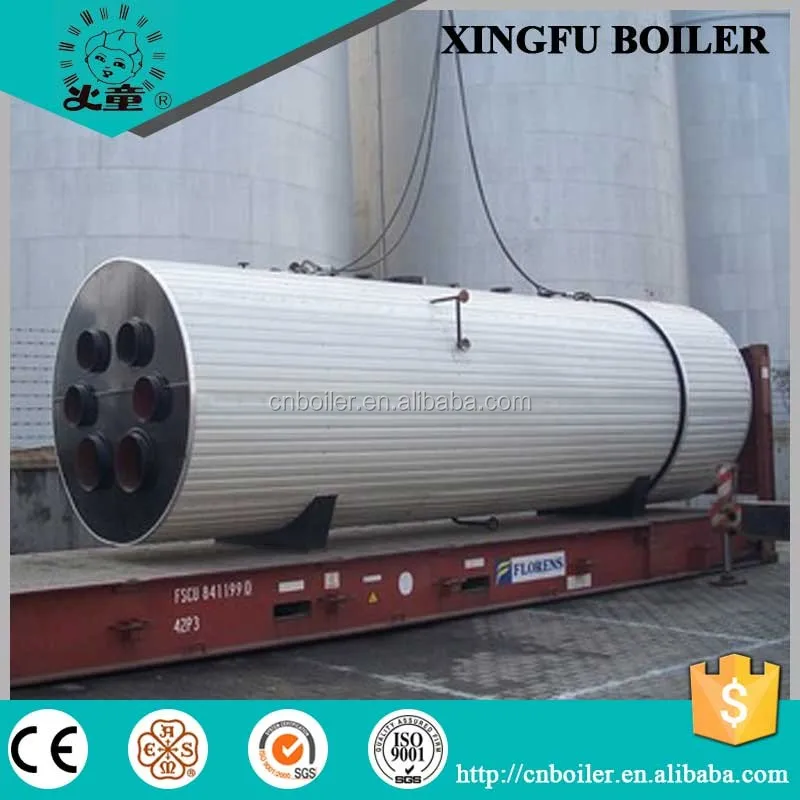

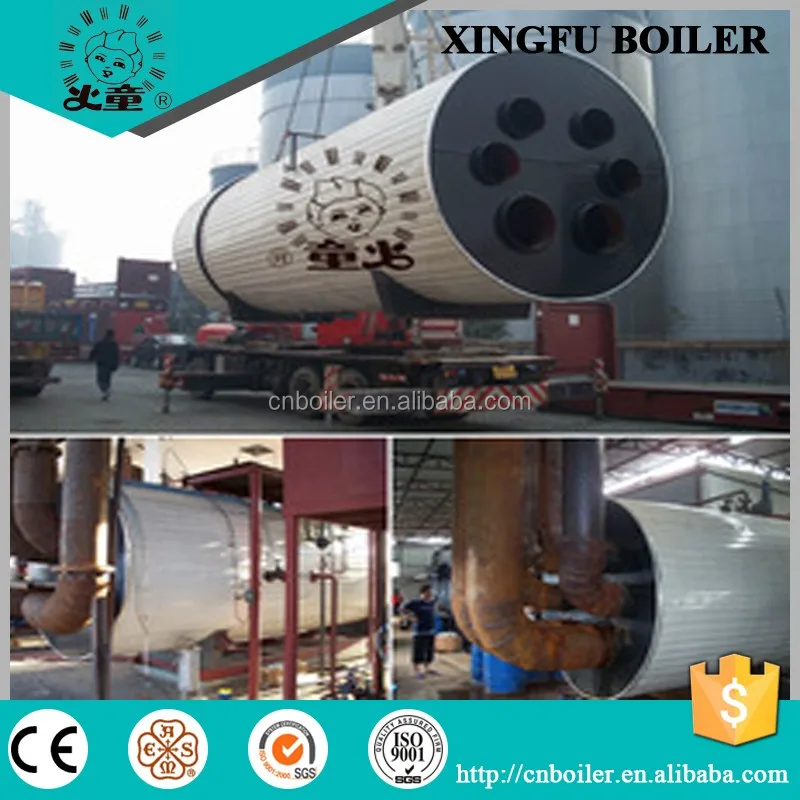

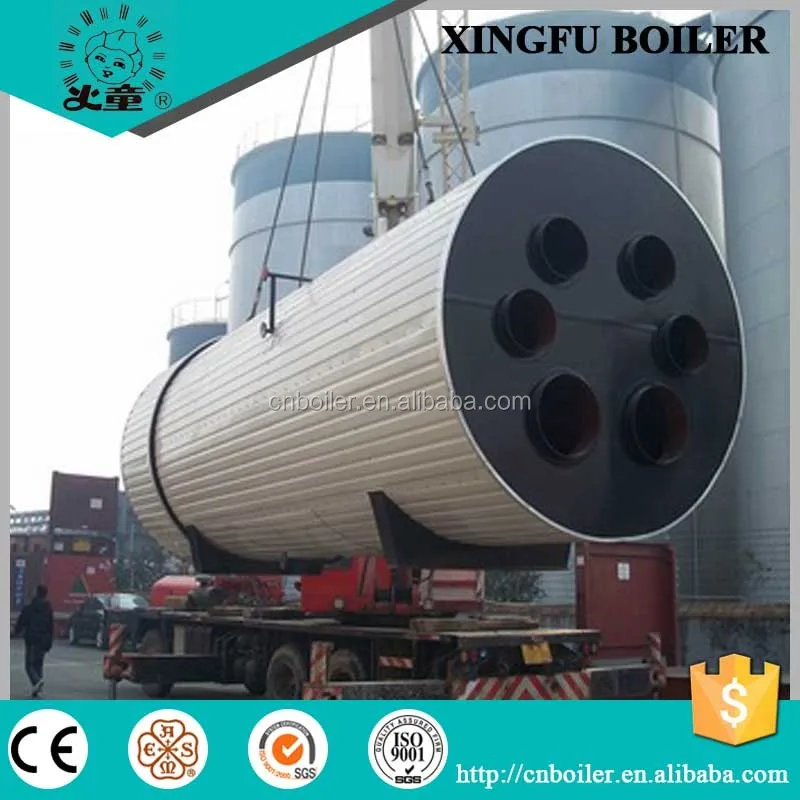

HRSG Heat Recovery Steam Generator steam boiler used for Industry and Power Station
- Category: >>>
- Supplier: Qingdao Xingfu Boiler Thermal Power Equipment Co. Ltd.
Share on (60506364774):
Product Overview
Description
Product Description
HRSG(Heat Recovery Steam Generator)
1. The steam shall be produced by waste heat of production process, resulting in energy saving and
increasing benefit.
2. The waste heat boiler shall feature the following advantages: compact structure, no pollution, small
system resistance, simple operation, safty and reliability, and full waste heat recovery.
3. The design of waste heat boilers shall be in accordance with users' process parameter.
Boiler type Item | Q16-480 -2-1.0 | Q33-490 -4-1.0 | Q48-490 -6-1.0 | Q50-500 -6-2.5/350 | Q85-500- 10-2.5/350 |
Rated output (t/h) | 2 | 4 | 6 | 6 | 10 |
Rated working pressure (Mpa) | 1 | 1 | 1 | 2.5 | 2.5 |
Flue gas flow(peak) Nm3/h | 16000 | 33000 | 48000 | 50000 | 85000 |
Inlet flue gas temperature°C | 480 | 490 | 490 | 500 | 500 |
Heated surface of boiler proper (m²) | 188 | 345 | 572 | 332 | 532 |
Heated surface of Superheater (m²) | —— | —— | —— | 18 | 26 |
Heated surface of Economizer (m²) | —— | —— | —— | 45 | 75 |
Maximum weight of transportation cargo (t) | 8.9 | 15.2 | 23.5 | Assembly | Assembly |
System resistance (Pa) | < 1500 | < 1500 | < 1500 | < 1000 | < 1000 |
Scope of application | Power industry | Power industry | Power industry | Chemical industry | Chemical industry |
