F5ABMS 5HP 4 stroke short shaft boat engine boat motor outboard motor

Product Overview

Description

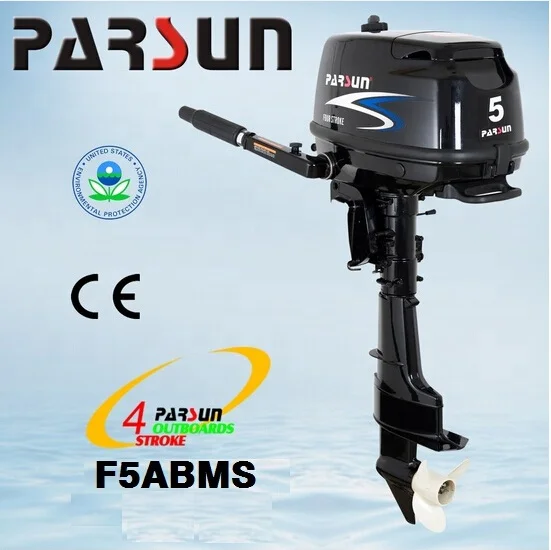

F5ABMS four stroke 5hp outboard motor

















PARSUN F5ABMS 5HP PORTABLE OUTBOARD ENGINE



      New lightweight single cylinder PARSUN F5 four stroke outboard motor with a manual starter and tiller handle. Enhanced features include a larger shift handle, toggle clamp and throttle grip than in other outboard motors of the same class. Low vibration rubber mounts are fitted between the powerhead and bottom cowling and at the base of the tiller handle, and a balance weight on the tiller handle effectively reduces vibration of the same. Front and back, large easy grip carry handles makes these engines easily transportable and, very importantly, the engine can be stored on either side or on its front without leaking engine oil due to PARSUN's original oil leak prevention system. This means you will no longer have to worry about oil leakage when carrying the engine in the trunk of your car. A wet sump system with oil lubrication pump, as used in higher-end models, provides more reliability in engine lubrication. An auto decompression device fitted to the camshaft makes the manual starter much lighter to pull. A small, auxiliary prime pump is fitted to the fuel pipe before the carburettor in the cowling. By ensuring delivery of fuel to the carburettor, the engine can be started smoothly even after long-term storage. A DC 12 volt-6 amp alternator can be optionally fitted to provide electricity if required.



Auxiliary prime pump

A small auxiliary prime pump is fitted to the fuel pipe before the carburettor in the cowling. By ensuring the delivery of fuel to the carburettor, the engine can be started smoothly even after long-term storage.



Easy to carry

When you want to get out on to the water quickly and easily, portability is important. The F5 outboard engine are the ultimate in portable power, with a compact build and large carry handles that can be used by one or two people. Carry them to the water, or lift them on to your main boat as an auxiliary and you're away.



Steering friction and throttle adjustment

You'll find the F6 incredibly easy to control, thanks to the single-lever steering friction adjustment. This allows steering and throttle to be easily adjusted when you're out on the water, and ensures that you have great stability and control, even at high speed.



CDI Ignition System

You want the fun to start as soon as you get on to the water and the outboard engine to purr with the minimum of fuss.  ignition systems are 'solid state' components with no moving parts - a design which allows them to deliver the reliable starting and consistent performance for which Yamaha outboards are renowned across the globe.



Built-in fuel tank

To really get out there, you need to know you've got room for all the necessary gear, whether it's an extra box of bait, or an extra cooler of refreshments. To give you more space inside your boat, the F5 all have a built in 1.1-L fuel tank, eliminating the need for an external tank.



You need an engine you can rely on. PARSUN outboard engine are renowned for their durability and how well they hold value. Central to this is the unique  aluminium alloy that protects the engine's exterior parts, and a zinc coating, high-quality stainless steel, and 5-stage exterior coating for long-lasting protection inside and out.



3-position oil leak-free storage system, transporting your engine to and from the water, the last thing you want to have to deal with is a messy oil leak.unique 3-position oil leak-free storage system offers an easy way to store your engine, whether you're carrying it in a boat, a car, or a trailer.



ITEM	F5ABM
Engine type	4-stroke,1-cylinder, OHV
Displacement	148 cc
Bore x Stroke mm(in.)	64.0×46.0(2.52×1.8)
Max. output kw(hp)	3.7(5)
Full throttle RPM range	4500~5500
Ignition system	CDI
Starting system	Manual
Steering system	Tiller control
Gear shift	Forward-Neutral-Reverse
Gear ratio	2.15 (28/13)
Trim and tilt system	Manual,4 positions/Shallow drive
Max fuel consumption	1.9 L/h
Fuel tank capacity	within 1.3 L
Sump oil capacity	0.6 L
Gear oil capacity	100cc
Dry weight	27kg
Overall width mm(in.)	390(15.4)
Recommended transom height	381 mm(15 in.)
Alternator output	12V DC*
Propeller options*	3-7.8"x9"



*Propeller choice will vary by boat size   and application.

*B=Back control(Tiller control),F=Front control(Remote Control),M=Manual start,

W=Electric start+Manual start,S=Short shaft,L=Long shaft





PARSUN FOUR STROKE 5HP OUTBOARD MOTORS FEATURES:

1. Exhaust through the middle of propeller so as to get low noise and low vibration for extra comfort;

2. Spiral bevel gear, stronger, run more quietly and can be used for higher reduction ratios with longer life;

3. High - strength clutch, more reliable and better performance

4. Use ball bearing and needle bearing for driver shaft, long life and better performance

5. Besides the oil dip-stick, also equipped with oil watch window

6. Convenient auxiliary prime pump in cowling for easy starting after long storage. A small auxiliary prime pump is fitted to the fuel pipe before the carburetor in the cowling. By ensuring the delivery of fuel to the carburetor, the engine can be started smoothly even after long storage;

7. Bigger displacement, 3-5% more power output;

8. Wet-sump, forced bath lubrication system, protect the engine better;

9. CDI Ignition for easy start in all conditions: idle speed will be down to 1200~1300rpm (the fuel consumption will be reduced) and more quiet at idle speed by such new system

Other advantages:
1. Large carry handles for convenience and comfort
2. Easy to use steering and large shift lever
3. Built-in 1.3L fuel tank. F5A and F6A all have a built- in 1.3L fuel tank, eliminating the need for an external tank.
4. Position oil leak-free storage system: 3-position oil leak-free storage system offers an easy way to store your engine, whether you're carrying it in a boat, a car, or a trailer.
OPTION
1. 12V DC output
2. 12L or 24L portable fuel tank and hose

Compact size and large handles make it highly portable and start-up is easy with CDI Ignition System. And on the water, you'll be delighted by the low fuel consumption, simple control, limited noise and vibration, and complete reliability.
