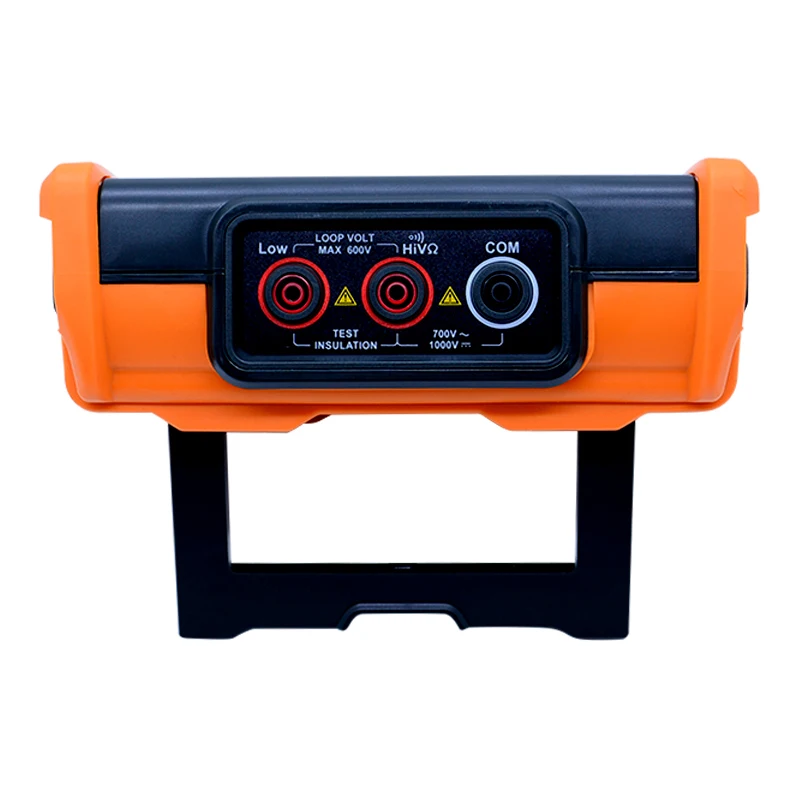

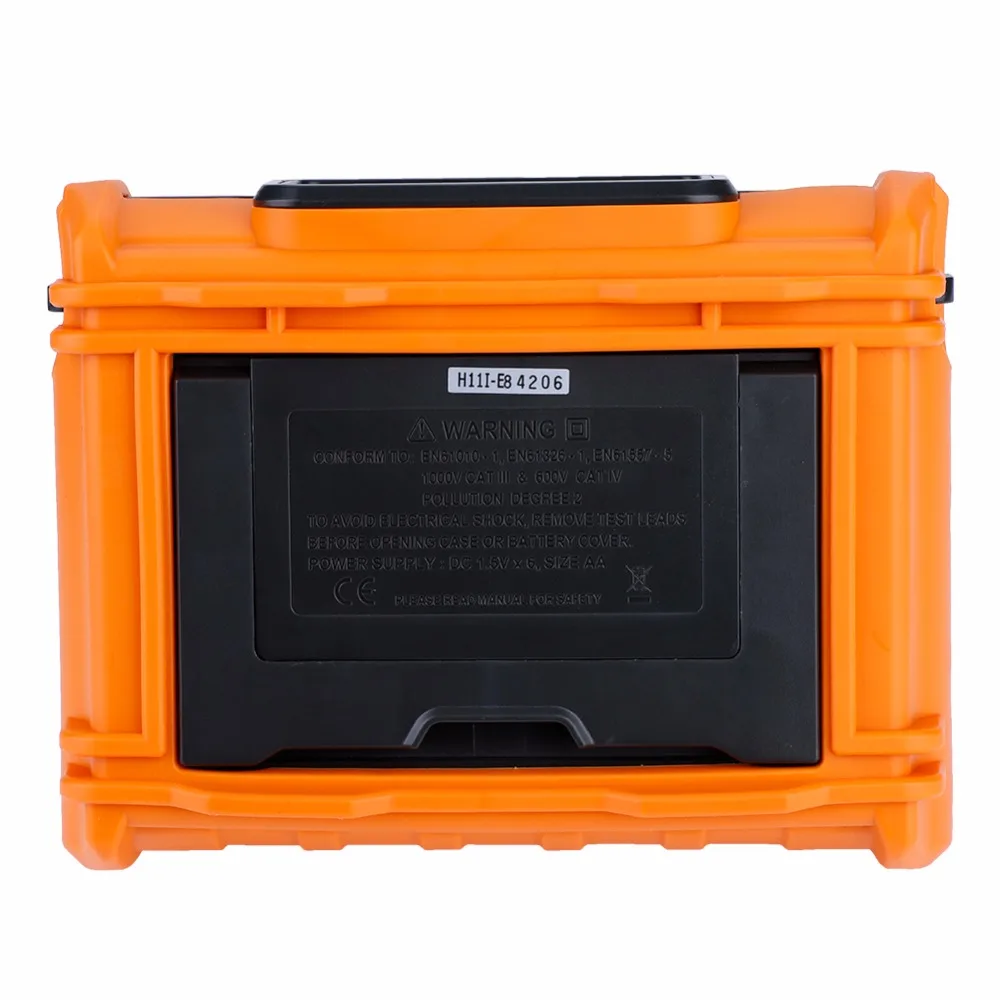

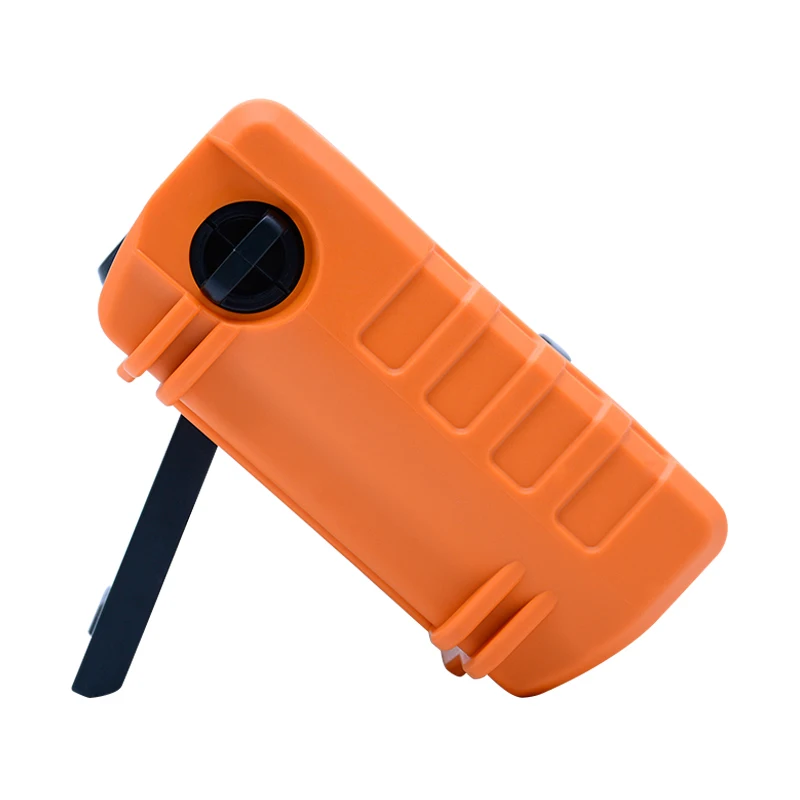

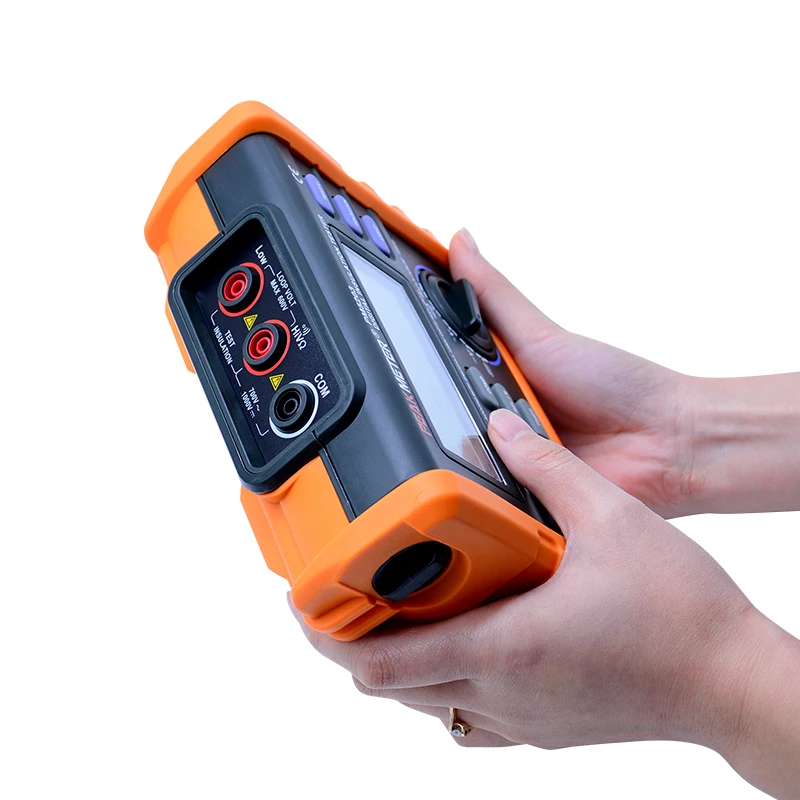

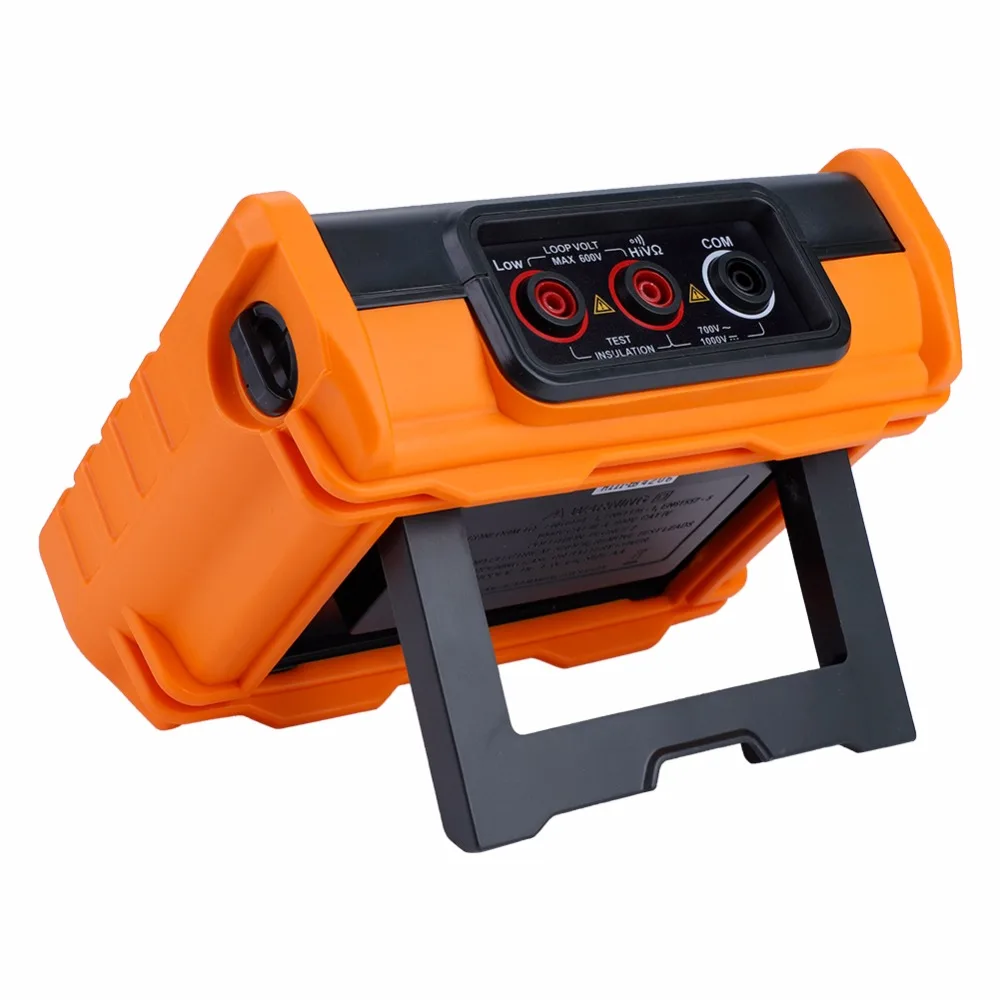

China PEAKMETER 10G Ohm with Multimeter Function 1000V Digital Insulation Resistance Test

MS5203 Digital Insulation Resistance Test

Features

Digital Display & Analog Display

Low Battery Display

Auto Power Off

Display Backlight

Auto Calculate PI and DAR

Store /Load Function

Compare function

Auto discharge for capacitive load

Timer Function for insulation test

Lock function for insulation test

DCV and ACV Test

Continuity test

Power supply

6 x1.5V AA batteries

Weight

Approx 950g

Size

180mm x 140mm x65mm

Safety Rating

CE ETL CAT III 1000V. CAT IV 600V RoHS

Specifications

Insulation Test

Source Output Voltage

Measuring Range

50V( 0 % - 20%)

0.01MΩ - 50MΩ±(3%+5)

100V( 0% - 20%)

0.01MΩ - 100MΩ±(3%+5)

250V( 0% - 20%)

0.01MΩ - 250ΩM±(3%+5)

500V( 0% - 20%)

0.01MΩ - 500MΩ±(3%+5)

1.00GΩ - 5.00GΩ±(5%+0.1GΩ)

1000V( 0% - 20%)

5.00GΩ - 10.00GΩ ±(10%+0.2GΩ)

Short Circuit Current

1.8mA

Multimeter

DC Voltage Test

0.1 - 1000V ±0.5%

AC Voltage Test

0.1 - 750V ±1%

Continuity Test

0.01Ω - 200Ω ±0.5%

 Test lead

One set

 Clips

One set

 User’s manual

One piece

1.5V AA battery

Six pieces
