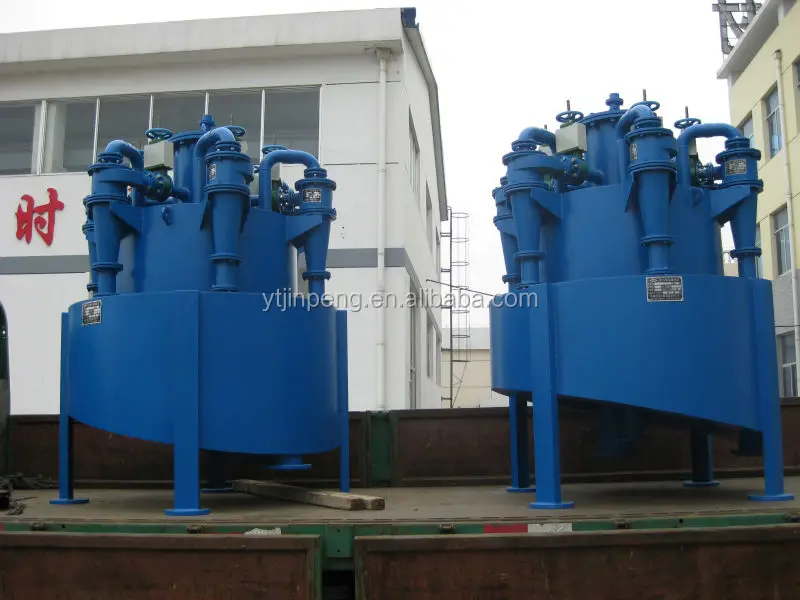

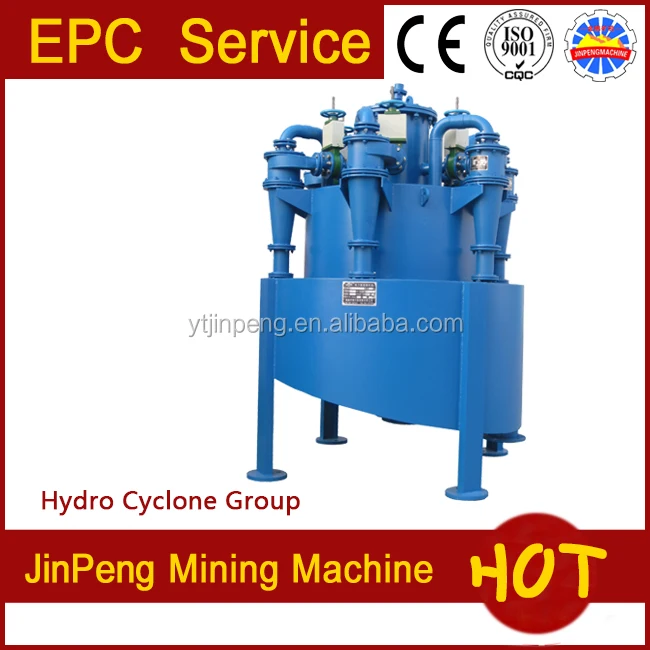

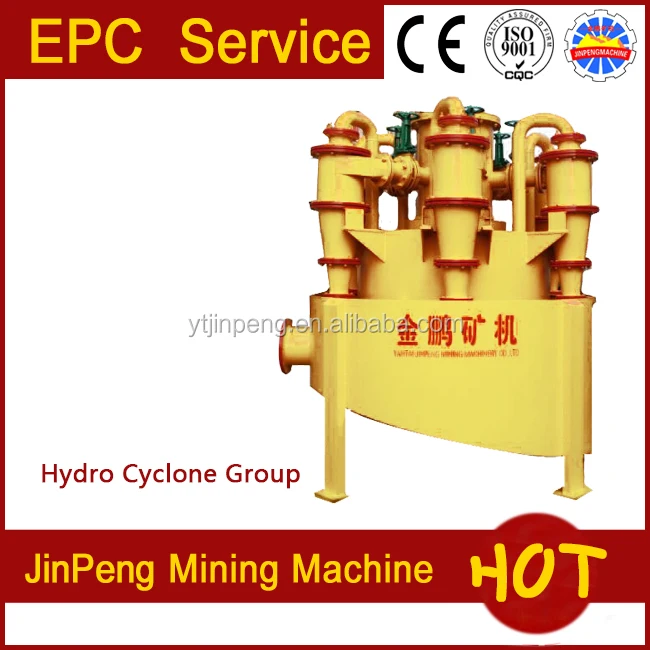

copper equipment cyclone mineral separator hydrocyclone gravity seperation machine high technology new plant
- Category: >>>
- Supplier: Yantai Jinpeng Mining Machinery Co. Ltd.
Share on (60506441999):
Product Overview
Description
Products Description

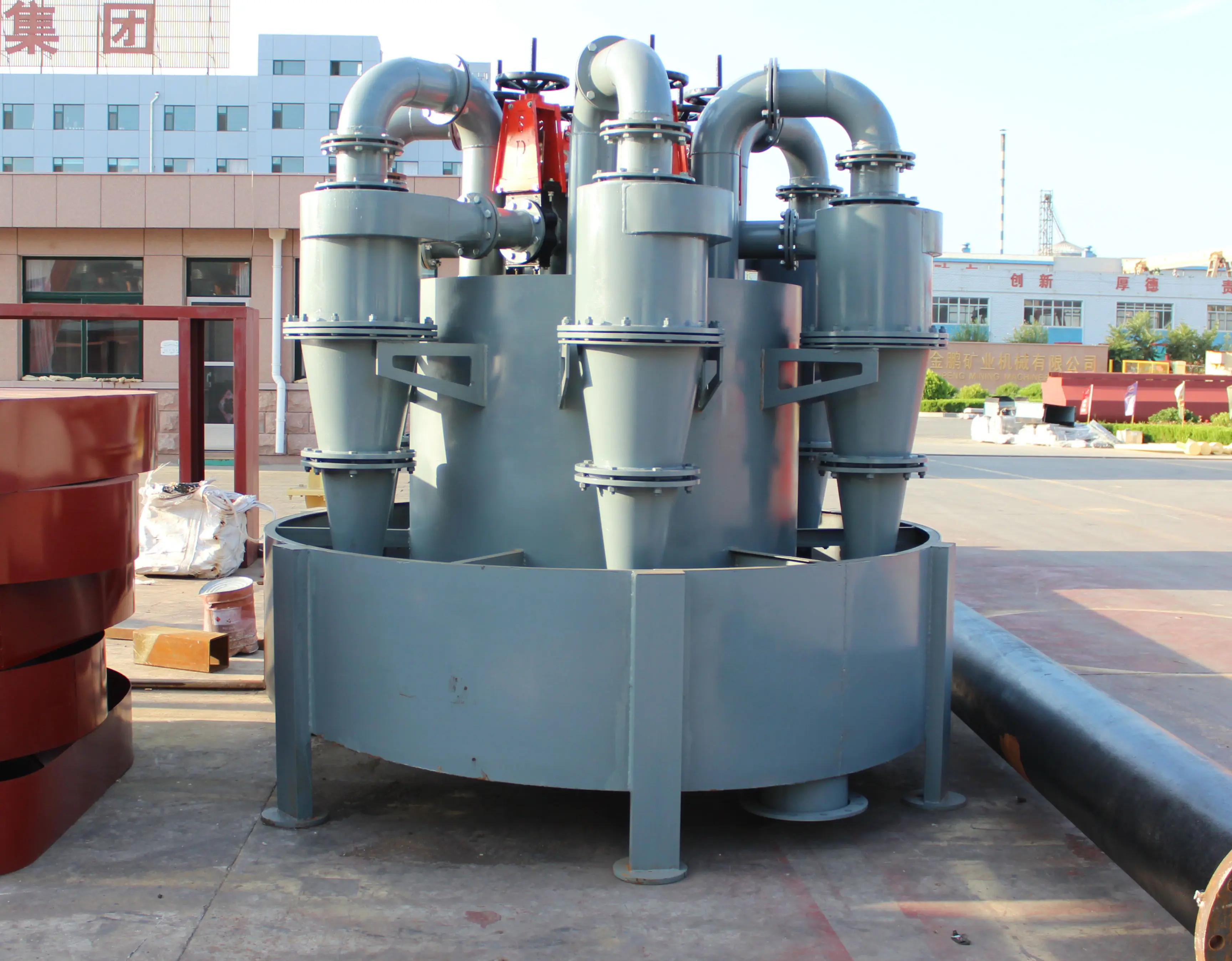

The hydrocyclone is a simple piece of equipment that uses fluid pressure to generate centrifugal force and a flow pattern which can separate particles or droplets from a liquid medium. These particles or droplets must have a sufficiently different density relative to the medium in order to achieve separation.
Scope of Application : ore pulp classifier
Production capacity : ≤2500m3/h
Production capacity : ≤2500m3/h

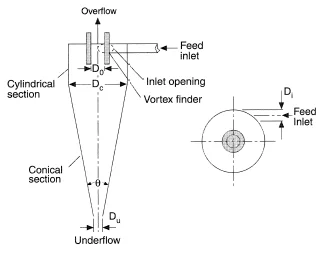

Principle
Liquids and solids enter the unit and begin traveling in a circular flow. This centrifugal action forces heavier particles
downward in a spiral motion to the separation chamber. The particles collect in this separation chamber and are purged from the system. The filtered water is drawn to the separator’s vortex and up through the outlet.
downward in a spiral motion to the separation chamber. The particles collect in this separation chamber and are purged from the system. The filtered water is drawn to the separator’s vortex and up through the outlet.
Advantage
Capable of separating fine material from liquid
Can separate liquid from liquid when large differences in specific gravity are present
Accepts variation in feed solids content
Consistent underflow densities
Adjustable underflow densities
Rubber-lined standard; ceramic lining optional
Can separate liquid from liquid when large differences in specific gravity are present
Accepts variation in feed solids content
Consistent underflow densities
Adjustable underflow densities
Rubber-lined standard; ceramic lining optional
Product Paramenters
Model | Diameter(mm) | Height(mm) | Feeding pressure(Mpa) | Separation size(μm) | Weight(kg) |
JAX-75 | 75 | 472.5 | 0.1-0.5 | 20-60 | 4 |
JAX-100 | 100 | 499 | 0.05-0.4 | 20-60 | 8 |
JAX-125 | 125 | 590 | 0.05-0.4 | 25-65 | 10 |
JAX-150 | 150 | 786 | 0.05-0.4 | 30-75 | 22 |
JAX-200 | 200 | 1114 | 0.05-0.4 | 40-100 | 36 |
JAX-250 | 250 | 1380 | 0.05-0.4 | 40-100 | 63 |
JAX-300 | 300 | 1490 | 0.03-0.4 | 50-150 | 88 |
JAX-350 | 350 | 1674 | 0.03-0.4 | 50-150 | 135 |
JAX-500 | 500 | 2280 | 0.03-0.4 | 74-200 | 416 |
JAX-660 | 600 | 2720 | 0.03-0.4 | 74-200 | 950 |
Success cases
Recommend Products
Packaging & Delivery
We makes a classification package plan for all the kinds of equipments and materials. Transport the goods to Chinese port in batches, handle the procedure.
Company Information
JINPENG GROUP has more than 30 years experience in mining design and equipment manufacture. We can provide one-stop service that including research, design, manufacture, installation and commissioning, personnel training, after-sale service and management of dressing plant.
Mineral processing and smelting research institute
Our Mineral processing and smelting research institute has undertaken thousands of experimental research projects in various minesat home and abroad. In particular, nearly one hundred scientific tests have been carried out on the mines with low grade and refactory ore. The institute now has more than 30 processing, research and development personnel. and possesses national leading
technology in gold research
technology in gold research
Meanwhile, we obtained a number of scientific research achievements ,in recent years, we also made a major breakthrough in the field of non-metallic, particularly in fluorite ore, graphite ore, quartz, sodium potassium feldspar ore dressing research, which obtained a number of proprietary technology.
Our Metallurgical Design and research institude owns the professional qualifications of metallurgical industry issued by Ministry of construction. Since its establishment, the company has completed hundreds of mine engineering design projects, and won the national excellent engineering design awards many times. President xu baohua once served as the chief designer of the largest gold mine in Asia - zhongkuang gold industry (lingnan gold mine), the mine has advanced design technology, reasonable equipment selection, with the characteristics of saving investment and quick capital recovery. In recent years, based on the domestic market,at the same time, the design institute has also gone abroad by designing for hundreds of mineral processing plants in more than 40 countries , which is well received by users
Our Metallurgical Design and research institude owns the professional qualifications of metallurgical industry issued by Ministry of construction. Since its establishment, the company has completed hundreds of mine engineering design projects, and won the national excellent engineering design awards many times. President xu baohua once served as the chief designer of the largest gold mine in Asia - zhongkuang gold industry (lingnan gold mine), the mine has advanced design technology, reasonable equipment selection, with the characteristics of saving investment and quick capital recovery. In recent years, based on the domestic market,at the same time, the design institute has also gone abroad by designing for hundreds of mineral processing plants in more than 40 countries , which is well received by users
Laborotaries
EXHIBITIONS
Jinpeng participate in various exhibitions frequently,such as China Gold Congres,China Import and Export Fair , Mining EXPO CHINA,Asia-pacific's International Mining Exhibition, Mine Entra Zimbabwe CONEXPO Morocco, etc.
Customers visit
Certificate
FAQ
1.How is the quality of your products? (mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every equipment before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
