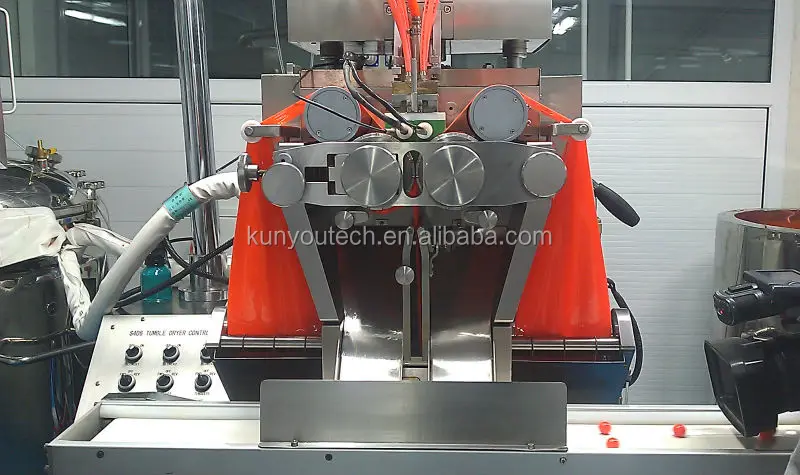

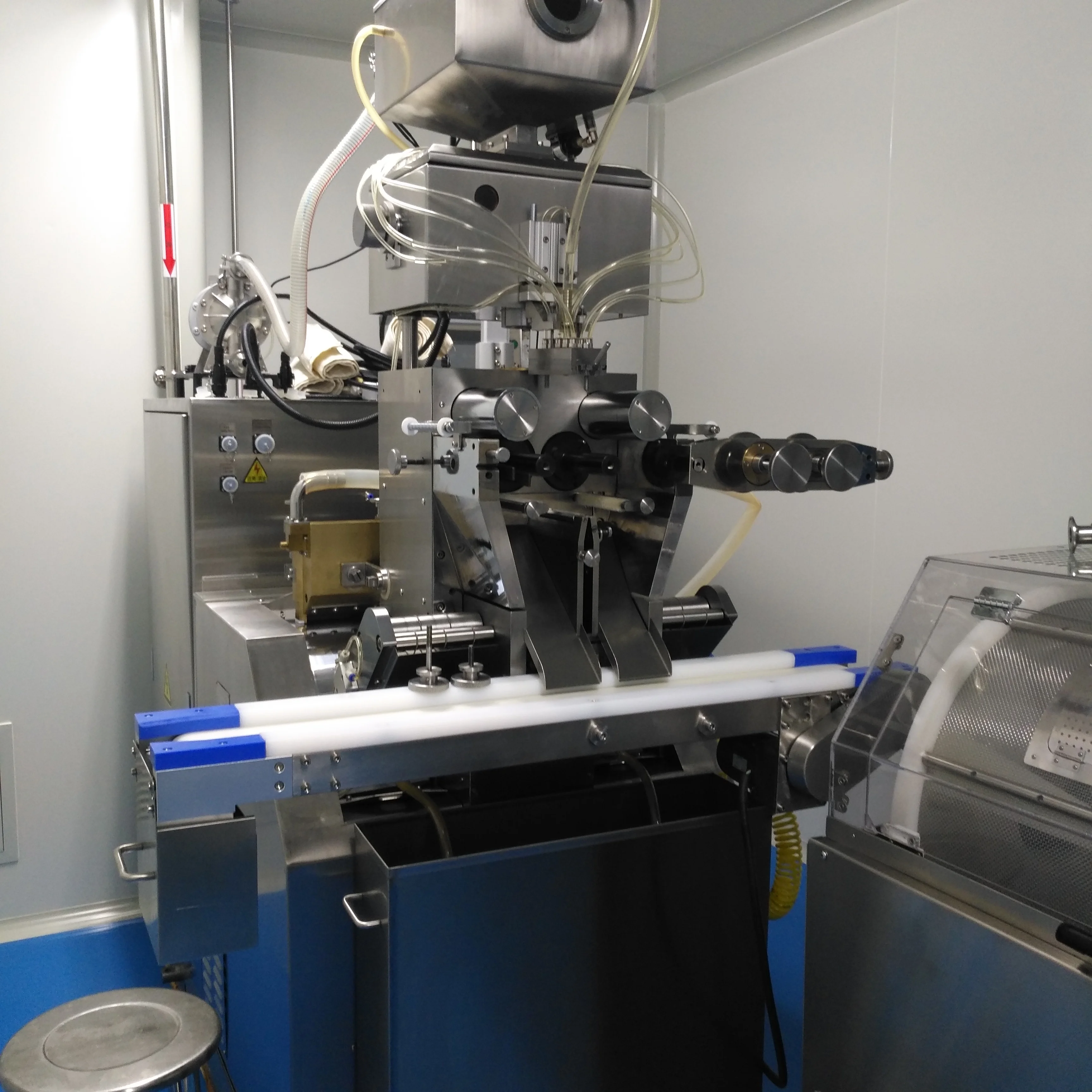

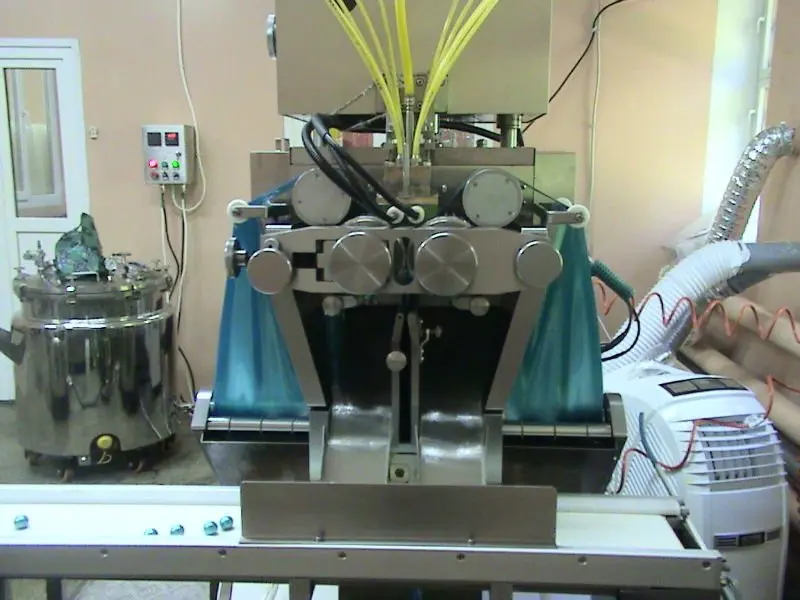

S406PB paintball making machine's die roll is 152 mm long. The die roll's rotation rate can be regulated during 0~7 rpm, so users can choose the most appropriate speed according to diffrent material and process parameters. More helical gears are used in the process of gear moving, which improve the gear coincidence degree and transmission stability. The spilt structure of cooling fan reduces the thermal effect to the perssure pill. Besides, the gelatin barrel is installed with wheels which can be moved more conveniently and easily. The machine's oil roller is made of stainless steel material, so it's more in line with the repuirementS of GMP.
S406 medium scale painball making machine has the following characteristics:
In strict accordance with national GMP standards. Compact and simply mechanical design. Dosage tolerance: + 2% All electrical elements are well-known brand, Germany high precision bearing,low possibility of down time. Main shaft parellelism and total incremental runout less than 0.02mm Gelatin ribbon micro lubrication system, solvent free The gelatin cooling drums are mechnically synchronized with the main shaft. Automatic liquid level control of medicine hopper, gelatin spreader box. Precision PID temperature control of medicine hopper, injection wedge, gelatin spreader box.
Specifications:
Model
S406PB
Die roll diameter
Φ 103mm
Die roll length
152mm
Die roll speed
0~5rpm
Plunger numbers
10
dimension
880X640X1900mm
weight
900kg
Power consumption
2.75kw
Control mode
PLC+HMI Switch/buttons
Output rate
18000 pcs/hour
Company Information
Beijing Kun You Pharmatech Co., Ltd. devotes itself to manufacture softgel encapsulation line, tumble dryer, softgel mould, softgel sorting machine, softgel auxiliary equipment, paintball production line, and related technique R&D.
We also accumulated rich experience of softgel encapsulation technique. We have many sets of high-precision CNC and auxiliary equipments, and our professional design, technology, production and service personnel, enable us to produce high performance equipment, mould and top quality service. We are not only a equipment and mould supplier, but also a turn-key solution and formula provider.Easpcially in veggie gel capsule.
Kun You is keeping good cooperation relationship with companies from USA,Swissland, Germany, Canada, Russia, Mexcio, Vietnam, Turkey, Brasil, India, etc., in the meantime, our products and service have been exported to those regions too.
